Straight female adaptor EF02 brass NBR G1/8" D4mm

high pressure needle valve 1 1/4" fm NV01 stainless steel 1.4571 3
quantity (pcs.):
1.30€ * 1.55€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1-2 working days

All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
technical details

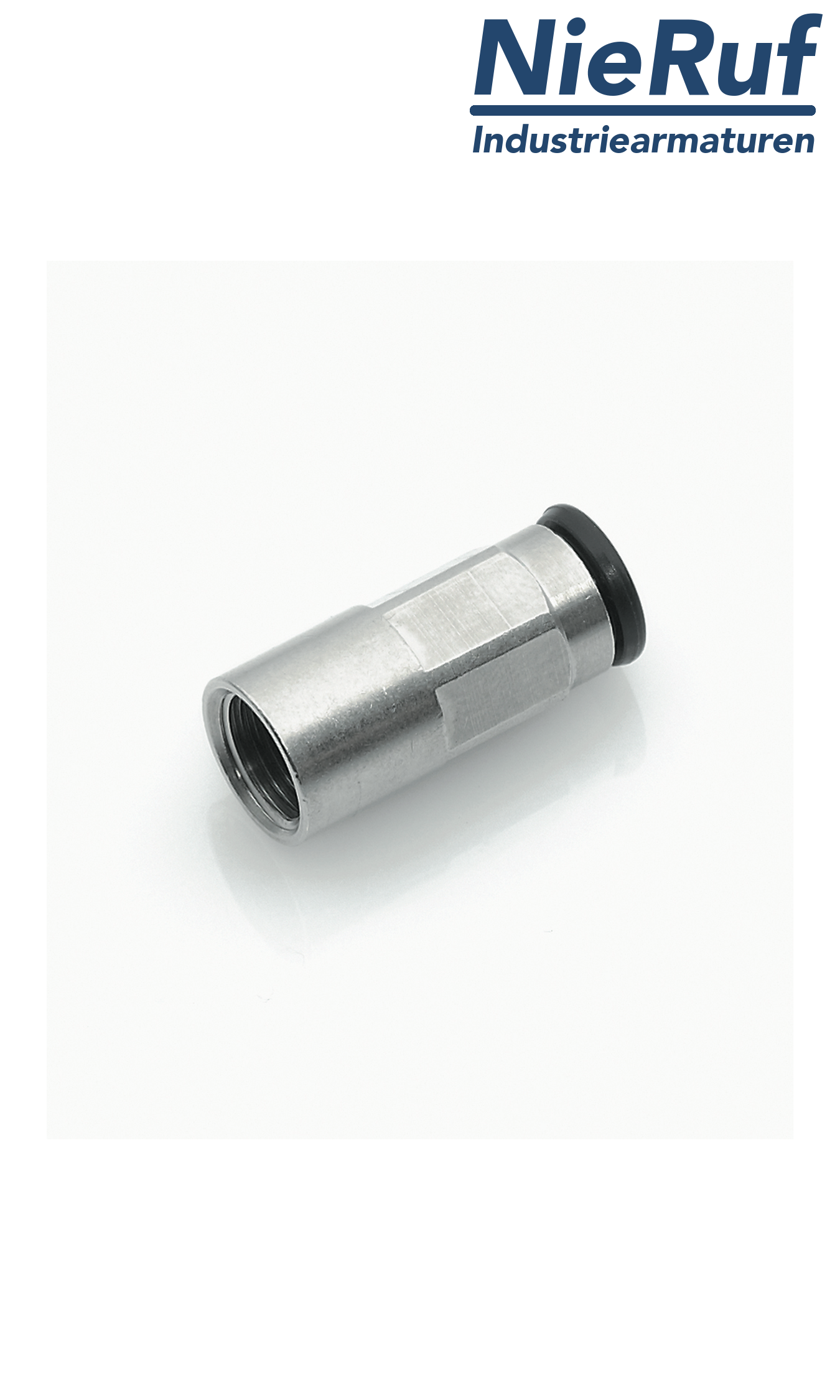

Straight female adaptor EF02 brass NBR G1/8" D4mm
port connection Straight female adaptor made of brass with NBR-seal G1/8" D4mm for lubricated & non-lubricated compressed air up to 16 bar
design: Straight female adaptor
thread connection: G1/8"
tube connection 1: D4mm
body material: brass Ms58 nickel-plated
seal: NBR
collet: stainless steel 1.4401
pressure ring: black plastic
thread: cylindrical
media: lubricated & non-lubricated compressed air
max. working pressure: up to 16 bar
product feature: Straight female adaptor to connect or to plug pipes in pneumatic- or pressure air applications.
Straight female adaptor EF02 brass NBR G1/8" D4mm

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Straight female adaptor EF02 brass NBR G1/8" D4mm
