EF02000105

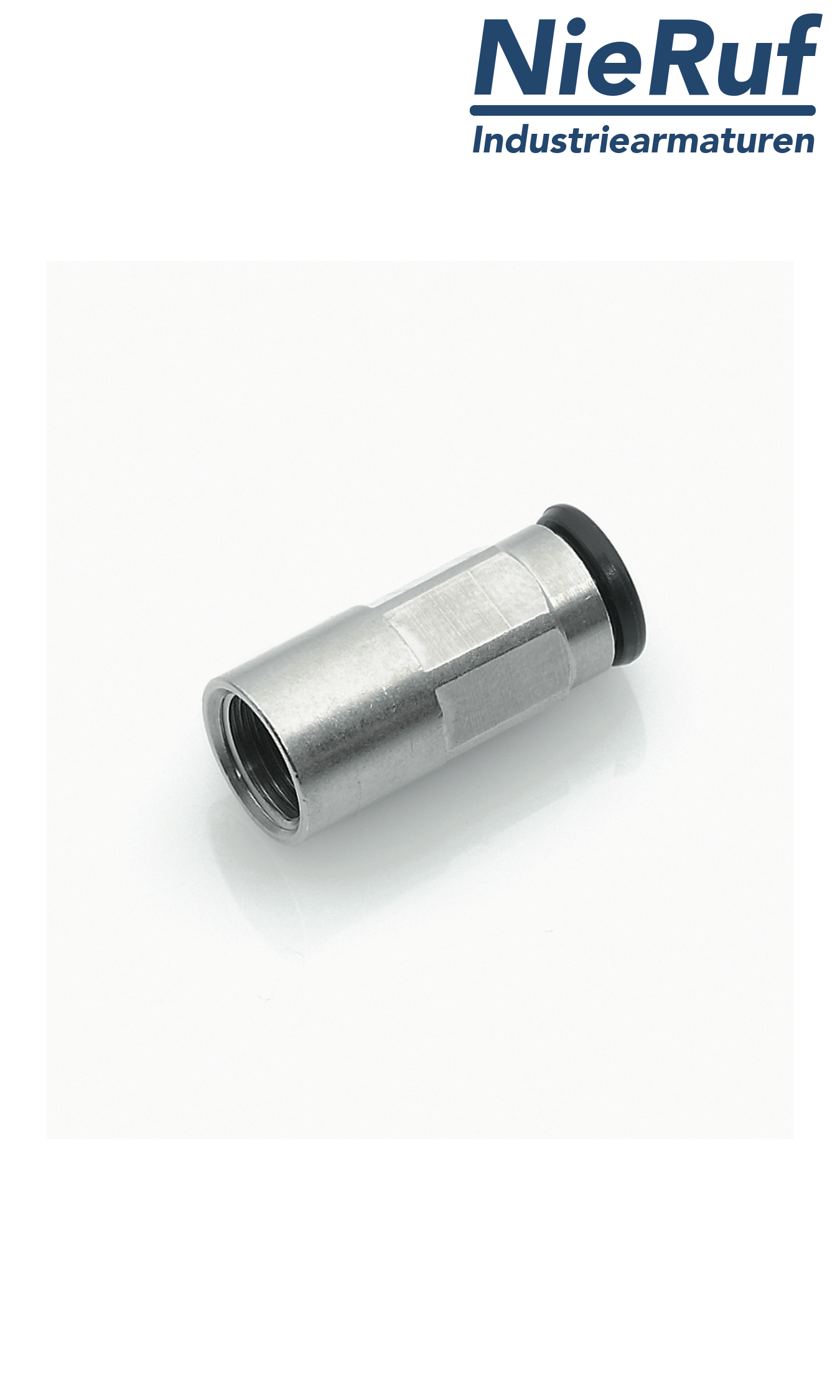

Straight female adaptor EF02 brass NBR G1/4" D5mm
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Straight female adaptor EF02 brass NBR G1/4" D5mm
port connection Straight female adaptor made of brass with NBR-seal G1/4" D5mm for lubricated & non-lubricated compressed air up to 16 bar
| product | port connection |
|---|---|
| type | EF02 |
| manufacturer | NieRuf |
| design | Straight female adaptor |
| thread connection | G1/4" |
| tube connection 1 | D5mm |
| body material | brass Ms58 nickel-plated |
| seal | NBR |
| collet | stainless steel 1.4401 |
| pressure ring | black plastic |
| thread | cylindrical |
| media | lubricated & non-lubricated compressed air |
| max. working pressure | up to 16 bar |
| product feature | Straight female adaptor to connect or to plug pipes in pneumatic- or pressure air applications. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Straight female adaptor EF02 brass NBR G1/4" D5mm
Article no.
: EF02000105
product:
port connection
type:
EF02
manufacturer:
NieRuf
design:
Straight female adaptor
thread connection:
G1/4"
tube connection 1:
D5mm
body material:
brass Ms58 nickel-plated
seal:
NBR
collet:
stainless steel 1.4401
pressure ring:
black plastic
thread:
cylindrical
media:
lubricated & non-lubricated compressed air
max. working pressure:
up to 16 bar
product feature:
Straight female adaptor to connect or to plug pipes in pneumatic- or pressure air applications.
