ES01010014.1000

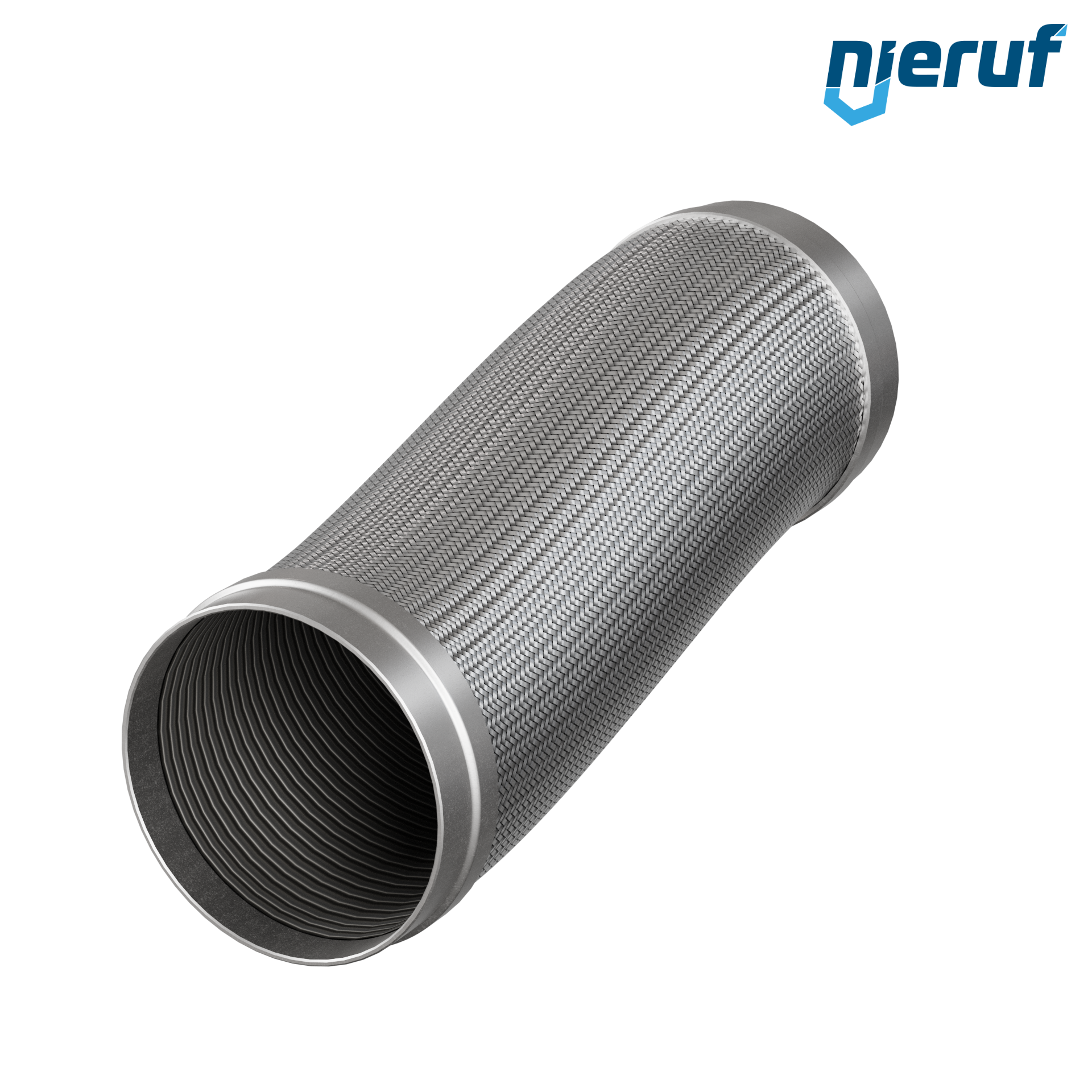

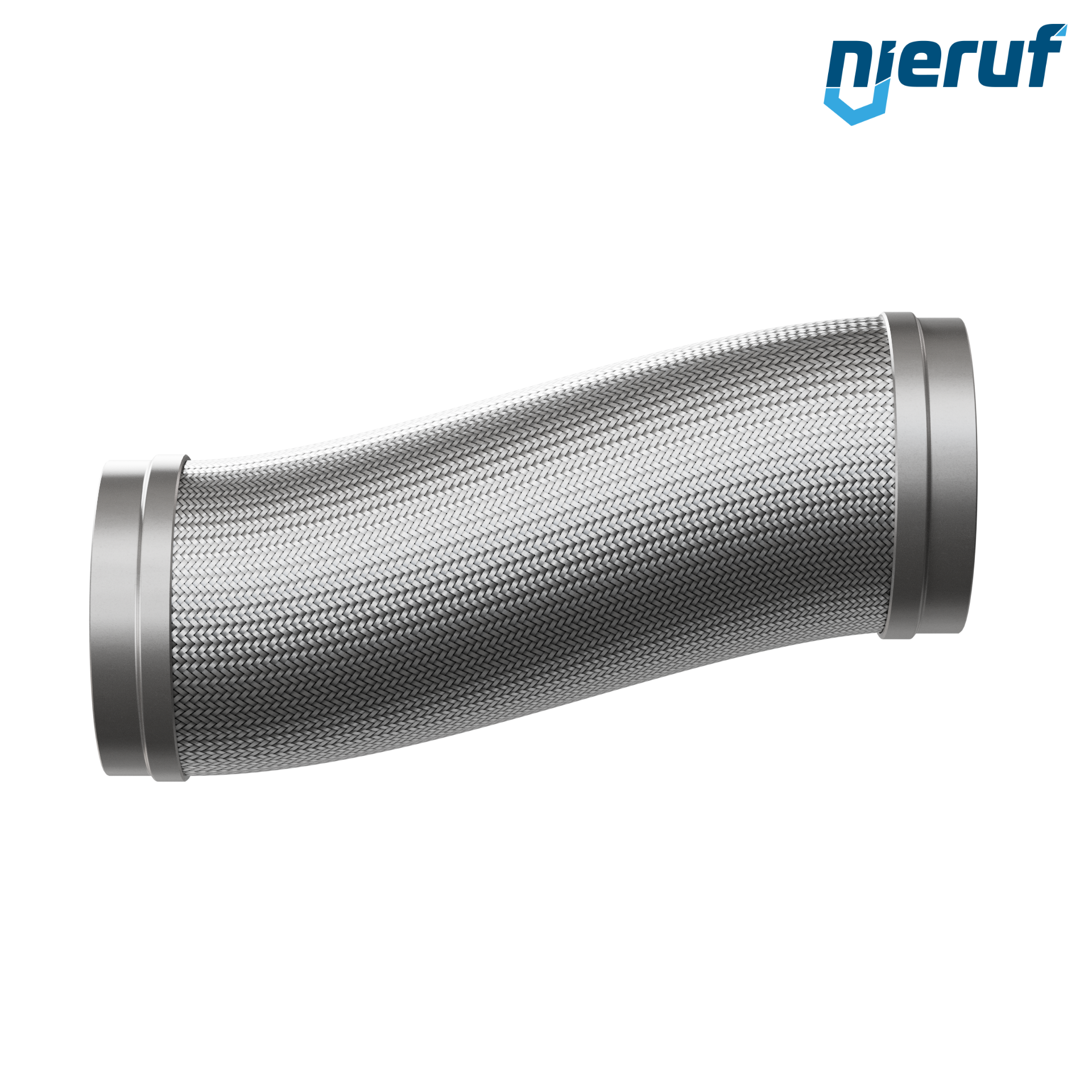

Stainless steel hoses ES01 DN200 - 219.1 mm with double braid and welding ends length 1000 mm
- Lead time
- 2 - 3 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
Downloads
Stainless steel hoses ES01 DN200 - 219.1 mm with double braid and welding ends length 1000 mm
Stainless steel hoses with welding ends on both sides Ø 219,1 mm and double braid in diameter DN200 - 219.1 mm with 1000 mm length and 10 bar max. pressure
| product | Stainless steel hoses |
|---|---|
| type | ES01 |
| manufacturer | NieRuf |
| diameter | DN200 - 219.1 mm |
| length | 1000 mm |
| connection | welding ends on both sides Ø 219,1 mm |
| material hose | stainless steel 1.4404 |
| material mesh | stainless steel 1.4301 |
| version | double braid |
| max. pressure | 10 bar |
| temperature | 0-600°C (please take note of the pressure-temperature-diagram) |
| Minimal bending radius | dynamic load: 1016 mm & static load: 508 mm |
| media | liquid and gaseous media |
| product feature | The braid prevents the hose from expanding, absorbs tensile forces and also serves as a protective hose |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Stainless steel hoses ES01 DN200 - 219.1 mm with double braid and welding ends length 1000 mm
Article no.
: ES01010014.1000
product:
Stainless steel hoses
type:
ES01
manufacturer:
NieRuf
diameter:
DN200 - 219.1 mm
length:
1000 mm
connection:
welding ends on both sides Ø 219,1 mm
material hose:
stainless steel 1.4404
material mesh:
stainless steel 1.4301
version:
double braid
max. pressure:
10 bar
temperature:
0-600°C (please take note of the pressure-temperature-diagram)
Minimal bending radius:
dynamic load: 1016 mm & static load: 508 mm
media:
liquid and gaseous media
product feature:
The braid prevents the hose from expanding, absorbs tensile forces and also serves as a protective hose
