ES01010205.500

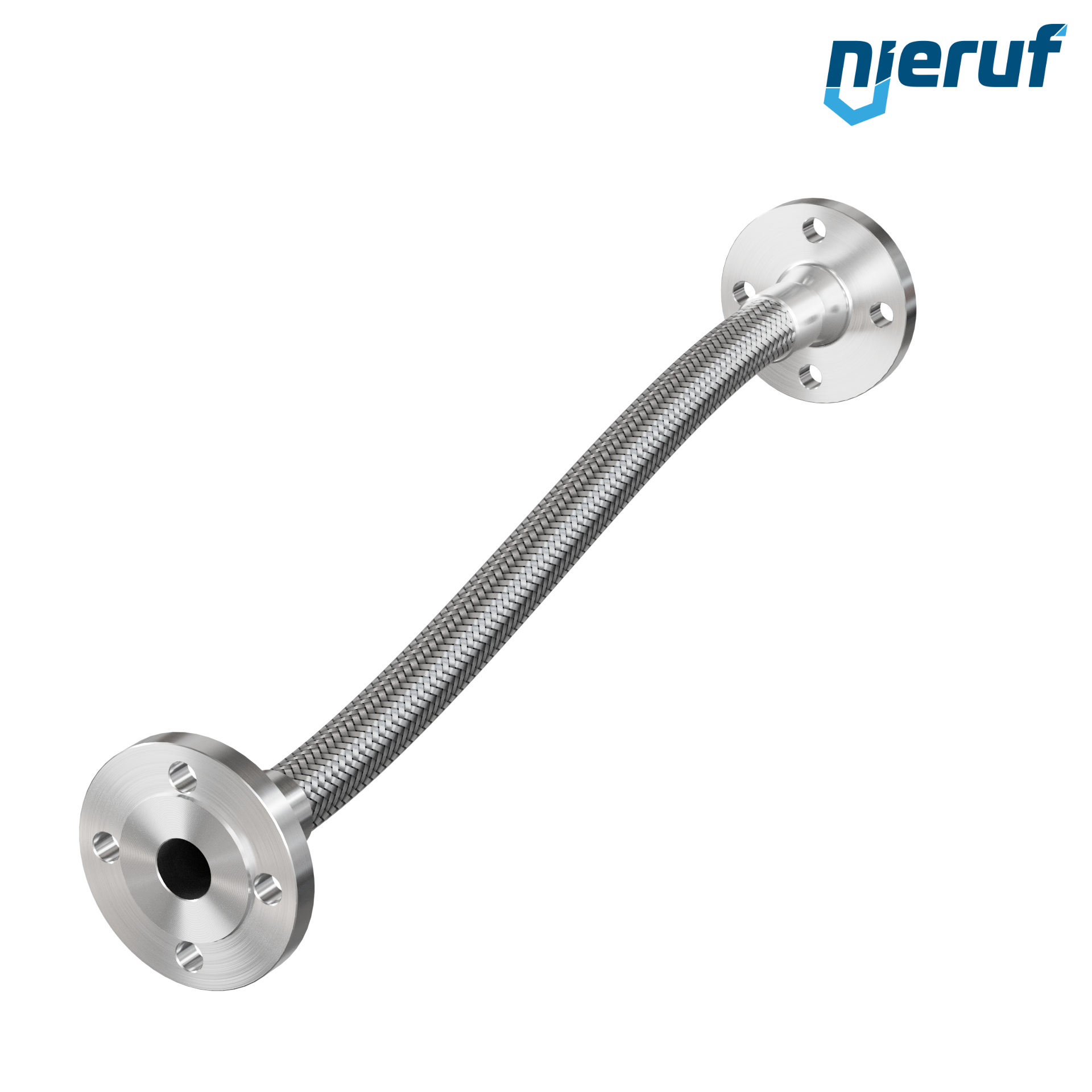

Stainless steel hoses ES01 DN25 - 1" inch with double braid and fixed flange length 500 mm

Tubo corrugato in acciaio inossidabile ES01 DN25 - 1" pollici con treccia doppia e flangia fissa Lunghezza 1000 mm

€243.40*

€289.65 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 2 - 3 weeks

Equipment

FL01000105

Welding neck flange DN25 PN10/16/25/40 EN1092-1 11 B1 1.4541

€19.30*

€22.97 VAT included.

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

Downloads

Datasheet

Stainless steel hoses ES01 DN25 - 1" inch with double braid and fixed flange length 500 mm

Stainless steel hoses with fixed flange on both sides EN 1092-01 Typ 11 PN 40 and double braid in diameter DN25 - 1" inch with 500 mm length and 40 bar max. pressure

product	Stainless steel hoses
type	ES01
manufacturer	NieRuf
diameter	DN25 - 1" inch
length	500 mm
connection	fixed flange on both sides EN 1092-01 Typ 11 PN 40
material hose	stainless steel 1.4404
material mesh	stainless steel 1.4301
version	double braid
max. pressure	40 bar
temperature	0-600°C (please take note of the pressure-temperature-diagram)
Minimal bending radius	dynamic load: 175 mm & static load: 88 mm
media	liquid and gaseous media
product feature	The braid prevents the hose from expanding, absorbs tensile forces and also serves as a protective hose

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Stainless steel hoses ES01 DN25 - 1" inch with double braid and fixed flange length 500 mm

Article no. : ES01010205.500
product: Stainless steel hoses
type: ES01
manufacturer: NieRuf
diameter: DN25 - 1" inch
length: 500 mm
connection: fixed flange on both sides EN 1092-01 Typ 11 PN 40
material hose: stainless steel 1.4404
material mesh: stainless steel 1.4301
version: double braid
max. pressure: 40 bar
temperature: 0-600°C (please take note of the pressure-temperature-diagram)
Minimal bending radius: dynamic load: 175 mm & static load: 88 mm
media: liquid and gaseous media
product feature: The braid prevents the hose from expanding, absorbs tensile forces and also serves as a protective hose
