KV02311002

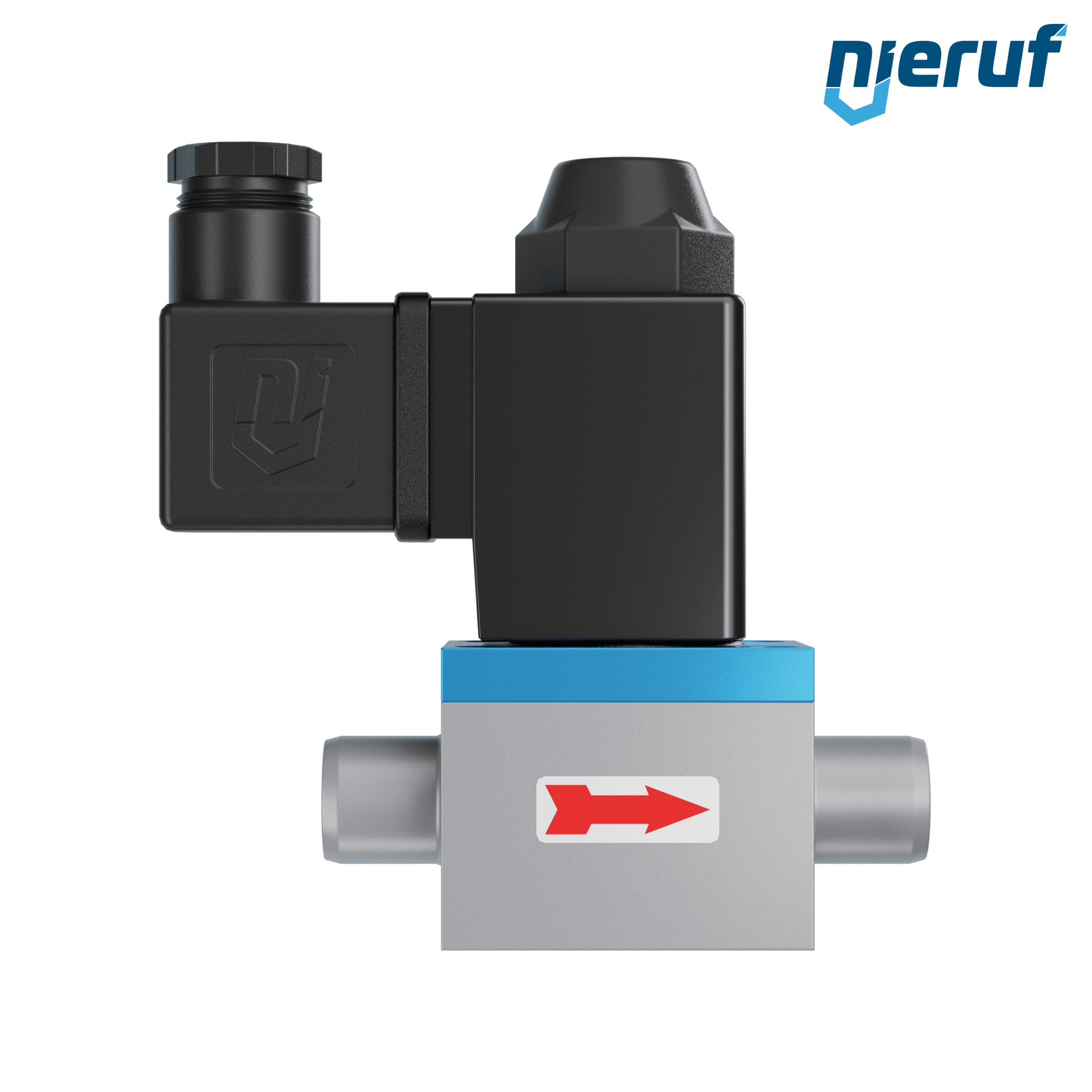

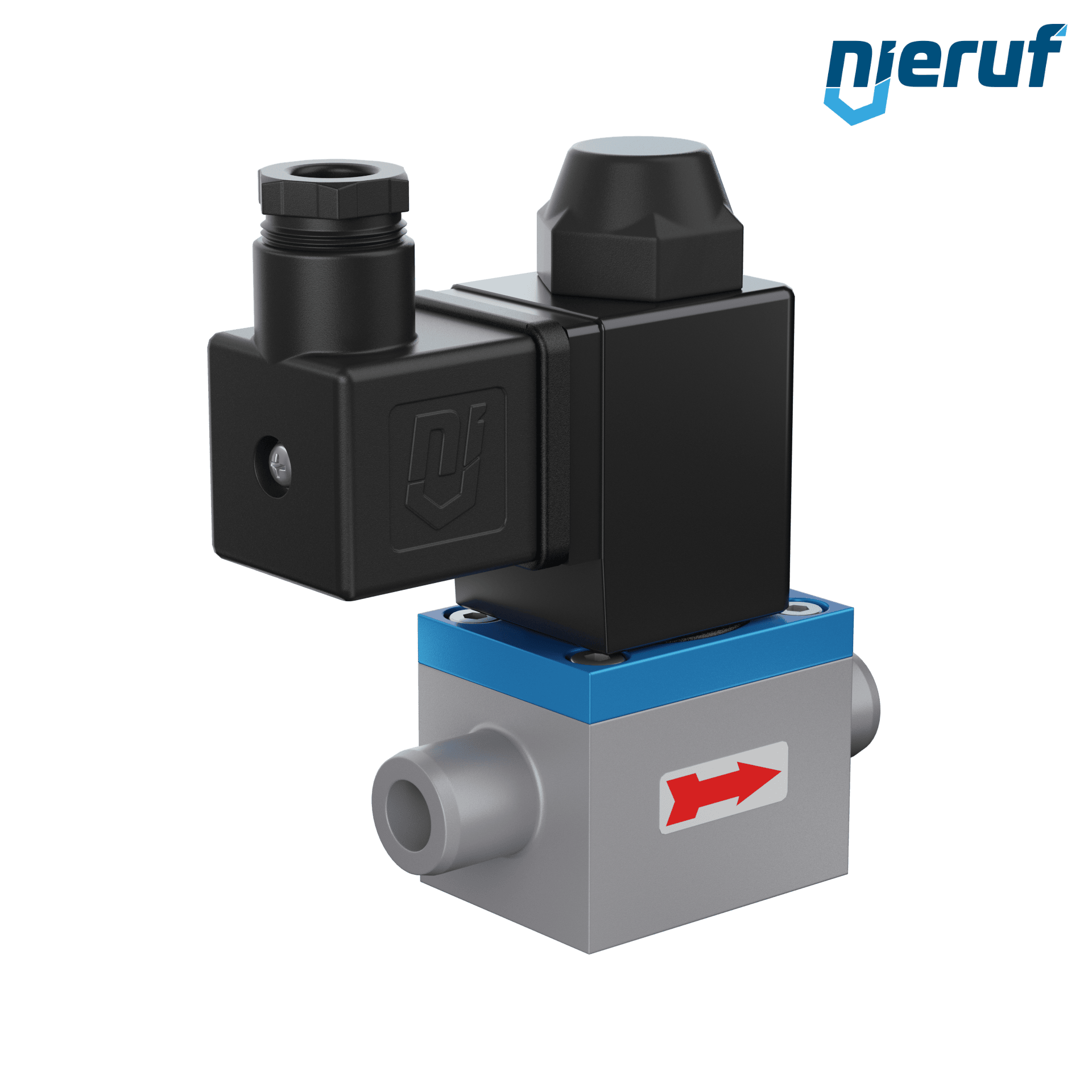

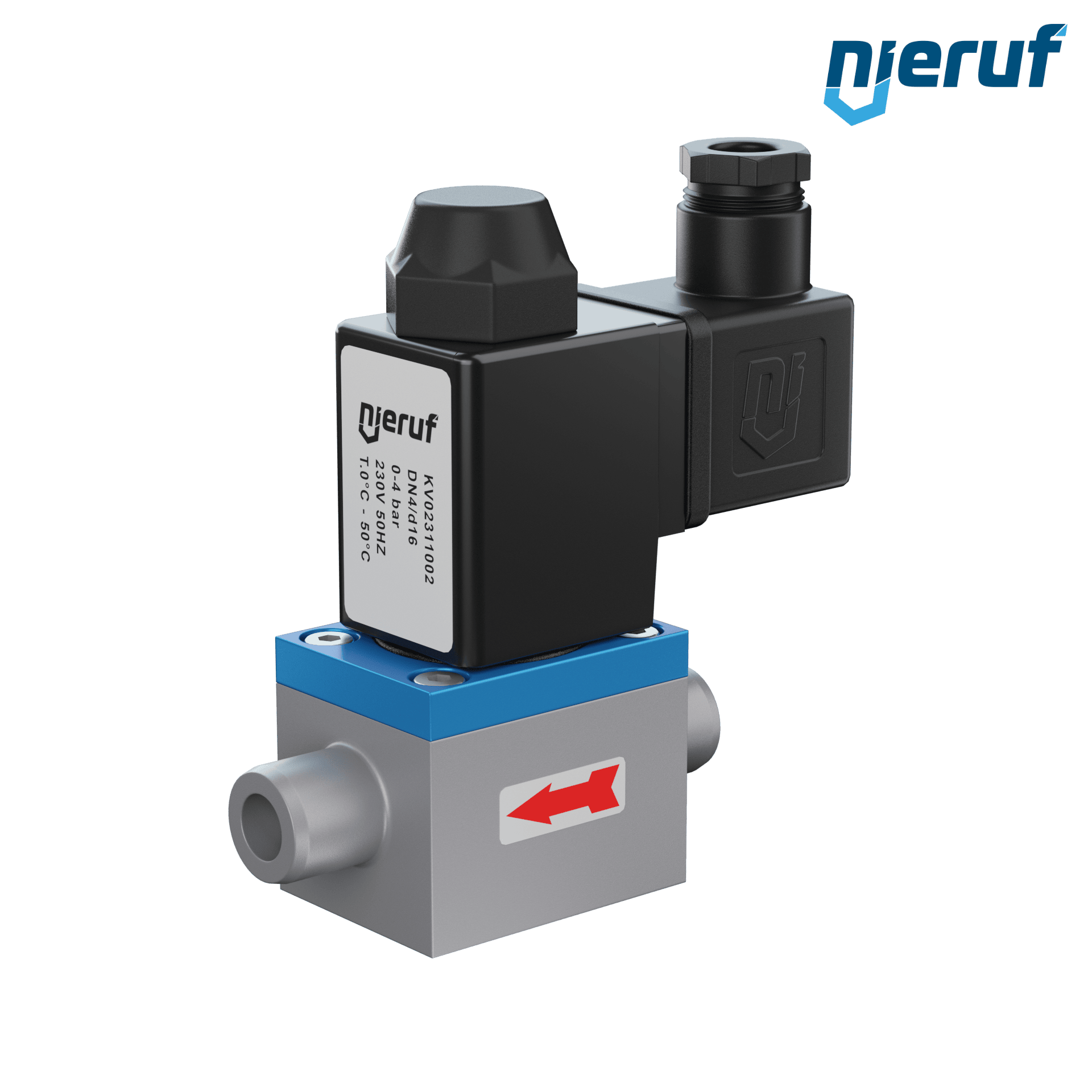

Solenoid valve-PVDF DN4,0 KV02 FKM 230V 50Hz
- Lead time
- 1 - 2 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you
Solenoid valve-PVDF DN4,0 KV02 FKM 230V 50Hz
2/2 Ways Solenoid valve d 16 DN4,0 made of PVDF seal FKM direct acting nominal voltage 230V 50Hz pressure 0 - 4 bar
| product | Solenoid valve |
|---|---|
| type | KV02 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN4,0 |
| connection | d16 |
| type of connection | welding spigots |
| Type of design | 2/2 Ways |
| flow rate | 6.0 l/min |
| function | NC - normally closed |
| control | direct acting |
| material | PVDF |
| seal | FKM |
| voltage | 230V 50Hz |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 11 VA |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted |
| media | liquid and gaseous media |
| temperature media | -30°C to +120°C (consider pressure-temperature-diagram) |
| temperature ambiente | 0°C up to +50°C |
| max. pressure | 0 - 4 bar |
| installation position | solenoid preferably above |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve-PVDF DN4,0 KV02 FKM 230V 50Hz
Article no.
: KV02311002
product:
Solenoid valve
type:
KV02
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN4,0
connection:
d16
type of connection:
welding spigots
Type of design:
2/2 Ways
flow rate:
6.0 l/min
function:
NC - normally closed
control:
direct acting
material:
PVDF
seal:
FKM
voltage:
230V 50Hz
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
11 VA
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
-30°C to +120°C (consider pressure-temperature-diagram)
temperature ambiente:
0°C up to +50°C
max. pressure:
0 - 4 bar
installation position:
solenoid preferably above
