KV02221002

PTFE Solenoid valve DN4,0 KV02 FKM 24V DC

€194.90*

€231.93 VAT included.

Delivery time: 3 - 5 working days

Delivery information

Equipment

GF01300001

hexagon nipple 1/4" inch male stainless steel 316

€1.60*

€1.90 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: KV02221002

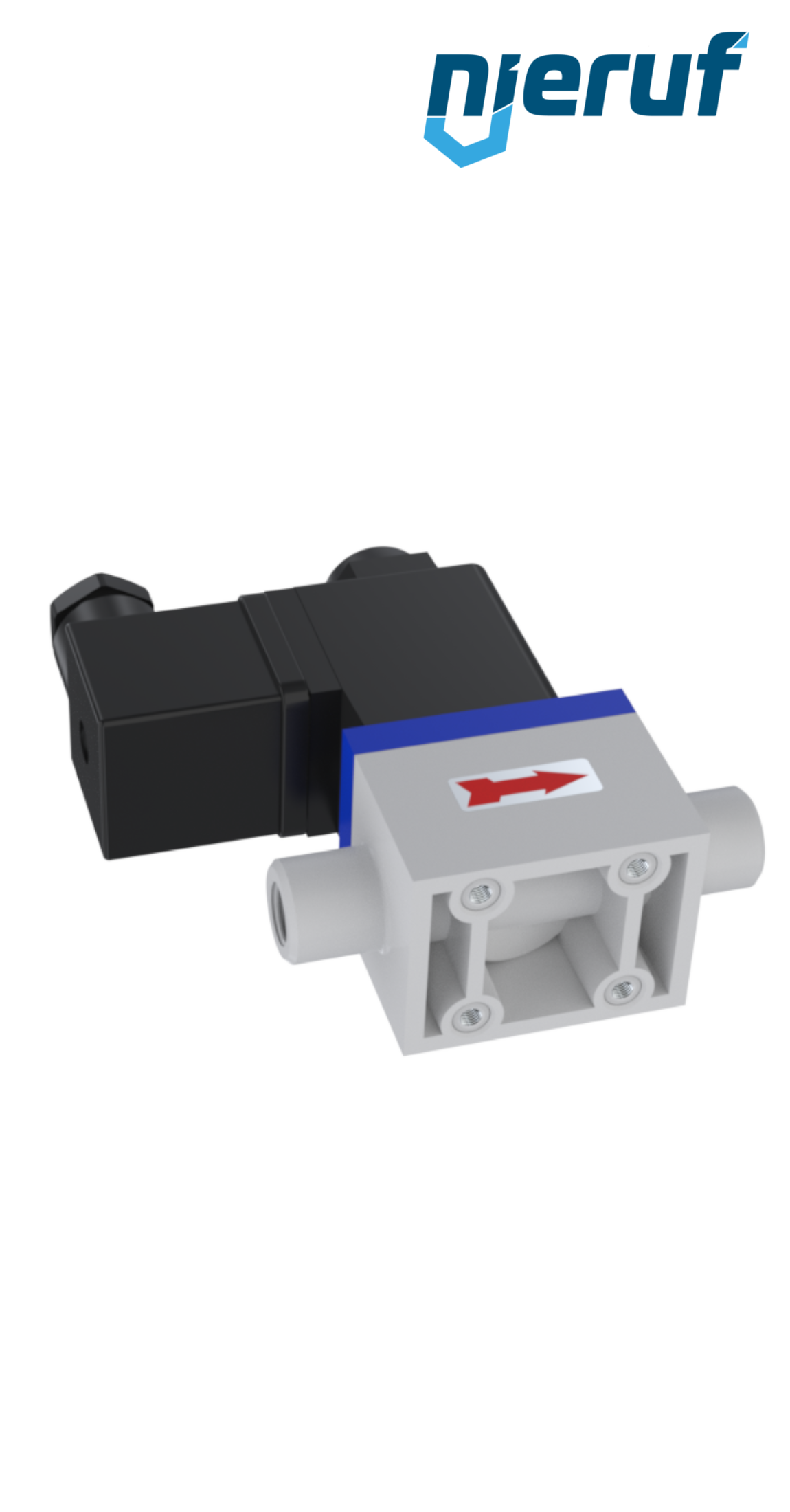

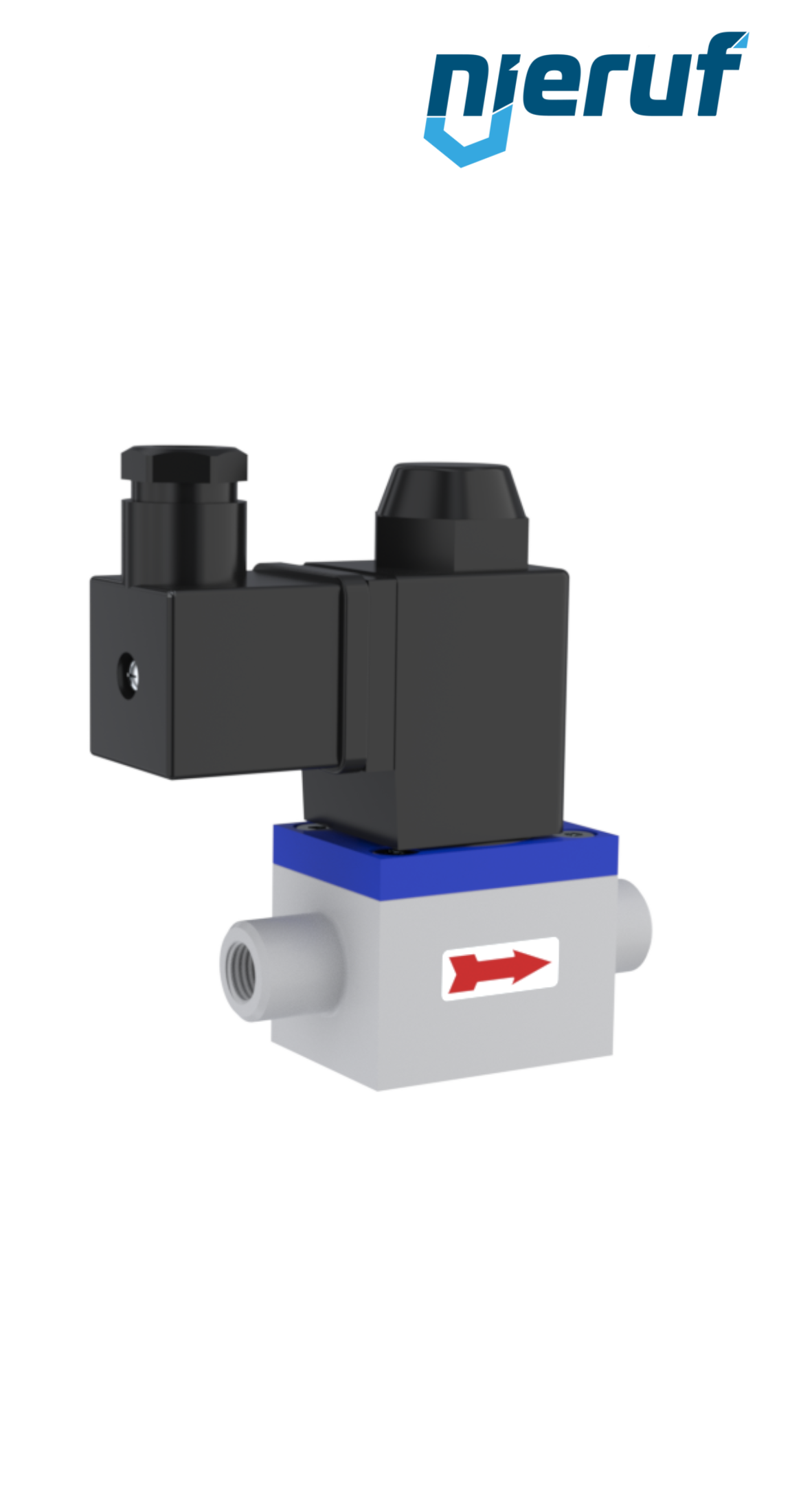

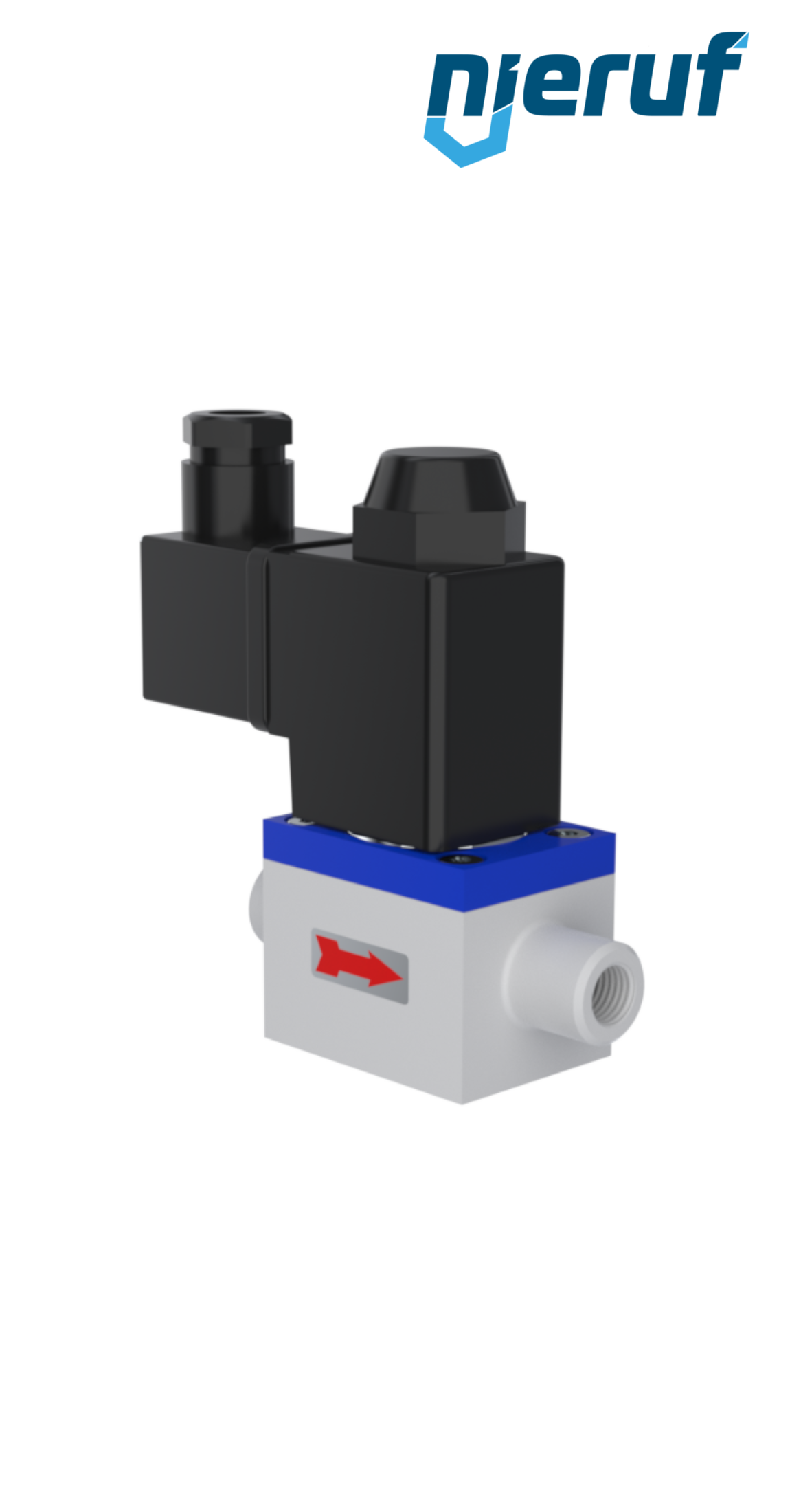

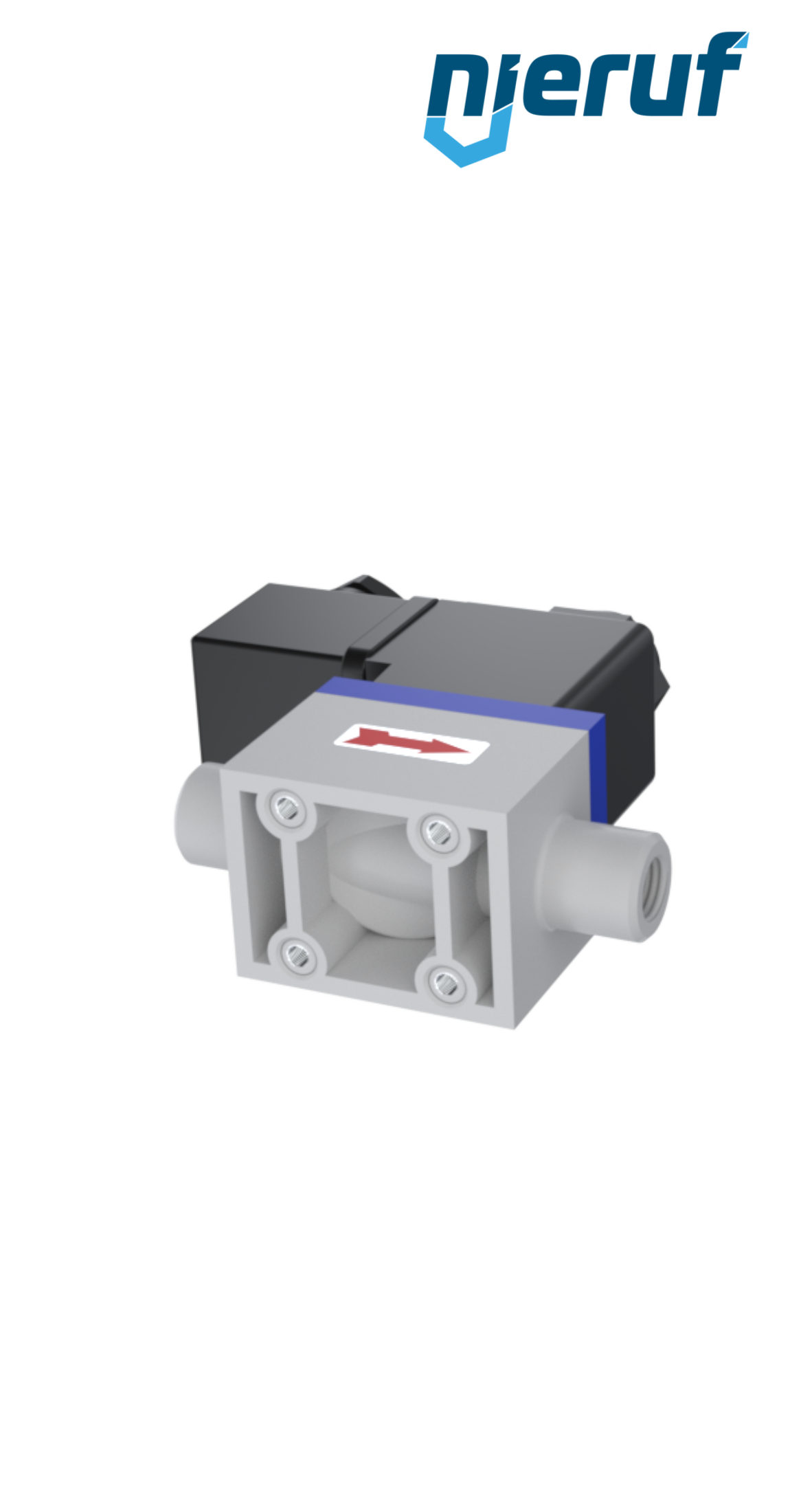

PTFE Solenoid valve DN4,0 KV02 FKM 24V DC

2/2 Ways Solenoid valve G 1/4" Inch DN4,0 made of PTFE seal FKM direct acting nominal voltage 24V DC pressure 0 - 3,2 bar

product: Solenoid valve
type: KV02
manufacturer: NieRuf
design: seat valve with membrane
diameter: DN4,0
connection: G 1/4" Inch
type of connection: female thread
Type of design: 2/2 Ways
flow rate: 6.0 l/min
function: NC - normally closed
control: direct acting
material: PTFE
seal: FKM
voltage: 24V DC
voltage tolerance: +/- 10% acc. VDE 0580
power consumption: 9 Watt
duty: 100% ED
plug socket: IP65 with plug socket mounted
media: liquid and gaseous media
temperature media: check data sheet
temperature ambiente: max up to +50°C
max. pressure: 0 - 3,2 bar
installation position: solenoid preferably above

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

PTFE Solenoid valve DN4,0 KV02 FKM 24V DC

Article no. : KV02221002
product: Solenoid valve
type: KV02
manufacturer: NieRuf
design: seat valve with membrane
diameter: DN4,0
connection: G 1/4" Inch
type of connection: female thread
Type of design: 2/2 Ways
flow rate: 6.0 l/min
function: NC - normally closed
control: direct acting
material: PTFE
seal: FKM
voltage: 24V DC
voltage tolerance: +/- 10% acc. VDE 0580
power consumption: 9 Watt
duty: 100% ED
plug socket: IP65 with plug socket mounted
media: liquid and gaseous media
temperature media: check data sheet
temperature ambiente: max up to +50°C
max. pressure: 0 - 3,2 bar
installation position: solenoid preferably above
