KV02121002
PVC Solenoid valve DN4,0 KV02 FKM 24V DC
- Lead time
- 1 - 2 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you

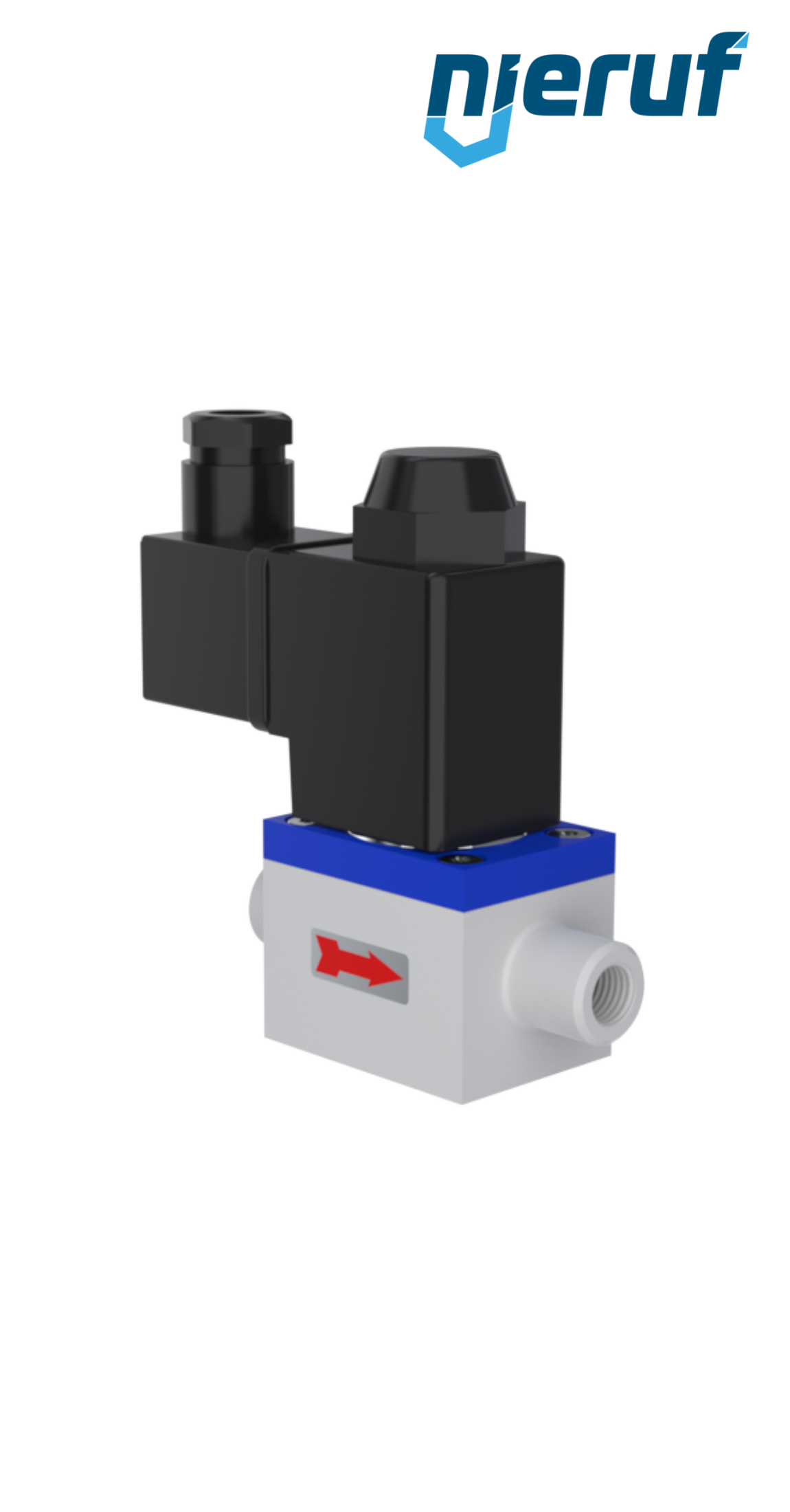

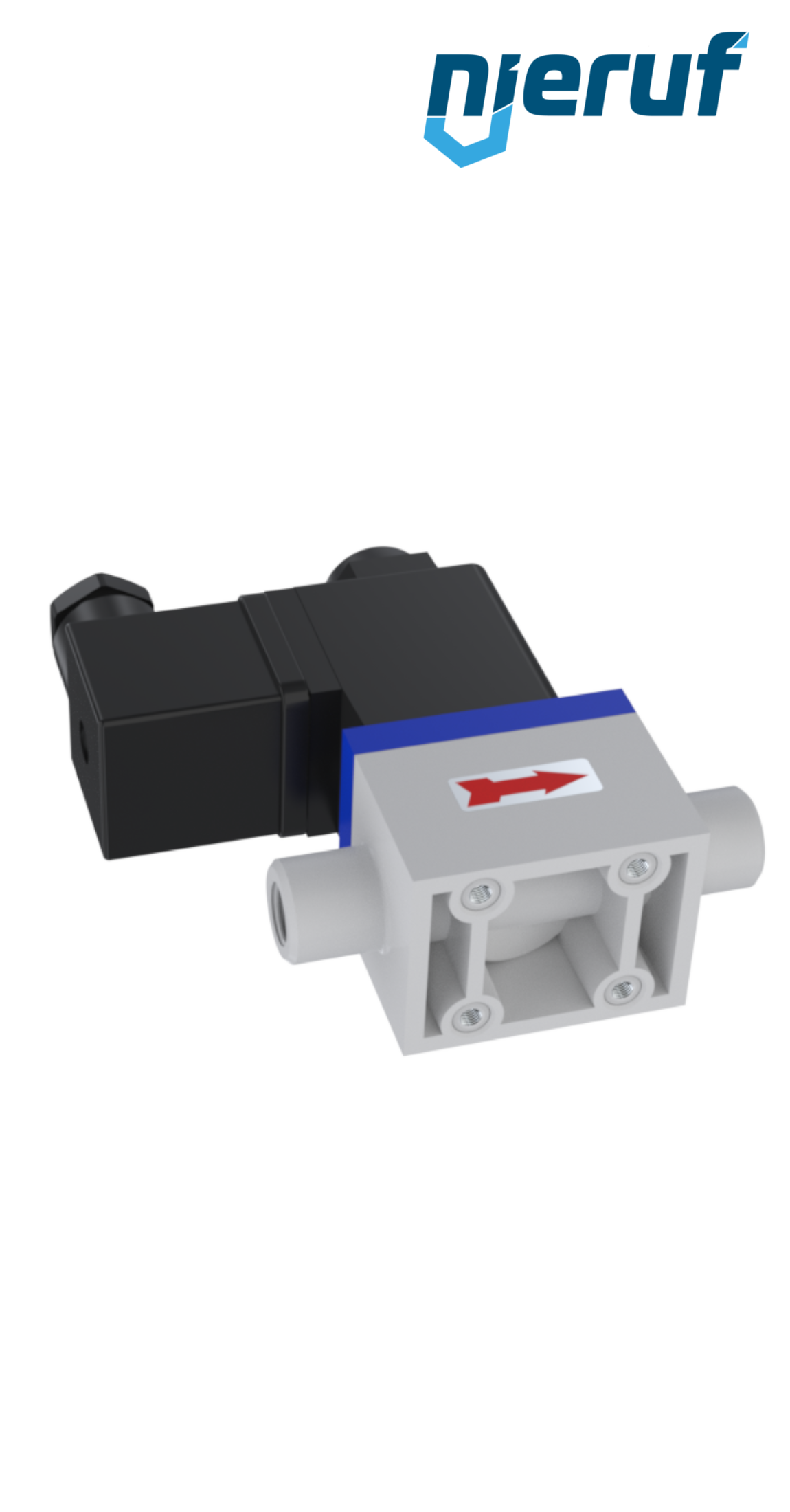

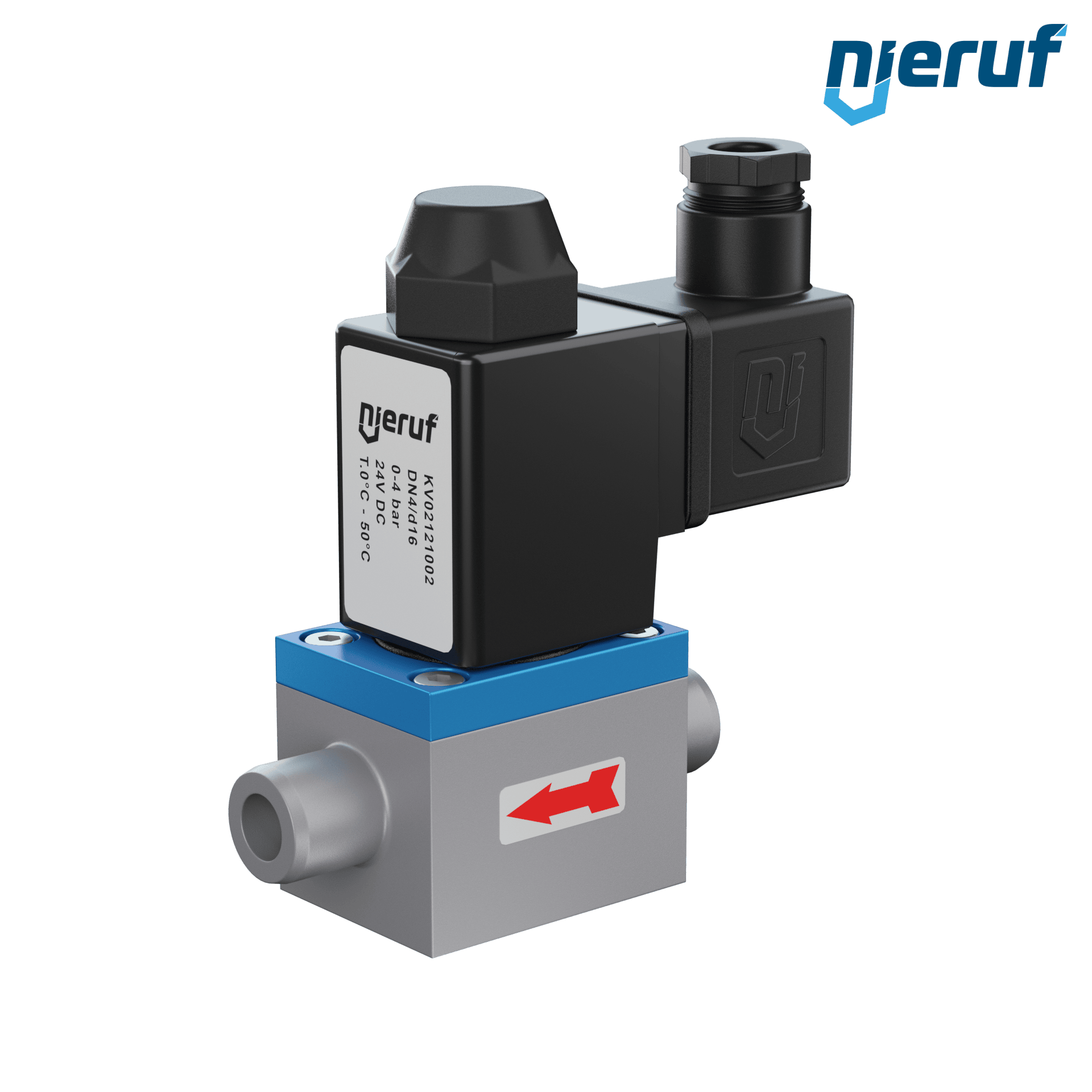

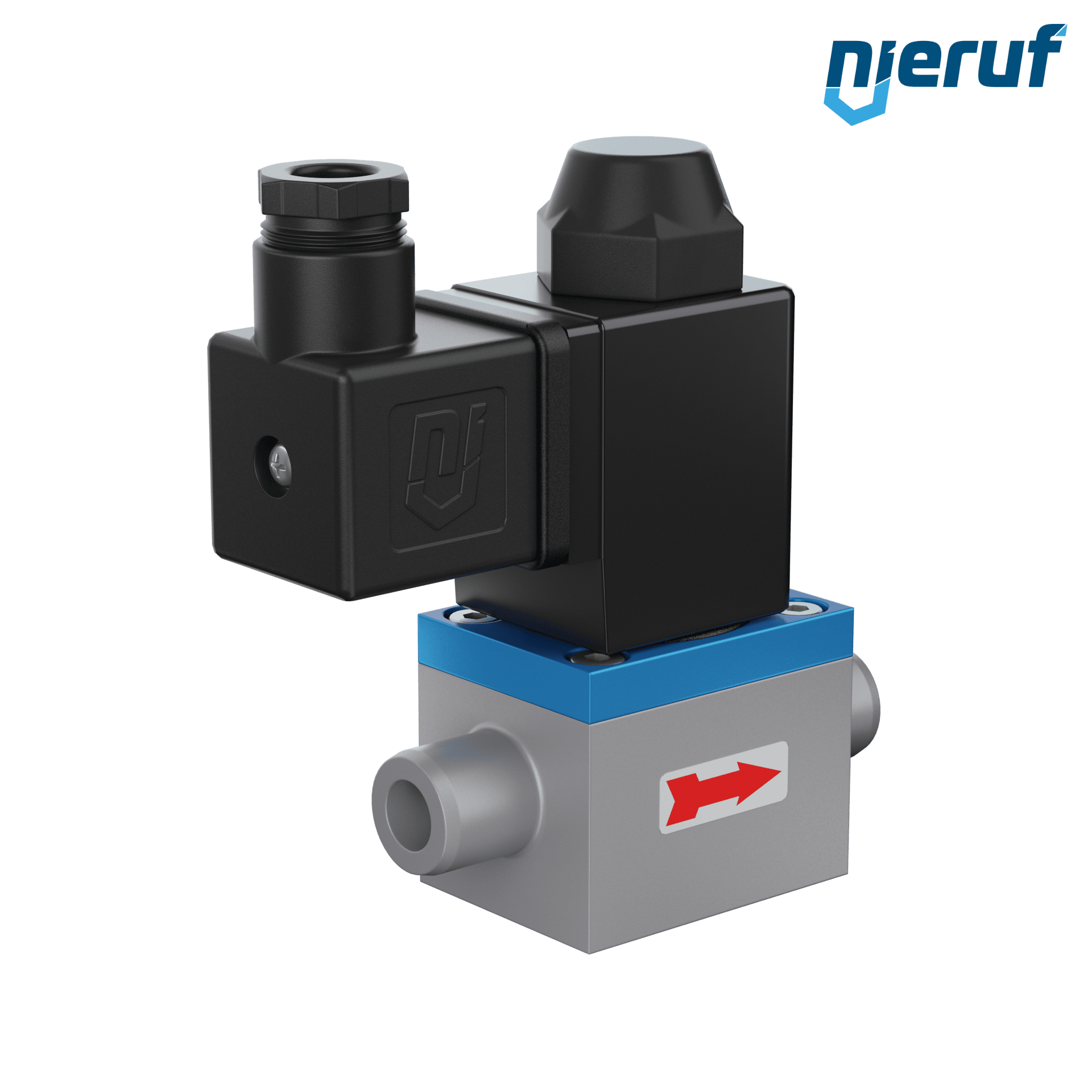

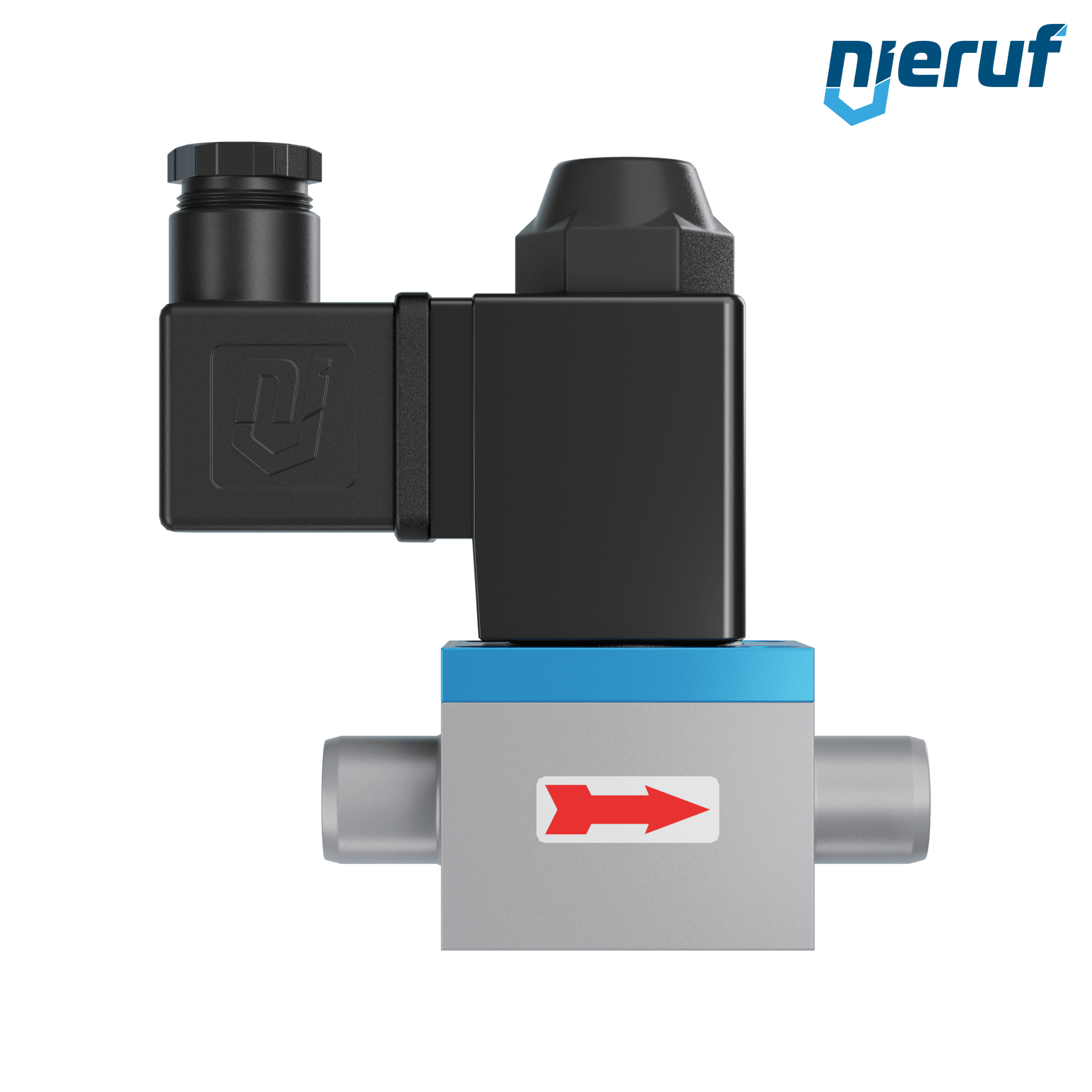

PVC Solenoid valve DN4,0 KV02 FKM 24V DC
2/2 Ways Solenoid valve d 16 DN4,0 made of PVC seal FKM direct acting nominal voltage 24V DC pressure 0 - 3,2 bar
| product | Solenoid valve |
|---|---|
| type | KV02 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN4,0 |
| connection | d16 |
| type of connection | cementing spigots |
| Type of design | 2/2 Ways |
| flow rate | 6.0 l/min |
| function | NC - normally closed |
| control | direct acting |
| material | PVC |
| seal | FKM |
| voltage | 24V DC |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 9 Watt |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted |
| media | liquid and gaseous media |
| temperature media | 0°C to +60°C (consider pressure-temperature-diagram) |
| temperature ambiente | 0°C up to +50°C |
| max. pressure | 0 - 3,2 bar |
| installation position | solenoid preferably above |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
PVC Solenoid valve DN4,0 KV02 FKM 24V DC
Article no.
: KV02121002
product:
Solenoid valve
type:
KV02
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN4,0
connection:
d16
type of connection:
cementing spigots
Type of design:
2/2 Ways
flow rate:
6.0 l/min
function:
NC - normally closed
control:
direct acting
material:
PVC
seal:
FKM
voltage:
24V DC
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
9 Watt
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
0°C to +60°C (consider pressure-temperature-diagram)
temperature ambiente:
0°C up to +50°C
max. pressure:
0 - 3,2 bar
installation position:
solenoid preferably above
