KV02120001
PVC-Solenoid valve DN2,0 KV02 EPDM 24V DC
- Lead time
- 1 - 2 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you

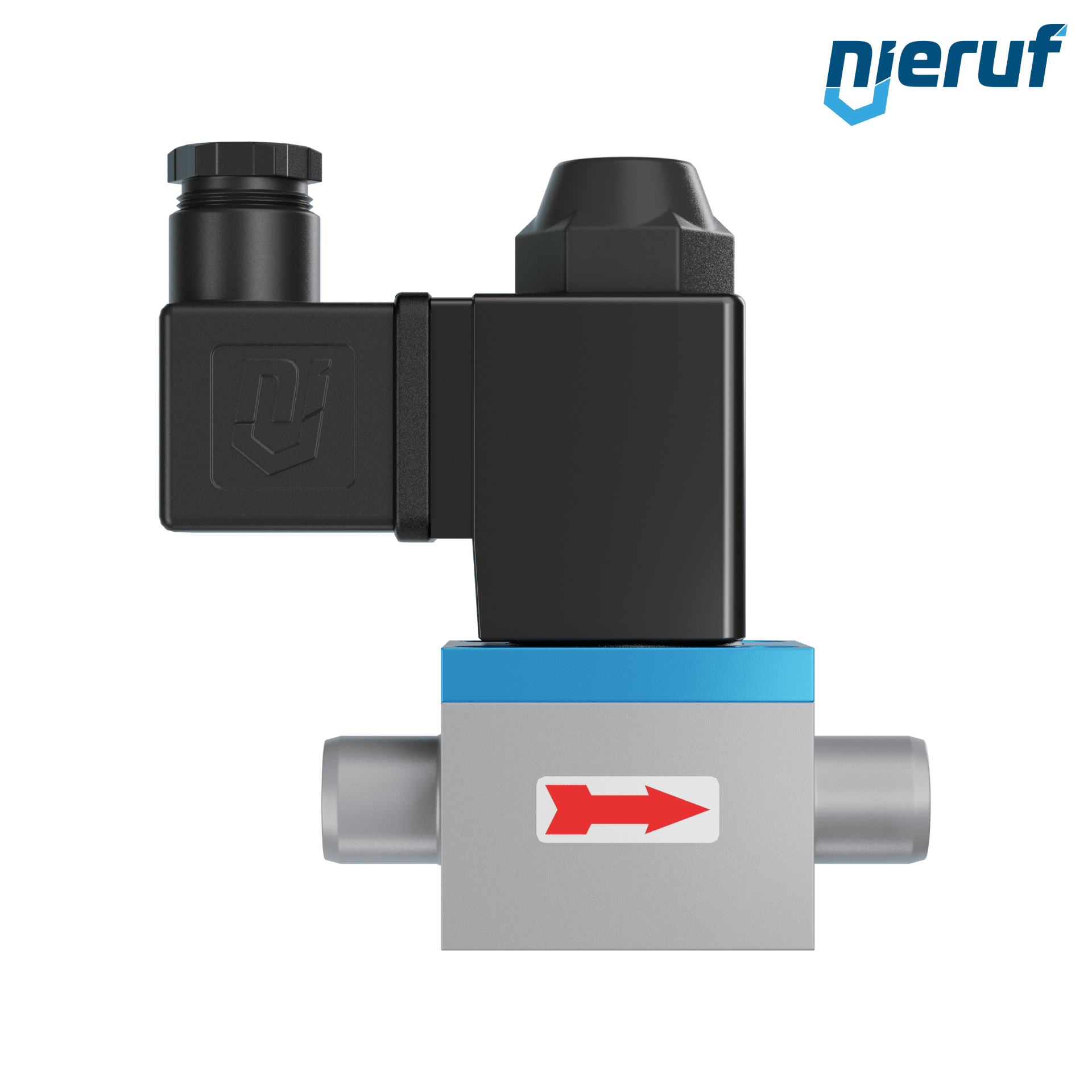

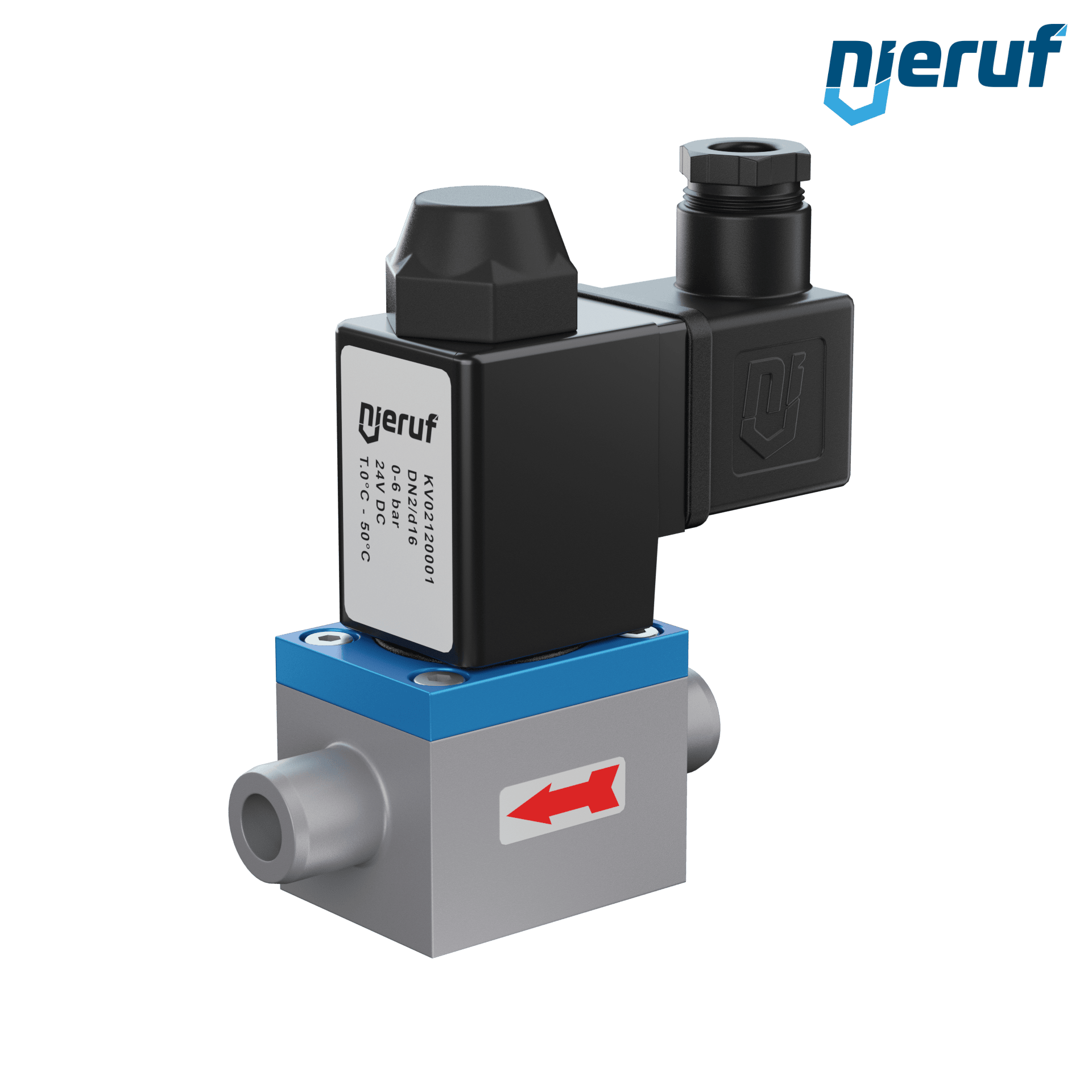

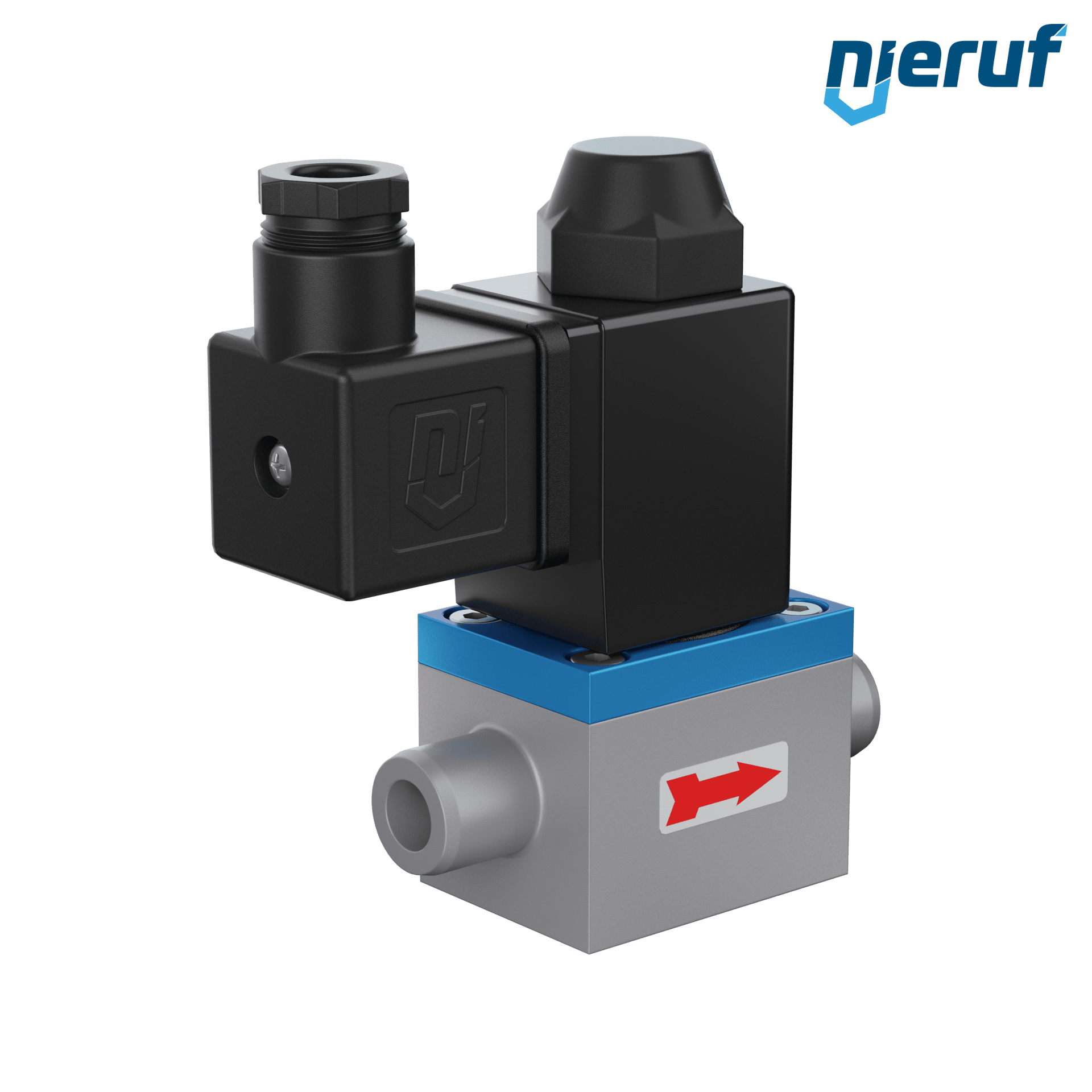

PVC-Solenoid valve DN2,0 KV02 EPDM 24V DC
2/2 Ways Solenoid valve d 16 DN2,0 made of PVC seal EPDM direct acting nominal voltage 24V DC pressure 0 - 4,8 bar
| product | Solenoid valve |
|---|---|
| type | KV02 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN2,0 |
| connection | d16 |
| type of connection | cementing spigots |
| Type of design | 2/2 Ways |
| flow rate | 2.1 l/min |
| function | NC - normally closed |
| control | direct acting |
| material | PVC |
| seal | EPDM |
| voltage | 24V DC |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 9 Watt |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted |
| media | liquid and gaseous media |
| temperature media | 0°C to +60°C (consider pressure-temperature-diagram) |
| temperature ambiente | 0°C up to +50°C |
| max. pressure | 0 - 4,8 bar |
| installation position | solenoid preferably above |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
PVC-Solenoid valve DN2,0 KV02 EPDM 24V DC
Article no.
: KV02120001
product:
Solenoid valve
type:
KV02
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN2,0
connection:
d16
type of connection:
cementing spigots
Type of design:
2/2 Ways
flow rate:
2.1 l/min
function:
NC - normally closed
control:
direct acting
material:
PVC
seal:
EPDM
voltage:
24V DC
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
9 Watt
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
0°C to +60°C (consider pressure-temperature-diagram)
temperature ambiente:
0°C up to +50°C
max. pressure:
0 - 4,8 bar
installation position:
solenoid preferably above
