KV01220003

Solenoid valve DN2,0 PTFE KV01 EPDM 24V DC

€134.10*

€159.58 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 1 - 2 weeks

Equipment

GF01300000

hexagon nipple 1/8" inch male stainless steel 316

€1.20*

€1.43 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

Certified

Downloads

3D model

Datasheet

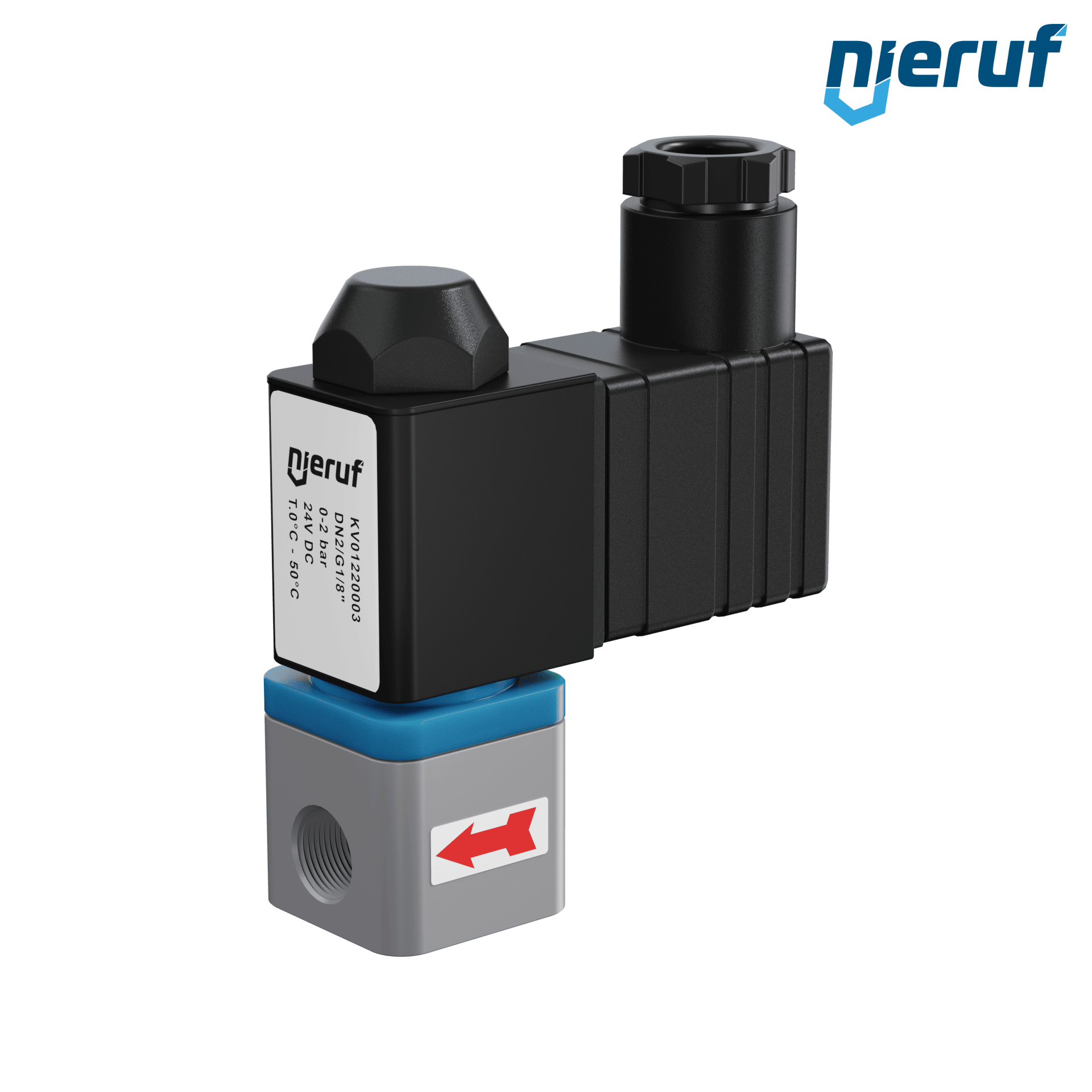

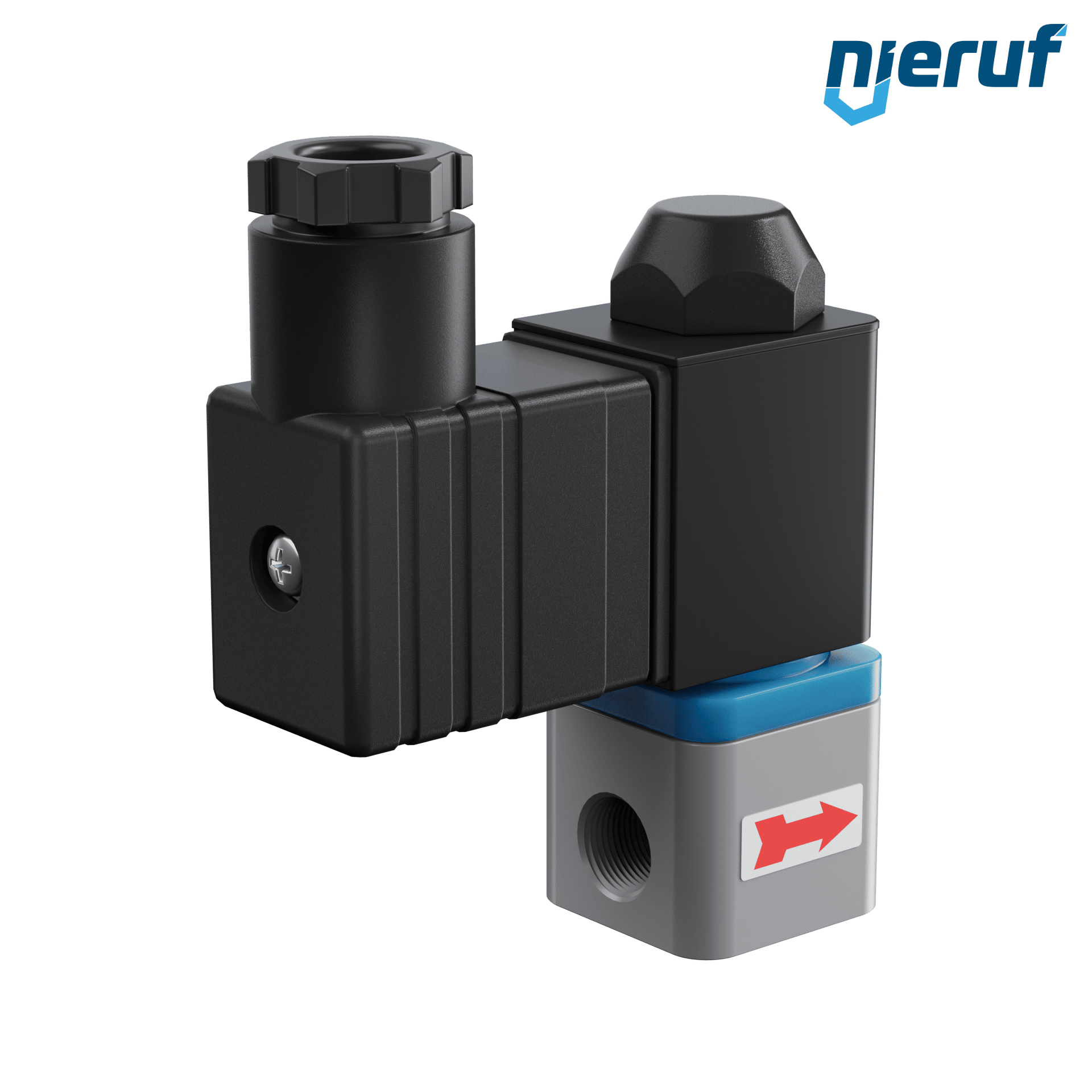

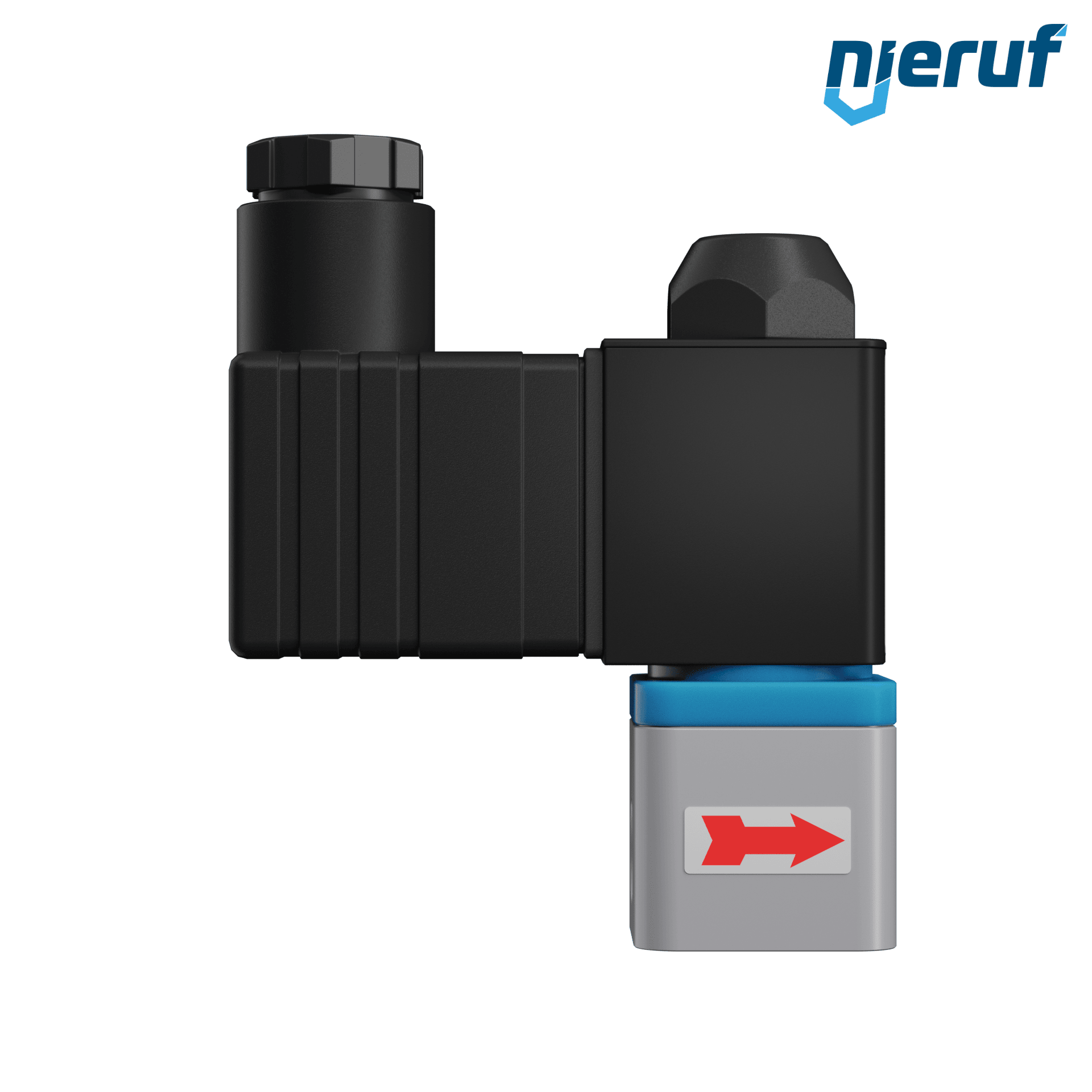

Solenoid valve DN2,0 PTFE KV01 EPDM 24V DC

2/2 Ways Solenoid valve G 1/8" inch DN2,0 made of PTFE seal EPDM direct acting nominal voltage 24V DC pressure 0 - 2 bar

product	Solenoid valve
type	KV01
manufacturer	NieRuf
design	seat valve with membrane
diameter	DN2,0
connection	G 1/8" inch
type of connection	female thread
Type of design	2/2 Ways
flow rate	2.1 l/min
function	NC - normally closed
control	direct acting
material	PTFE
seal	EPDM
voltage	24V DC
voltage tolerance	+/- 10% acc. VDE 0580
power consumption	4,8 Watt
duty	100% ED
plug socket	IP65 with plug socket mounted
media	liquid and gaseous media
temperature media	-30°C to +120°C (consider pressure-temperature-diagram)
temperature ambiente	0°C up to +50°C
max. pressure	0 - 2 bar
installation position	solenoid preferably above

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Solenoid valve DN2,0 PTFE KV01 EPDM 24V DC

Article no. : KV01220003
product: Solenoid valve
type: KV01
manufacturer: NieRuf
design: seat valve with membrane
diameter: DN2,0
connection: G 1/8" inch
type of connection: female thread
Type of design: 2/2 Ways
flow rate: 2.1 l/min
function: NC - normally closed
control: direct acting
material: PTFE
seal: EPDM
voltage: 24V DC
voltage tolerance: +/- 10% acc. VDE 0580
power consumption: 4,8 Watt
duty: 100% ED
plug socket: IP65 with plug socket mounted
media: liquid and gaseous media
temperature media: -30°C to +120°C (consider pressure-temperature-diagram)
temperature ambiente: 0°C up to +50°C
max. pressure: 0 - 2 bar
installation position: solenoid preferably above
