BE01001114
Pressure vessel horizontal BE01 5000 liter, 0-16 bar, steel galvanized, nominal size 1600 mm
- Lead time
- On request
Equipment
2 way ball valve DN25 - 1" inch GK01 female x male thread
€23.21 VAT included.
safety valve 1" SV01 for compressed air, brass FKM, set pressure 0.2 - 25.0 bar
Questions about the article?
Our employee Richie Rost
will be happy to help you

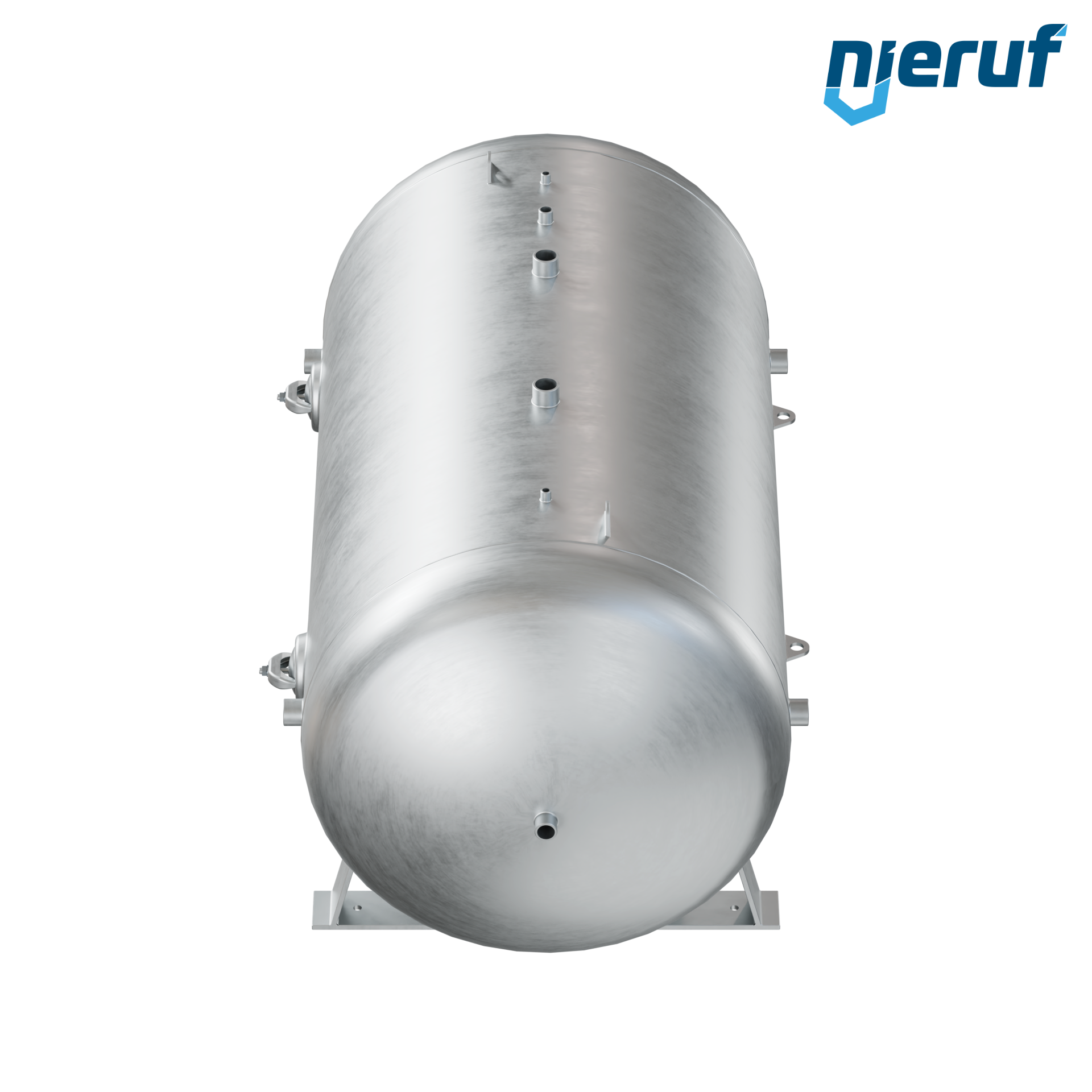

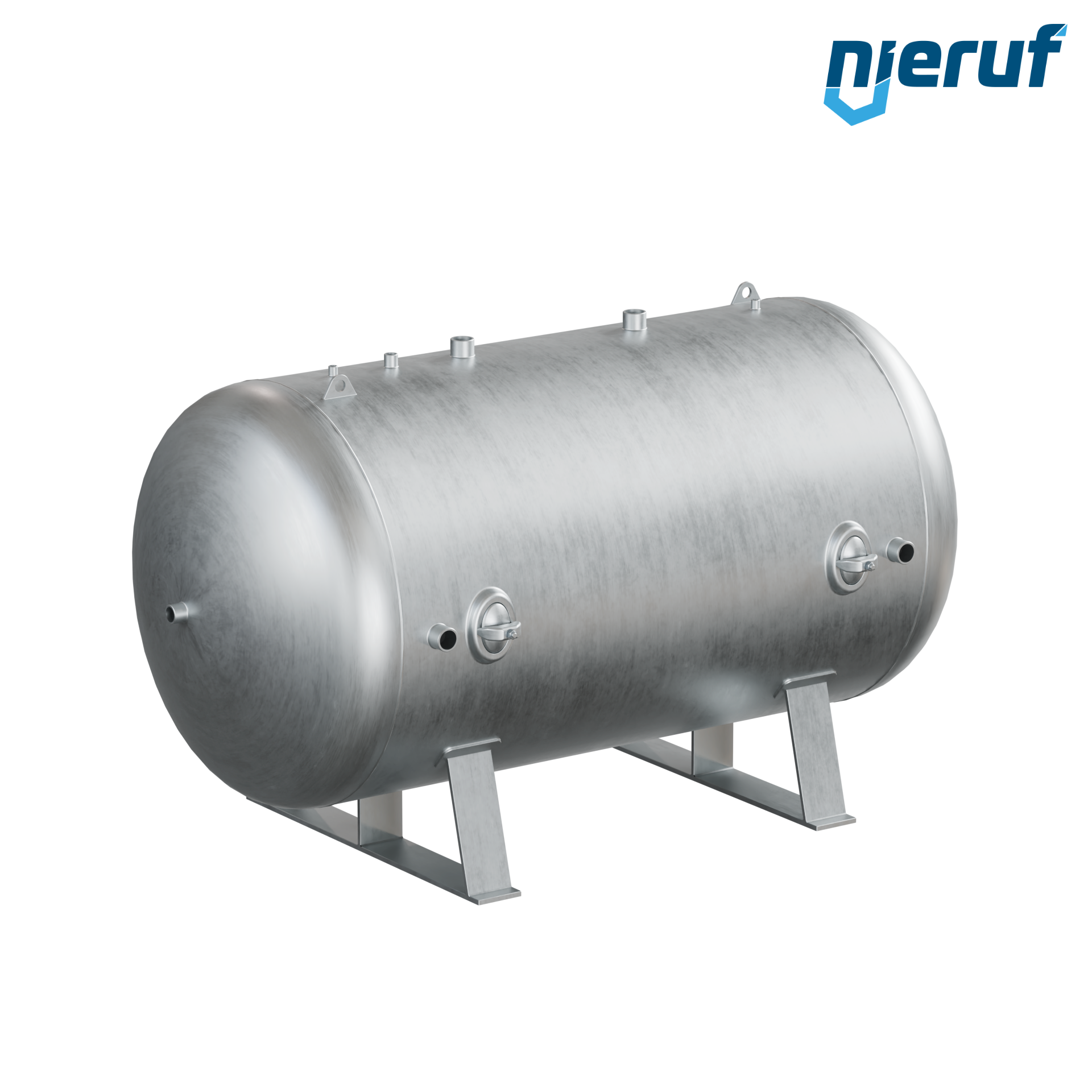

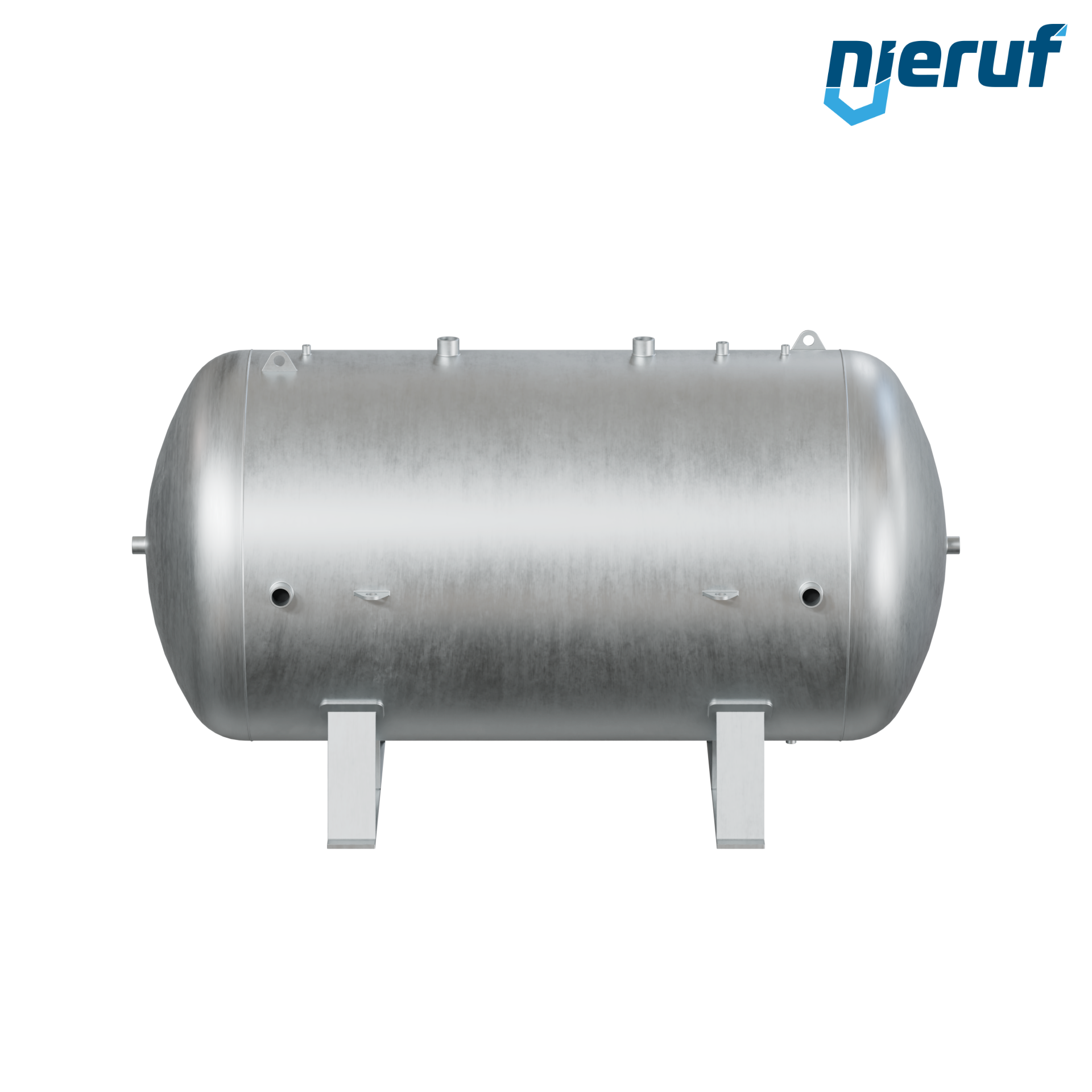

Pressure vessel horizontal BE01 5000 liter, 0-16 bar, steel galvanized, nominal size 1600 mm
Pressure vessel BE01 with 5000 liter volume horizontal with operating pressure 0-16 bar made of steel galvanized and nominal size 1600 mm
| product | Pressure vessel |
|---|---|
| type | BE01 |
| manufacturer | NieRuf |
| volume | 5000 liter |
| nominal size | 1600 mm |
| height | 1800 mm |
| length | 2700 mm |
| operating pressure | 0-16 bar |
| version | horizontal |
| temperature | -10°C up to +50°C |
| material | steel galvanized |
| media | compressed air and nitrogen |
| product feature | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Pressure vessel horizontal BE01 5000 liter, 0-16 bar, steel galvanized, nominal size 1600 mm
Article no.
: BE01001114
product:
Pressure vessel
type:
BE01
manufacturer:
NieRuf
volume:
5000 liter
nominal size:
1600 mm
height:
1800 mm
length:
2700 mm
operating pressure:
0-16 bar
version:
horizontal
temperature:
-10°C up to +50°C
material:
steel galvanized
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
Equipment
safety valve 1" SV01 for compressed air, brass FKM, set pressure 0.2 - 25.0 bar
Lead time: 3 - 5 working days
€82.47 VAT included.
Malleable cast iron fitting plug no. 290, DN25 - 1" inch galvanized
Lead time: in stock
2 way ball valve DN25 - 1" inch GK01 female x male thread
Lead time: in stock
