BE01001001
Pressure vessel vertical BE01 50 liter, 0-16 bar, steel galvanized
- Lead time
- 3 - 5 working days
Equipment
2 way ball valve DN25 - 1" inch GK01 female x male thread
€23.21 VAT included.
safety valve 1" SV01 for compressed air, brass FKM, set pressure 0.2 - 25.0 bar
Questions about the article?
Our employee Richie Rost
will be happy to help you

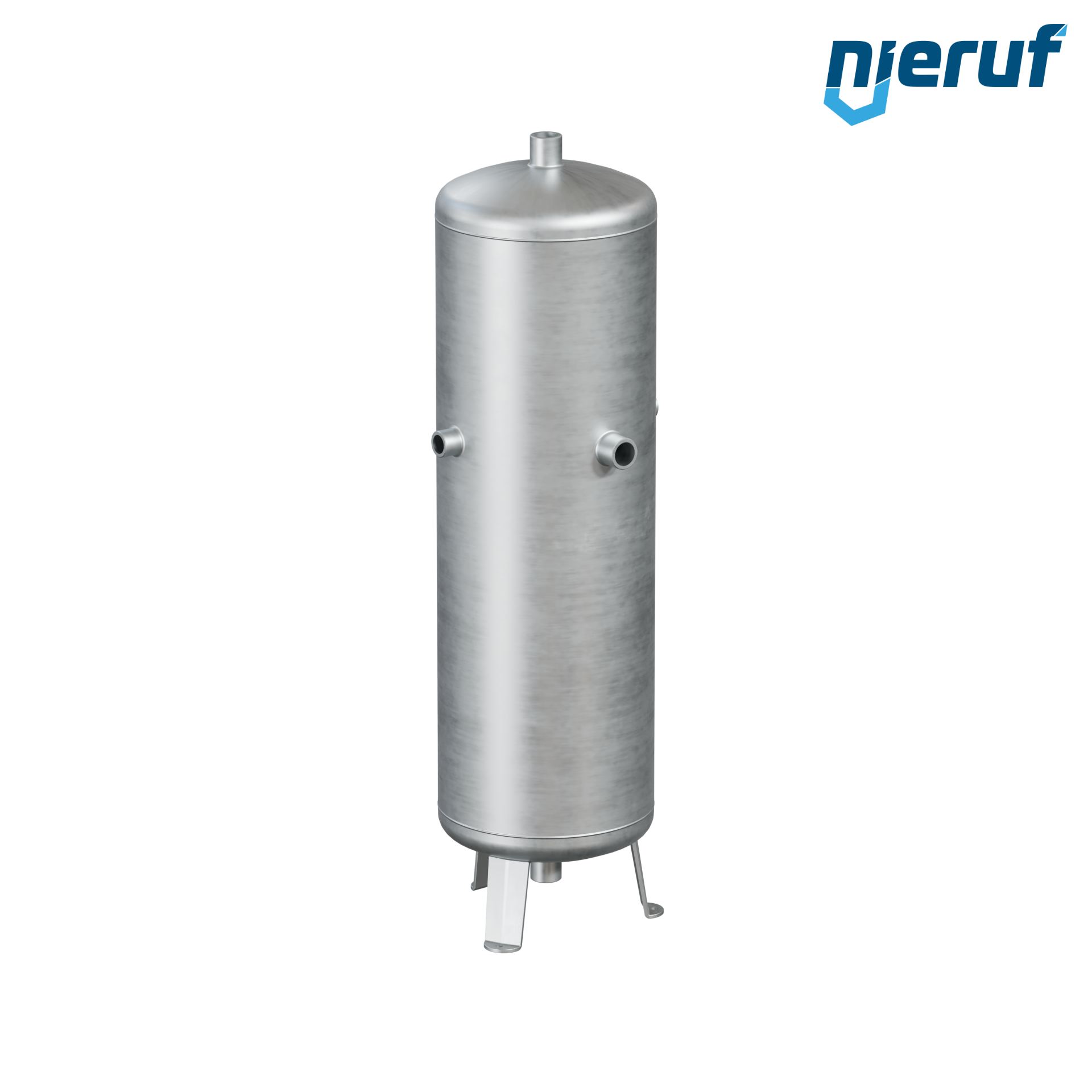

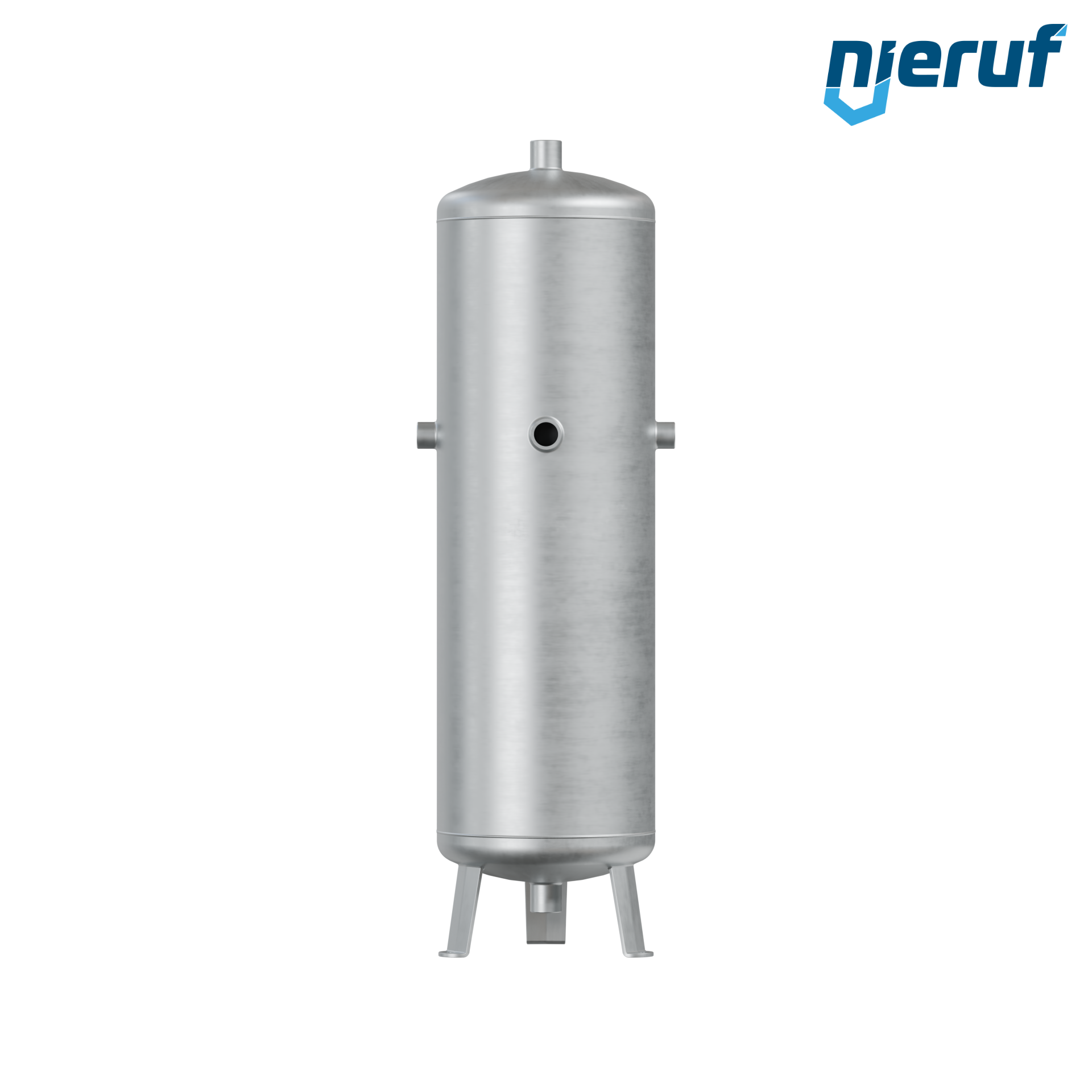

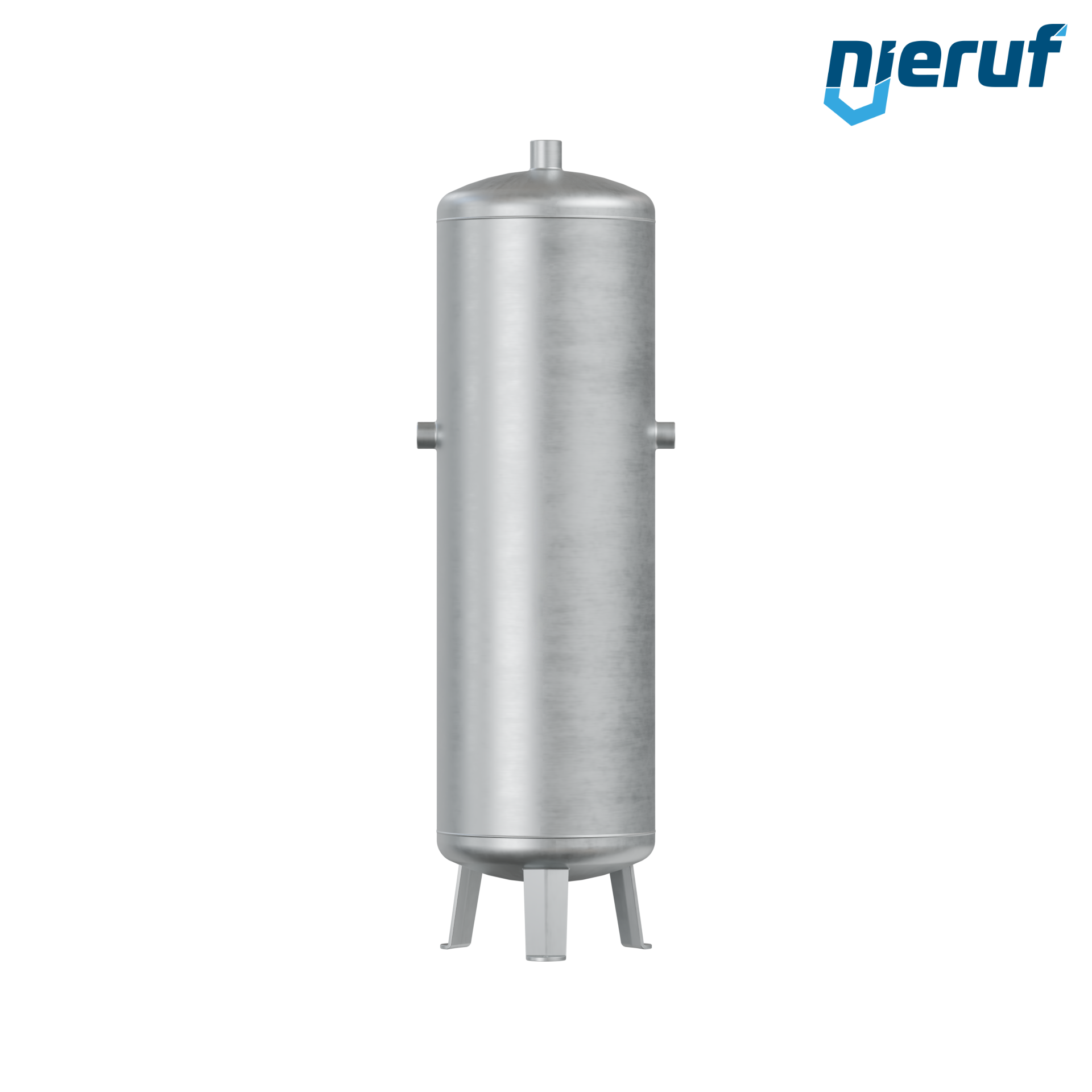

Pressure vessel vertical BE01 50 liter, 0-16 bar, steel galvanized
Pressure vessel BE01 with 50 liter volume vertical with operating pressure 0-16 bar made of steel galvanized and nominal size 276 mm
| product | Pressure vessel |
|---|---|
| type | BE01 |
| manufacturer | NieRuf |
| volume | 50 liter |
| nominal size | 276 mm |
| height | 1000 mm |
| operating pressure | 0-16 bar |
| version | vertical |
| temperature | -10°C up to +50°C |
| material | steel galvanized |
| media | compressed air, nitrogen & water |
| product feature | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Pressure vessel vertical BE01 50 liter, 0-16 bar, steel galvanized
Article no.
: BE01001001
product:
Pressure vessel
type:
BE01
manufacturer:
NieRuf
volume:
50 liter
nominal size:
276 mm
height:
1000 mm
operating pressure:
0-16 bar
version:
vertical
temperature:
-10°C up to +50°C
material:
steel galvanized
media:
compressed air, nitrogen & water
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
Equipment
safety valve 1" SV01 for compressed air, brass FKM, set pressure 0.2 - 25.0 bar
Lead time: 3 - 5 working days
€82.47 VAT included.
Malleable cast iron fitting plug no. 290, DN25 - 1" inch galvanized
Lead time: in stock
2 way ball valve DN25 - 1" inch GK01 female x male thread
Lead time: in stock
