BE01001101
Pressure vessel horizontal BE01 50 liter, 0-16 bar, steel galvanized
- Lead time
- in stock
Equipment
steam trap Bekomat 31U compressor performance 2,5 m3/min
€257.52 VAT included.
safety valve 1/2" m SV01 for compressed air, brass FKM, set pressure 0.2 - 25.0 bar
2 way ball valve DN15 - 1/2" inch GK01 female x male thread
€10.47 VAT included.
pressure gauge G 1/2" radial 100 mm steel MM04 0 - 25,0 bar without filling, dry
€41.17 VAT included.
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
€57.36 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

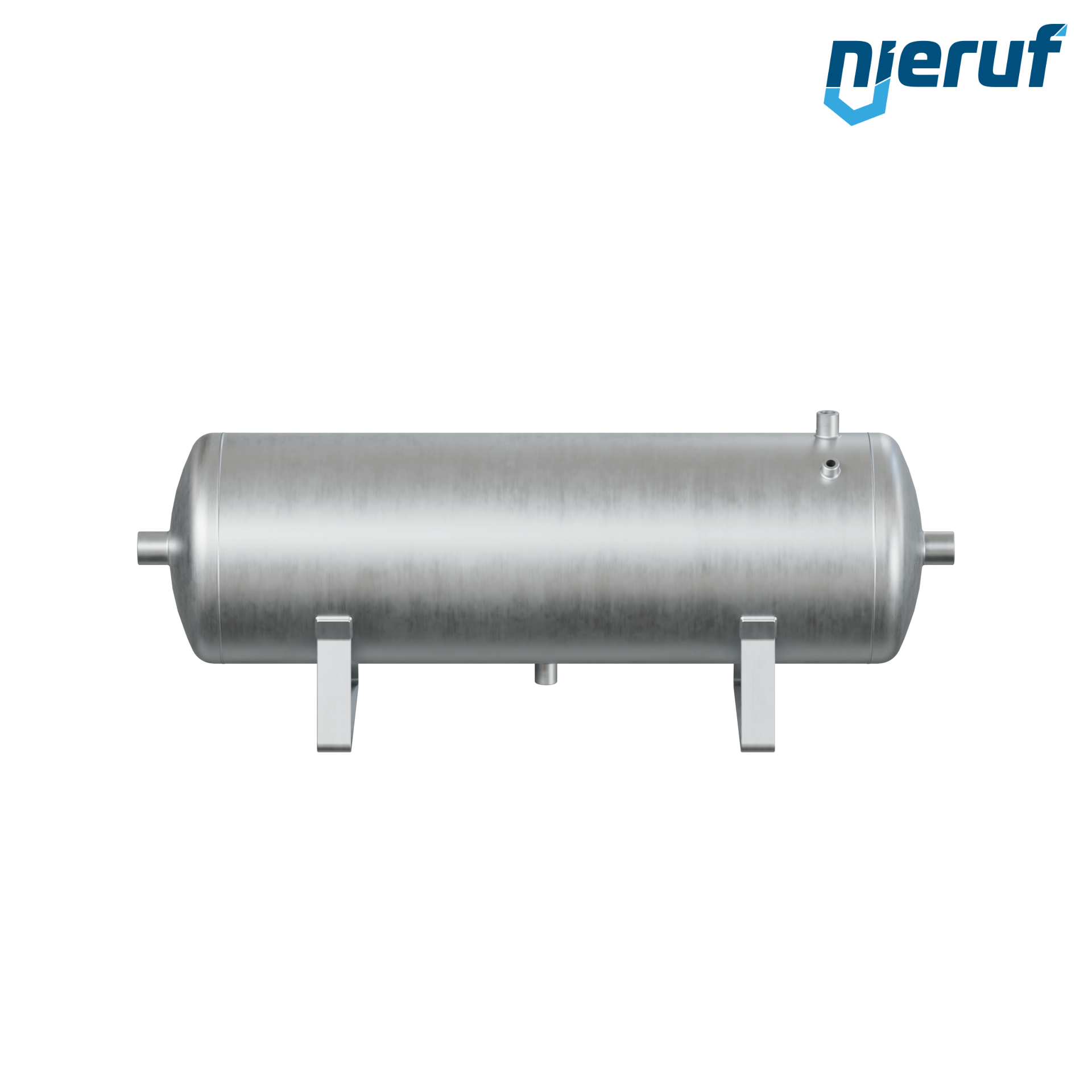

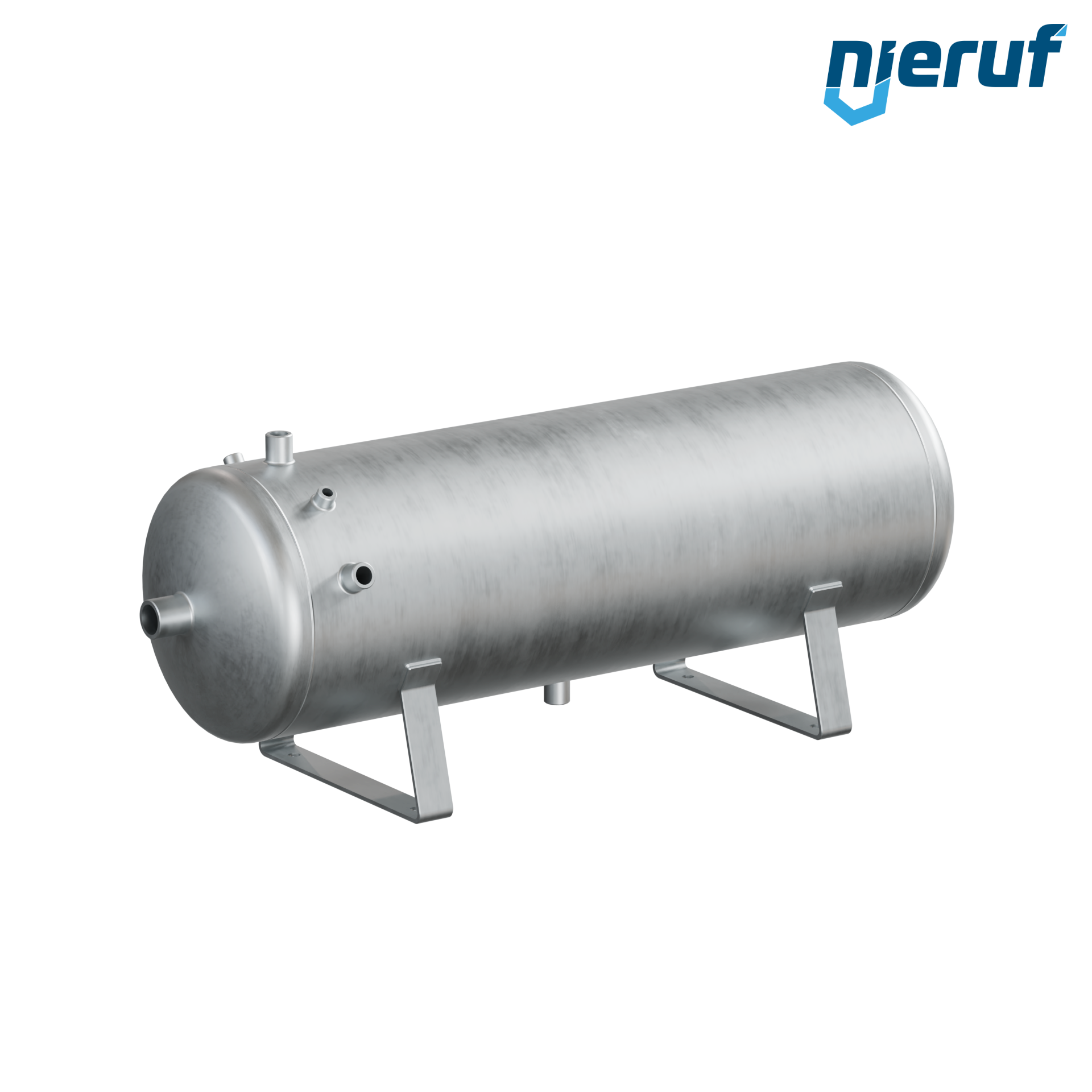

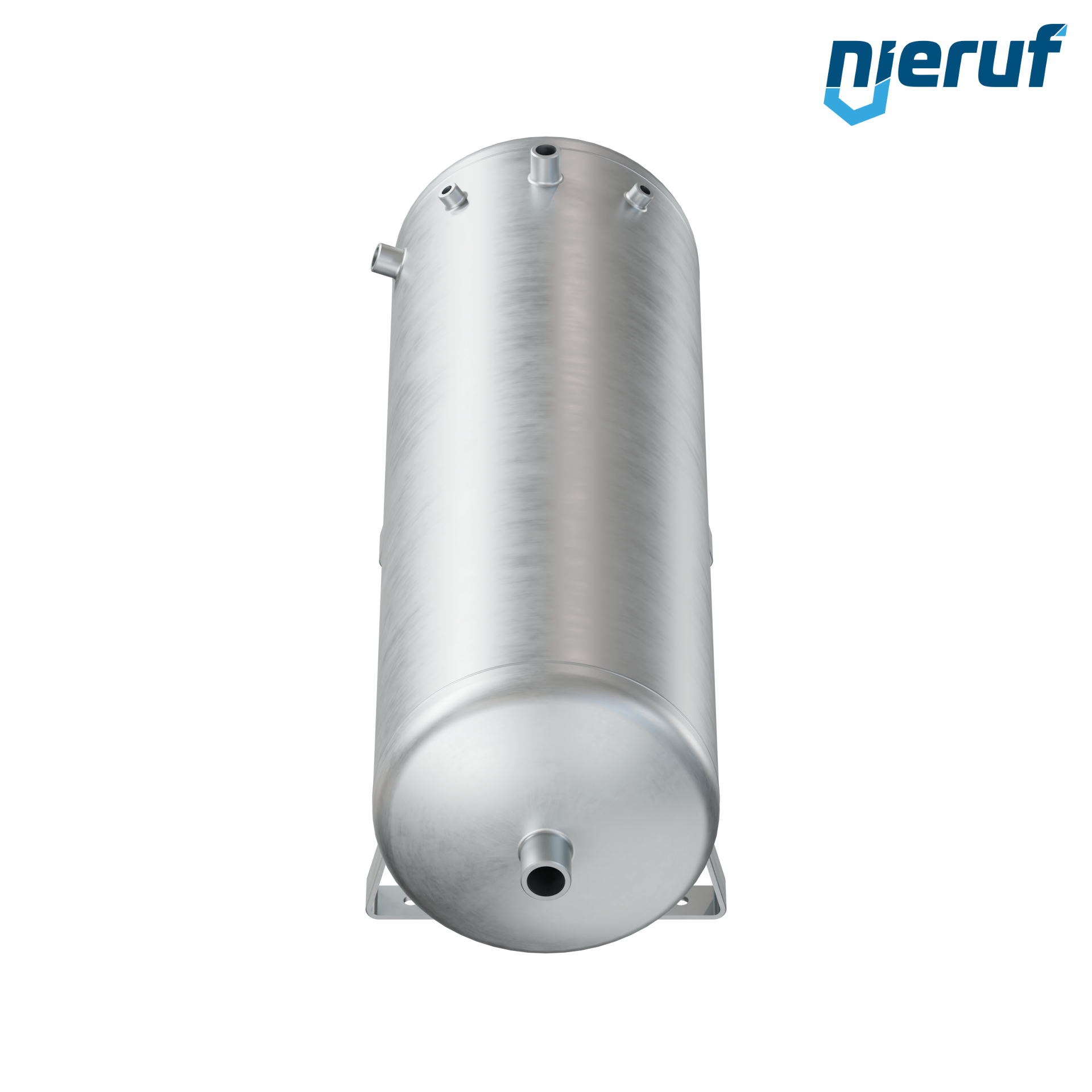

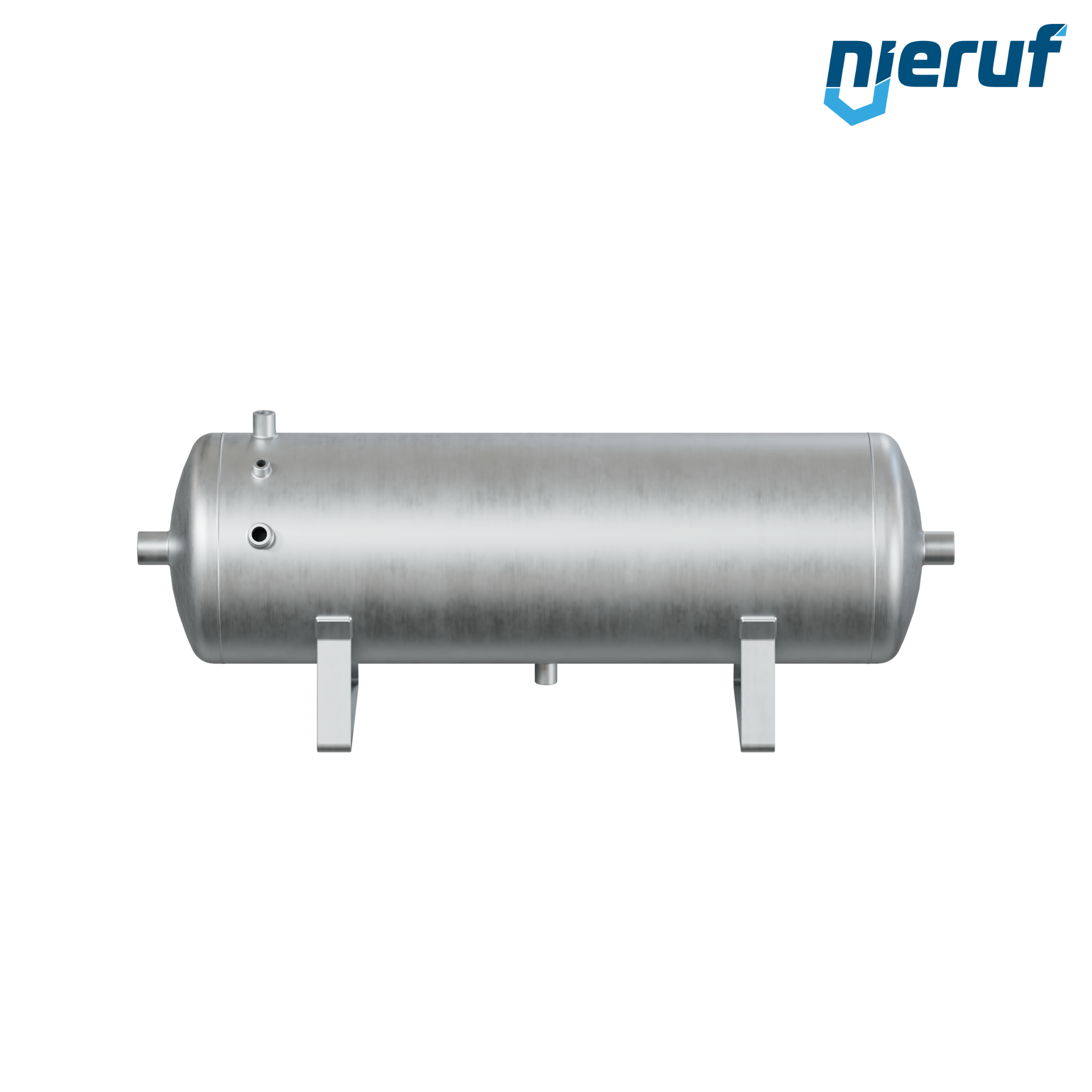

Pressure vessel horizontal BE01 50 liter, 0-16 bar, steel galvanized
Pressure vessel BE01 with 50 liter volume horizontal with operating pressure 0-16 bar made of steel galvanized and nominal size 276 mm
| product | Pressure vessel |
|---|---|
| type | BE01 |
| manufacturer | NieRuf |
| volume | 50 liter |
| nominal size | 276 mm |
| height | 351 mm |
| length | 900 mm |
| operating pressure | 0-16 bar |
| version | horizontal |
| temperature | -10°C up to +50°C |
| material | steel galvanized |
| media | compressed air and nitrogen |
| product feature | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Pressure vessel horizontal BE01 50 liter, 0-16 bar, steel galvanized
Article no.
: BE01001101
product:
Pressure vessel
type:
BE01
manufacturer:
NieRuf
volume:
50 liter
nominal size:
276 mm
height:
351 mm
length:
900 mm
operating pressure:
0-16 bar
version:
horizontal
temperature:
-10°C up to +50°C
material:
steel galvanized
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
Equipment
safety valve 1/2" m SV01 for compressed air, brass FKM, set pressure 0.2 - 25.0 bar
Lead time: 3 - 5 working days
€44.63 VAT included.
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
Lead time: 3 - 5 working days
Malleable cast iron fitting plug no. 290, DN15 - 1/2" inch galvanized
Lead time: in stock
2 way ball valve DN15 - 1/2" inch GK01 female x male thread
Lead time: in stock
steam trap Bekomat 31U compressor performance 2,5 m3/min
Lead time: in stock
pressure gauge G 1/2" radial 100 mm steel MM04 0 - 25,0 bar without filling, dry
Lead time: in stock
