BE01001012
Pressure vessel vertical BE01 4000 liter, 0-16 bar, steel galvanized
- Lead time
- On request
Equipment
safety valve 2" m SV01 for compressed air, brass FKM set pressure 0.2 - 16.0 bar
2 way ball valve DN15 - 1/2" inch GK01 female x male thread
€10.47 VAT included.
steam trap Bekomat 32U compressor performance 5 m3/min
€315.11 VAT included.
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
€57.36 VAT included.
pressure gauge G 1/2" axial 63 mm steel MM04 0 - 25,0 bar without filling, dry
€50.46 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

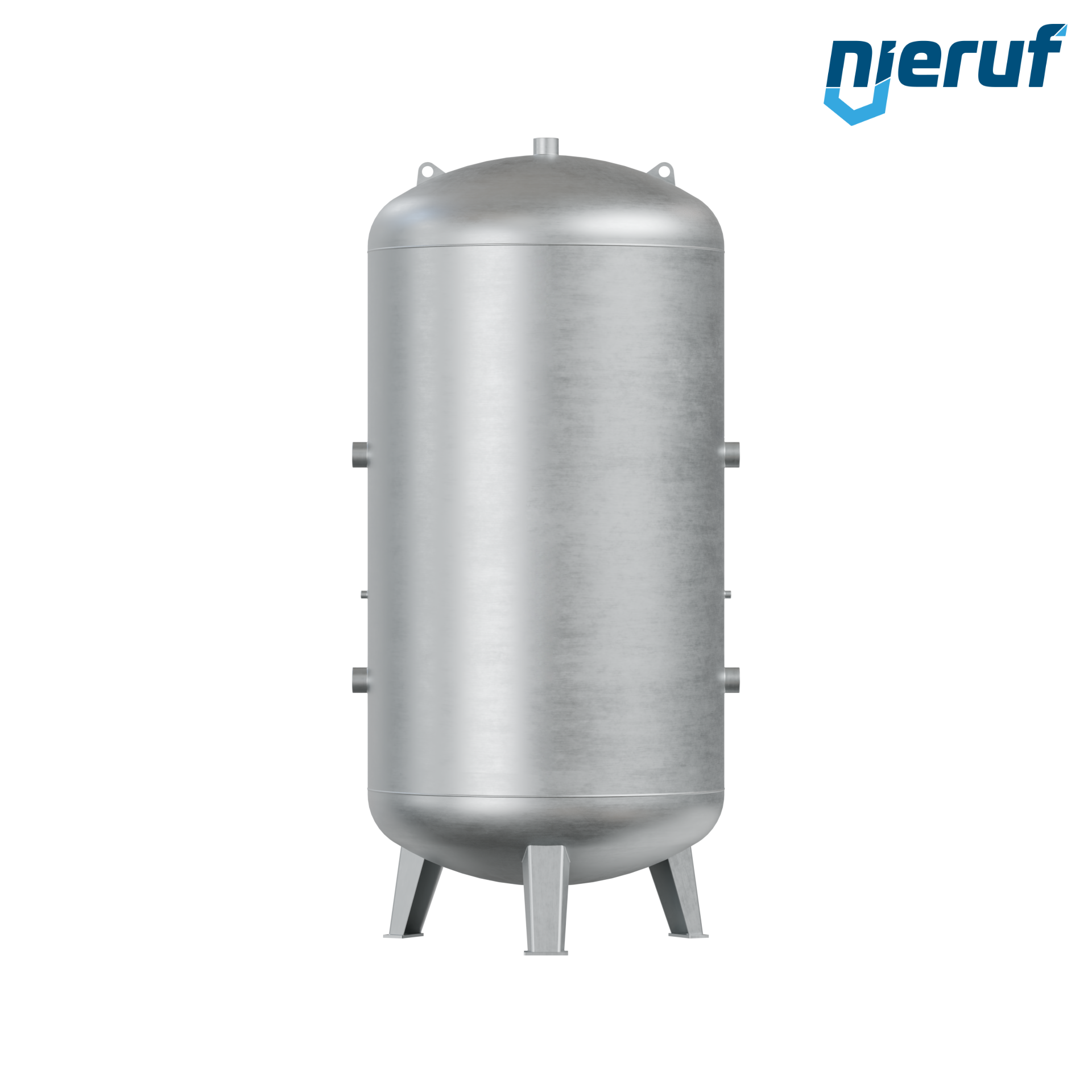

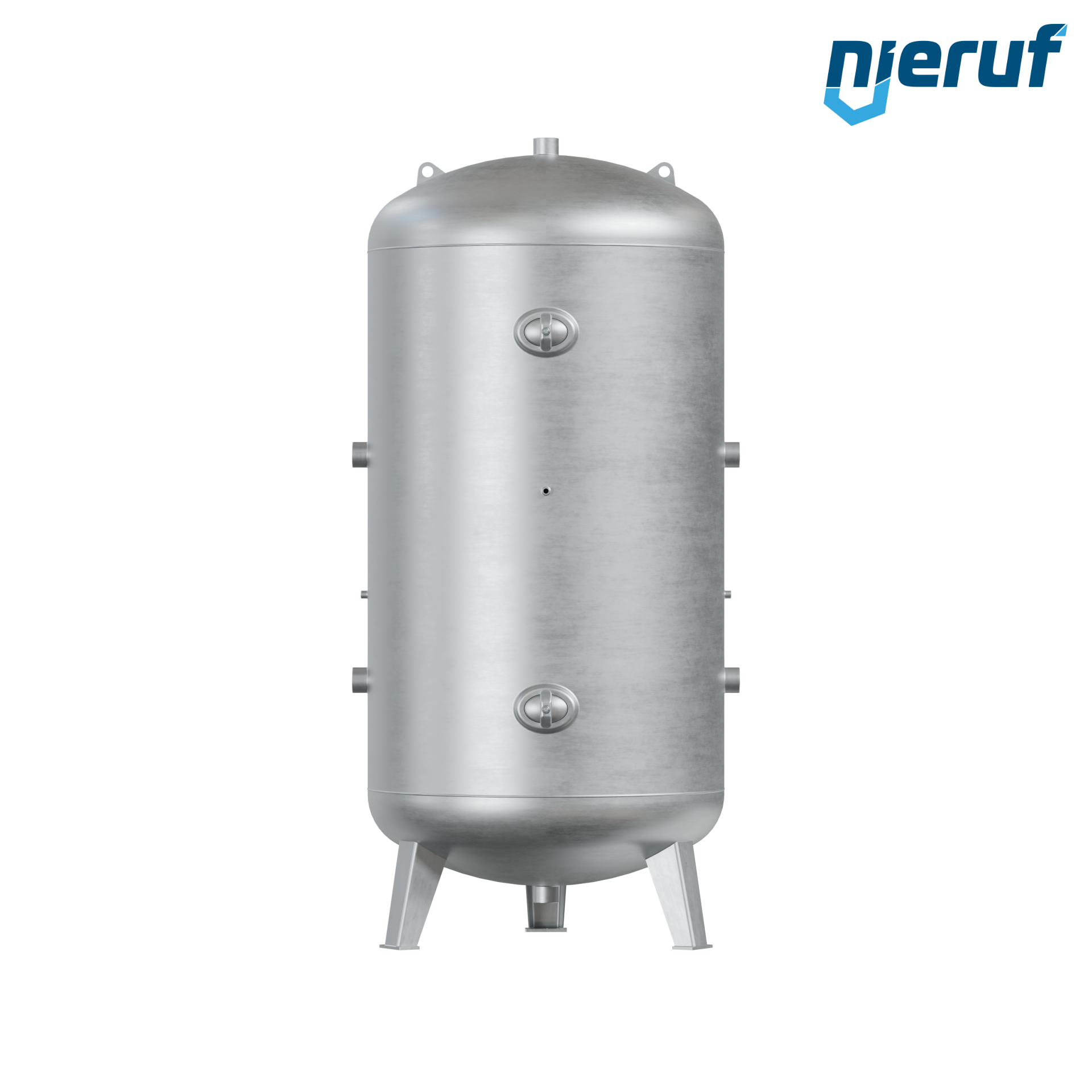

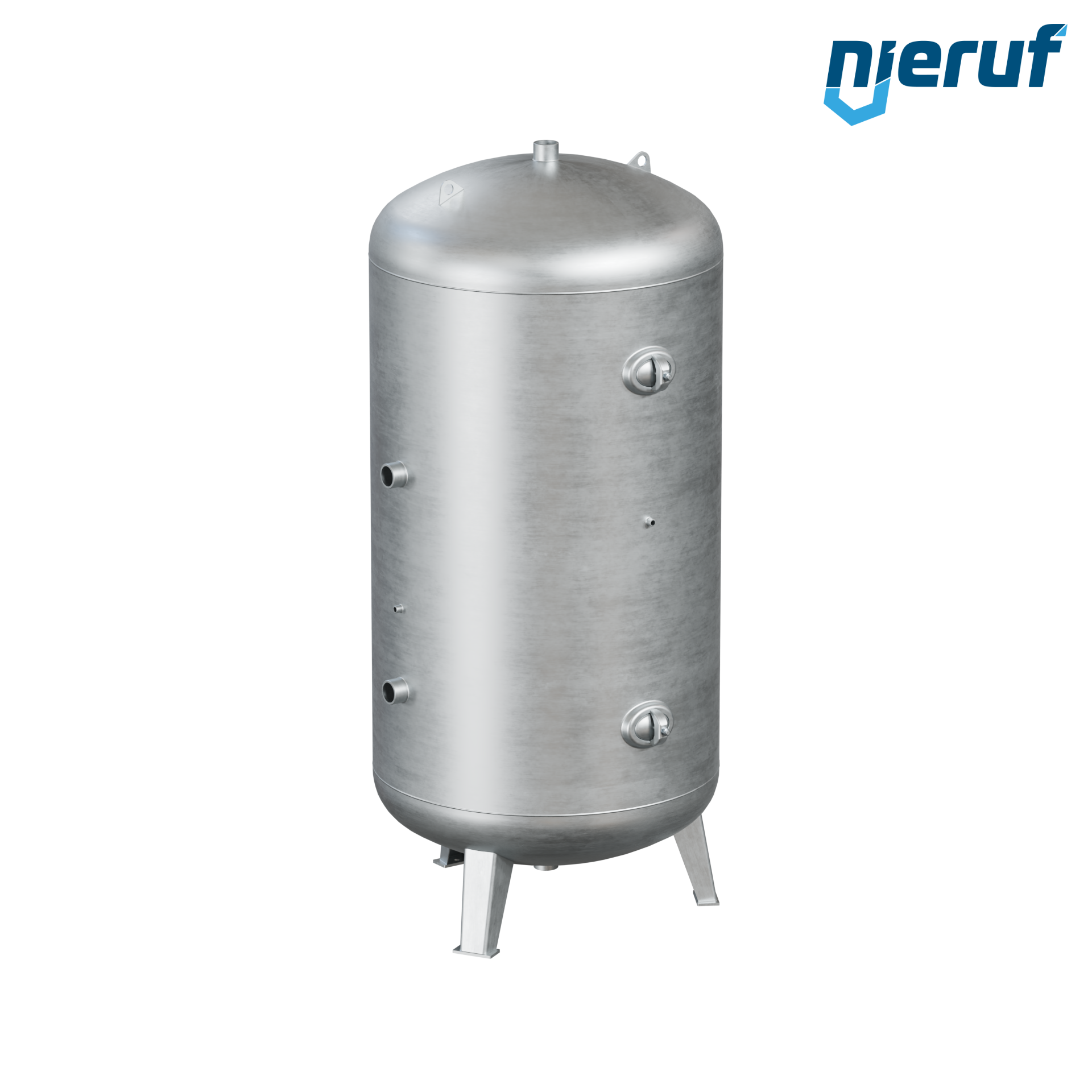

Pressure vessel vertical BE01 4000 liter, 0-16 bar, steel galvanized
Pressure vessel BE01 with 4000 liter volume vertical with operating pressure 0-16 bar made of steel galvanized and nominal size 1400 mm
| product | Pressure vessel |
|---|---|
| type | BE01 |
| manufacturer | NieRuf |
| volume | 4000 liter |
| nominal size | 1400 mm |
| height | 3070 mm |
| operating pressure | 0-16 bar |
| version | vertical |
| temperature | -10°C up to +50°C |
| material | steel galvanized |
| media | compressed air, nitrogen & water |
| product feature | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Pressure vessel vertical BE01 4000 liter, 0-16 bar, steel galvanized
Article no.
: BE01001012
product:
Pressure vessel
type:
BE01
manufacturer:
NieRuf
volume:
4000 liter
nominal size:
1400 mm
height:
3070 mm
operating pressure:
0-16 bar
version:
vertical
temperature:
-10°C up to +50°C
material:
steel galvanized
media:
compressed air, nitrogen & water
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
Equipment
safety valve 2" m SV01 for compressed air, brass FKM set pressure 0.2 - 16.0 bar
Lead time: 3 - 5 working days
€295.36 VAT included.
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
Lead time: 3 - 5 working days
Malleable cast iron fitting plug no. 290, DN15 - 1/2" inch galvanized
Lead time: in stock
2 way ball valve DN15 - 1/2" inch GK01 female x male thread
Lead time: in stock
steam trap Bekomat 32U compressor performance 5 m3/min
Lead time: in stock
pressure gauge G 1/2" axial 63 mm steel MM04 0 - 25,0 bar without filling, dry
Lead time: 3 - 5 working days
