BE01001111
Pressure vessel horizontal BE01 3000 liter, 0-16 bar, steel galvanized
- Lead time
- 3 - 5 working days
Equipment
2 way ball valve DN25 - 1" inch GK01 female x male thread
€23.21 VAT included.
safety valve 1" SV01 for compressed air, brass FKM, set pressure 0.2 - 25.0 bar
pressure gauge G 1/2" radial 100 mm steel MM04 0 - 25,0 bar without filling, dry
€41.17 VAT included.
steam trap Bekomat 32U compressor performance 5 m3/min
€315.11 VAT included.
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
€57.36 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

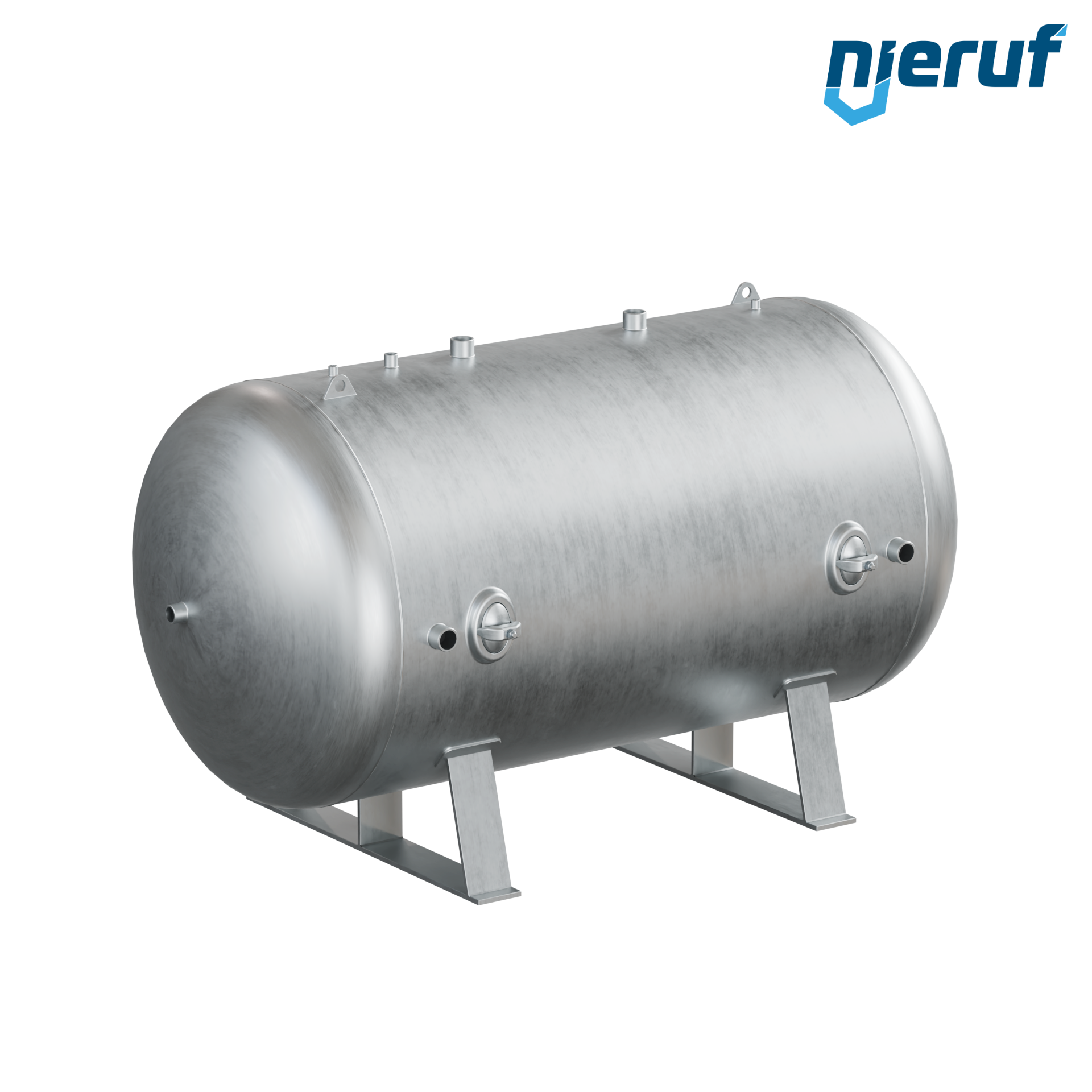

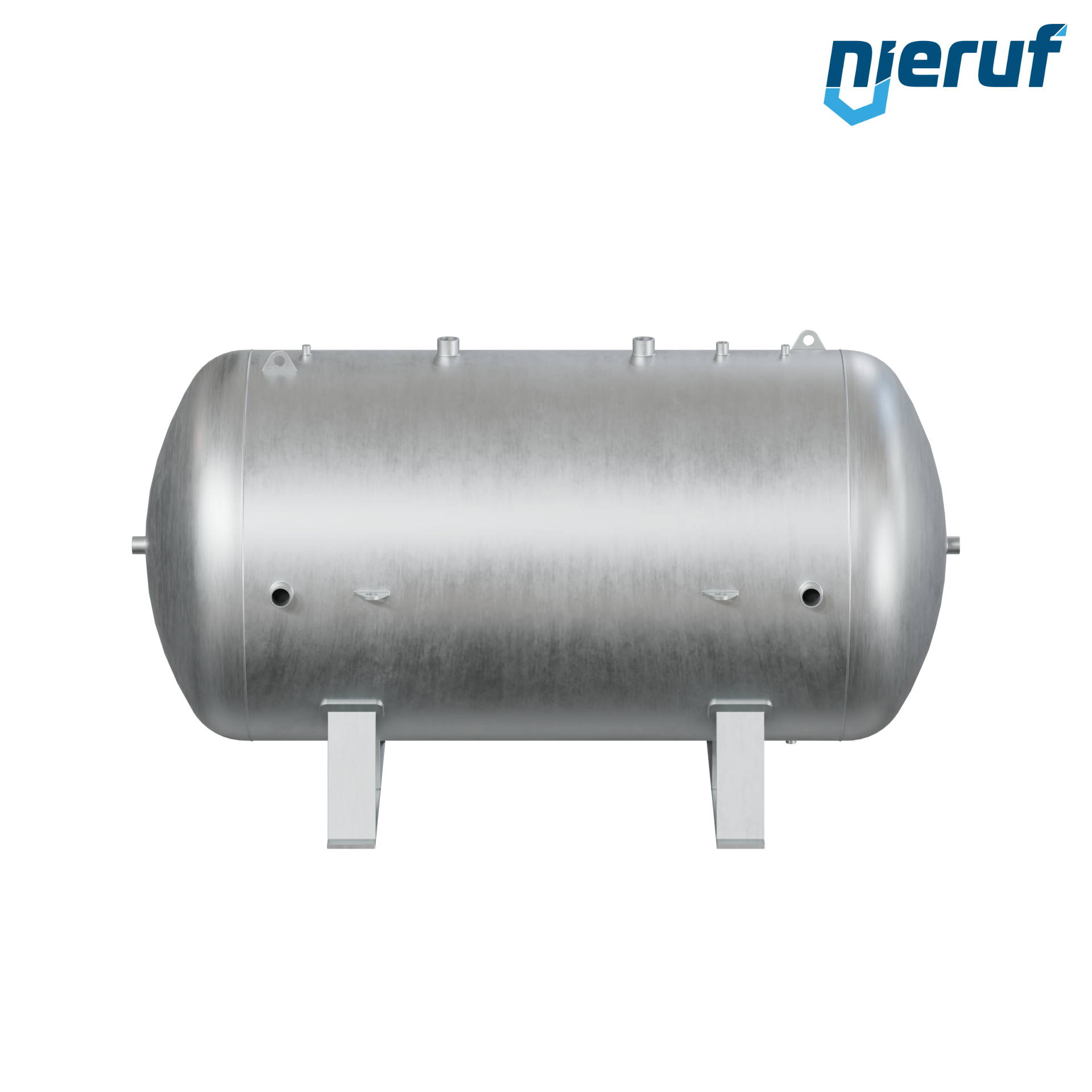

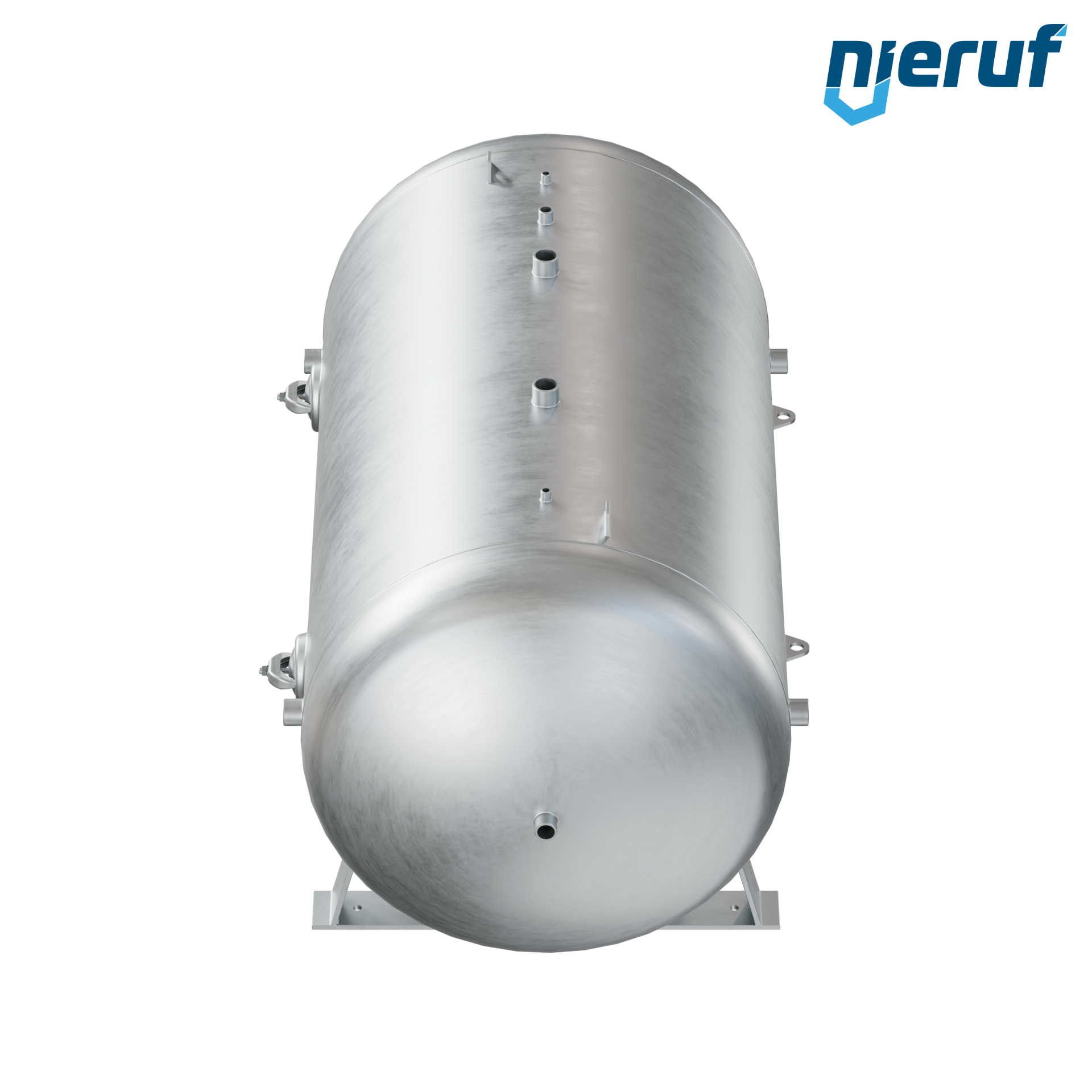

Pressure vessel horizontal BE01 3000 liter, 0-16 bar, steel galvanized
Pressure vessel BE01 with 3000 liter volume horizontal with operating pressure 0-16 bar made of steel galvanized and nominal size 1250 mm
| product | Pressure vessel |
|---|---|
| type | BE01 |
| manufacturer | NieRuf |
| volume | 3000 liter |
| nominal size | 1250 mm |
| height | 1450 mm |
| length | 2560 mm |
| operating pressure | 0-16 bar |
| version | horizontal |
| temperature | -20°C up to +50°C |
| material | steel galvanized |
| media | compressed air and nitrogen |
| product feature | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Pressure vessel horizontal BE01 3000 liter, 0-16 bar, steel galvanized
Article no.
: BE01001111
product:
Pressure vessel
type:
BE01
manufacturer:
NieRuf
volume:
3000 liter
nominal size:
1250 mm
height:
1450 mm
length:
2560 mm
operating pressure:
0-16 bar
version:
horizontal
temperature:
-20°C up to +50°C
material:
steel galvanized
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
Equipment
safety valve 1" SV01 for compressed air, brass FKM, set pressure 0.2 - 25.0 bar
Lead time: 3 - 5 working days
€82.47 VAT included.
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
Lead time: 3 - 5 working days
Malleable cast iron fitting plug no. 290, DN15 - 1/2" inch galvanized
Lead time: in stock
2 way ball valve DN25 - 1" inch GK01 female x male thread
Lead time: in stock
steam trap Bekomat 32U compressor performance 5 m3/min
Lead time: in stock
pressure gauge G 1/2" radial 100 mm steel MM04 0 - 25,0 bar without filling, dry
Lead time: in stock
