BE01000001

Pressure vessel vertical BE01 50 liter, 0-11 bar, steel galvanized

€637.20*

€758.27 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: in stock

Equipment

SV01000005

safety valve 1" SV01 for compressed air, brass FKM, set pressure 0.2 - 25.0 bar

Details

€69.30*

€82.47 VAT included.

GK01010005

2 way ball valve DN25 - 1" inch GK01 female x male thread

€19.50*

€23.21 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

NieRuf-Exchange

Certified

Downloads

3D model

Datasheet

Drawing

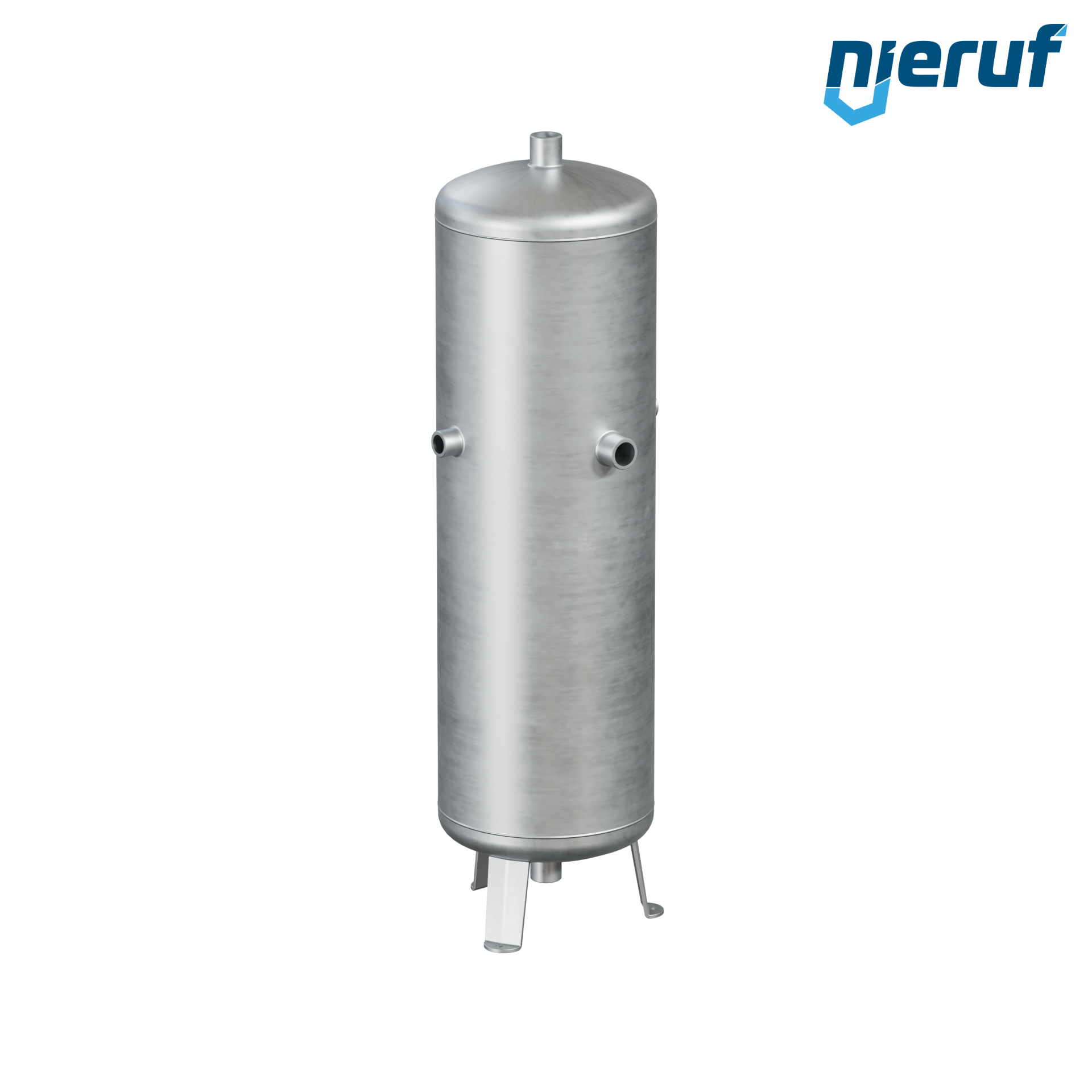

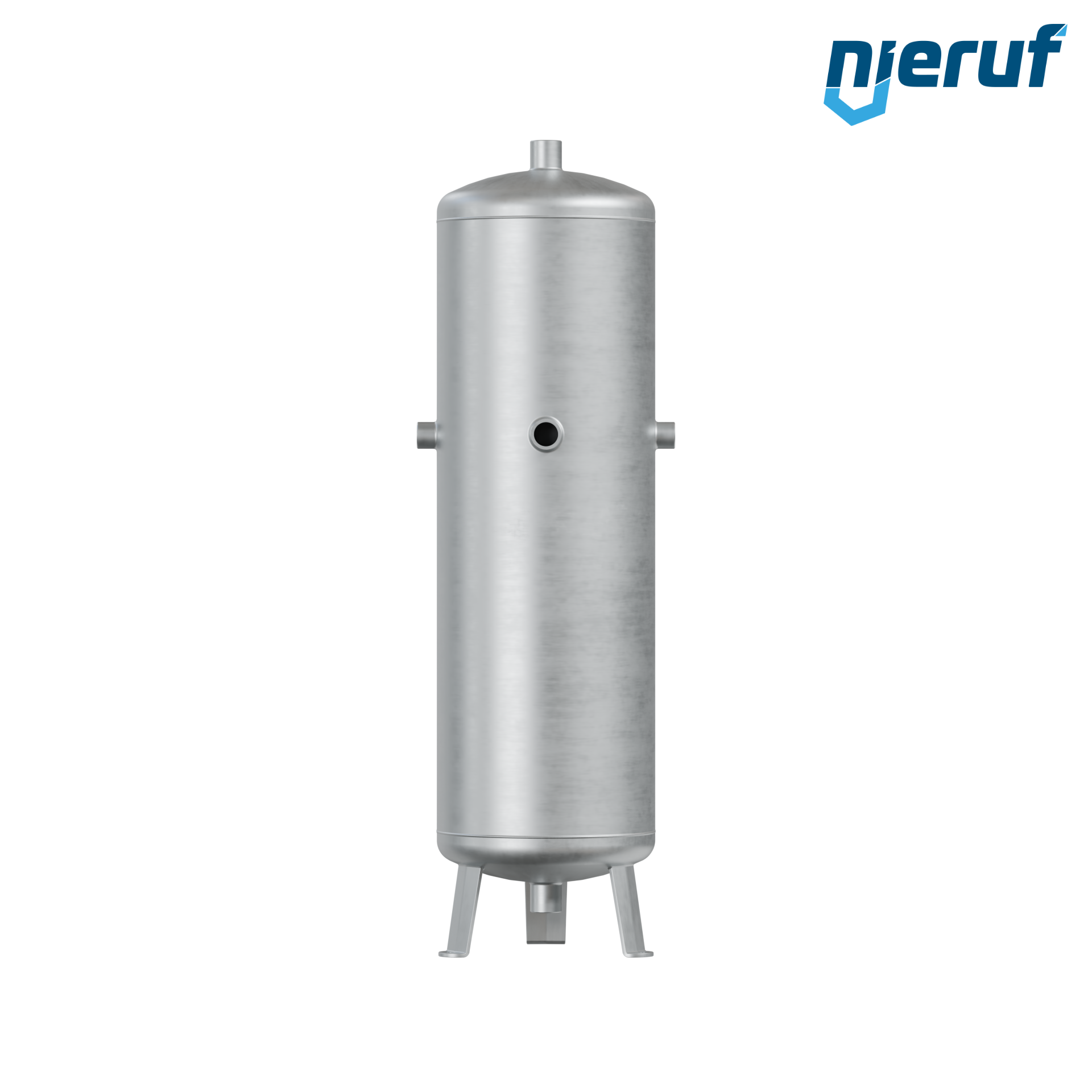

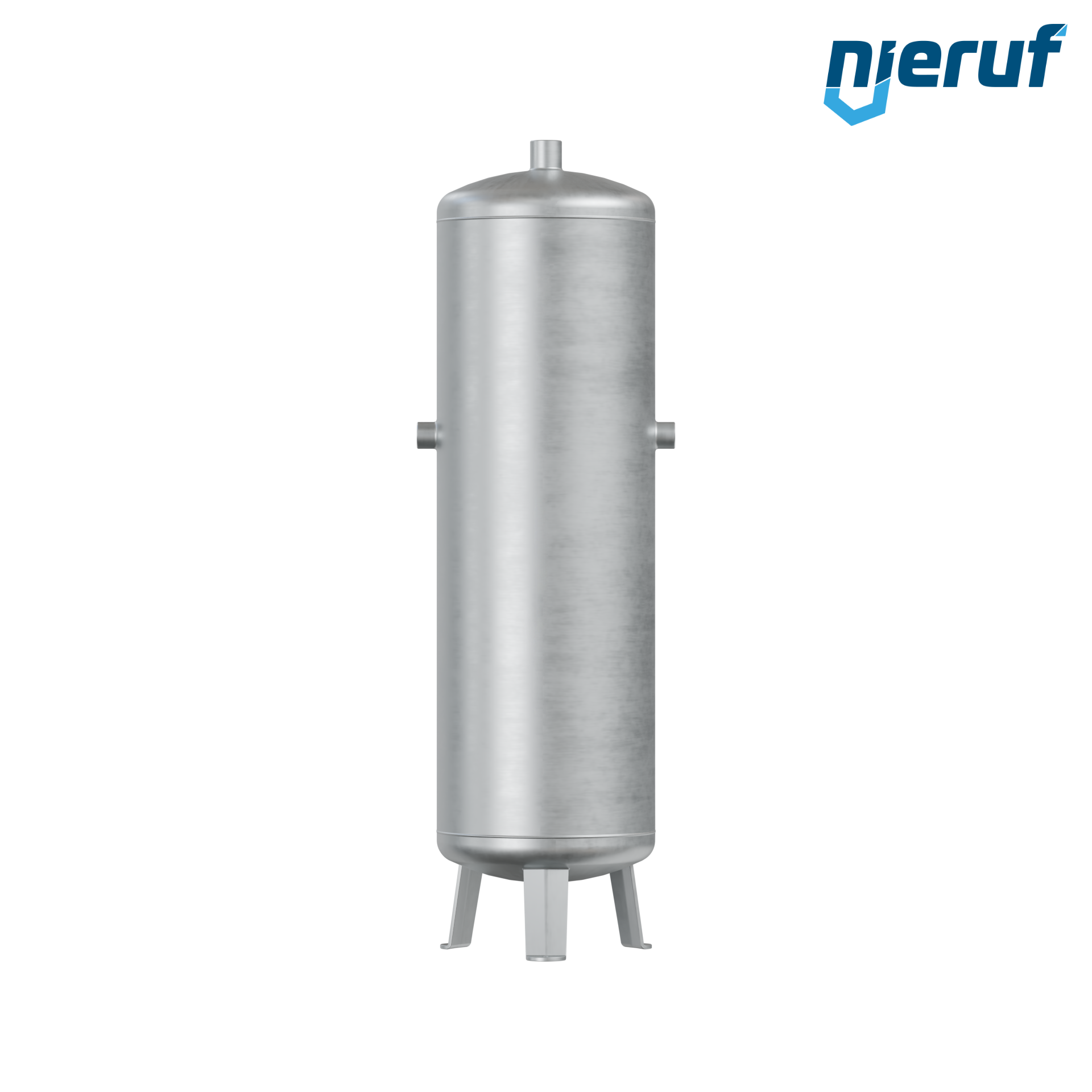

Pressure vessel vertical BE01 50 liter, 0-11 bar, steel galvanized

Pressure vessel BE01 with 50 liter volume vertical with operating pressure 0-11 bar made of steel galvanized and nominal size 276 mm

product	Pressure vessel
type	BE01
manufacturer	NieRuf
volume	50 liter
nominal size	276 mm
height	1000 mm
operating pressure	0-11 bar
version	vertical
temperature	-10°C up to +50°C
material	steel galvanized
media	compressed air, nitrogen & water
product feature	Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Pressure vessel vertical BE01 50 liter, 0-11 bar, steel galvanized

Article no. : BE01000001
product: Pressure vessel
type: BE01
manufacturer: NieRuf
volume: 50 liter
nominal size: 276 mm
height: 1000 mm
operating pressure: 0-11 bar
version: vertical
temperature: -10°C up to +50°C
material: steel galvanized
media: compressed air, nitrogen & water
product feature: Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
