BE01000005
Pressure vessel vertical BE01 350 liter, 0-11 bar, steel galvanized
- Lead time
- in stock
Equipment
pressure gauge G 1/2" axial 63 mm steel MM04 0 - 16,0 bar without filling, dry
€34.51 VAT included.
steam trap Bekomat 31U compressor performance 2,5 m3/min
€257.52 VAT included.
Safety valve 1 1/2" m SV01 for compressed air FKM brass set pressure 0.2 - 16.0 bar

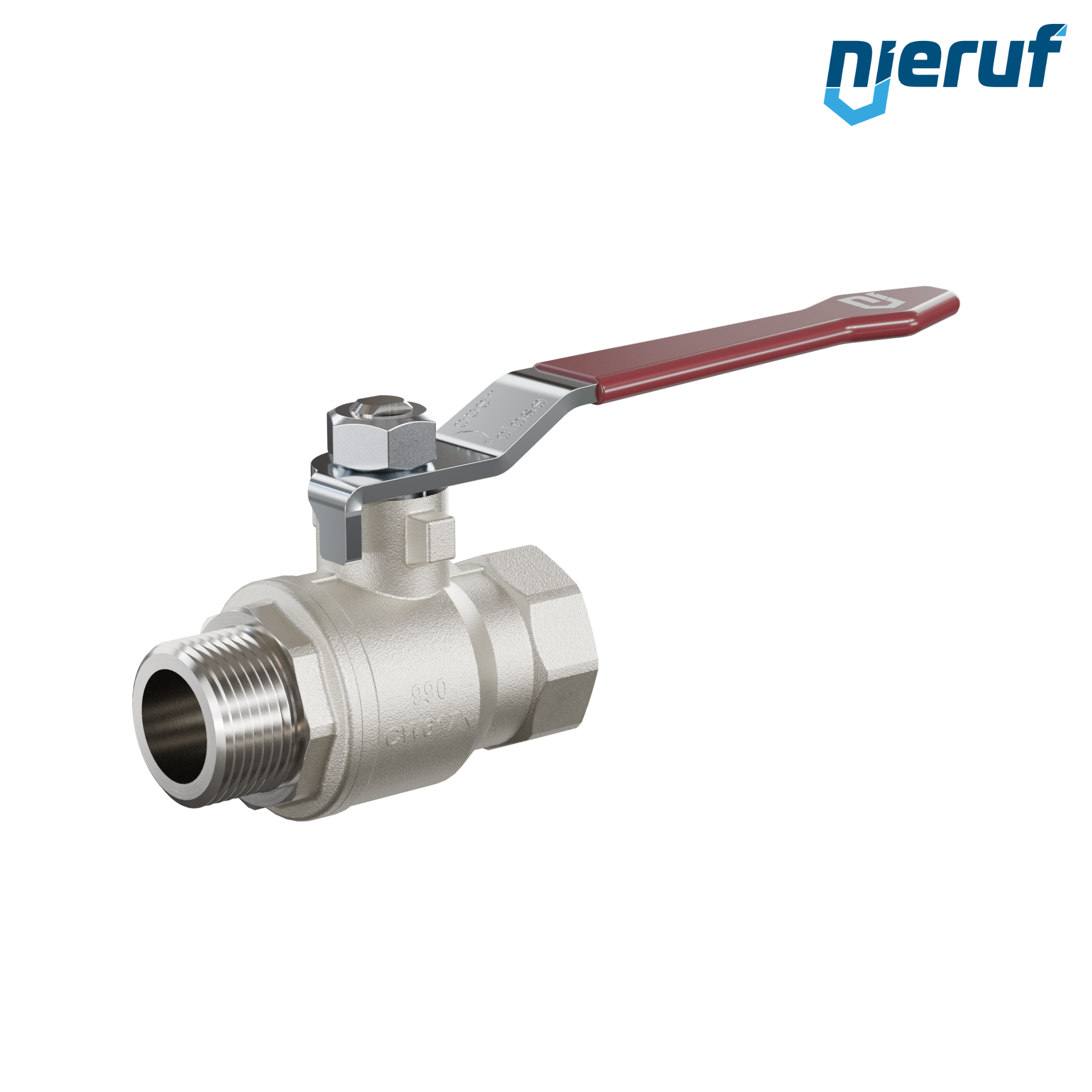

2 way ball valve DN15 - 1/2" inch GK01 female x male thread
€10.47 VAT included.
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
€57.36 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

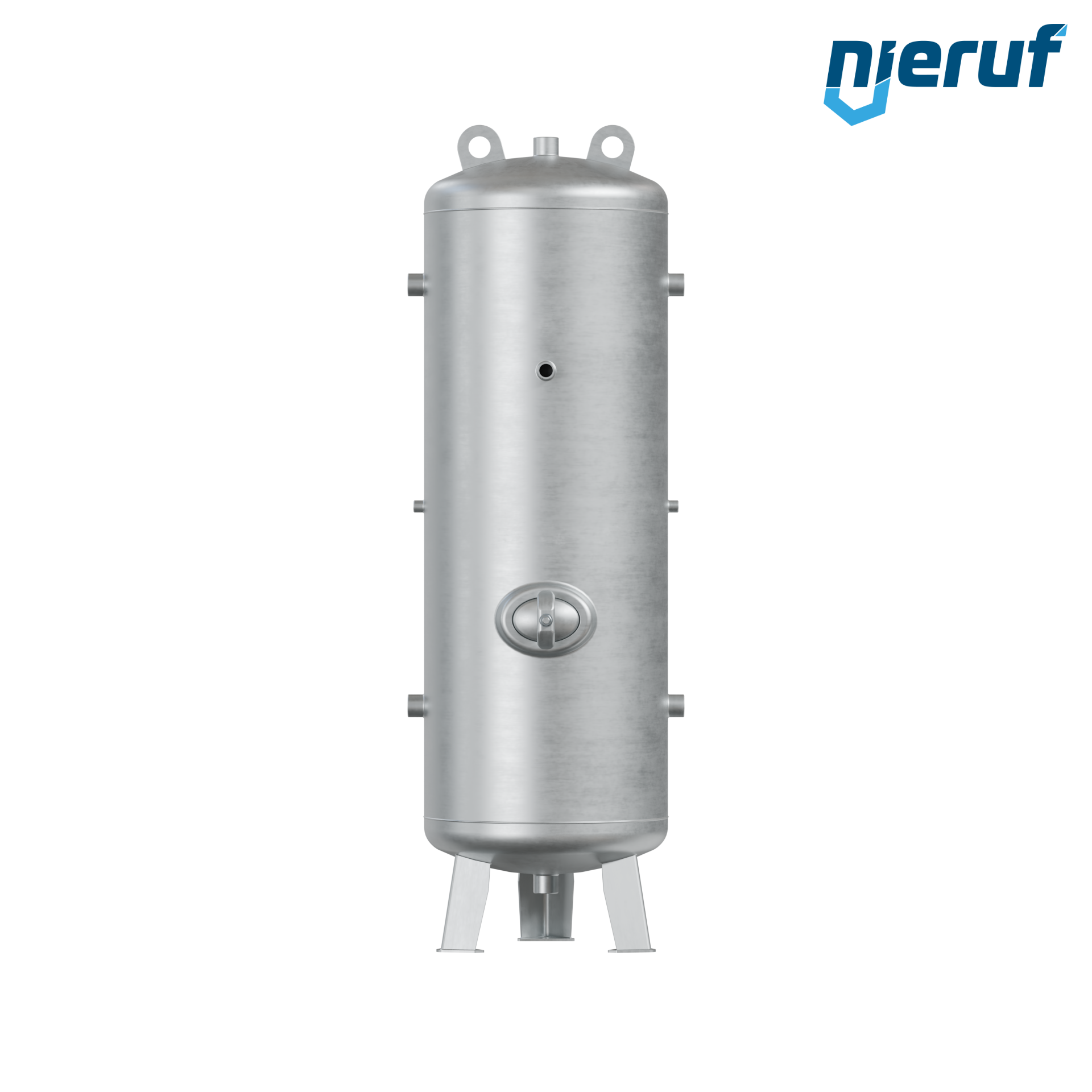

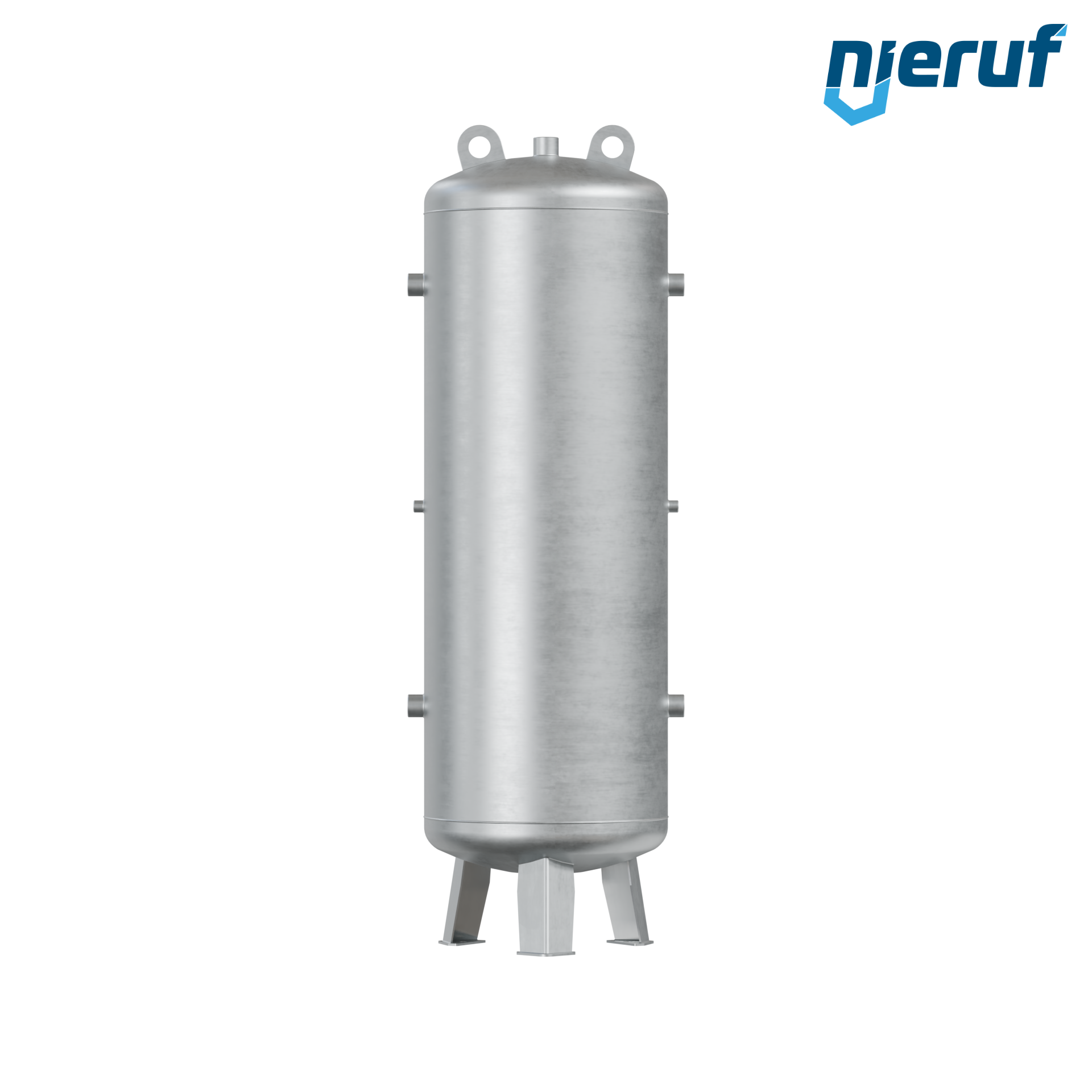

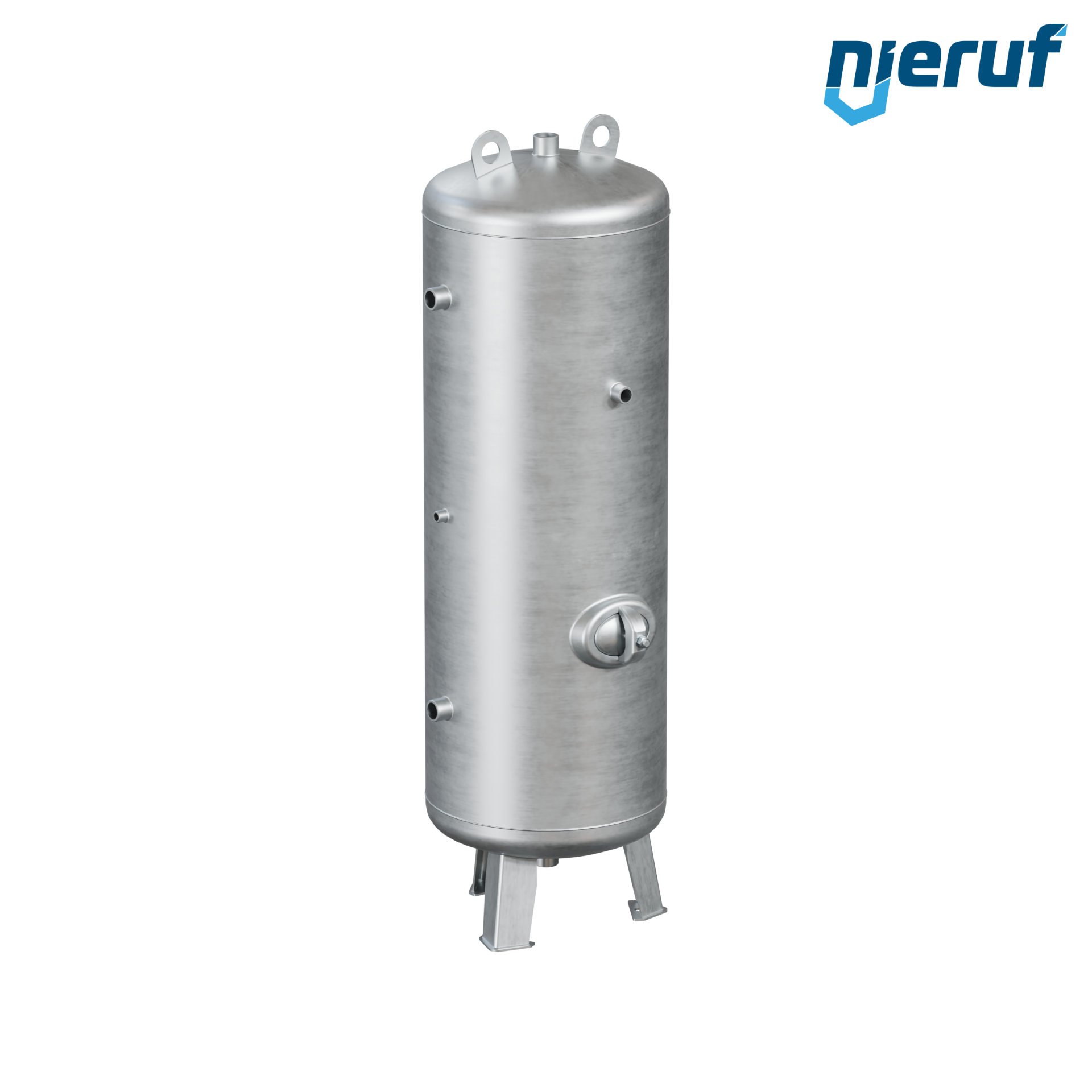

Pressure vessel vertical BE01 350 liter, 0-11 bar, steel galvanized
Pressure vessel BE01 with 350 liter volume vertical with operating pressure 0-11 bar made of steel galvanized and nominal size 550 mm
| product | Pressure vessel |
|---|---|
| type | BE01 |
| manufacturer | NieRuf |
| volume | 350 liter |
| nominal size | 550 mm |
| height | 1785 mm |
| operating pressure | 0-11 bar |
| version | vertical |
| temperature | -20°C up to +50°C |
| material | steel galvanized |
| media | compressed air, nitrogen & water |
| product feature | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Pressure vessel vertical BE01 350 liter, 0-11 bar, steel galvanized
Article no.
: BE01000005
product:
Pressure vessel
type:
BE01
manufacturer:
NieRuf
volume:
350 liter
nominal size:
550 mm
height:
1785 mm
operating pressure:
0-11 bar
version:
vertical
temperature:
-20°C up to +50°C
material:
steel galvanized
media:
compressed air, nitrogen & water
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
Equipment
Safety valve 1 1/2" m SV01 for compressed air FKM brass set pressure 0.2 - 16.0 bar
Lead time: 3 - 5 working days
€258.83 VAT included.
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
Lead time: 3 - 5 working days
Malleable cast iron fitting plug no. 290, DN15 - 1/2" inch galvanized
Lead time: in stock
2 way ball valve DN15 - 1/2" inch GK01 female x male thread
Lead time: in stock
steam trap Bekomat 31U compressor performance 2,5 m3/min
Lead time: in stock
pressure gauge G 1/2" axial 63 mm steel MM04 0 - 16,0 bar without filling, dry
Lead time: in stock
