BE01010020
Pressure vessel vertical BE01 10000 liter, 0-11 bar, steel primed, nominal size 1800 mm
- Lead time
- On request
Equipment
pressure gauge G 1/2" axial 63 mm steel MM04 0 - 16,0 bar without filling, dry
€34.51 VAT included.
2 way ball valve DN25 - 1" inch GK01 female x male thread
€23.21 VAT included.
safety valve 1" SV01 for compressed air, brass FKM, set pressure 0.2 - 25.0 bar
steam trap Bekomat 13 compressor performance 30,0 m3/min
€696.03 VAT included.
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
€57.36 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

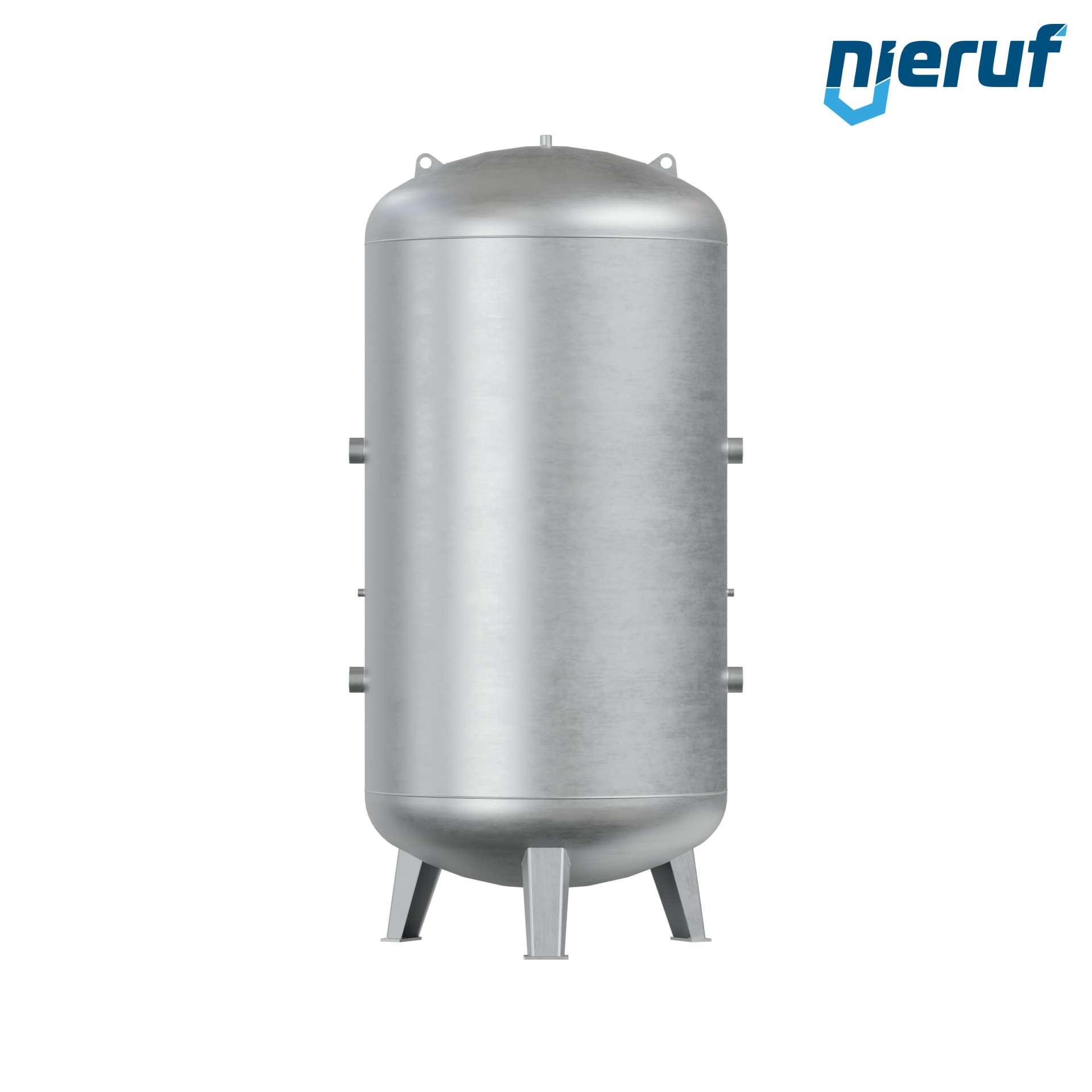

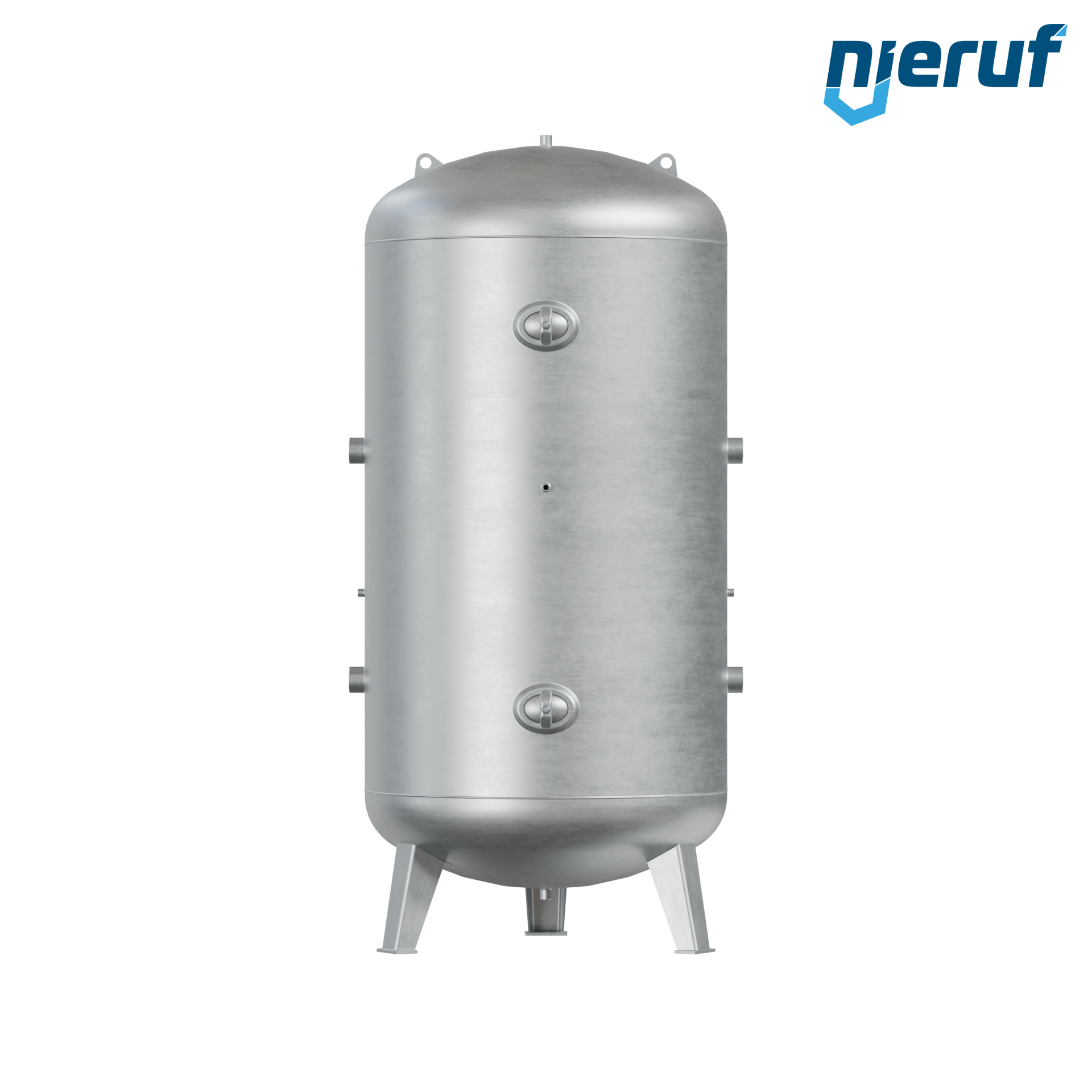

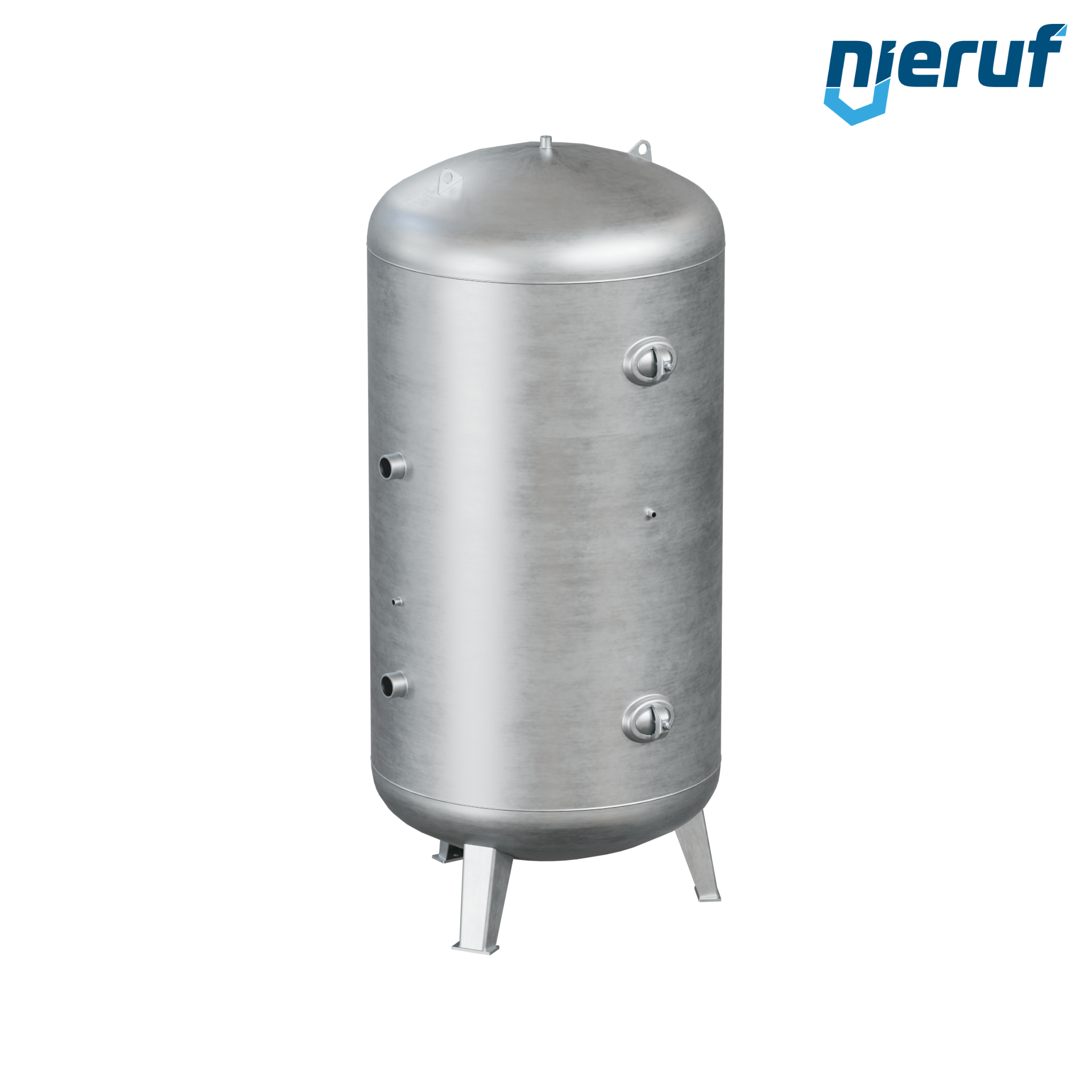

Pressure vessel vertical BE01 10000 liter, 0-11 bar, steel primed, nominal size 1800 mm
Pressure vessel BE01 with 10000 liter volume vertical with operating pressure 0-11 bar made of steel primed (inside raw) and nominal size 1800 mm
| product | Pressure vessel |
|---|---|
| type | BE01 |
| manufacturer | NieRuf |
| volume | 10000 liter |
| nominal size | 1800 mm |
| height | 4530 mm |
| operating pressure | 0-11 bar |
| version | vertical |
| temperature | -10°C up to +50°C |
| material | steel primed (inside raw) |
| media | compressed air and nitrogen |
| product feature | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Pressure vessel vertical BE01 10000 liter, 0-11 bar, steel primed, nominal size 1800 mm
Article no.
: BE01010020
product:
Pressure vessel
type:
BE01
manufacturer:
NieRuf
volume:
10000 liter
nominal size:
1800 mm
height:
4530 mm
operating pressure:
0-11 bar
version:
vertical
temperature:
-10°C up to +50°C
material:
steel primed (inside raw)
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
Equipment
safety valve 1" SV01 for compressed air, brass FKM, set pressure 0.2 - 25.0 bar
Lead time: 3 - 5 working days
€82.47 VAT included.
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
Lead time: 3 - 5 working days
Malleable cast iron fitting plug no. 290, DN15 - 1/2" inch galvanized
Lead time: in stock
2 way ball valve DN25 - 1" inch GK01 female x male thread
Lead time: in stock
steam trap Bekomat 13 compressor performance 30,0 m3/min
Lead time: in stock
pressure gauge G 1/2" axial 63 mm steel MM04 0 - 16,0 bar without filling, dry
Lead time: in stock
