DM06020006

pressure reducing valve DN 32 PN16 DM06 gunmetal/brass FKM 1.0 - 8.0 bar

€736.90*

€876.91 VAT included.

Delivery time: 3 - 5 working days

Delivery information

Equipment

VS01010106

joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 steel

€6.80*

€8.09 VAT included.


FL01020106

Flange DN32 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare

€15.00*

€17.85 VAT included.


FD01000106

flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400

€2.10*

€2.50 VAT included.


MM03000301

pressure gauge G 1/4" axial 50 mm steel MM03 0 - 10,0 bar

€10.60*

€12.61 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: DM06020006

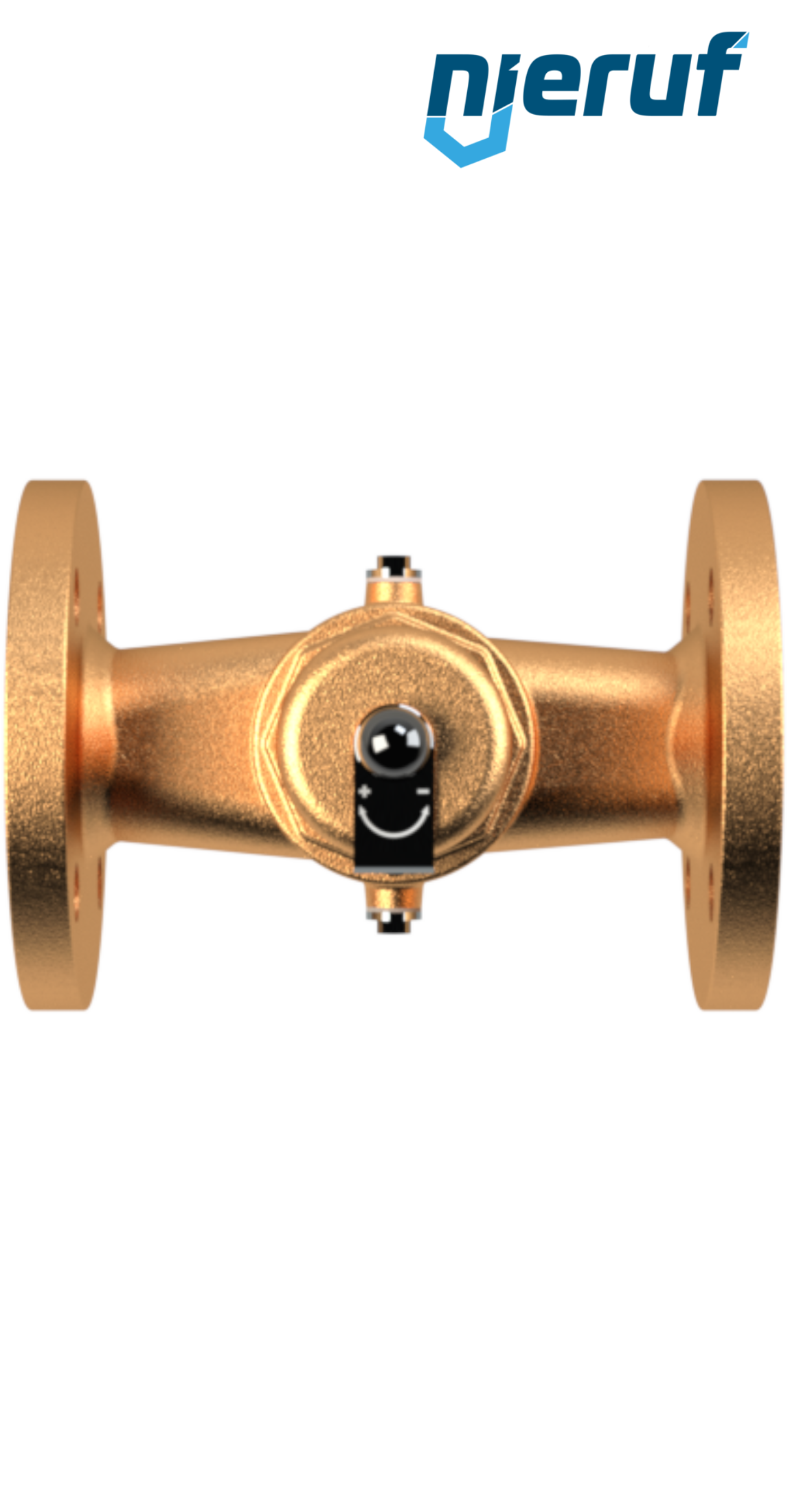

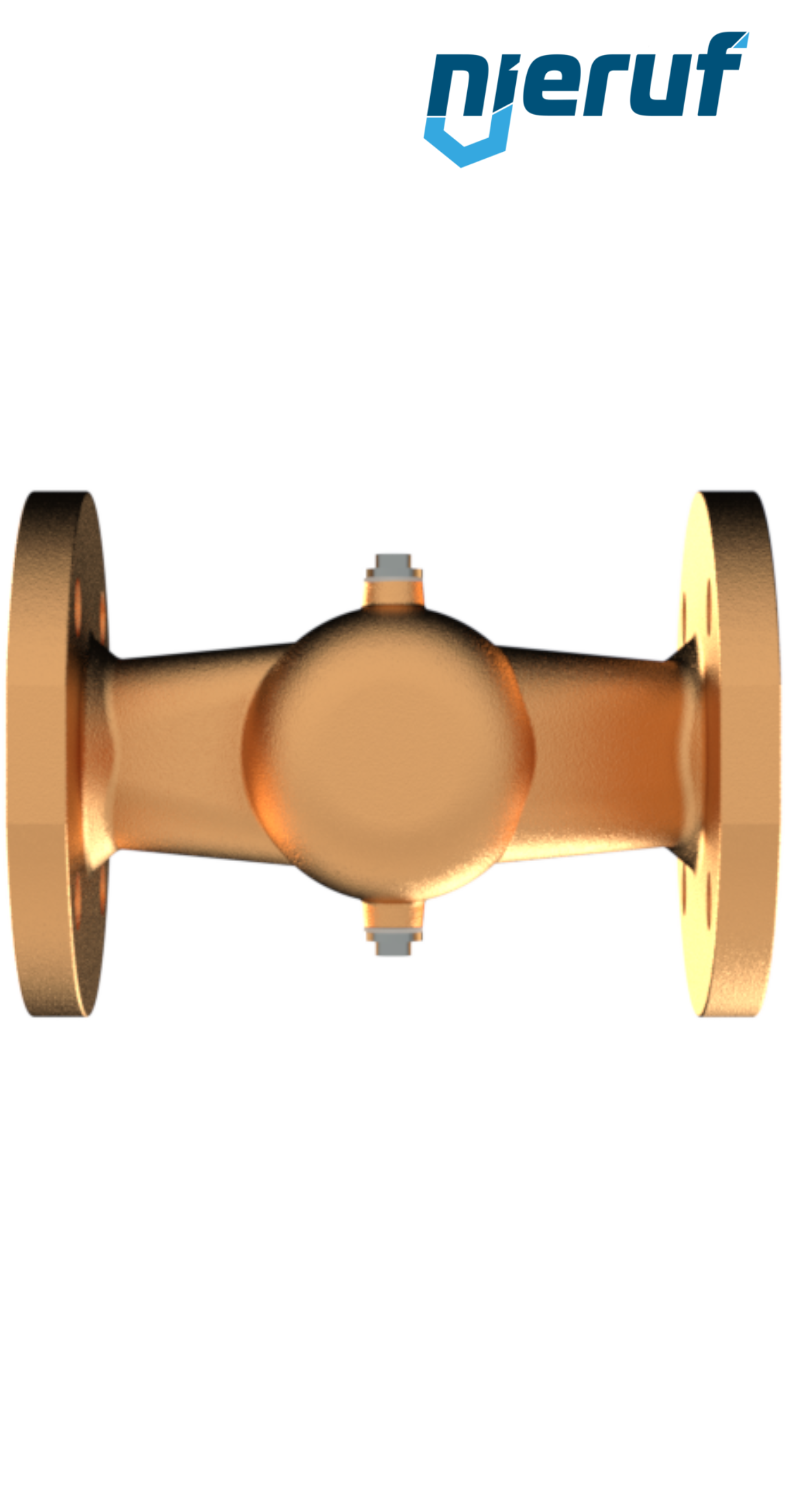

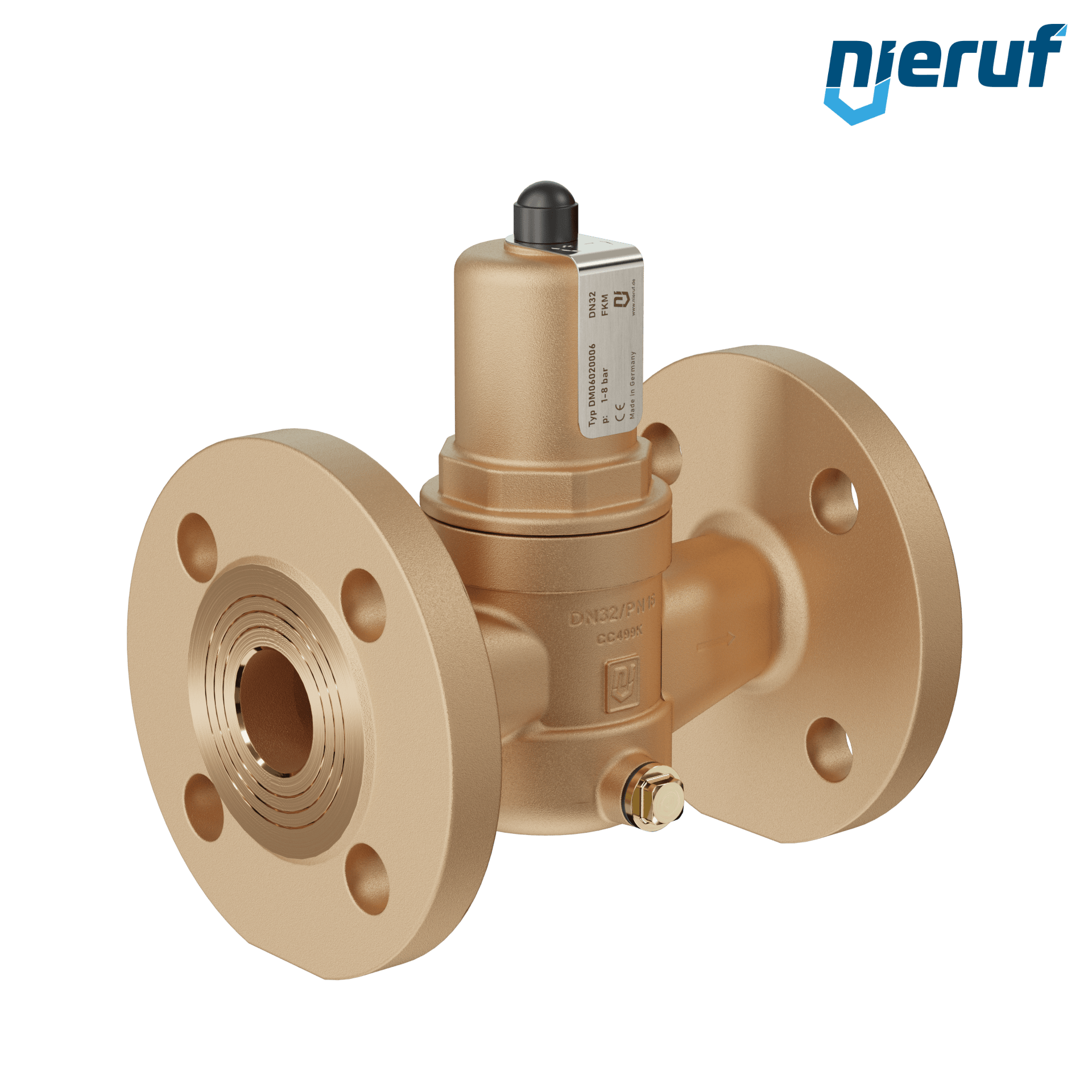

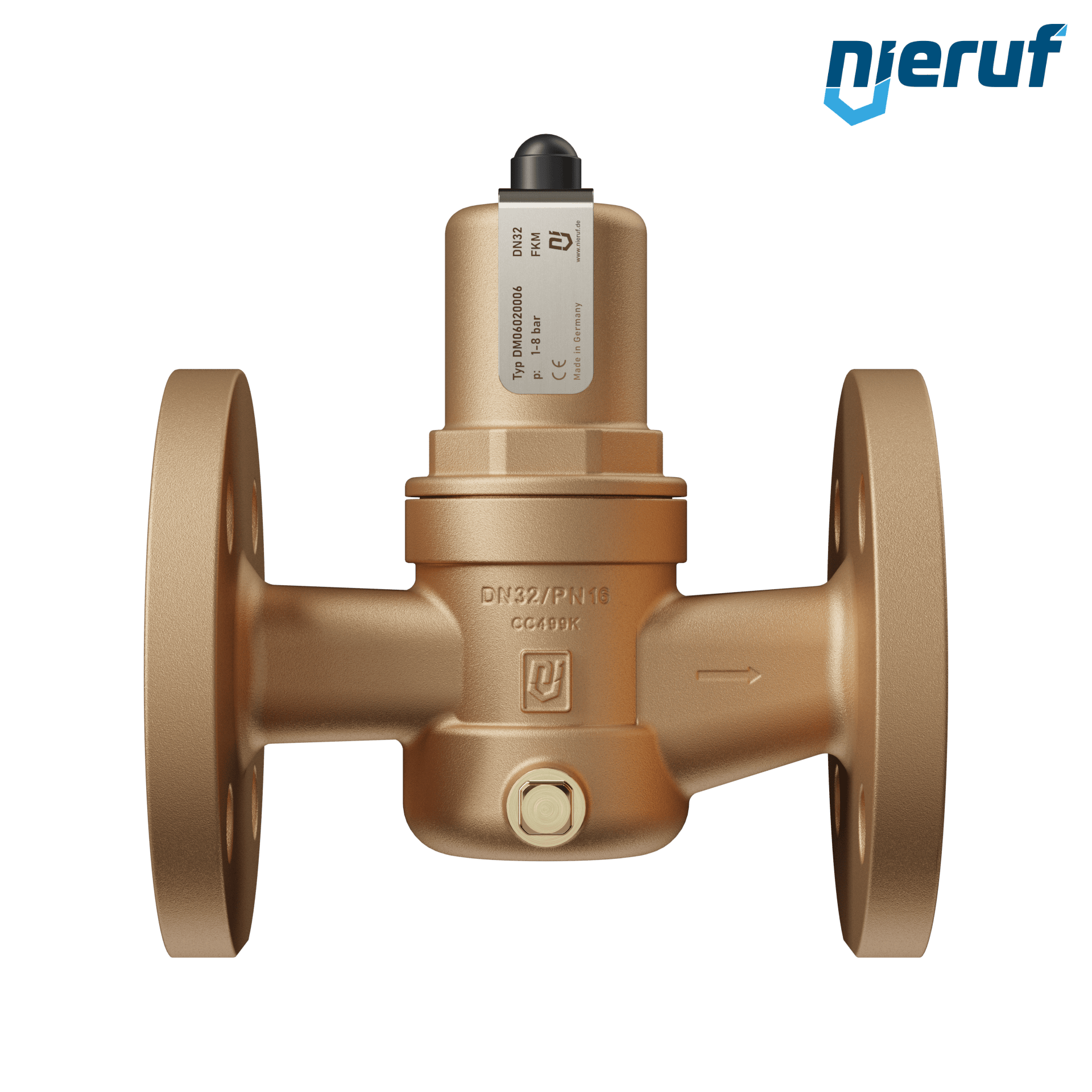

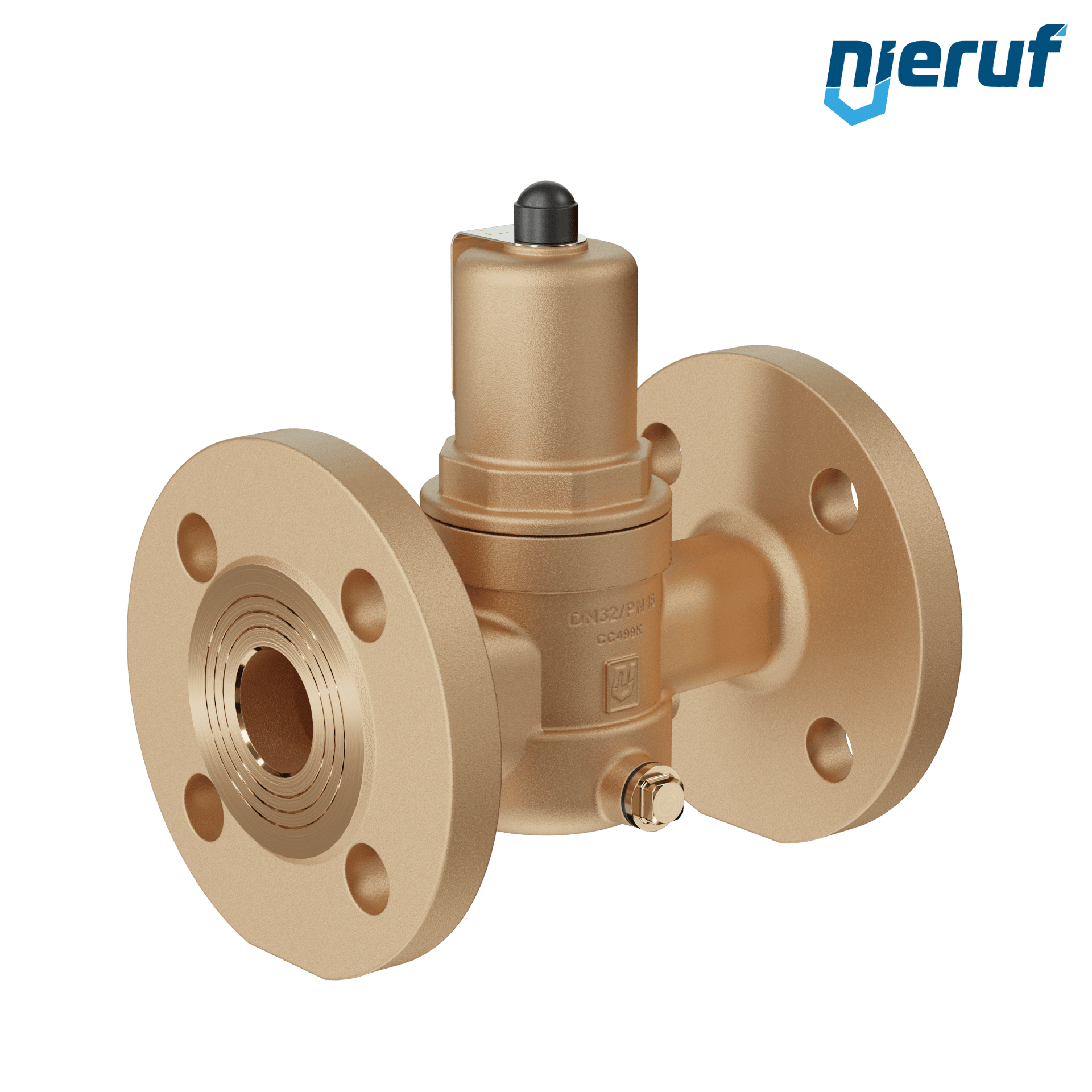

pressure reducing valve DN 32 PN16 DM06 gunmetal/brass FKM 1.0 - 8.0 bar

pressure reducing valve DN 32 PN16 flange acc. DIN EN 1092 made of gunmetal/brass seal FKM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar

product: pressure reducing valve
type: DM06
manufacturer: NieRuf
diameter: DN 32 PN16
connection: flange acc. DIN EN 1092
material: gunmetal/brass
seal: FKM
media: liquid and gaseous media (no steam)
temperature: -10°C up to +120°C
range of adjustment: 1.0 - 8.0 bar
max. inlet pressure: 16 bar
design: straightway form
installation position: any position
SIL - safety integrity level: SIL 2
product feature: High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Adjustment by means of non-rising spindle.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

pressure reducing valve DN 32 PN16 DM06 gunmetal/brass FKM 1.0 - 8.0 bar

Article no. : DM06020006
product: pressure reducing valve
type: DM06
manufacturer: NieRuf
diameter: DN 32 PN16
connection: flange acc. DIN EN 1092
material: gunmetal/brass
seal: FKM
media: liquid and gaseous media (no steam)
temperature: -10°C up to +120°C
range of adjustment: 1.0 - 8.0 bar
max. inlet pressure: 16 bar
design: straightway form
installation position: any position
SIL - safety integrity level: SIL 2
product feature: High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Adjustment by means of non-rising spindle.
