DM02020003

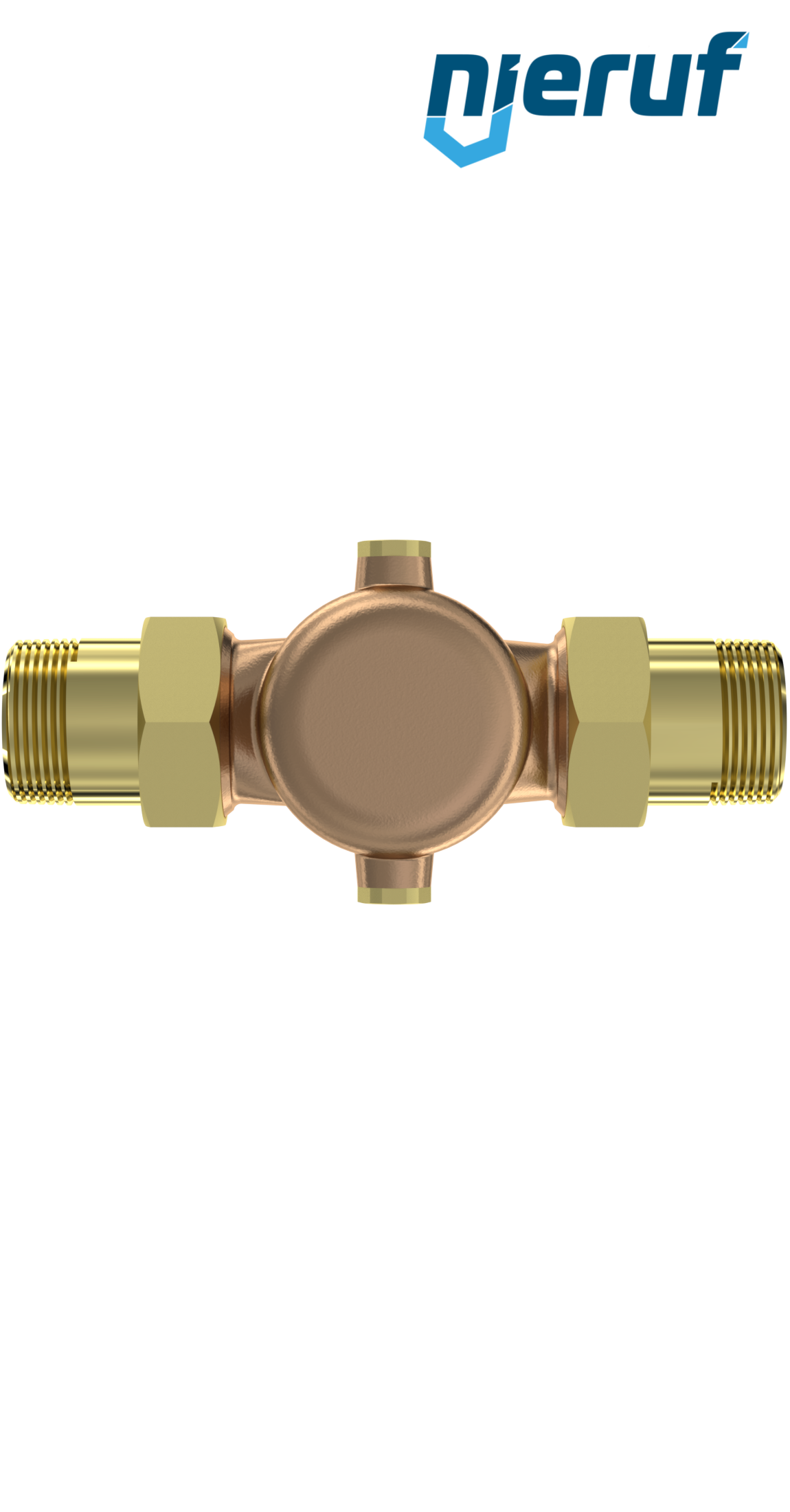

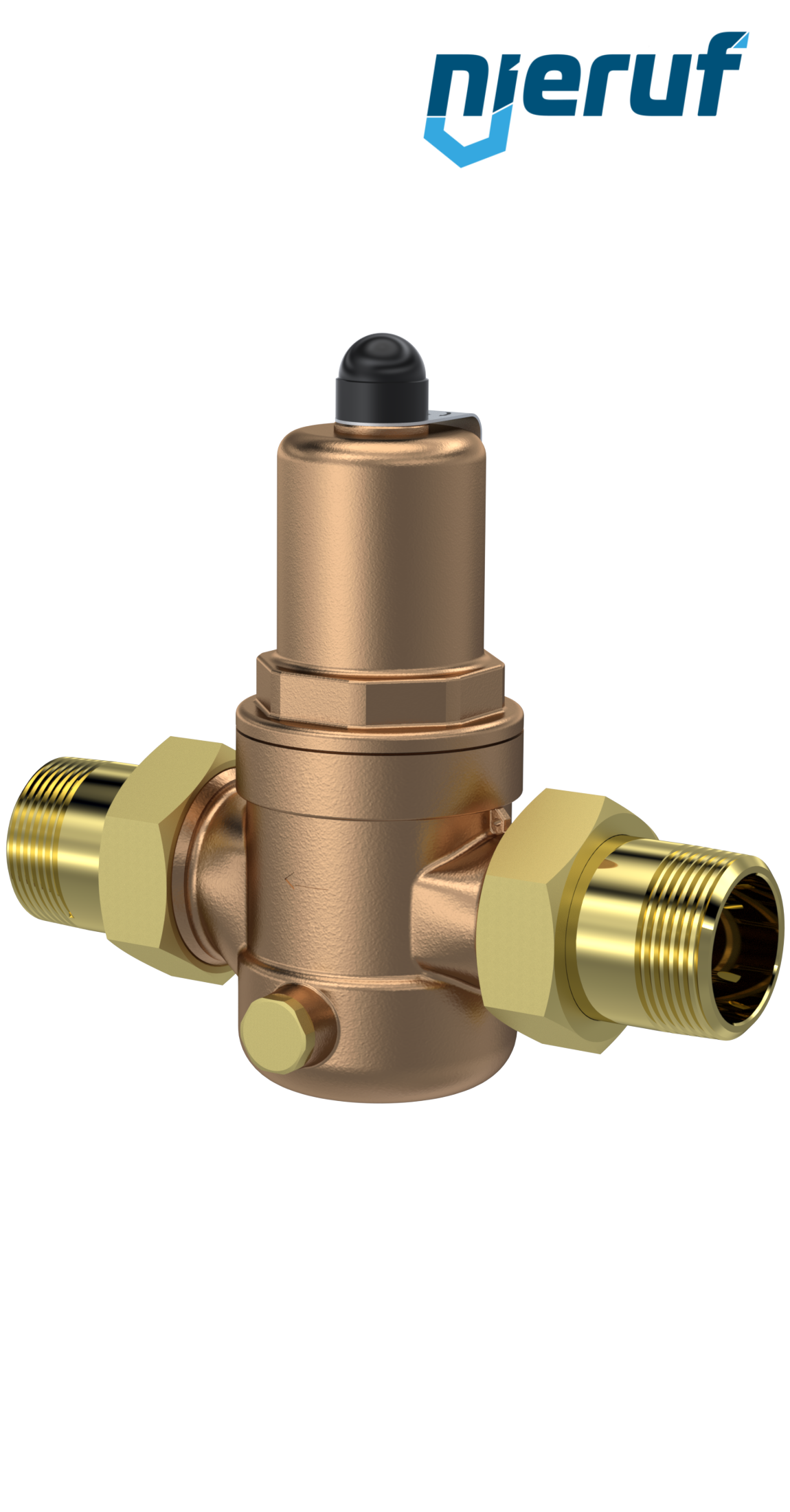

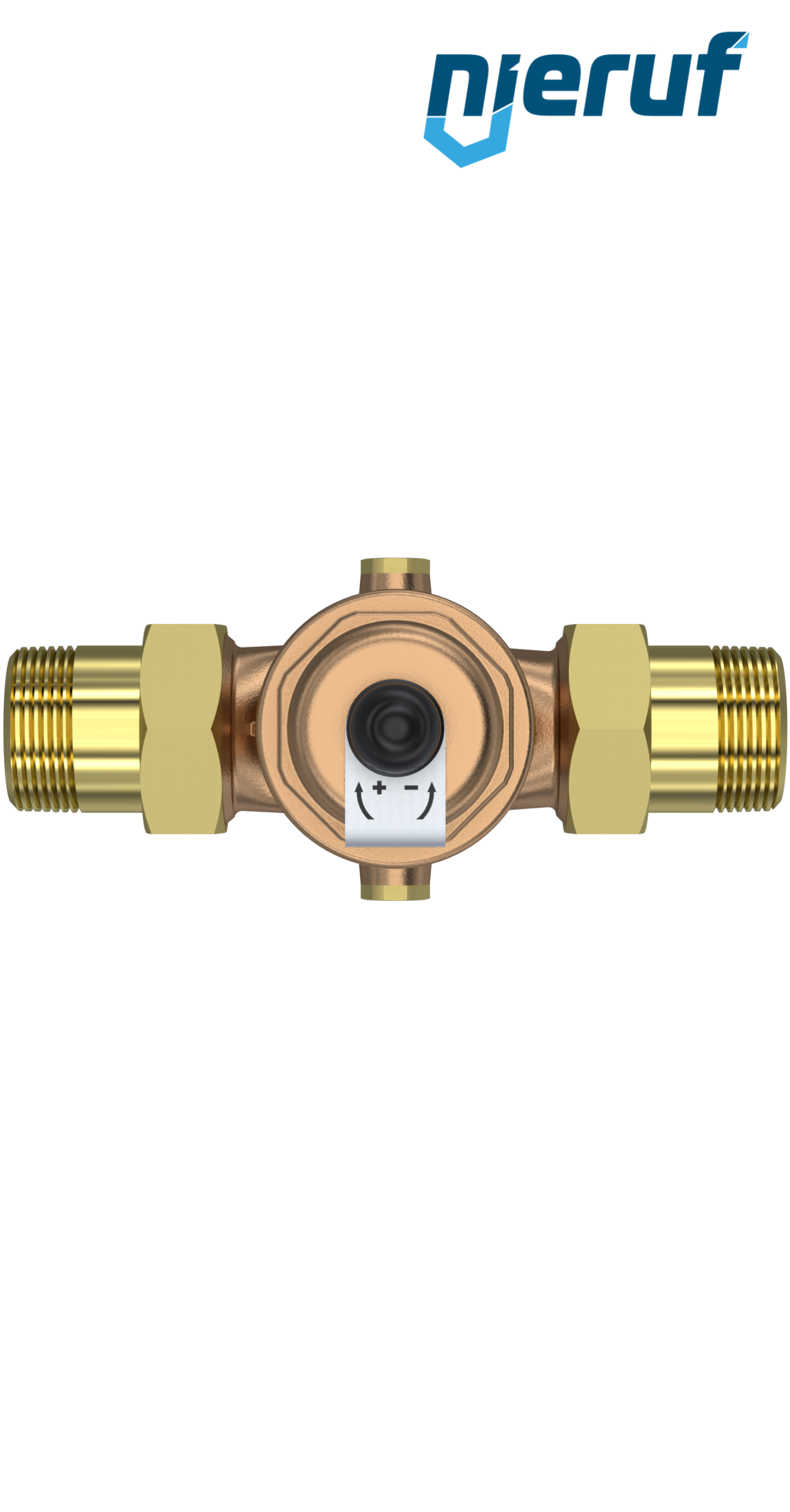

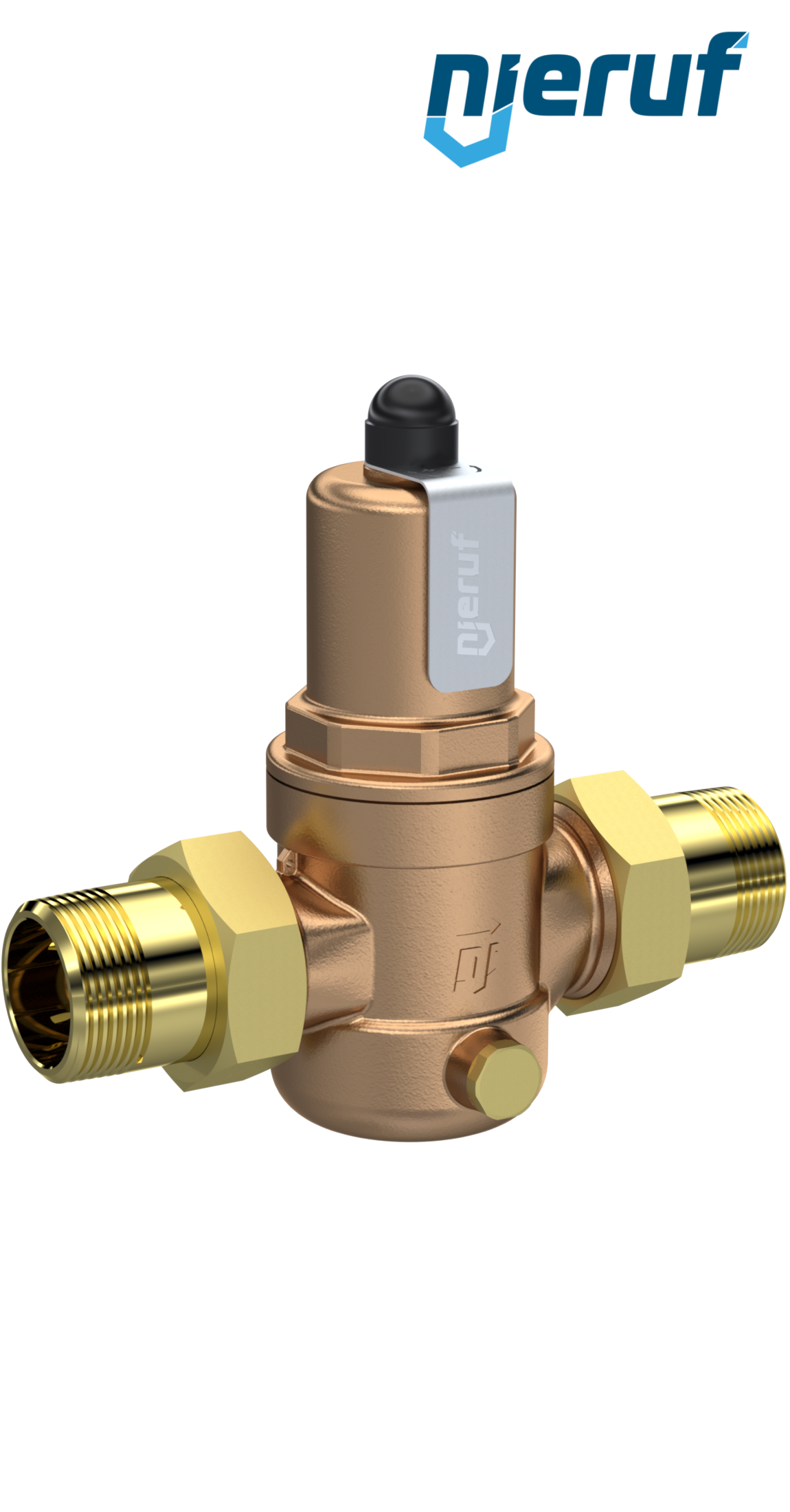

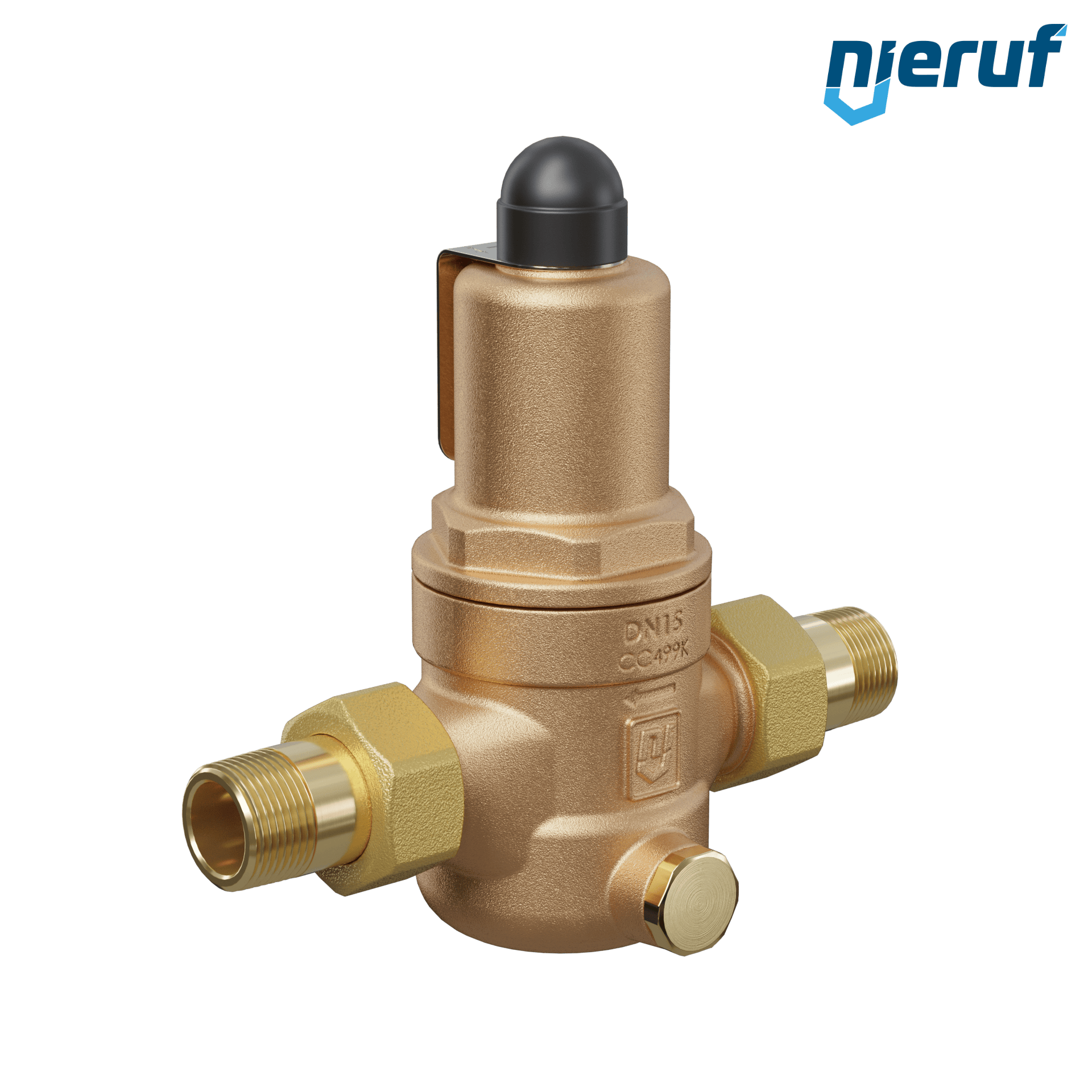

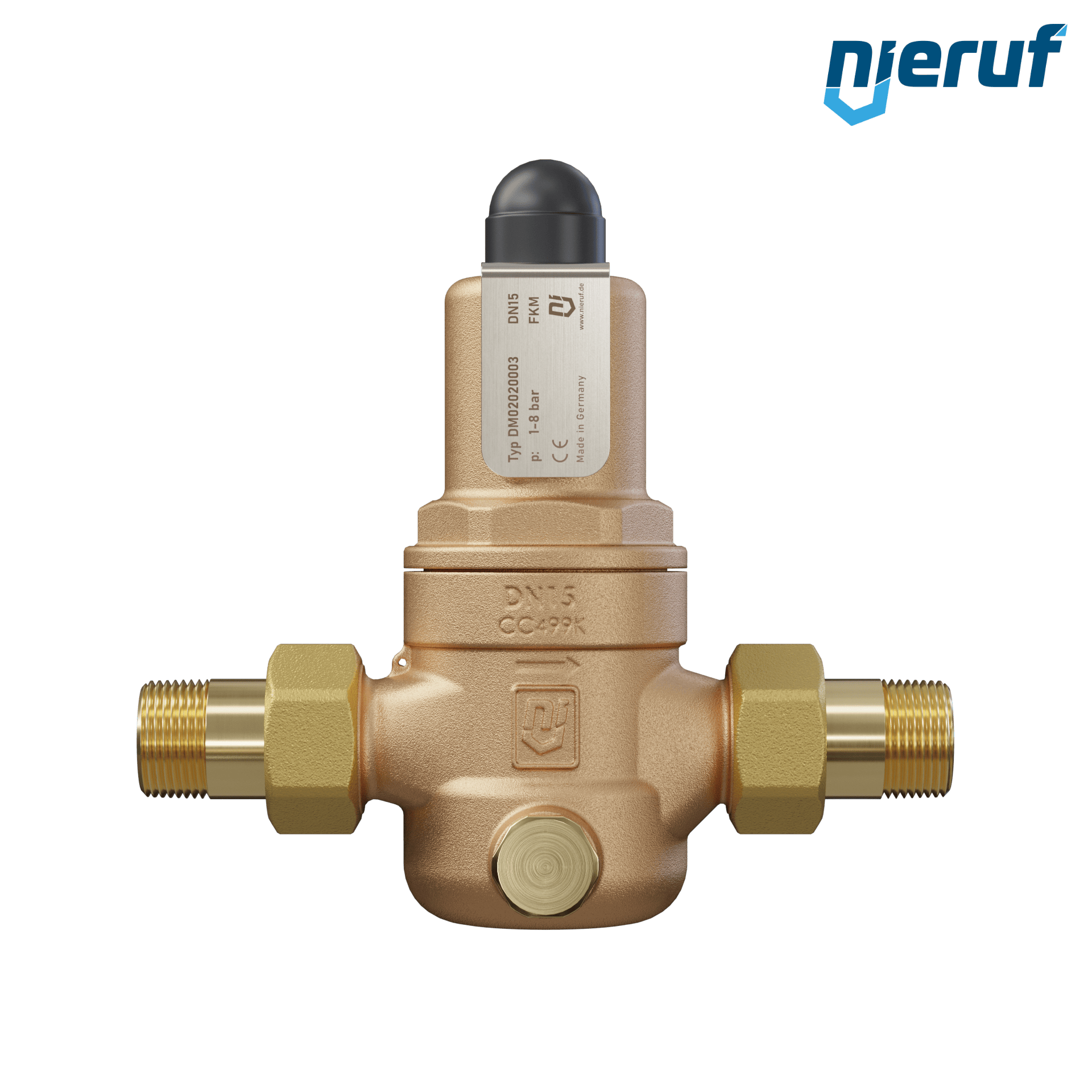

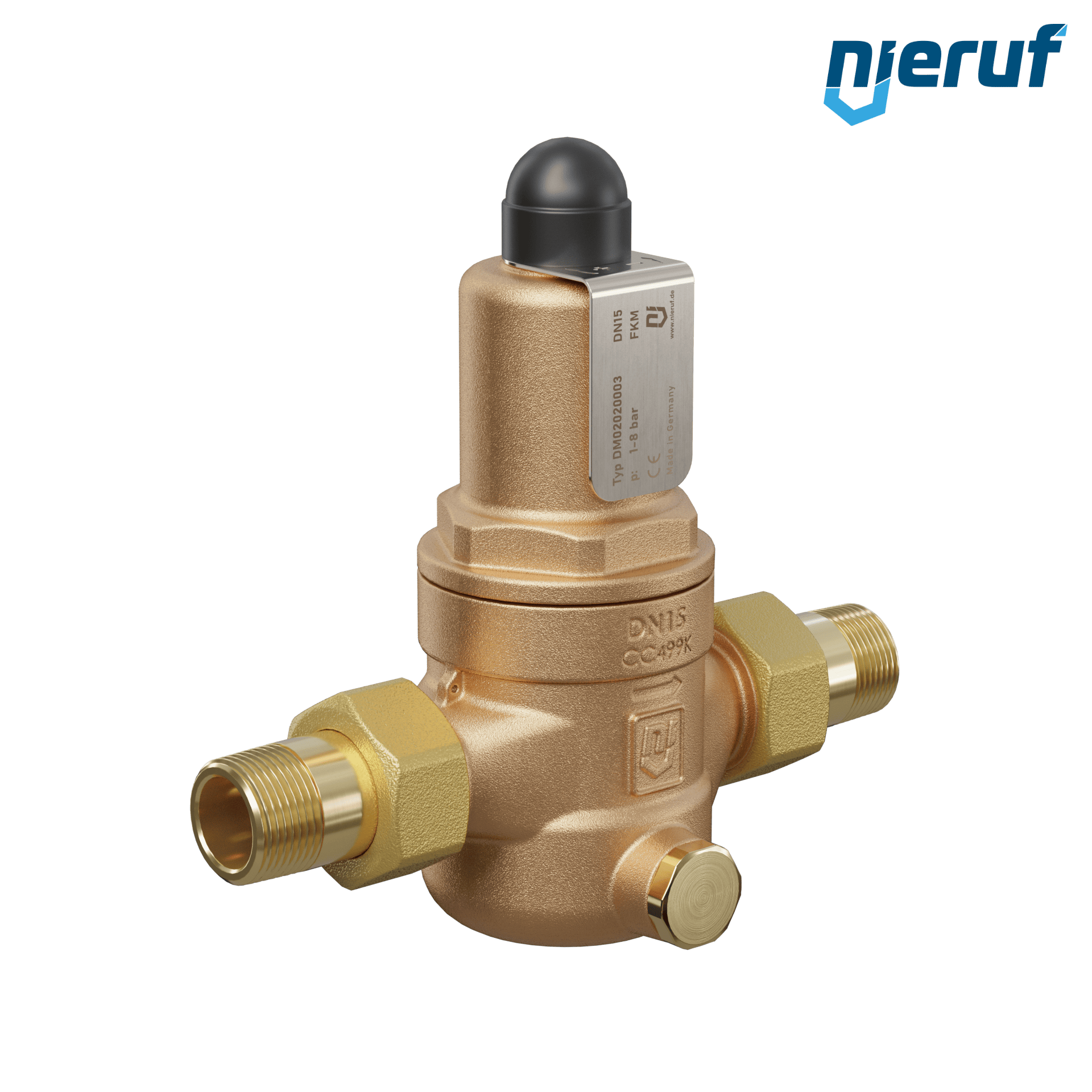

pressure reducing valve 1/2" inch male thread DM02 gunmetal FKM 1.0 - 8.0 bar

€122.60*

€145.89 VAT included.

Delivery time: 3 - 5 working days

Delivery information

Equipment

GF01302003

socket 1/2" inch female stainless steel 316 L

€3.00*

€3.57 VAT included.


MM03000301

pressure gauge G 1/4" axial 50 mm steel MM03 0 - 10,0 bar

€10.60*

€12.61 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: DM02020003
pressure reducing valve 1/2" inch male thread DM02 gunmetal FKM 1.0 - 8.0 bar

pressure reducing valve 1/2" inch male thread male thread BSP-T made of gunmetal/brass seal FKM for liquid and gaseous media (no steam), set pressure 1.0 - 8.0 bar

product: pressure reducing valve
type: DM02
manufacturer: NieRuf
diameter: 1/2" inch male thread
connection: male thread BSP-T
material: gunmetal/brass
seal: FKM
media: liquid and gaseous media (no steam)
temperature: -10°C up to +120°C
range of adjustment: 1.0 - 8.0 bar
max. inlet pressure: 40 bar
design: straightway form
installation position: any position
SIL - safety integrity level: SIL 2
product feature: High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Pressure adjustment by means of non-rising spindle.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

pressure reducing valve 1/2" inch male thread DM02 gunmetal FKM 1.0 - 8.0 bar

Article no. : DM02020003
product: pressure reducing valve
type: DM02
manufacturer: NieRuf
diameter: 1/2" inch male thread
connection: male thread BSP-T
material: gunmetal/brass
seal: FKM
media: liquid and gaseous media (no steam)
temperature: -10°C up to +120°C
range of adjustment: 1.0 - 8.0 bar
max. inlet pressure: 40 bar
design: straightway form
installation position: any position
SIL - safety integrity level: SIL 2
product feature: High-quality, heat-resistant moulded elastomere, fabric-reinforced diaphragm. Pressure adjustment by means of non-rising spindle.
