PR02000001
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black 2 cable glands
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you

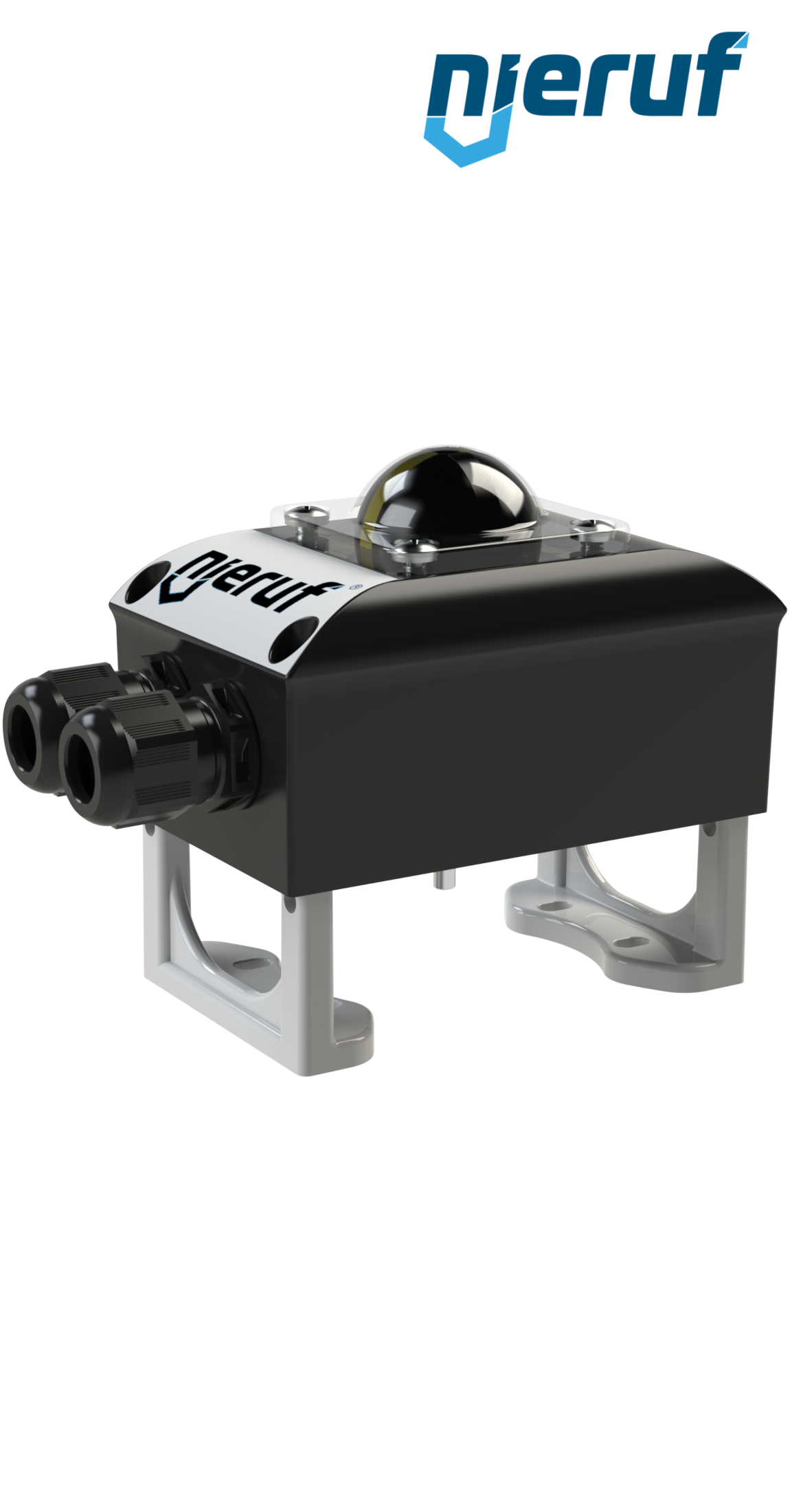

Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black 2 cable glands
Position indicator PR02 mechanical micro switches ZF, D44X, for open / closed - made of Polyamid PA6 black 2 x Cable gland M20x1,5
| product | Position indicator |
|---|---|
| type | PR02 |
| manufacturer | NieRuf |
| Housing material | Polyamid PA6 black |
| bridge | Polyamid PA6 with 30% FG |
| axis | Polyamid PA6 |
| seal | EPDM, NBR |
| temperature | -25°C to +80°C |
| voltage | 12 - 250 V AC/DC |
| protection | IP67 VDE 0470 / EN 60529 |
| indication | 3D position indicator |
| Electrical design | mechanical micro switches ZF, D44X |
| signal | open + closed |
| Actuator hole spacings | 80 x 30mm | 130 x 30mm |
| mounting measurements | 2 x Cable gland M20x1,5 |

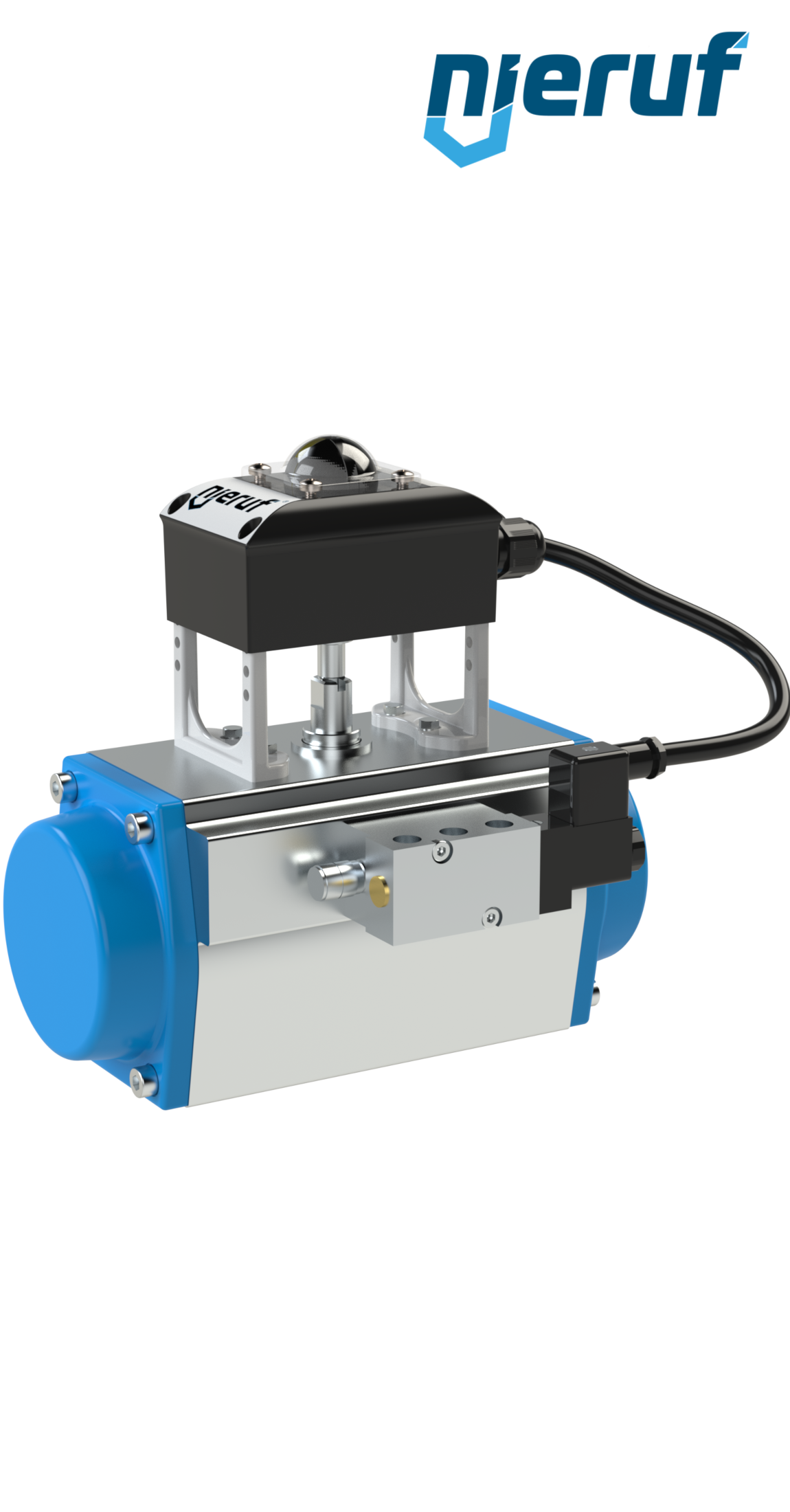

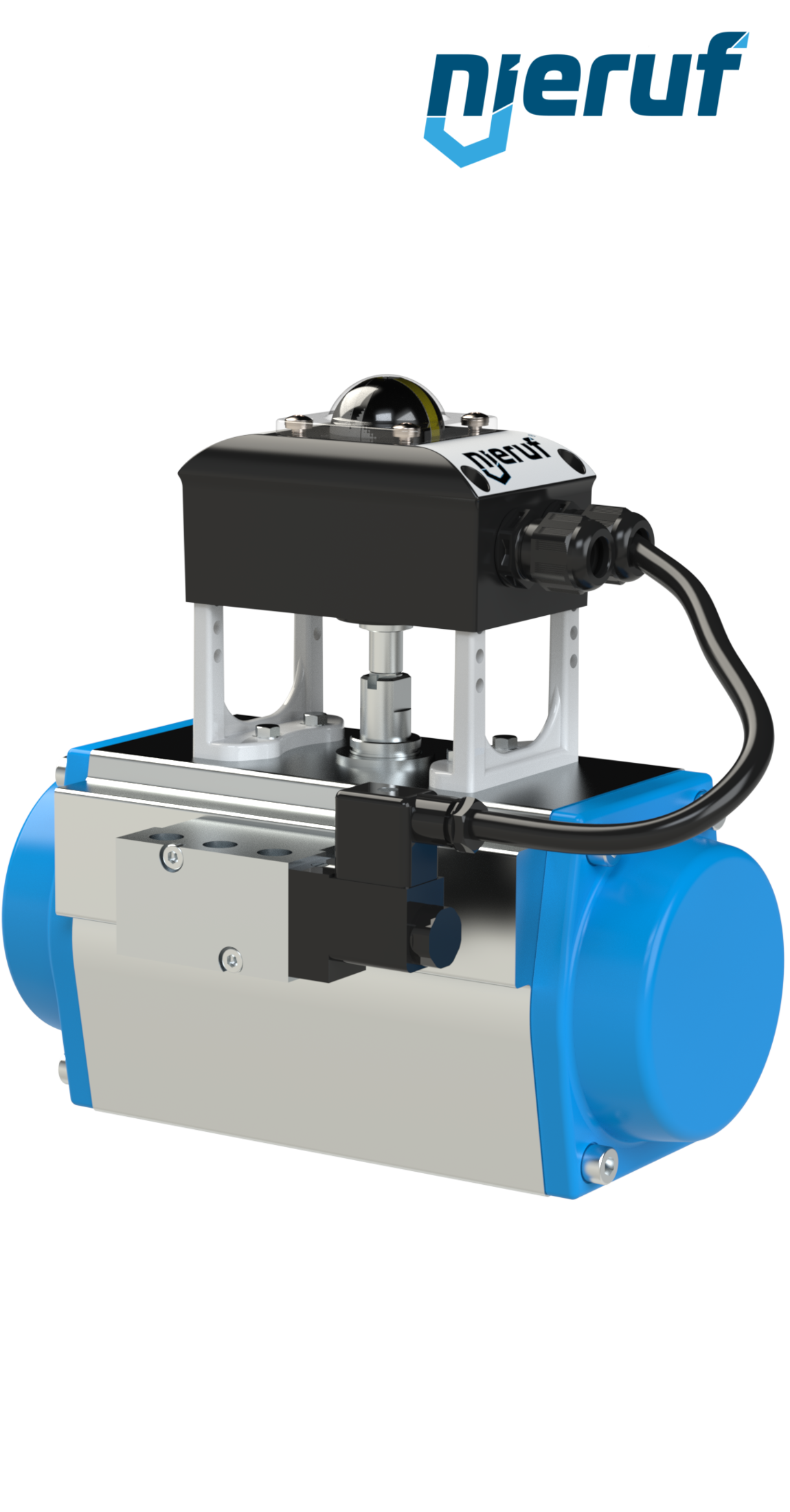

| product feature | Limit switch box with mechanical microswitch D44X, for actuators with hole pattern 80x30 mm or 130x30 mm. With two cable glands M20x1,5 so that the Namur valve can be connected directly to the limit switch box. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black 2 cable glands
Article no.
: PR02000001
product:
Position indicator
type:
PR02
manufacturer:
NieRuf
Housing material:
Polyamid PA6 black
bridge:
Polyamid PA6 with 30% FG
axis:
Polyamid PA6
seal:
EPDM, NBR
temperature:
-25°C to +80°C
voltage:
12 - 250 V AC/DC
protection:
IP67 VDE 0470 / EN 60529
indication:
3D position indicator
Electrical design:
mechanical micro switches ZF, D44X
signal:
open + closed
Actuator hole spacings:
80 x 30mm | 130 x 30mm
mounting measurements:
2 x Cable gland M20x1,5
product feature:
Limit switch box with mechanical microswitch D44X, for actuators with hole pattern 80x30 mm or 130x30 mm. With two cable glands M20x1,5 so that the Namur valve can be connected directly to the limit switch box.
