KV04121005

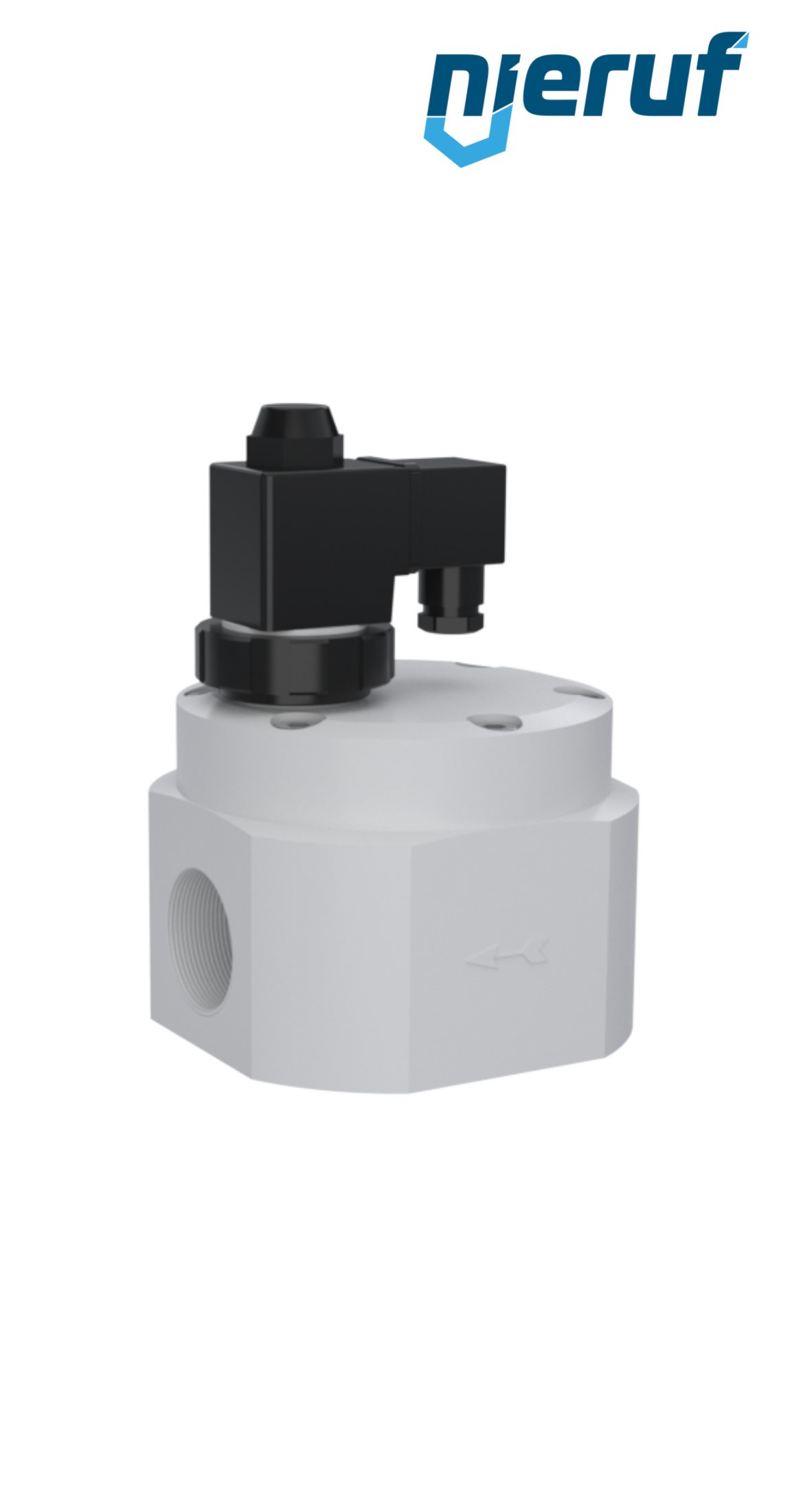

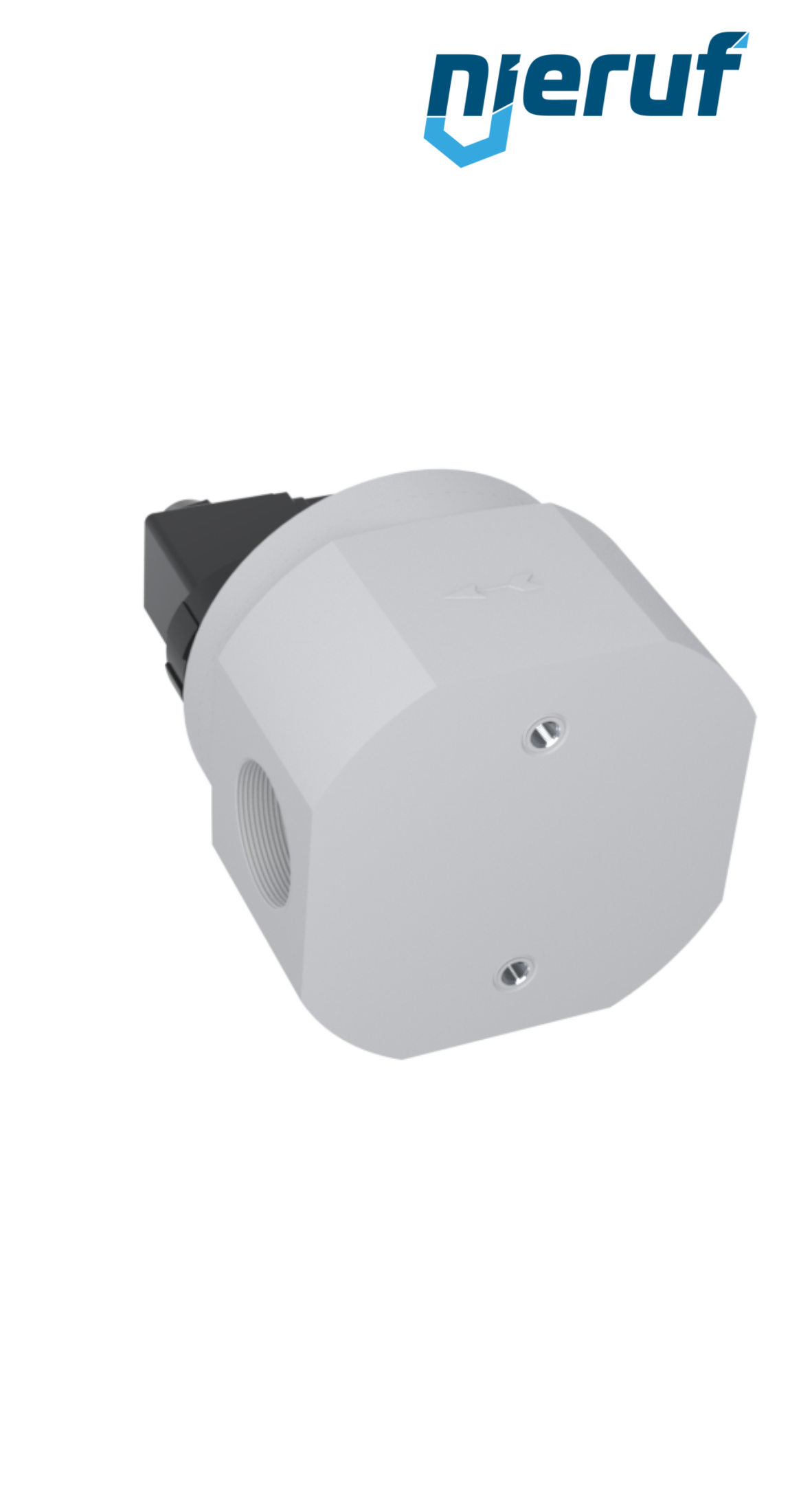

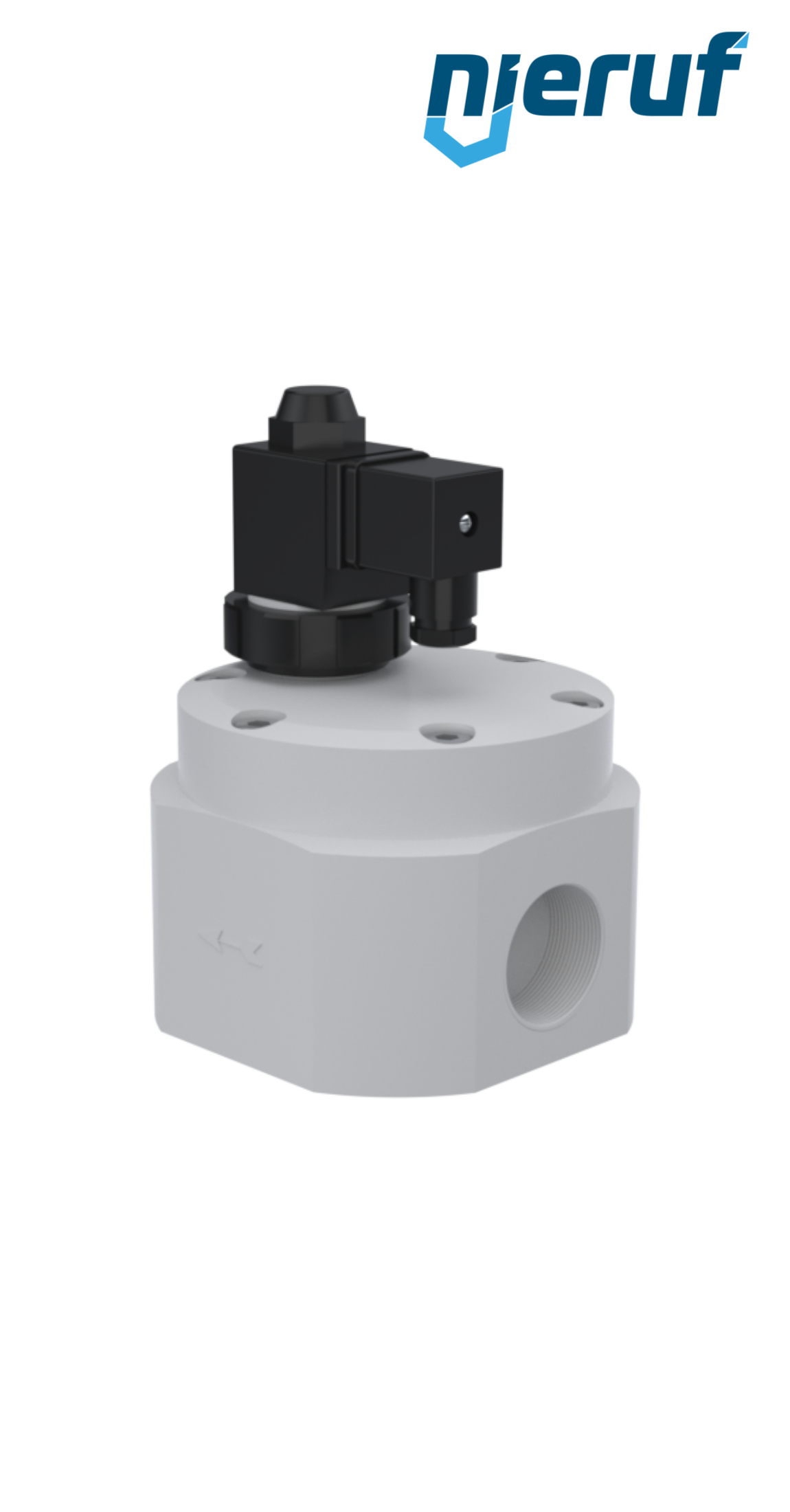

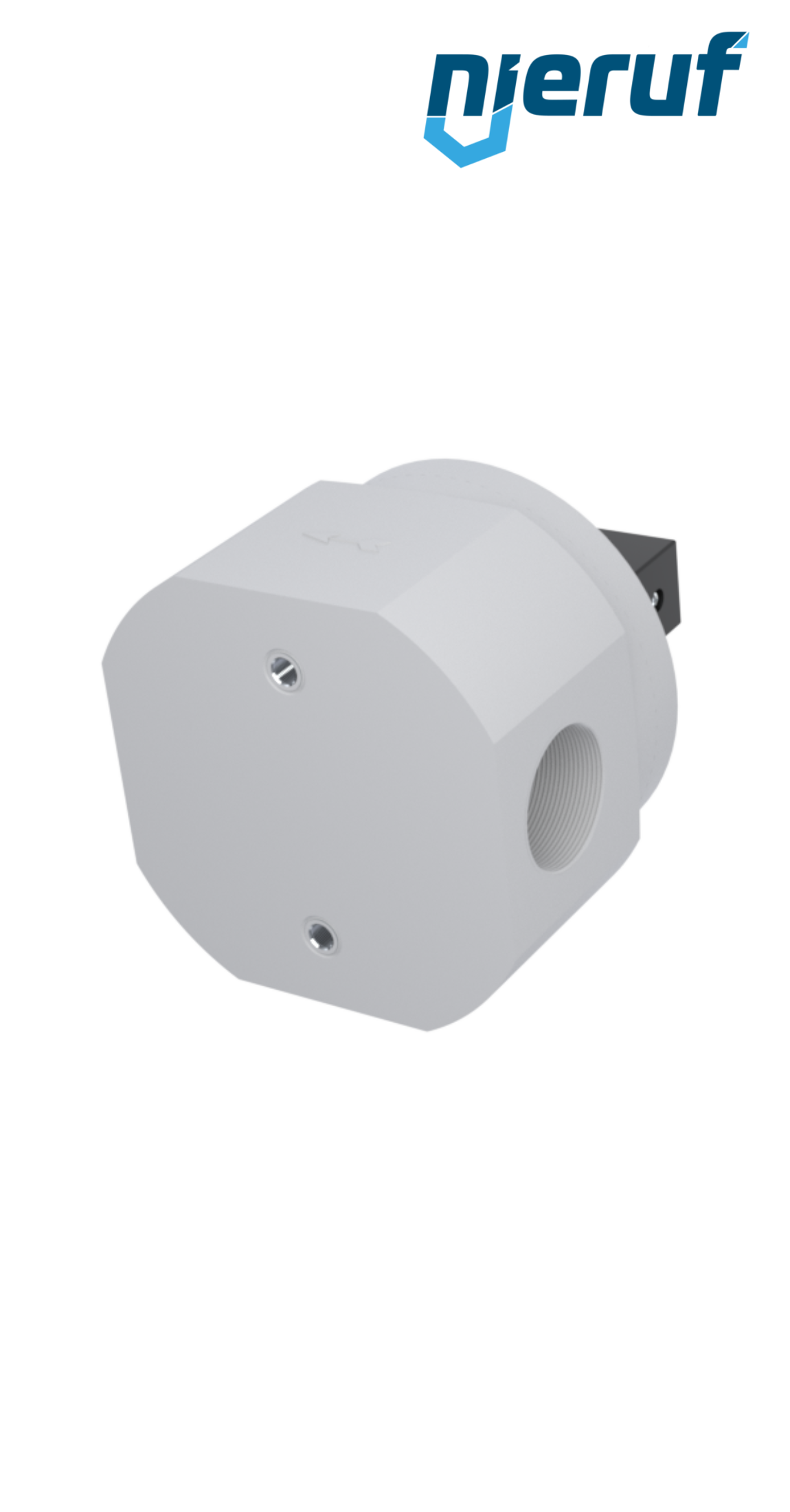

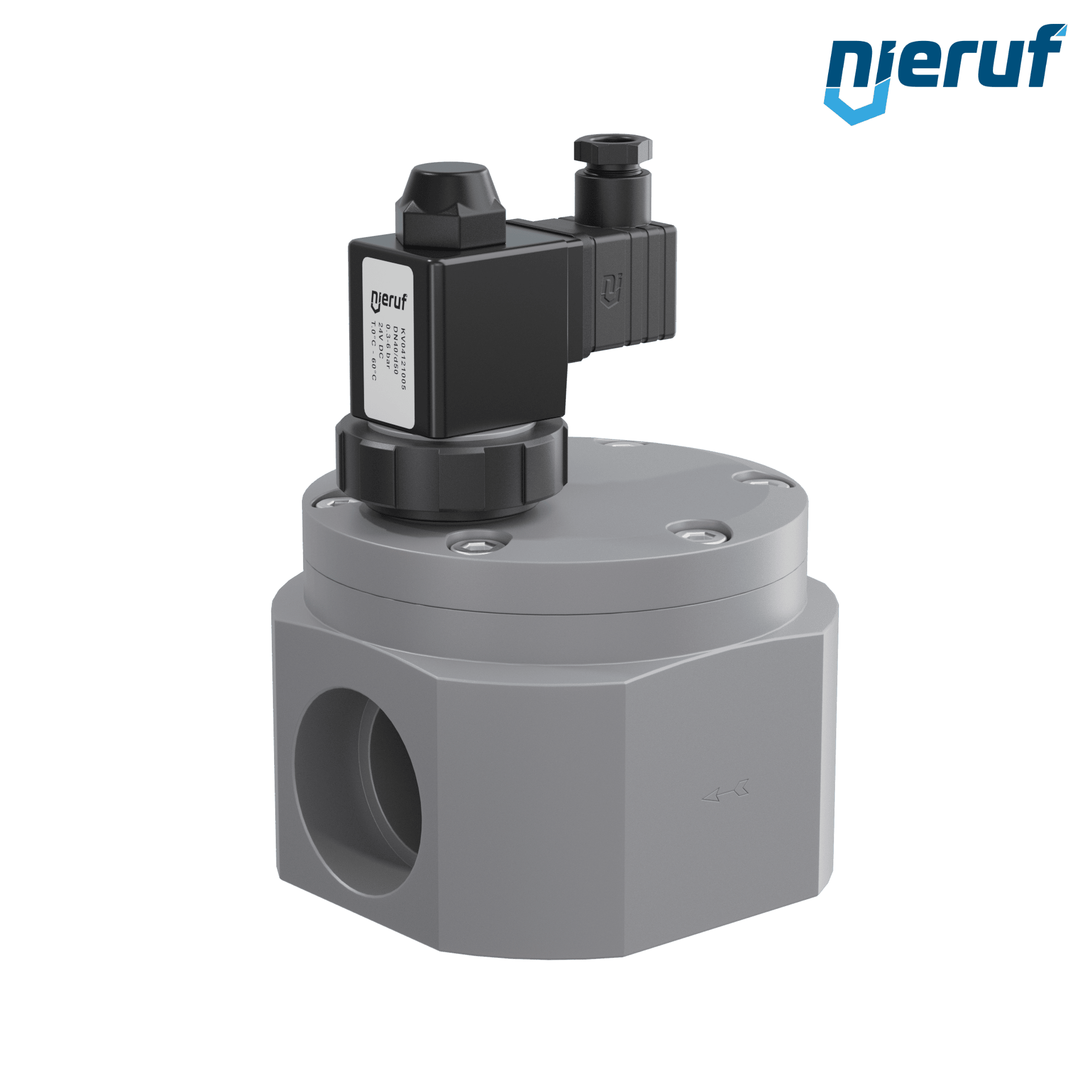

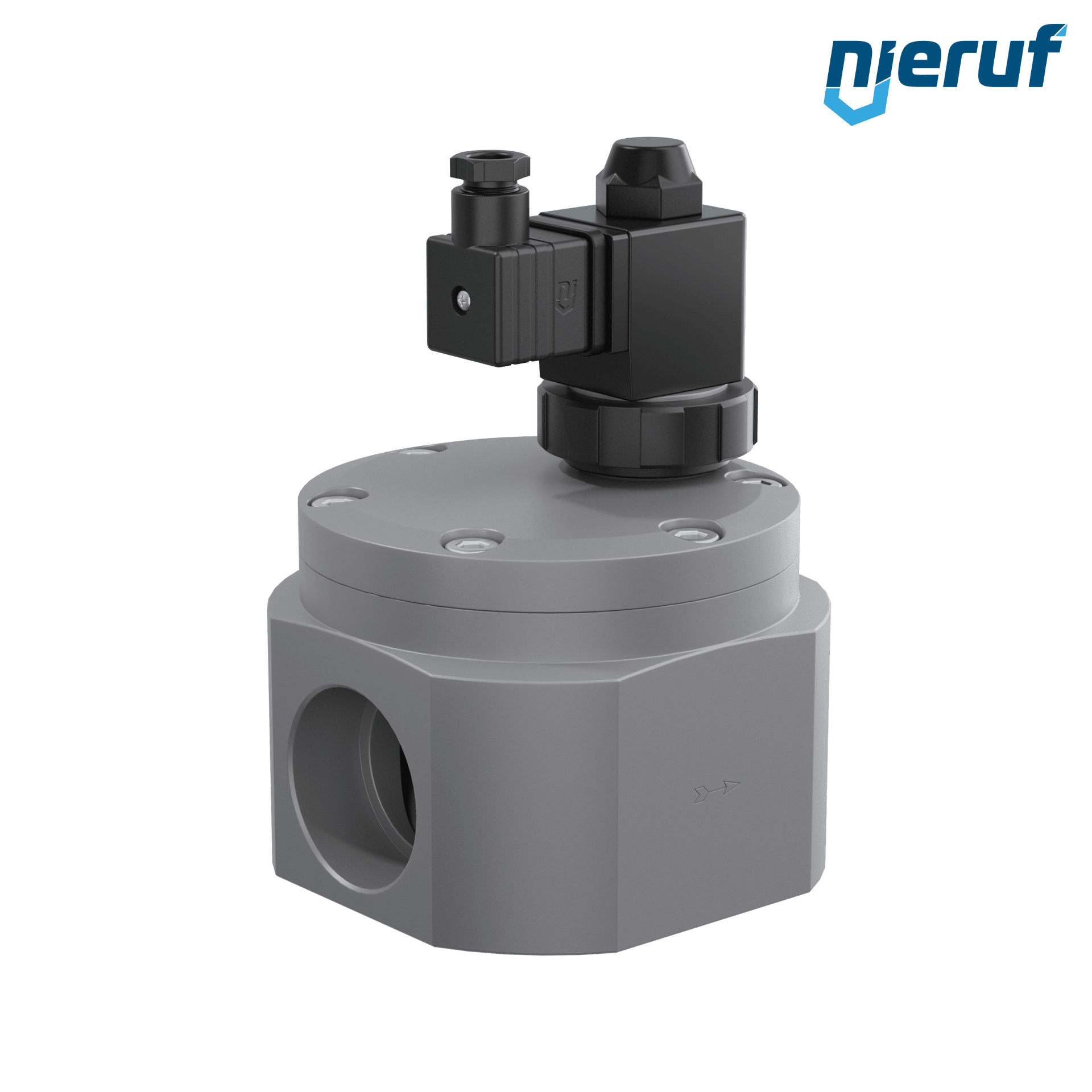

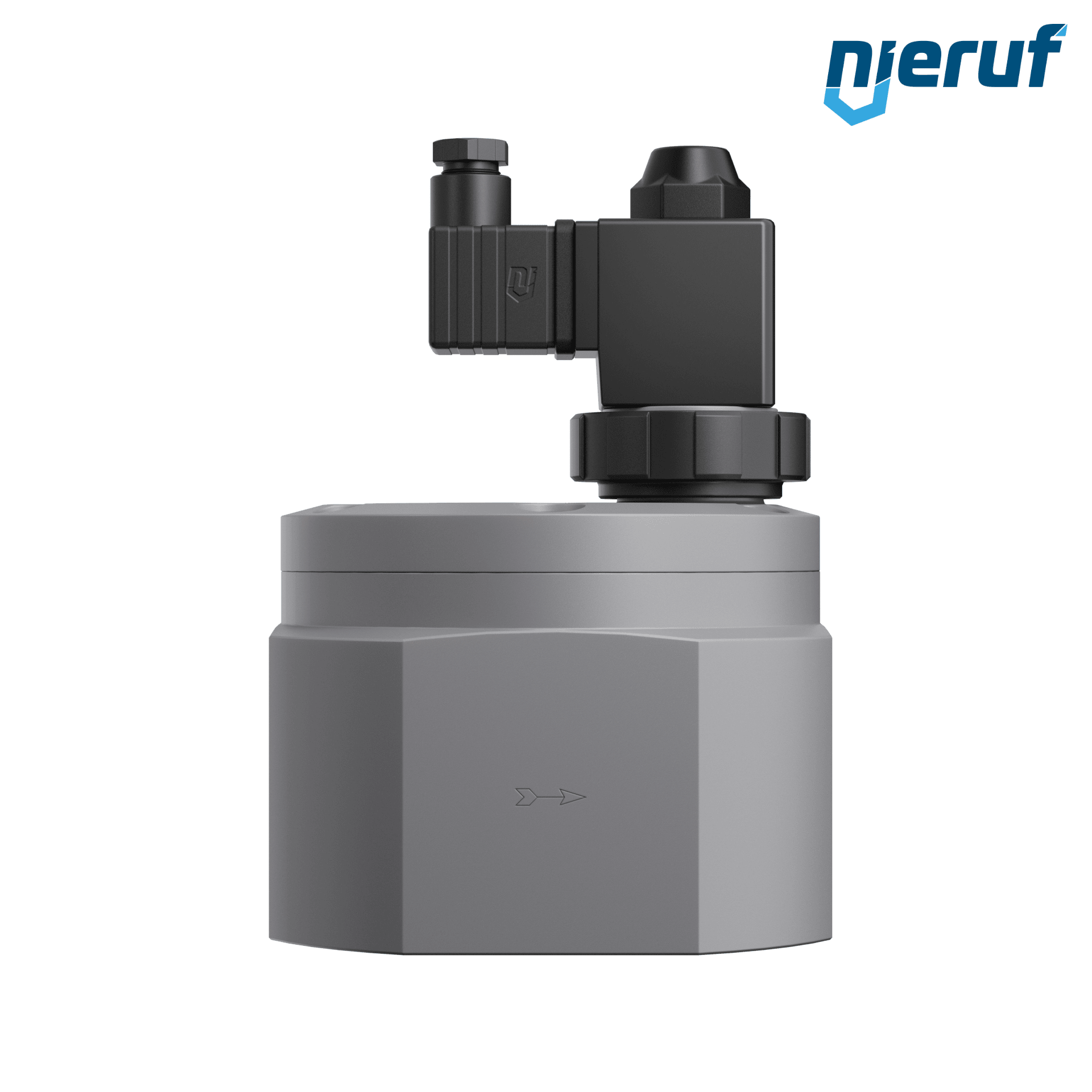

Solenoid valve d 50 PVC KV04 FKM 24V DC
- Lead time
- 1 - 2 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
Solenoid valve d 50 PVC KV04 FKM 24V DC
2/2 Ways Solenoid valve d 50 DN40 made of PVC seal FKM pilot operated nominal voltage 24V DC pressure 0,3 - 6 bar
| product | Solenoid valve |
|---|---|
| type | KV04 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN40 |
| connection | d50 |
| type of connection | cementing socket |
| Type of design | 2/2 Ways |
| flow rate | 24,0 m³/h |
| function | NC - normally closed |
| control | pilot operated |
| material | PVC |
| seal | FKM |
| voltage | 24V DC |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 5W |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted |
| media | liquid and gaseous media |
| temperature media | 0°C to +60°C (consider pressure-temperature-diagram) |
| temperature ambiente | 0°C up to +50°C |
| max. pressure | 0,3 - 6 bar |
| installation position | solenoid preferably above |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve d 50 PVC KV04 FKM 24V DC
Article no.
: KV04121005
product:
Solenoid valve
type:
KV04
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN40
connection:
d50
type of connection:
cementing socket
Type of design:
2/2 Ways
flow rate:
24,0 m³/h
function:
NC - normally closed
control:
pilot operated
material:
PVC
seal:
FKM
voltage:
24V DC
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
5W
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
0°C to +60°C (consider pressure-temperature-diagram)
temperature ambiente:
0°C up to +50°C
max. pressure:
0,3 - 6 bar
installation position:
solenoid preferably above
