KV04220003

Solenoid valve G 1" Zoll PTFE KV04 EPDM 24V DC

€923.30*

€1,098.73 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 1 - 2 weeks

Equipment

GF01300005

hexagon nipple 1" inch male stainless steel 316

€4.50*

€5.36 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

Certified

Downloads

3D model

Datasheet

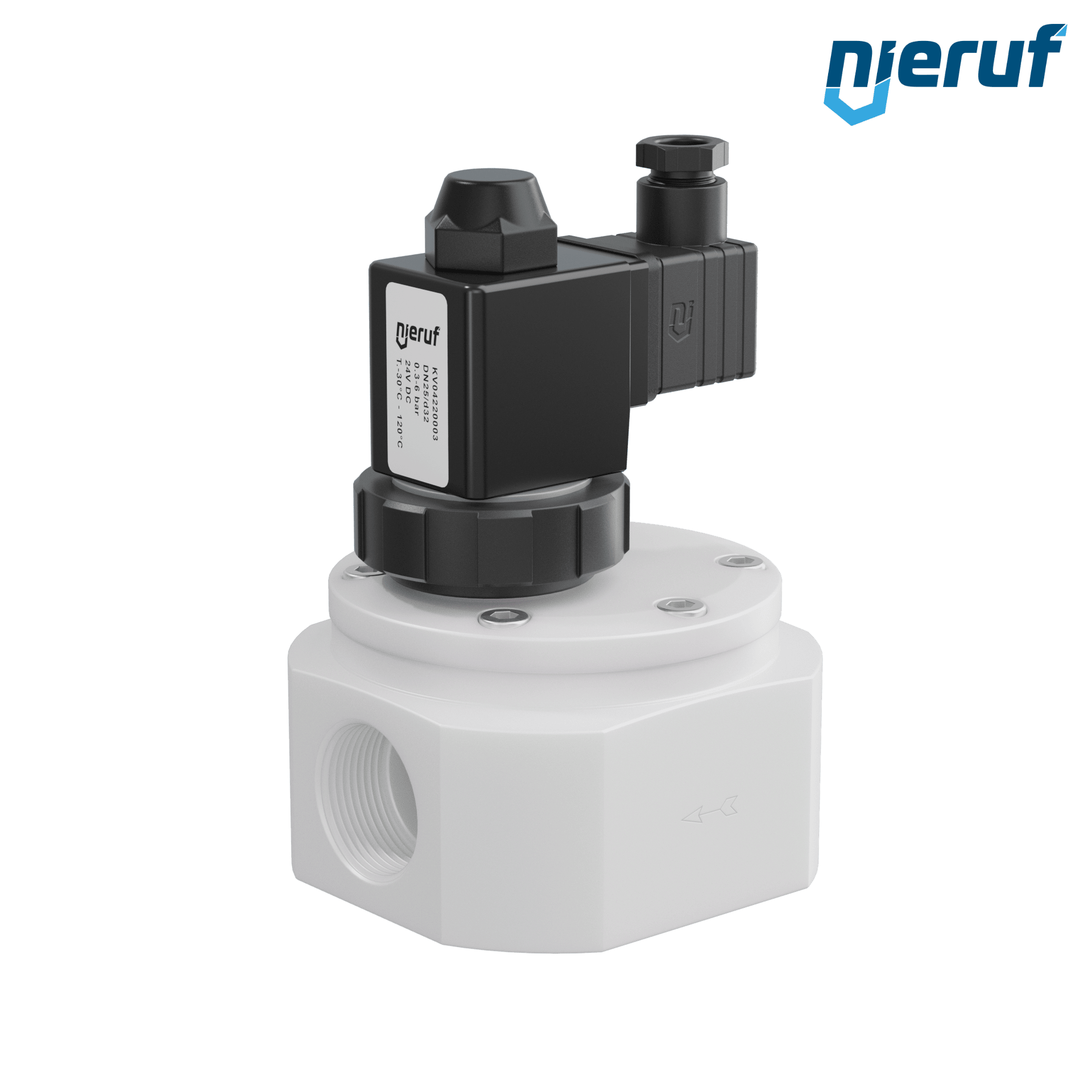

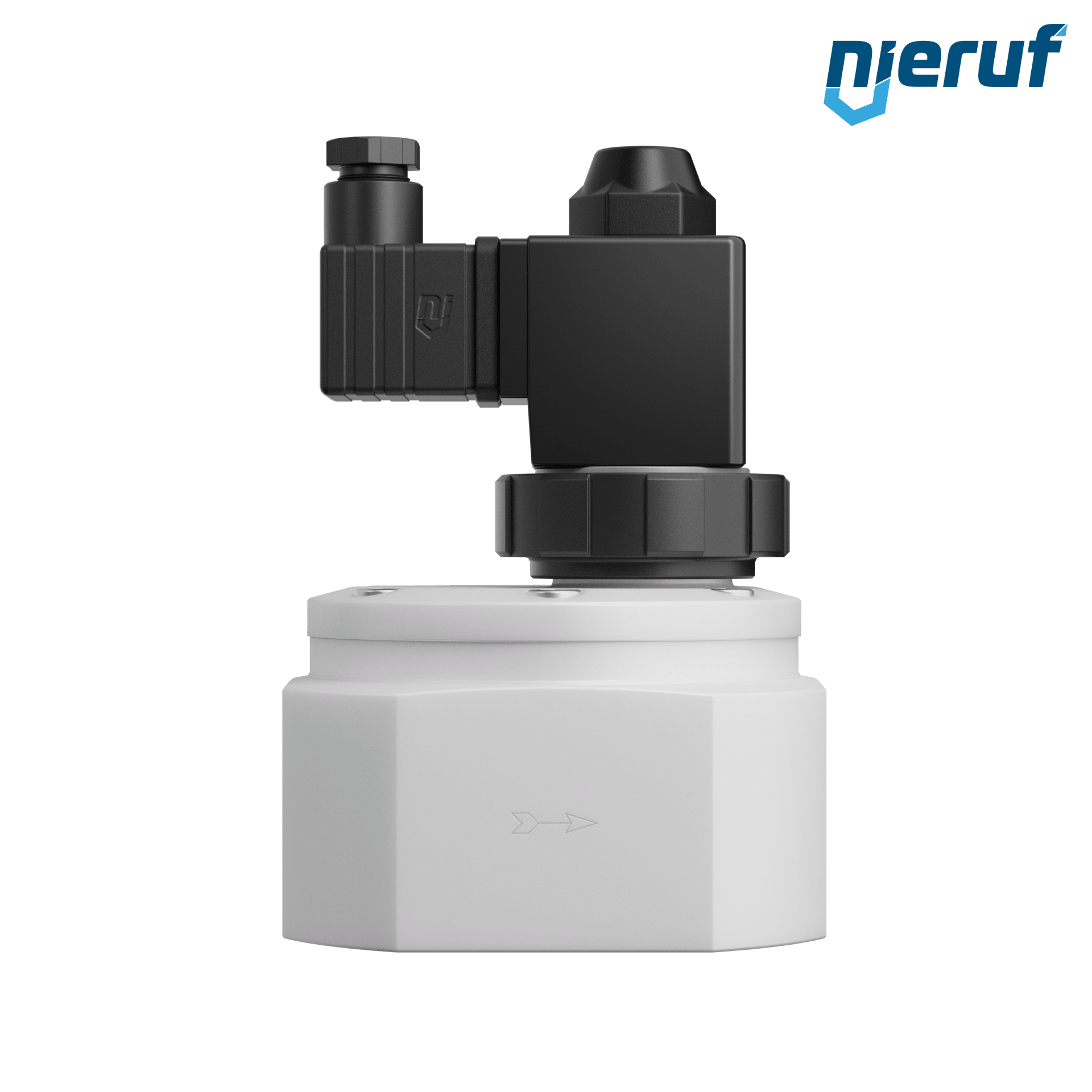

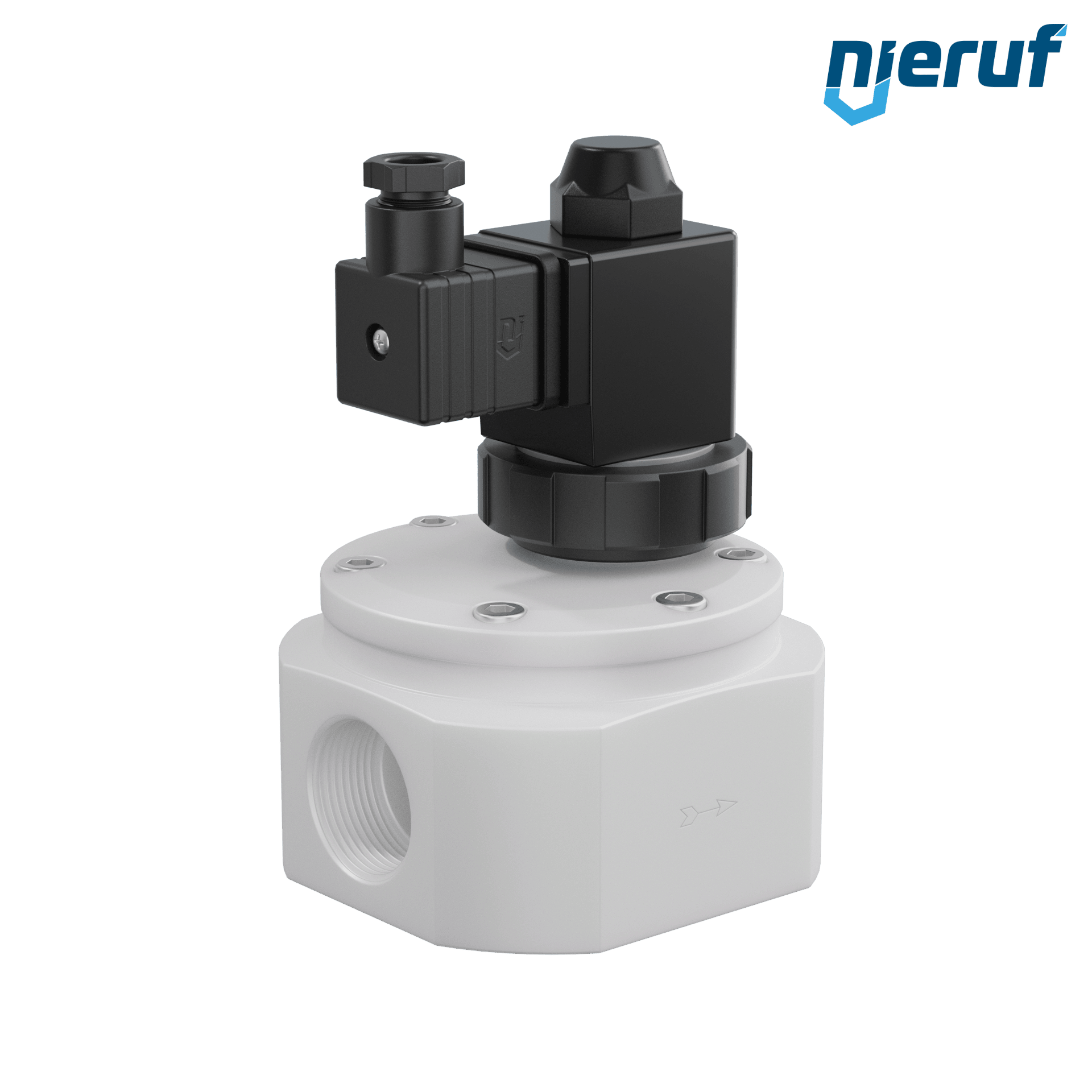

Solenoid valve G 1" Zoll PTFE KV04 EPDM 24V DC

2/2 Ways Solenoid valve G 1" Zoll DN25 made of PTFE seal EPDM pilot operated nominal voltage 24V DC pressure 0,3 - 6 bar

product	Solenoid valve
type	KV04
manufacturer	NieRuf
design	seat valve with membrane
diameter	DN25
connection	G 1" inch
type of connection	female thread
Type of design	2/2 Ways
flow rate	10,3 m³/h
function	NC - normally closed
control	pilot operated
material	PTFE
seal	EPDM
voltage	24V DC
voltage tolerance	+/- 10% acc. VDE 0580
power consumption	5W
duty	100% ED
plug socket	IP65 with plug socket mounted
media	liquid and gaseous media
temperature media	-30°C to +120°C (consider pressure-temperature-diagram)
temperature ambiente	0°C up to +50°C
max. pressure	0,3 - 6 bar
installation position	solenoid preferably above

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Solenoid valve G 1" Zoll PTFE KV04 EPDM 24V DC

Article no. : KV04220003
product: Solenoid valve
type: KV04
manufacturer: NieRuf
design: seat valve with membrane
diameter: DN25
connection: G 1" inch
type of connection: female thread
Type of design: 2/2 Ways
flow rate: 10,3 m³/h
function: NC - normally closed
control: pilot operated
material: PTFE
seal: EPDM
voltage: 24V DC
voltage tolerance: +/- 10% acc. VDE 0580
power consumption: 5W
duty: 100% ED
plug socket: IP65 with plug socket mounted
media: liquid and gaseous media
temperature media: -30°C to +120°C (consider pressure-temperature-diagram)
temperature ambiente: 0°C up to +50°C
max. pressure: 0,3 - 6 bar
installation position: solenoid preferably above
