RV05010307

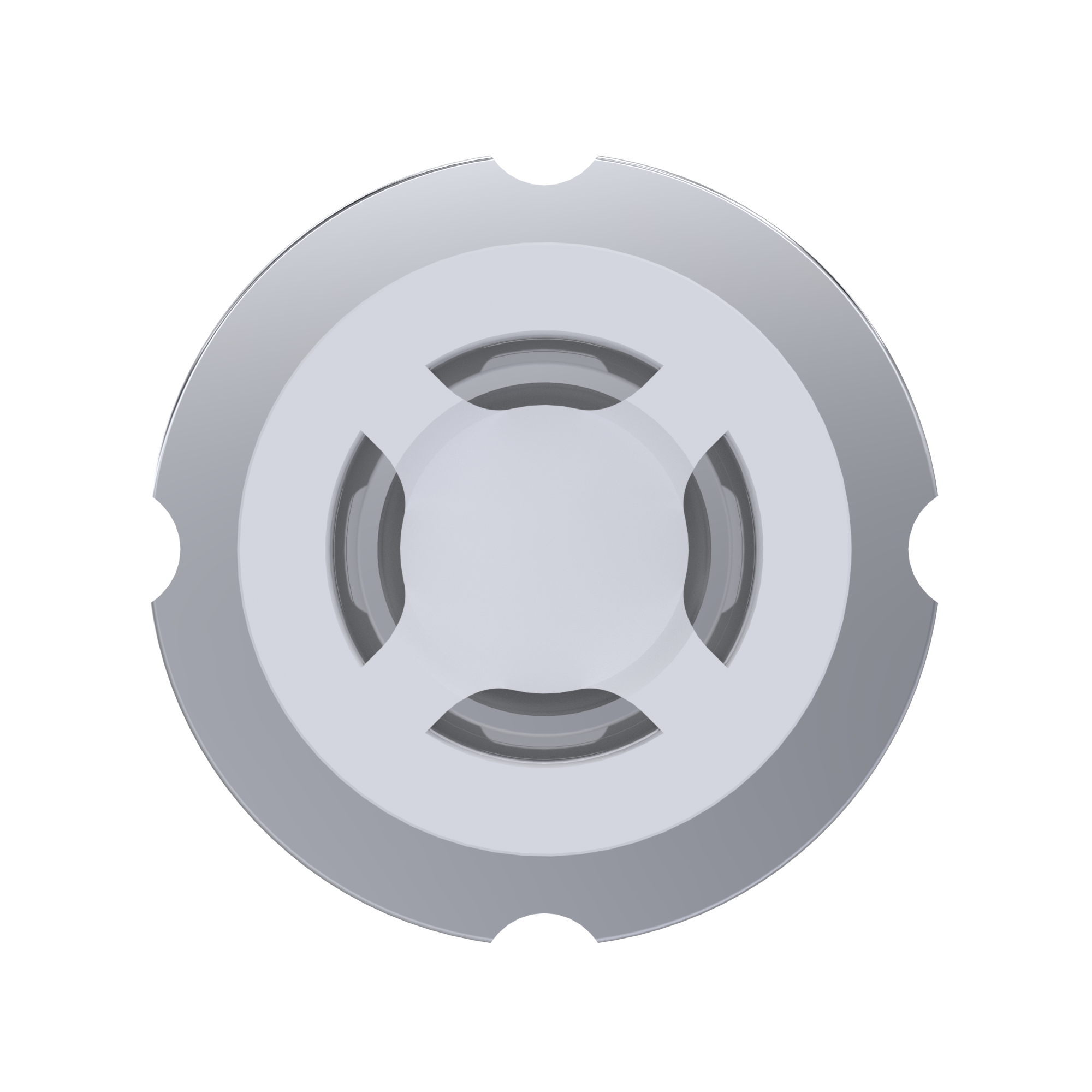

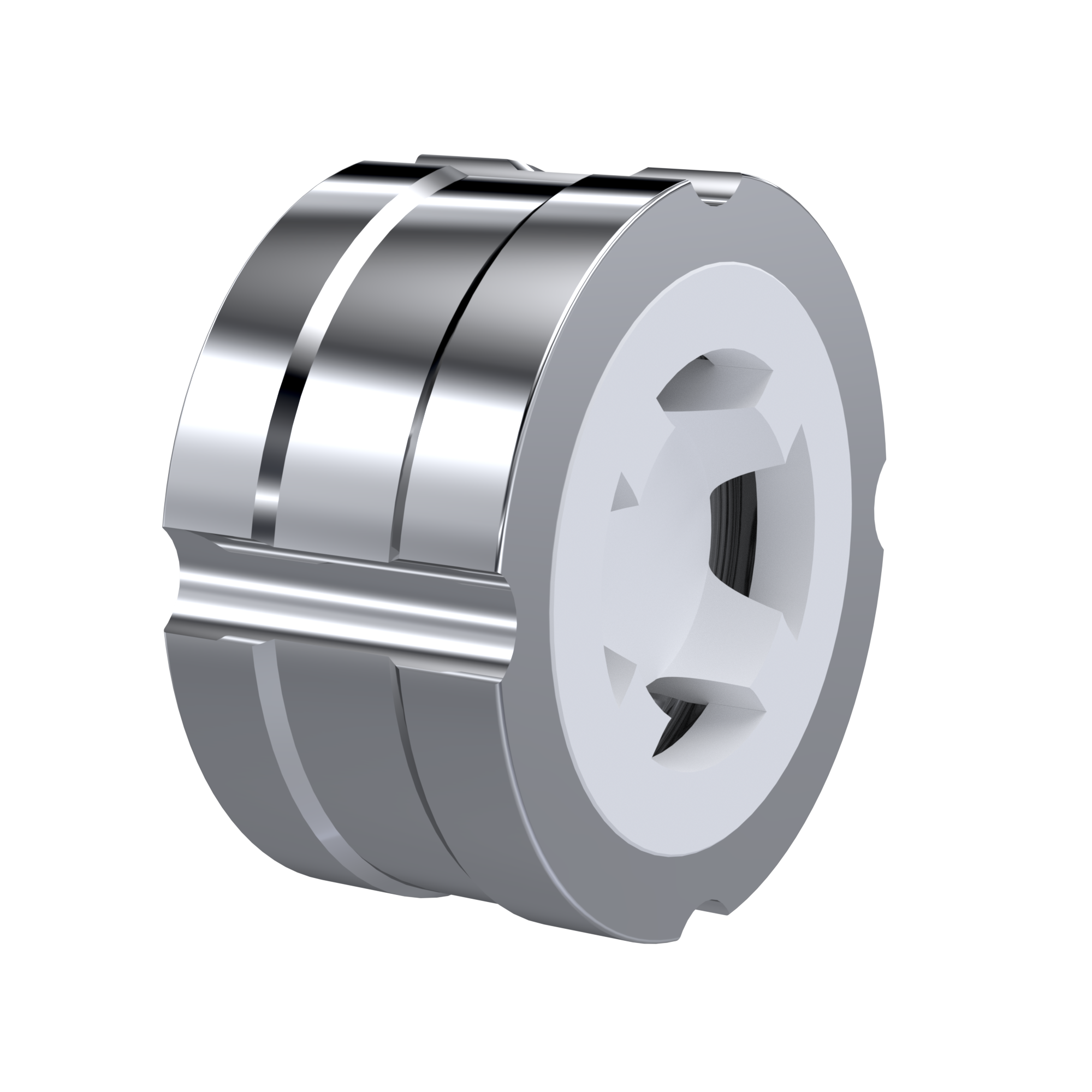

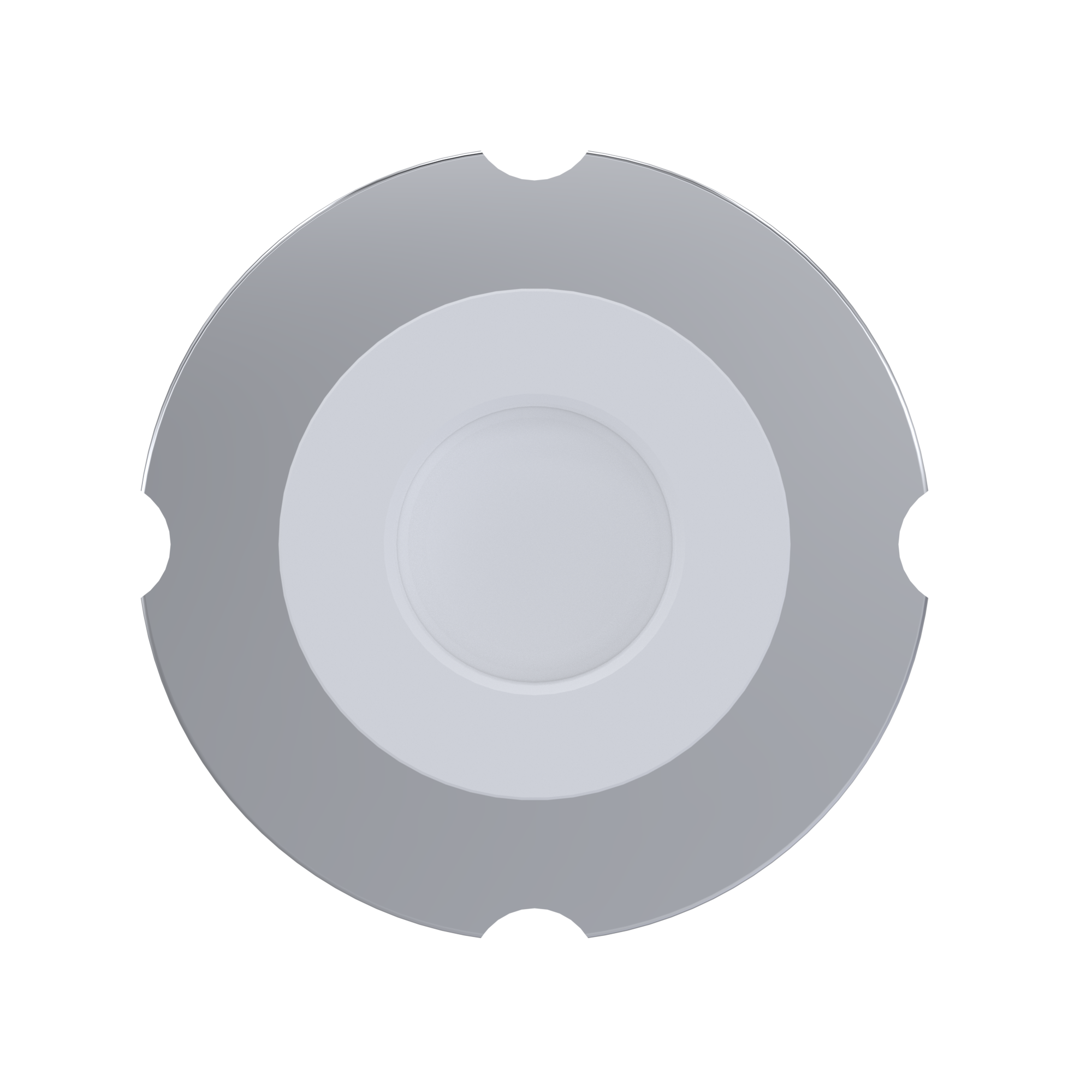

PTFE-check valve DN40 - 1 1/2" inch ANSI B 16.5 CL 150
- Lead time
- 2 - 3 weeks
Equipment

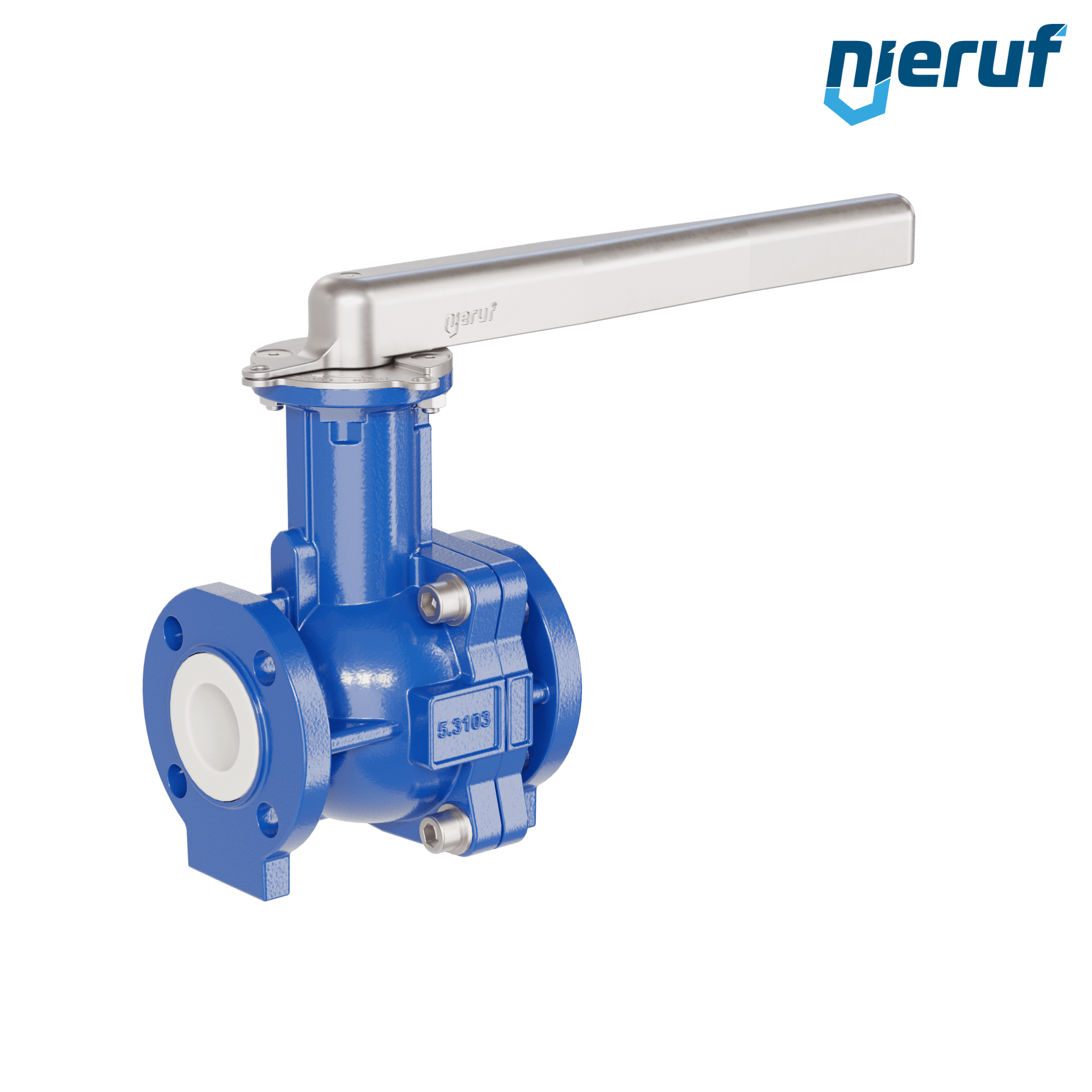

PFA-flange ball valve FK13 DN40 - 1 1/2" inch ANSI 150 made of spheroidal graphite cast iron with lever hand
€954.62 VAT included.

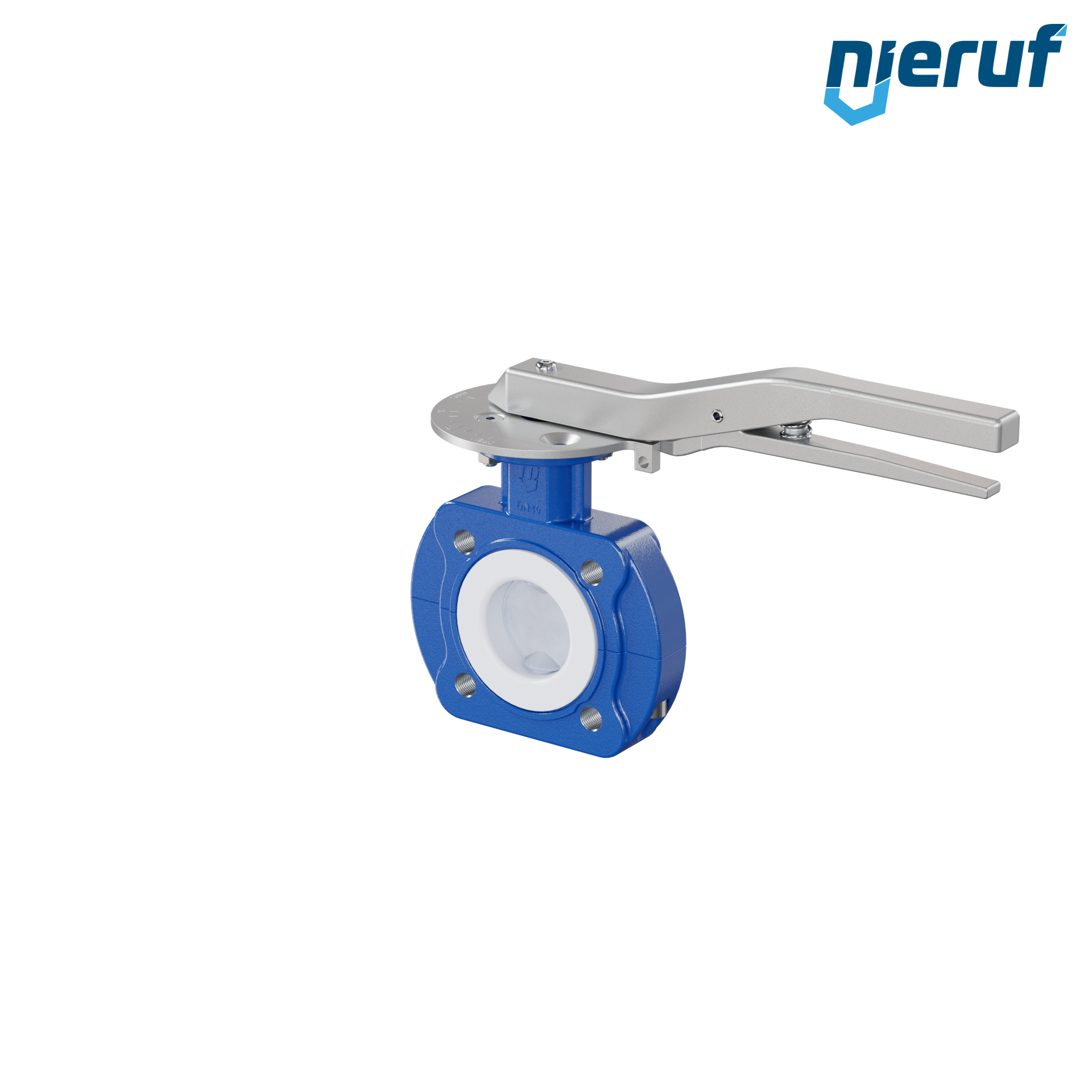

PFA-Butterfly-valve PTFE AK10 DN40 ANSI150 lever silicone insert
€683.77 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
PTFE-check valve DN40 - 1 1/2" inch ANSI B 16.5 CL 150
disco check valve DN40 - 1 1/2" inch Dichtung aus PTFE für liquid and gaseous media ANSI B 16.5 CL 150
| product | PTFE-check valve |
|---|---|
| type | RV05 |
| manufacturer | NieRuf |
| design | disco check valve |
| diameter | DN40 - 1 1/2" inch |
| body material | stainless steel 1.4301 / AISI 304 |
| disc material | PTFE + 25% fiberglass |
| seal | PTFE |
| tightness acc. to DIN EN 12266 | leak rate D |
| temperature | -200°C up to +160°C |
| flange | ANSI B 16.5 CL 150 |
| pressure range | 0 - 10 bar |
| Kv-value in m3/h | 21,63 |
| spring material | Hastelloy C4, PFA coated |
| media | liquid and gaseous media |
| installation position | any position |
| product feature | face to face according DIN EN 558 row 52 and FDA food approval |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
PTFE-check valve DN40 - 1 1/2" inch ANSI B 16.5 CL 150
Article no.
: RV05010307
product:
PTFE-check valve
type:
RV05
manufacturer:
NieRuf
design:
disco check valve
diameter:
DN40 - 1 1/2" inch
body material:
stainless steel 1.4301 / AISI 304
disc material:
PTFE + 25% fiberglass
seal:
PTFE
tightness acc. to DIN EN 12266:
leak rate D
temperature:
-200°C up to +160°C
flange:
ANSI B 16.5 CL 150
pressure range:
0 - 10 bar
Kv-value in m3/h:
21,63
spring material:
Hastelloy C4, PFA coated
media:
liquid and gaseous media
installation position:
any position
product feature:
face to face according DIN EN 558 row 52 and FDA food approval
Equipment
PFA-flange ball valve FK13 DN40 - 1 1/2" inch ANSI 150 made of spheroidal graphite cast iron with lever hand
Lead time: 2 - 3 weeks
