KV04411005
Solenoid valve d 50 PP KV04 FKM 230V 50Hz
- Lead time
- 1 - 2 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE

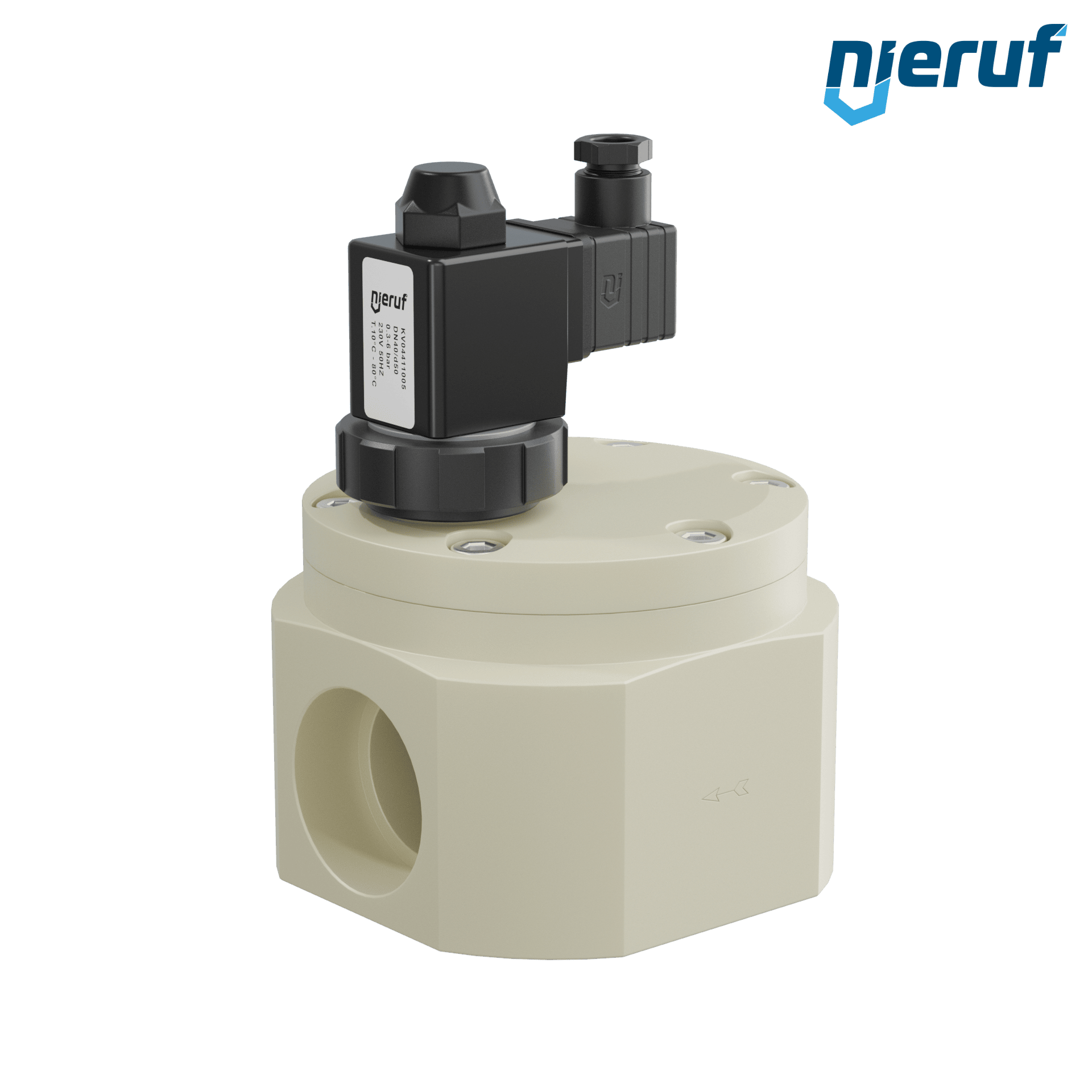

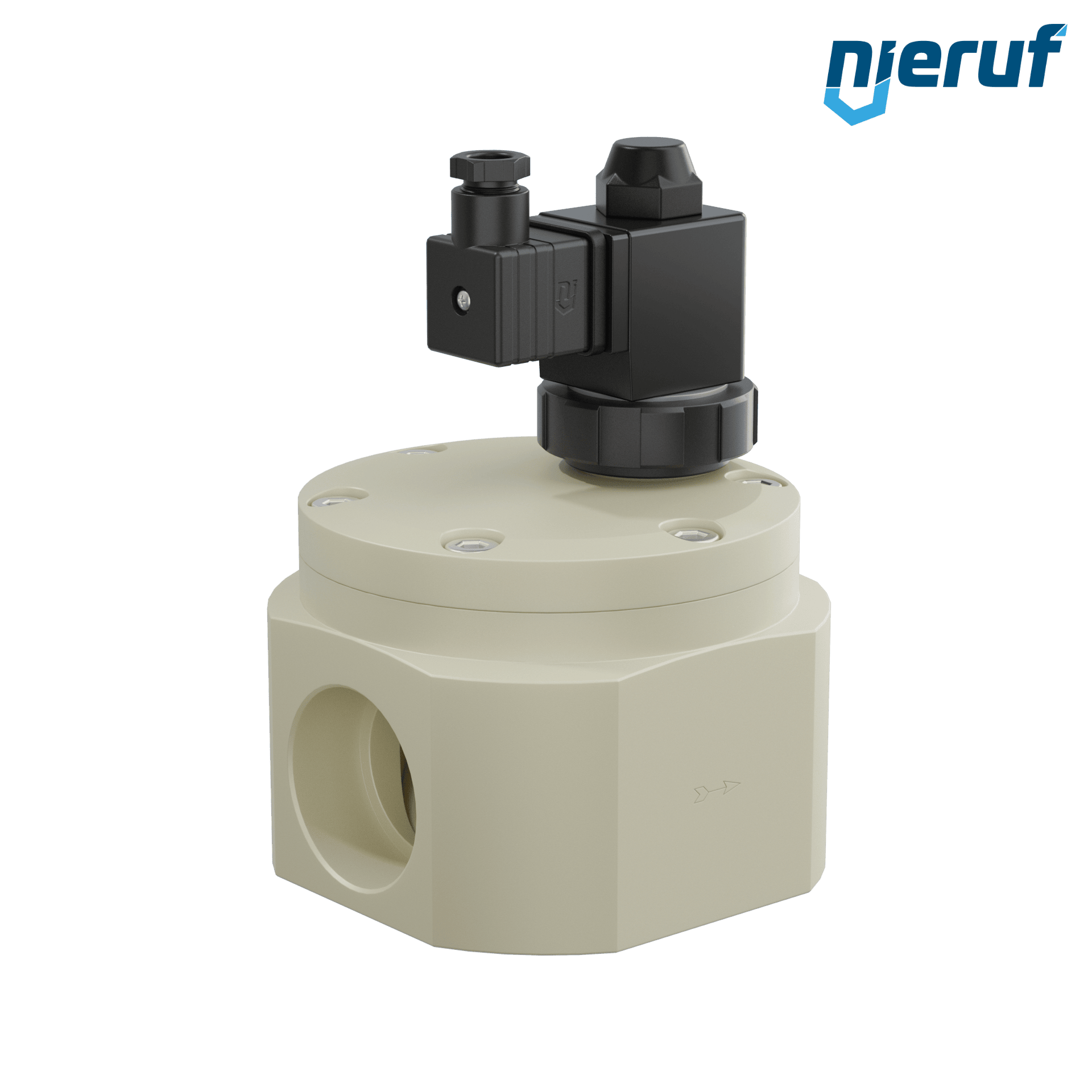

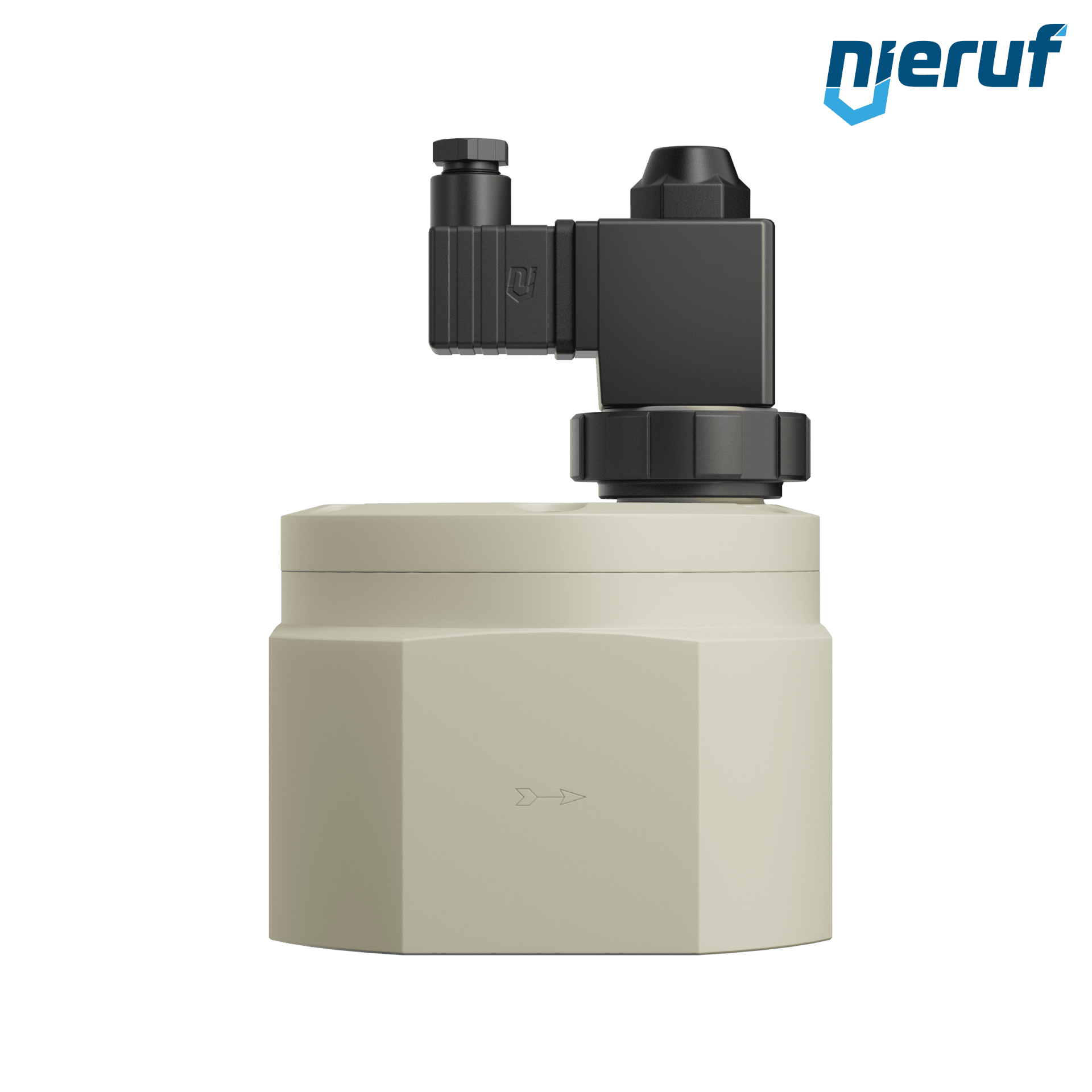

Solenoid valve d 50 PP KV04 FKM 230V 50Hz
2/2 Ways Solenoid valve d 50 DN40 made of PP seal FKM pilot operated nominal voltage 230V 50Hz pressure 0,3 - 6 bar
| product | Solenoid valve |
|---|---|
| type | KV04 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN40 |
| connection | d50 |
| type of connection | welding socket |
| Type of design | 2/2 Ways |
| flow rate | 24,0 m³/h |
| function | NC - normally closed |
| control | pilot operated |
| material | PP |
| seal | FKM |
| voltage | 230V 50Hz |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 6,5 VA |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted |
| media | liquid and gaseous media |
| temperature media | 10°C to +80°C (consider pressure-temperature-diagram) |
| temperature ambiente | 0°C up to +50°C |
| max. pressure | 0,3 - 6 bar |
| installation position | solenoid preferably above |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve d 50 PP KV04 FKM 230V 50Hz
Article no.
: KV04411005
product:
Solenoid valve
type:
KV04
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN40
connection:
d50
type of connection:
welding socket
Type of design:
2/2 Ways
flow rate:
24,0 m³/h
function:
NC - normally closed
control:
pilot operated
material:
PP
seal:
FKM
voltage:
230V 50Hz
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
6,5 VA
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
10°C to +80°C (consider pressure-temperature-diagram)
temperature ambiente:
0°C up to +50°C
max. pressure:
0,3 - 6 bar
installation position:
solenoid preferably above
