KV04410005

Solenoid valve d 50 PP KV04 EPDM 230V 50Hz

€919.80*

€1,094.56 VAT included.

Delivery time: 3 - 5 working days

Delivery information

×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com


Product number: KV04410005

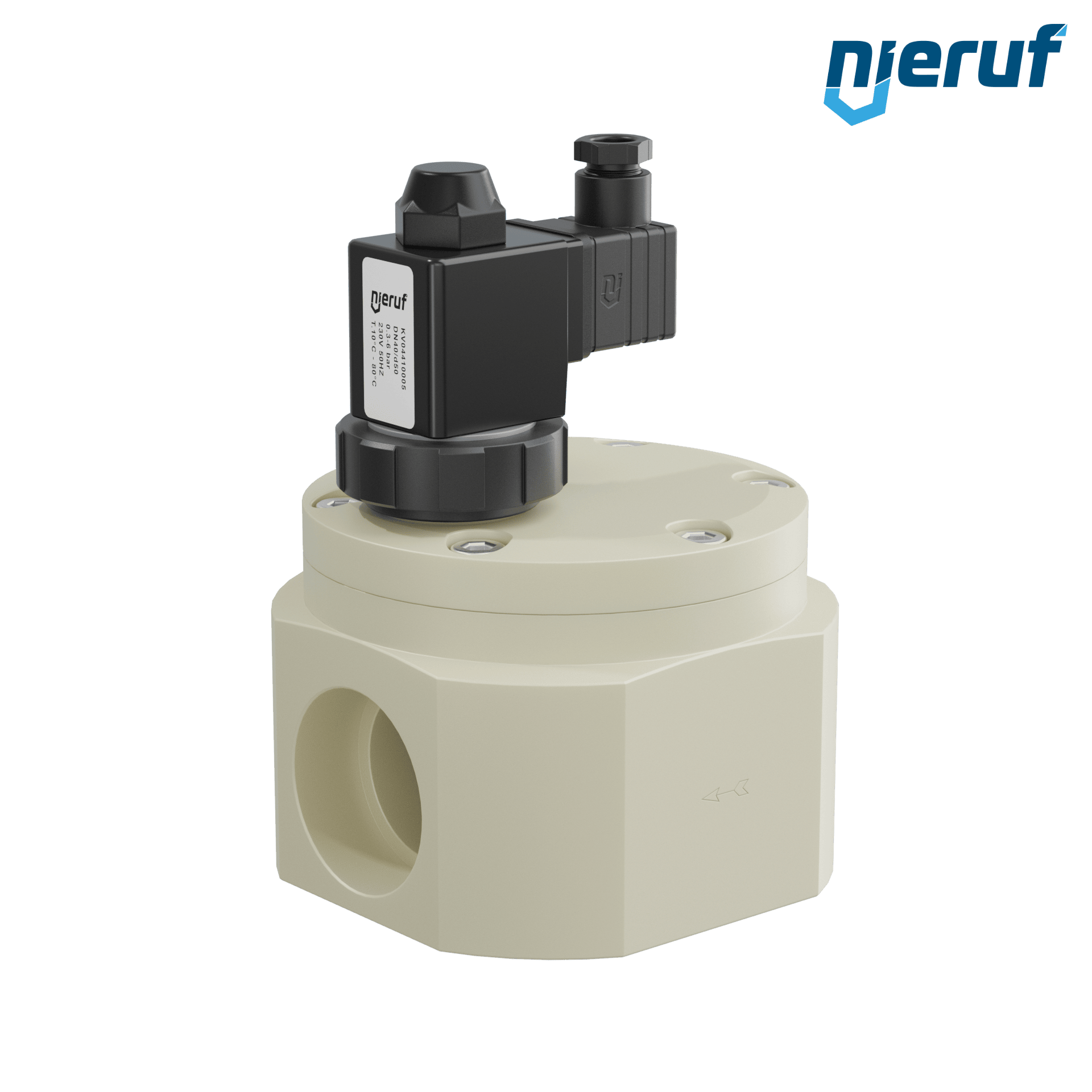

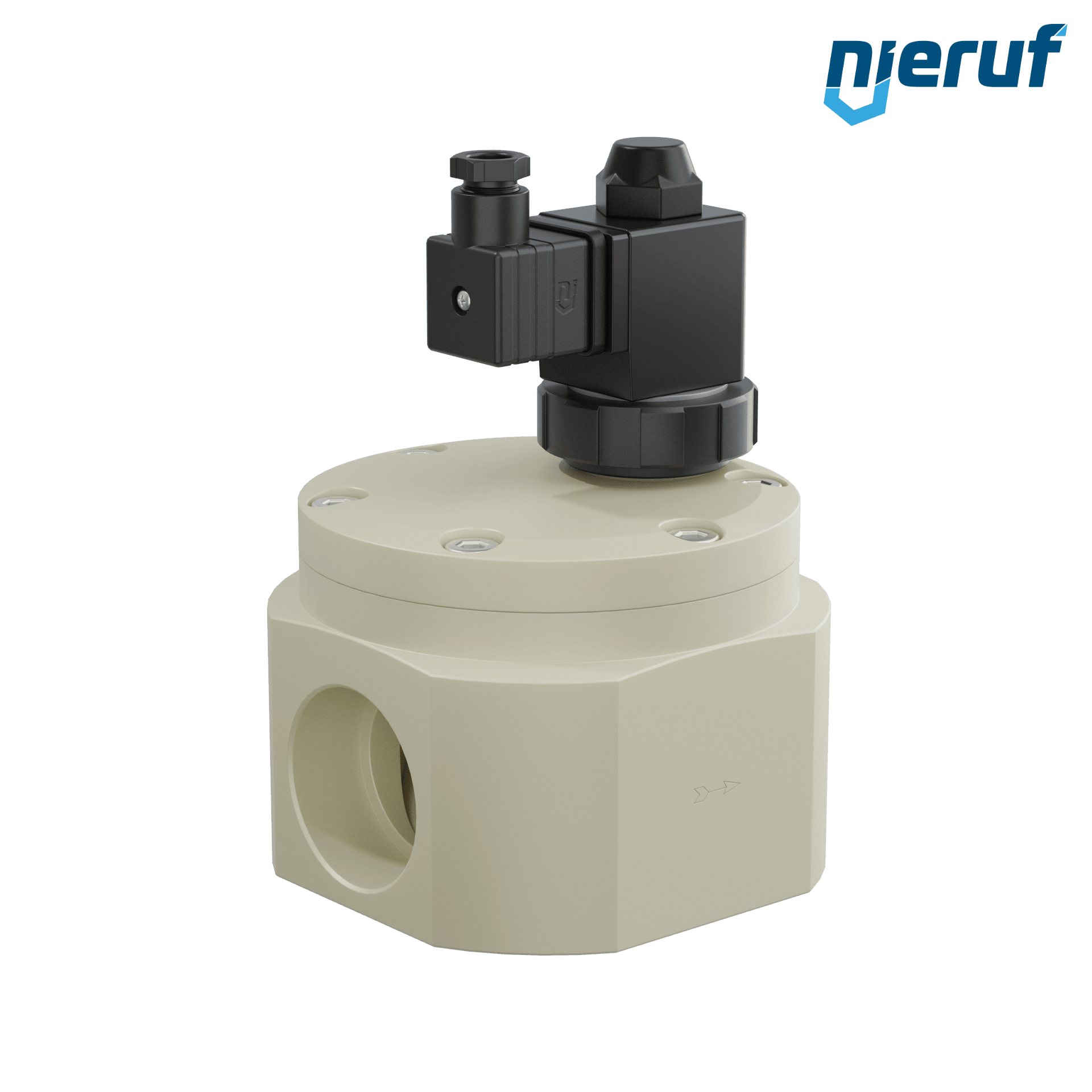

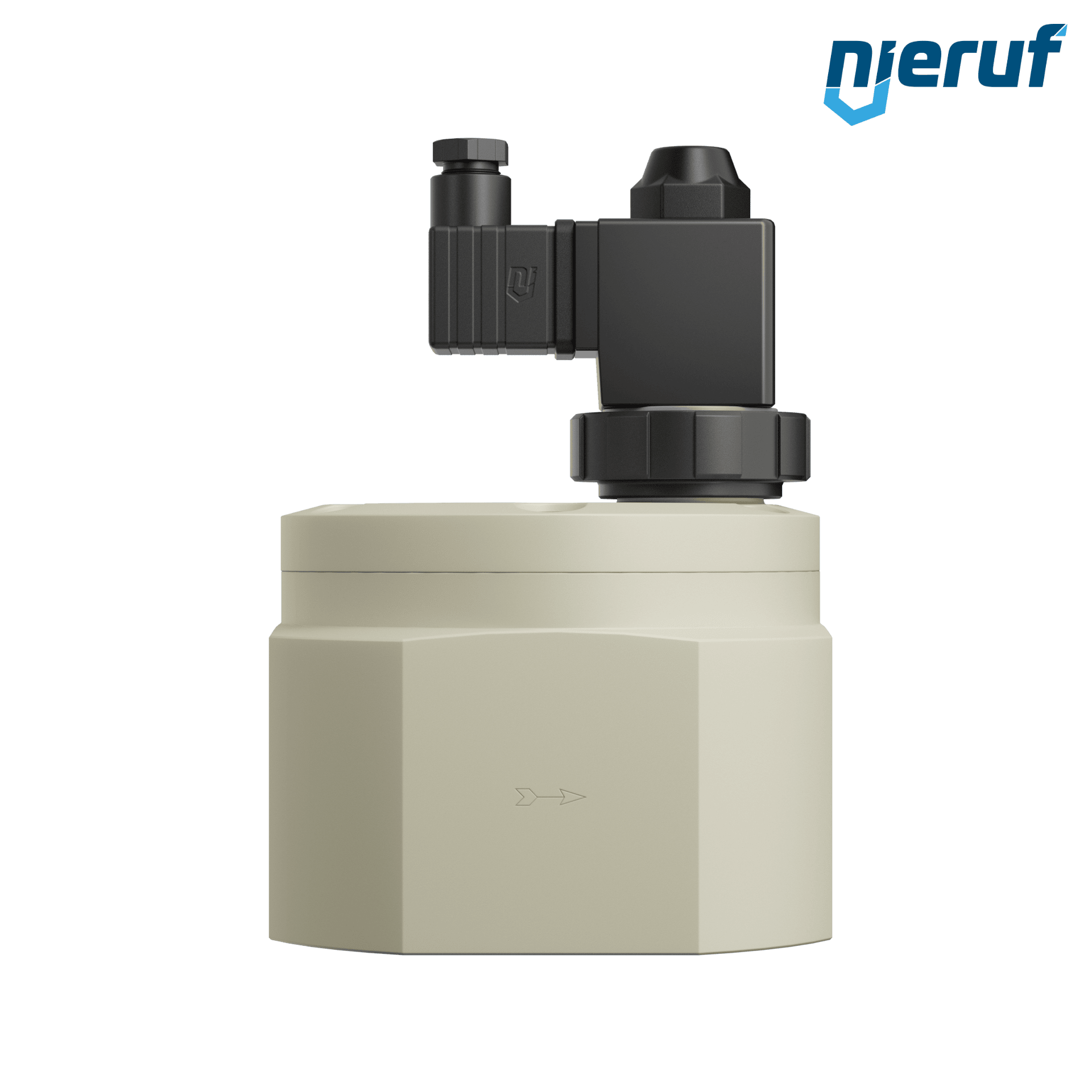

Solenoid valve d 50 PP KV04 EPDM 230V 50Hz

2/2 Ways Solenoid valve d 50 DN40 made of PP seal EPDM pilot operated nominal voltage 230V 50Hz pressure 0,3 - 6 bar

product: Solenoid valve
type: KV04
manufacturer: NieRuf
design: seat valve with membrane
diameter: DN40
connection: d50
type of connection: welding socket
Type of design: 2/2 Ways
flow rate: 24,0 m³/h
function: NC - normally closed
control: pilot operated
material: PP
seal: EPDM
voltage: 230V 50Hz
voltage tolerance: +/- 10% acc. VDE 0580
power consumption: 6,5 VA
duty: 100% ED
plug socket: IP65 with plug socket mounted
media: liquid and gaseous media
temperature media: check data sheet
temperature ambiente: max up to +50°C
max. pressure: 0,3 - 6 bar
installation position: solenoid preferably above

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Solenoid valve d 50 PP KV04 EPDM 230V 50Hz

Article no. : KV04410005
product: Solenoid valve
type: KV04
manufacturer: NieRuf
design: seat valve with membrane
diameter: DN40
connection: d50
type of connection: welding socket
Type of design: 2/2 Ways
flow rate: 24,0 m³/h
function: NC - normally closed
control: pilot operated
material: PP
seal: EPDM
voltage: 230V 50Hz
voltage tolerance: +/- 10% acc. VDE 0580
power consumption: 6,5 VA
duty: 100% ED
plug socket: IP65 with plug socket mounted
media: liquid and gaseous media
temperature media: check data sheet
temperature ambiente: max up to +50°C
max. pressure: 0,3 - 6 bar
installation position: solenoid preferably above
