AK10020105
PFA-Butterfly-valve PTFE AK10 DN25 PN10-PN16 handwheel gearbox silicone insert
- Lead time
- 2 - 3 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you

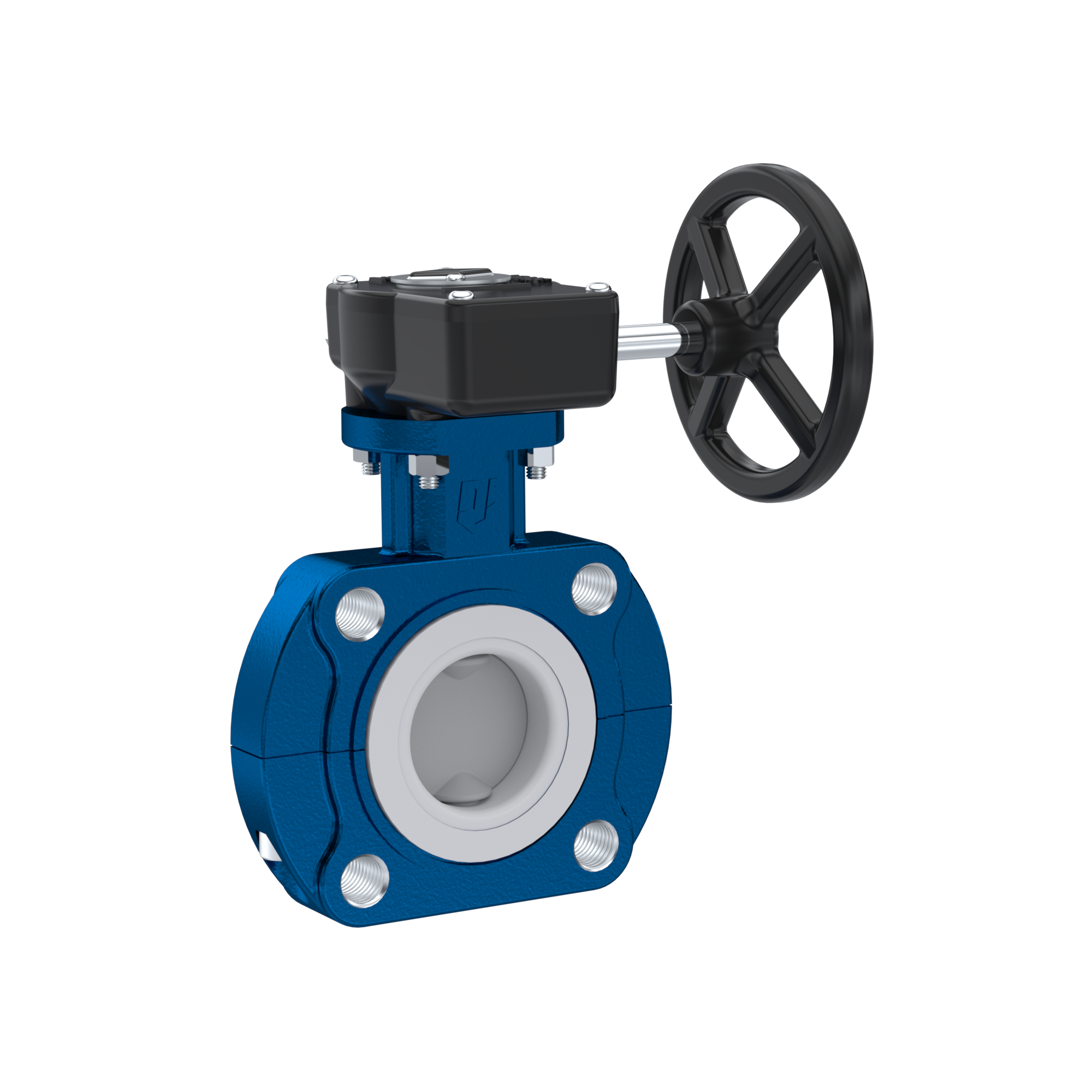

PFA-Butterfly-valve PTFE AK10 DN25 PN10-PN16 handwheel gearbox silicone insert
PFA-Butterfly-valve DN25 PN10-PN16 Lug type with handwheel gearbox seal made of PTFE and silicone insert for aggressive media
| product | PFA-Butterfly-valve |
|---|---|
| type | AK10 |
| manufacturer | NieRuf |
| diameter | DN25 |
| nominal pressure | PN10-PN16 |
| max. working pressure | 10 bar |
| sleeves | PTFE |
| media | liquid, gaseous and aggressive media |
| temperature | -20°C up to +200°C |
| design | Lug type |
| body material | ductile iron 5.3103 epoxy-coating 120μm |
| disc | PFA |
| Insert | silicone |
| actuation | handwheel gearbox |
| application | for extreme usage |
| installation position | shaft preferably horizontal |
| product feature | PFA-butterfly-valve and PTFE sleeve for aggressive media |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
PFA-Butterfly-valve PTFE AK10 DN25 PN10-PN16 handwheel gearbox silicone insert
Article no.
: AK10020105
product:
PFA-Butterfly-valve
type:
AK10
manufacturer:
NieRuf
diameter:
DN25
nominal pressure:
PN10-PN16
max. working pressure:
10 bar
sleeves:
PTFE
media:
liquid, gaseous and aggressive media
temperature:
-20°C up to +200°C
design:
Lug type
body material:
ductile iron 5.3103 epoxy-coating 120μm
disc:
PFA
Insert:
silicone
actuation:
handwheel gearbox
application:
for extreme usage
installation position:
shaft preferably horizontal
product feature:
PFA-butterfly-valve and PTFE sleeve for aggressive media
