AK09021014
PFA-Butterfly-valve PTFE AK09 DN200 PN10-PN16 lever EPDM insert
- Lead time
- 2 - 3 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you

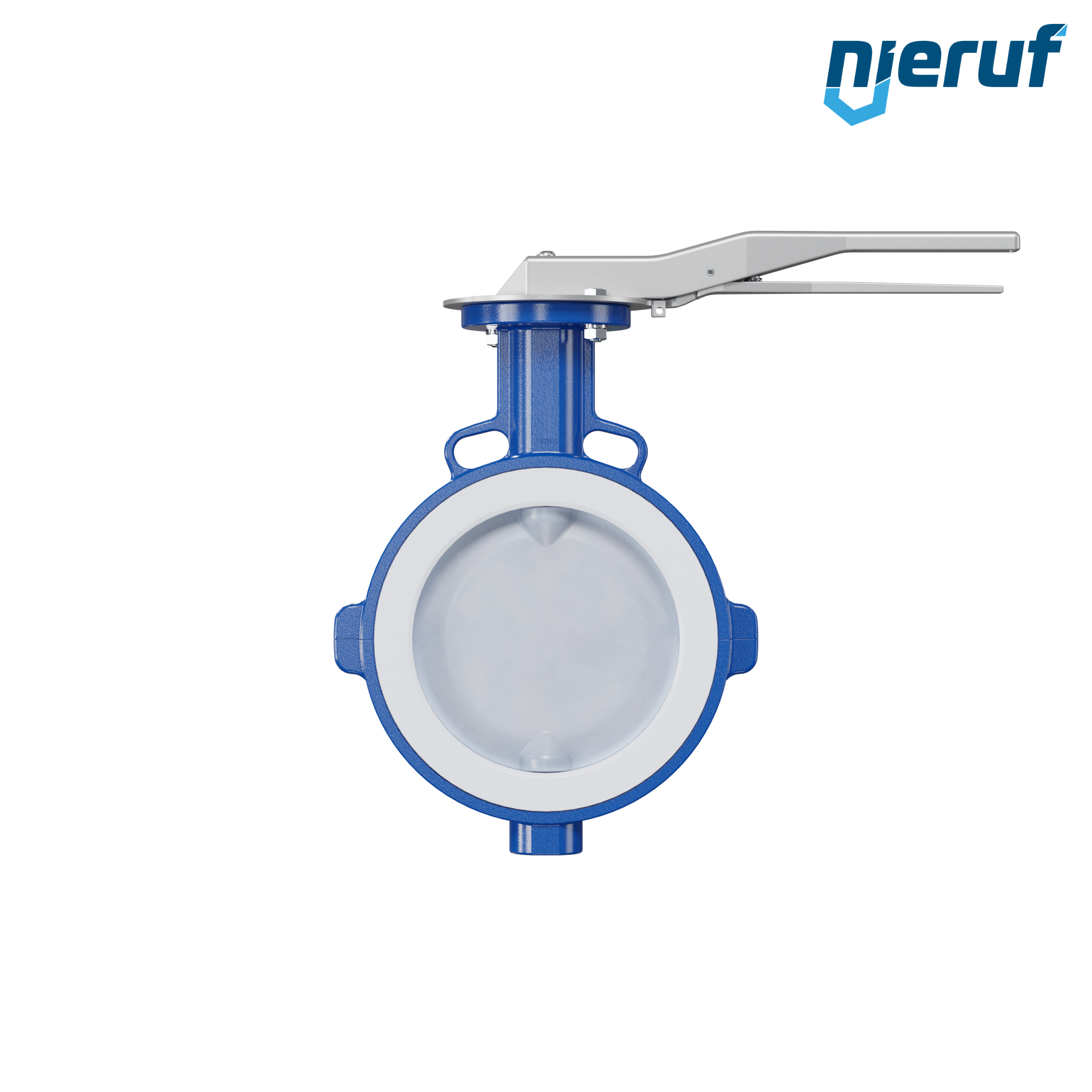

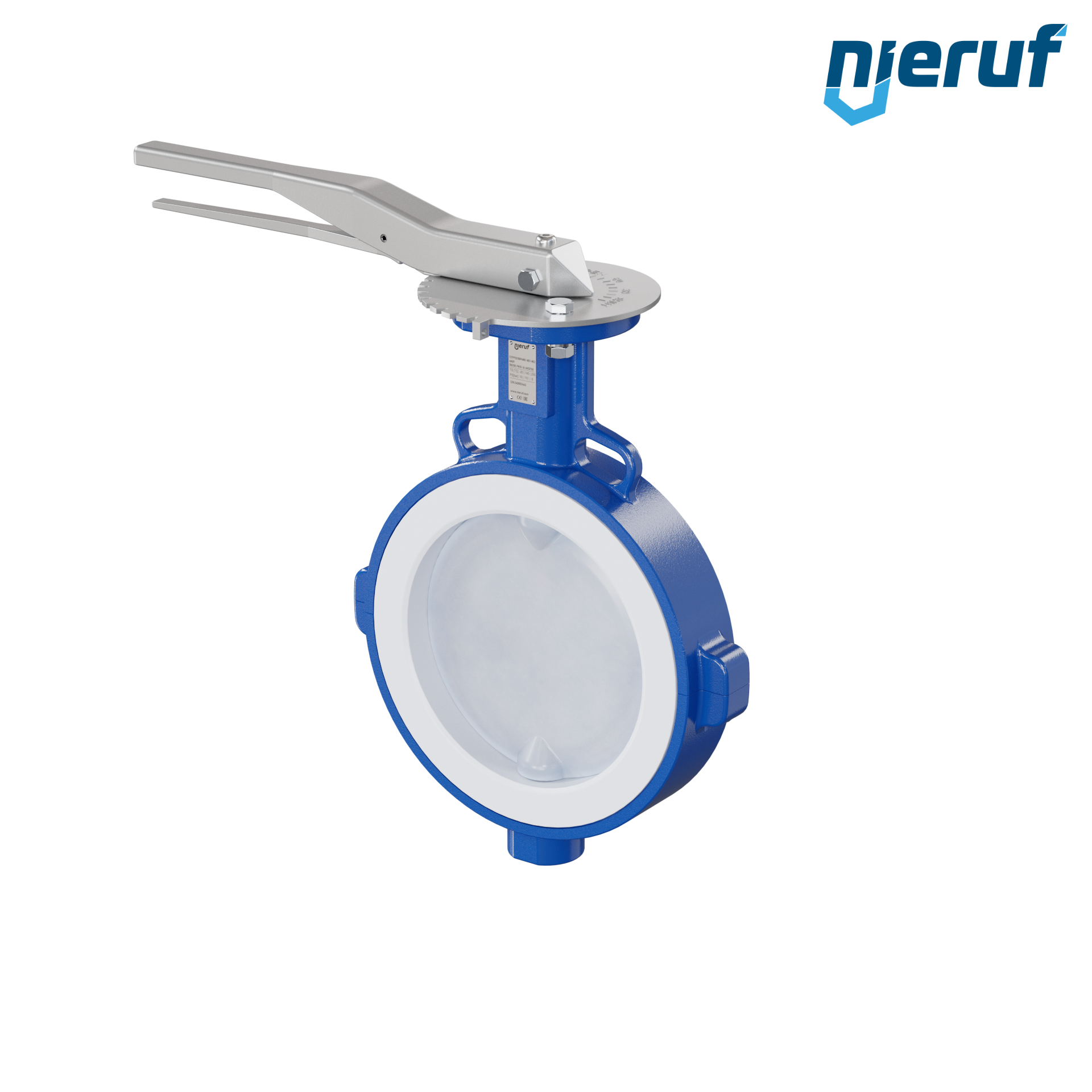

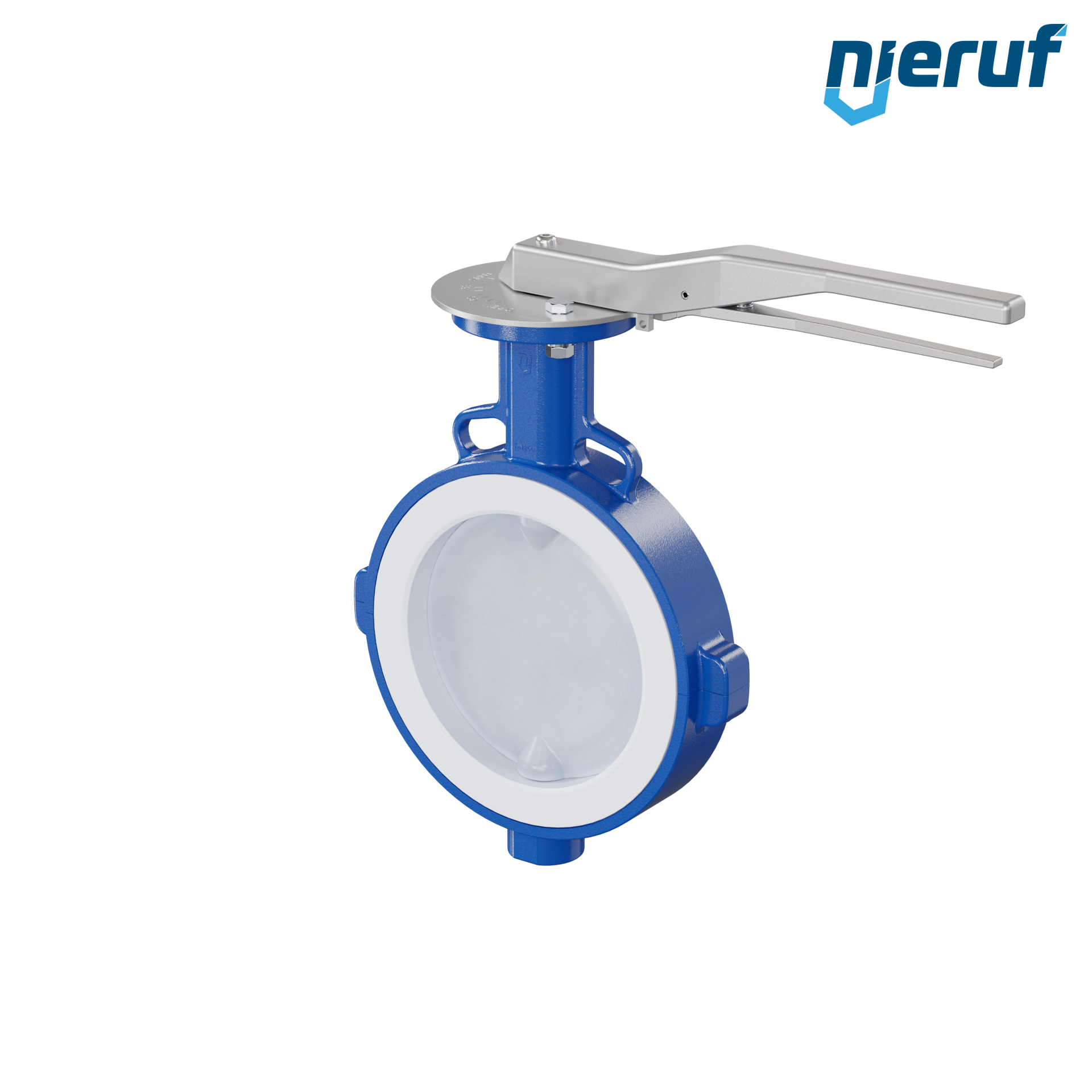

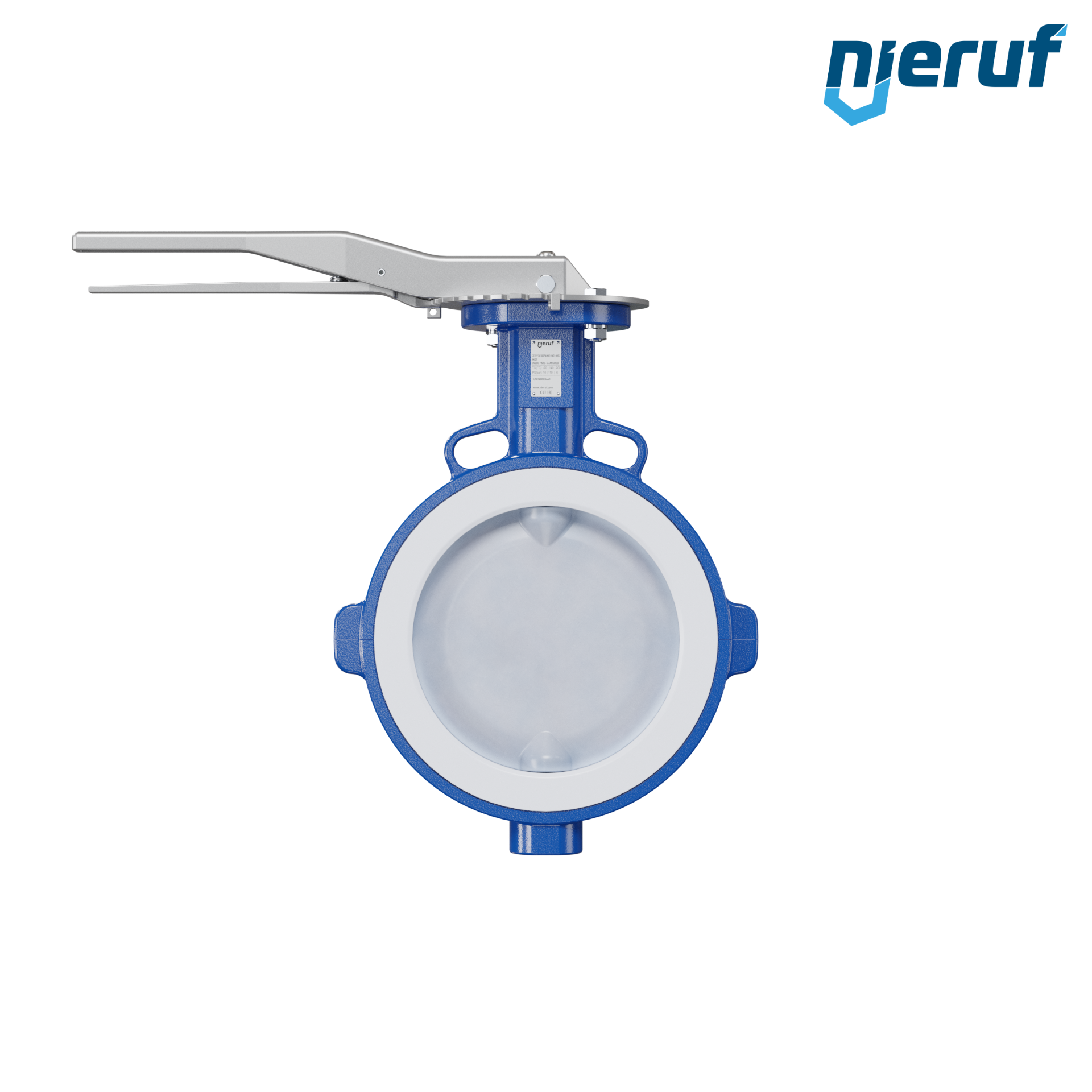

PFA-Butterfly-valve PTFE AK09 DN200 PN10-PN16 lever EPDM insert
PFA-Butterfly-valve DN200 PN10-PN16 Wafer type with lever seal made of PTFE and EPDM insert for aggressive media
| product | PFA-Butterfly-valve |
|---|---|
| type | AK09 |
| manufacturer | NieRuf |
| diameter | DN200 |
| nominal pressure | PN10-PN16 |
| max. working pressure | 10 bar |
| sleeves | PTFE |
| media | liquid, gaseous and aggressive media |
| temperature | -20°C up to +120°C |
| design | Wafer type |
| body material | ductile iron 5.3103 epoxy-coating 120μm |
| disc | PFA |
| Insert | EPDM |
| actuation | lever |
| application | for extreme usage |
| installation position | shaft preferably horizontal |
| product feature | PFA-butterfly-valve and PTFE sleeve for aggressive media |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
PFA-Butterfly-valve PTFE AK09 DN200 PN10-PN16 lever EPDM insert
Article no.
: AK09021014
product:
PFA-Butterfly-valve
type:
AK09
manufacturer:
NieRuf
diameter:
DN200
nominal pressure:
PN10-PN16
max. working pressure:
10 bar
sleeves:
PTFE
media:
liquid, gaseous and aggressive media
temperature:
-20°C up to +120°C
design:
Wafer type
body material:
ductile iron 5.3103 epoxy-coating 120μm
disc:
PFA
Insert:
EPDM
actuation:
lever
application:
for extreme usage
installation position:
shaft preferably horizontal
product feature:
PFA-butterfly-valve and PTFE sleeve for aggressive media
