angle-type overflow valve 1" inch fm UV02 gunmetal/brass 2 - 12 bar

quantity (pcs.):
132.10€ * 157.20€ incl. VAT
*Price plus VAT and shipping costs

Warranty: NieRuf-Garantie: Gilt bei sachgemäßer Verwendung für alle Mängel am Produkt, die Sie nicht selbst verschuldet haben. Gilt bspw. nicht bei Verschleiß. Weitere Details siehe AGBs Punkt 7 – 7.11. 24 Months

Delivery time: at stock

Express shipping:

Shipping on: Tuesday, 21. September
Guaranteed delivery until Wednesday, 22. September, 12 Uhr:
order within 10 hours & 16 minutes via express shipping
Uncomplicated NieRuf-Return Policy for this Product. Falls Sie sich in Nennweite, Druckbereich, Spannung oder Material geirrt haben, können Sie den original verpackten Artikel ohne Einlagerungsgebühren innerhalb von 21 Tagen zurückschicken. Weitere Details siehe AGBs Punkt 9 - 9.5.
datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
technical details

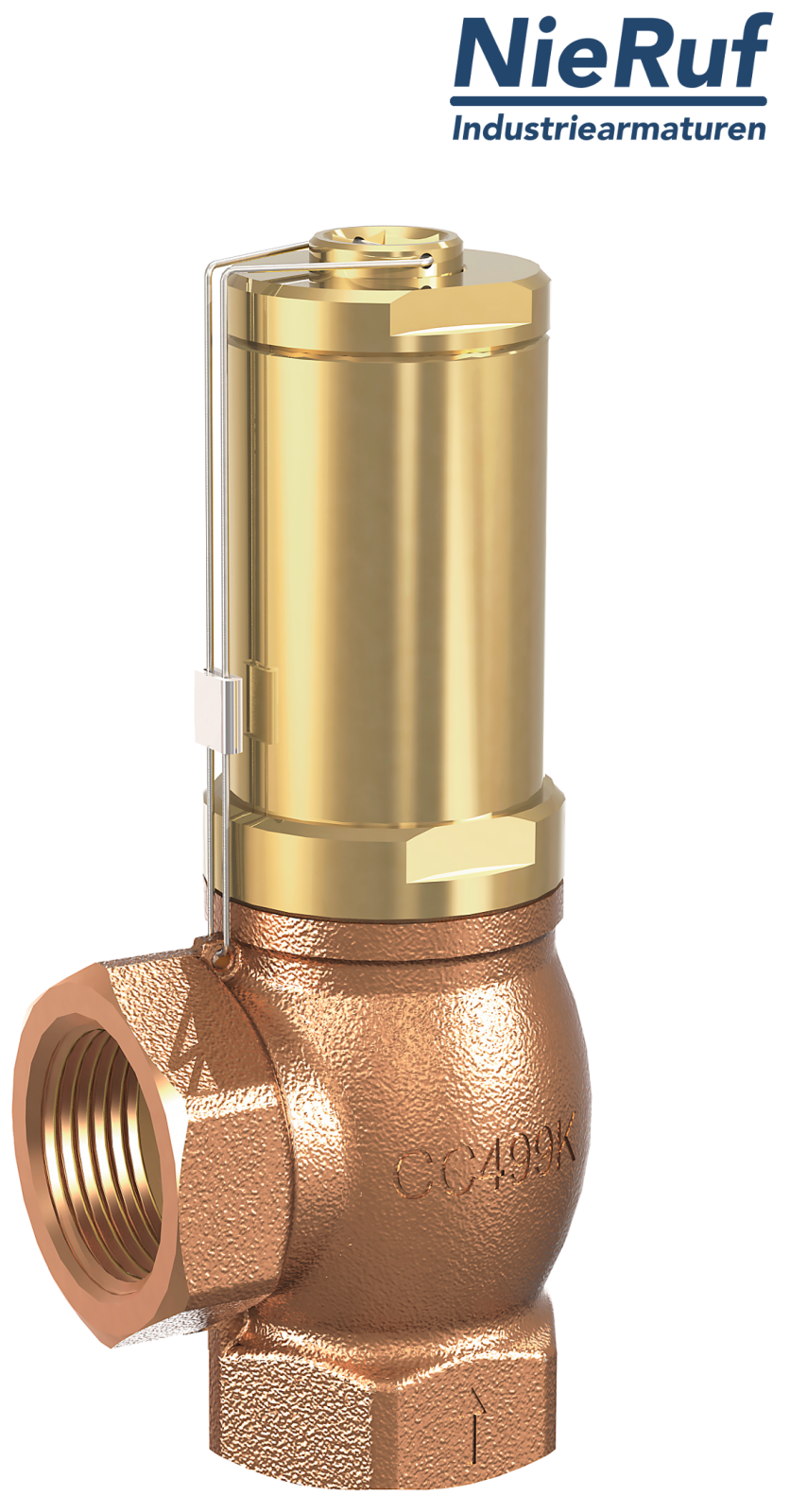

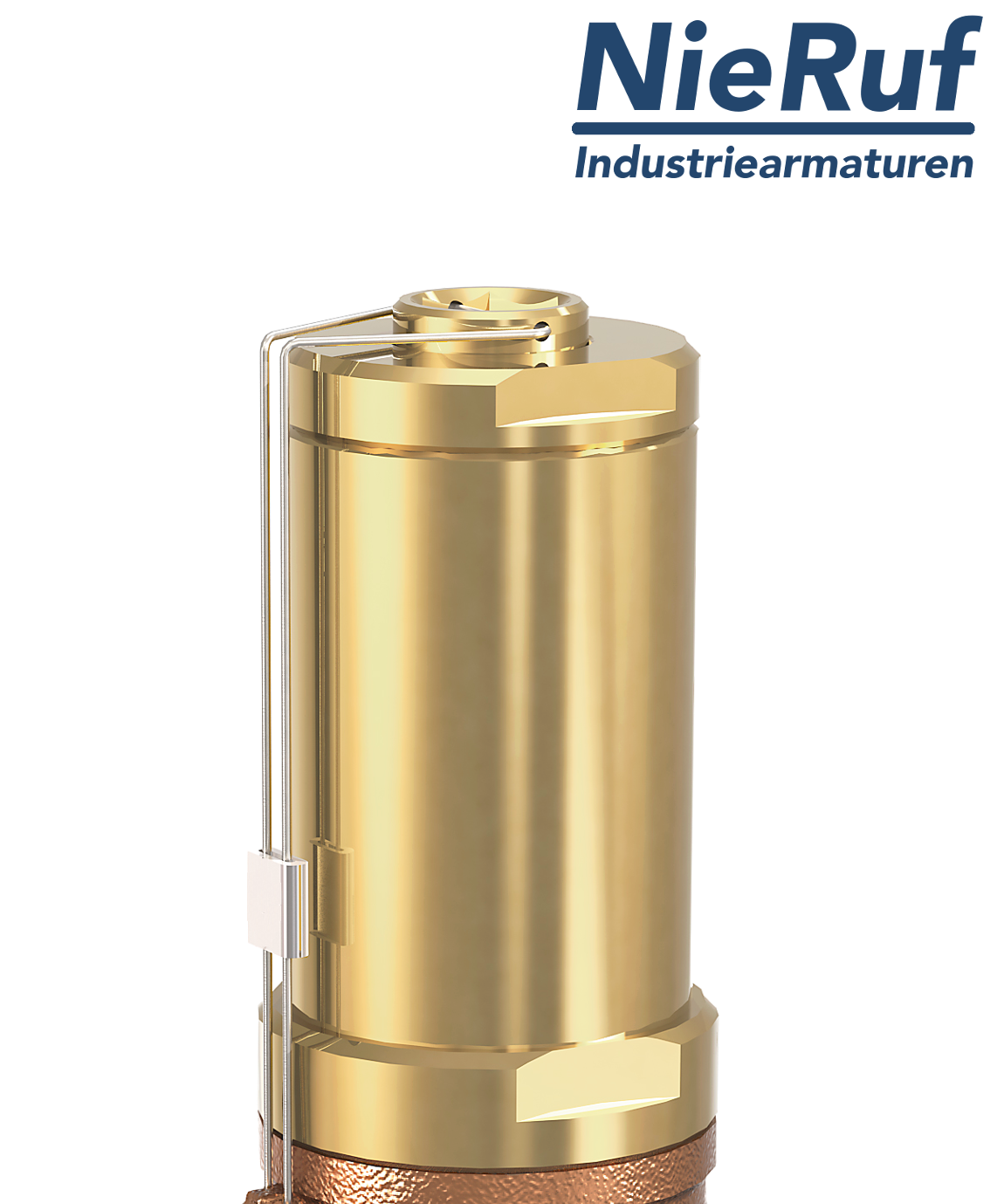

angle-type overflow valve 1" inch fm UV02 gunmetal/brass 2 - 12 bar
angle-type overflow valve 1" inch fm type UV02 made of gunmetal/brass pressure range 2 - 12 bar seal PTFE for liquid and gaseous media
diameter: 1" inch fm
connection: female thread BSP-P
seal: PTFE
media: liquid and gaseous media
temperature: -60°C to +225°C
range of adjustment: 2 - 12 bar
design: angle-type
material: gunmetal/brass
installation position: any position
SIL - safety integrity level: SIL 3
product feature: Adjustable under operating conditions without medium escaping into the atmosphere.
angle-type overflow valve 1" inch fm UV02 gunmetal/brass 2 - 12 bar

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

angle-type overflow valve 1" inch fm UV02 gunmetal/brass 2 - 12 bar

datasheet 3D model
