UV02030003
angle-type overflow valve 1/2" inch fm UV02 gunmetal/brass 12,0 - 20,0 bar
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Monday, 04. October
Guaranteed delivery until Tuesday, 05. October, 12 o'clock
Equipment
hexagon nipple 1/2" inch male stainless steel 316
€2.26 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

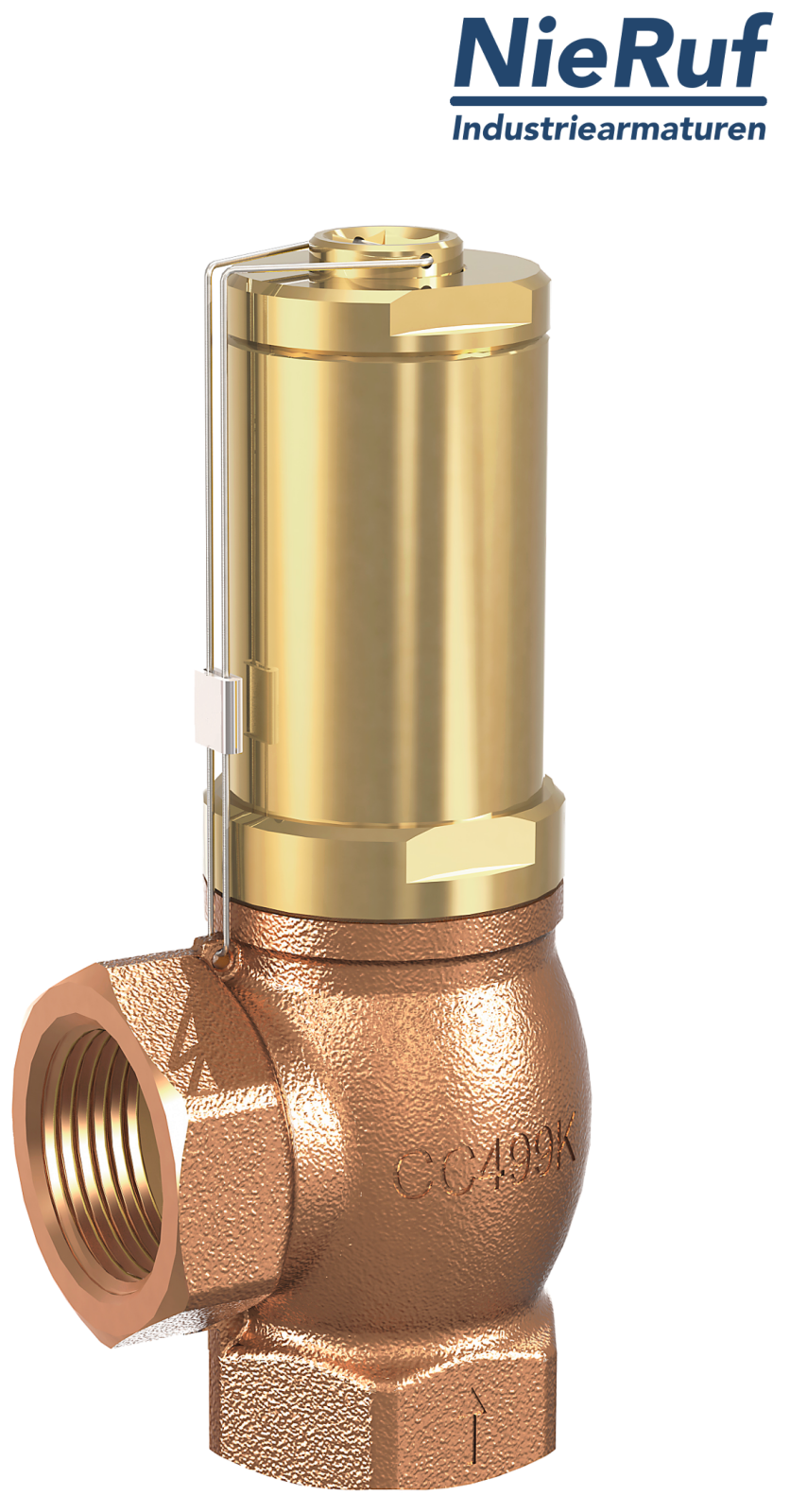

angle-type overflow valve 1/2" inch fm UV02 gunmetal/brass 12,0 - 20,0 bar
angle-type overflow valve 1/2" inch fm type UV02 made of gunmetal/brass pressure range 12,0 - 20,0 bar seal PTFE for liquid and gaseous media
| product | angle-type overflow valve |
|---|---|
| type | UV02 |
| manufacturer | NieRuf |
| diameter | 1/2" inch fm |
| connection | female thread BSP-P |
| seal | PTFE |
| media | liquid and gaseous media |
| temperature | -60°C to +225°C |
| range of adjustment | 12,0 - 20,0 bar |
| design | angle-type |
| material | gunmetal/brass |
| installation position | any position |
| SIL - safety integrity level | SIL 3 |
| product feature | Adjustable under operating conditions without medium escaping into the atmosphere. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
angle-type overflow valve 1/2" inch fm UV02 gunmetal/brass 12,0 - 20,0 bar
Article no.
: UV02030003
product:
angle-type overflow valve
type:
UV02
manufacturer:
NieRuf
diameter:
1/2" inch fm
connection:
female thread BSP-P
seal:
PTFE
media:
liquid and gaseous media
temperature:
-60°C to +225°C
range of adjustment:
12,0 - 20,0 bar
design:
angle-type
material:
gunmetal/brass
installation position:
any position
SIL - safety integrity level:
SIL 3
product feature:
Adjustable under operating conditions without medium escaping into the atmosphere.
