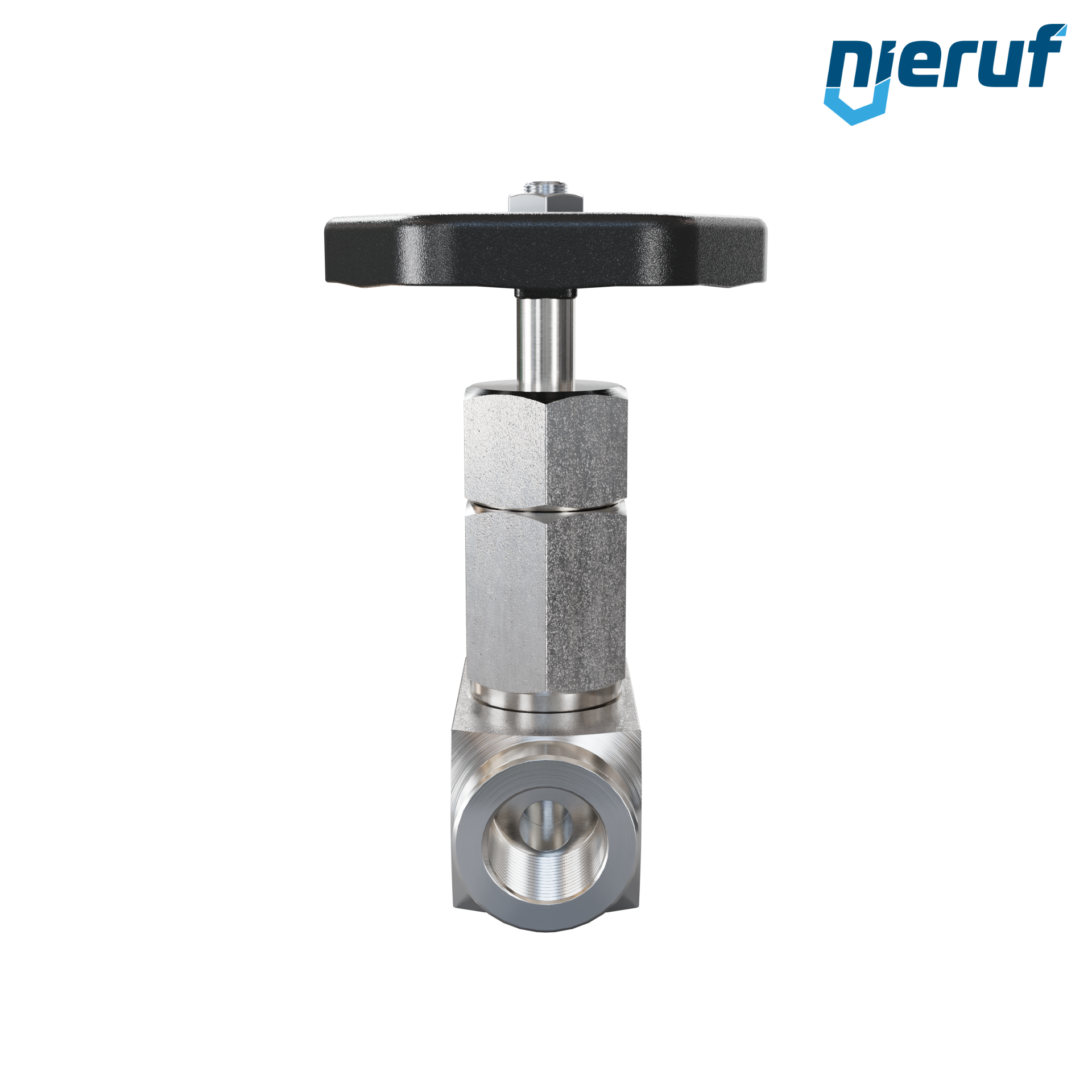

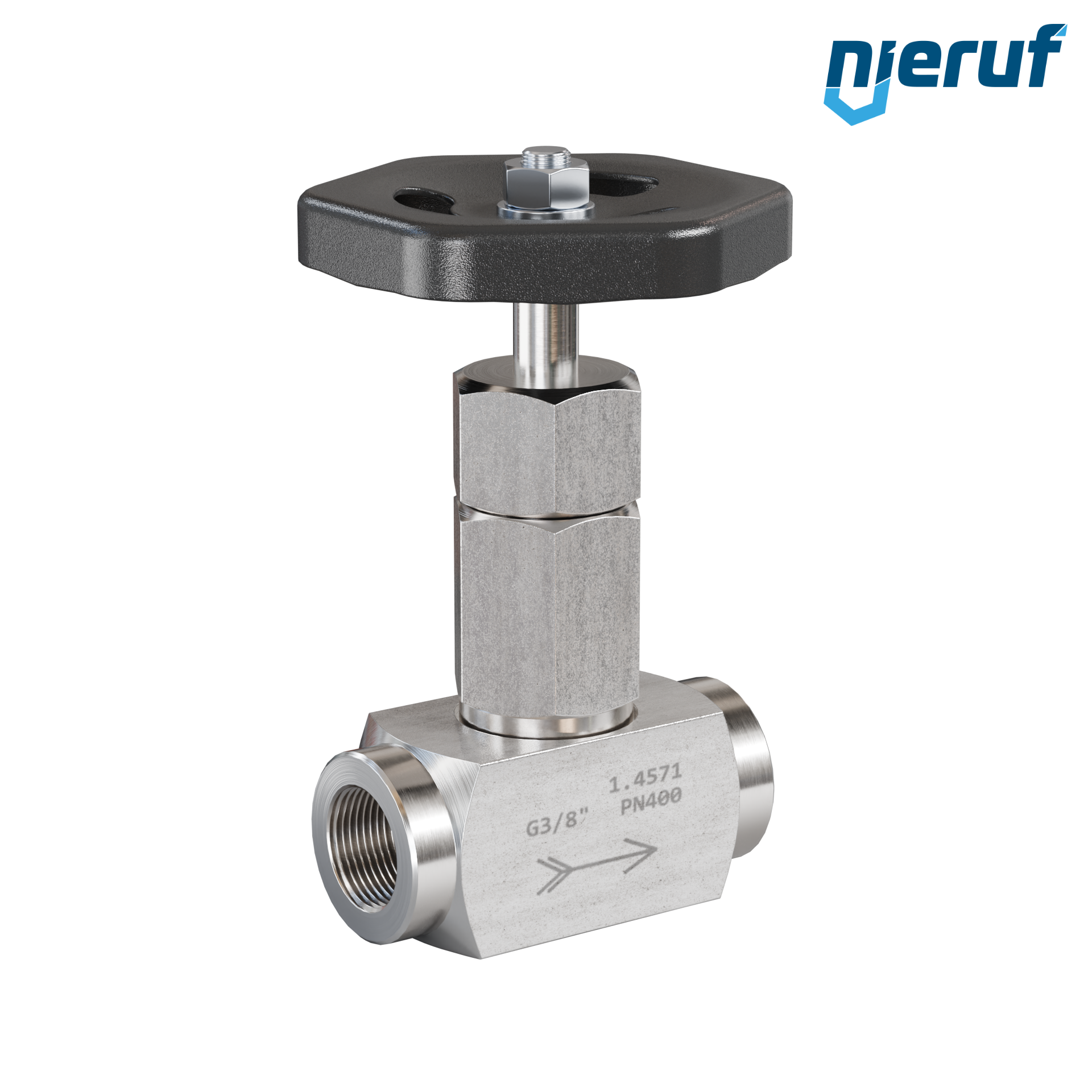

needle valve for steam 3/8" inch block execution made of stainless steel 1.4571 for steam pressure up to max. 400 bar
| product | needle valve for steam |
|---|---|
| type | NV03 |
| manufacturer | NieRuf |
| design | block execution |
| diameter | 3/8" inch |
| connection | female thread |
| material | stainless steel 1.4571 |
| material head | stainless steel 1.4571 |
| spindle | stainless steel 1.4571 |
| handwheel | steel plate |
| seal | Graphite |
| Kv-value m3/h | 0,53 |
| media | steam |
| temperature | up to max. +250°C |
| pressure range+DT:GA | up to max. 400 bar |
| product feature | For precise control of the media. Ideal for control a flow in the system. Suitable for steam. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
needle valve for steam 3/8" inch NV03 stainless steel 1.4571
Article no.
: NV03000002
product:
needle valve for steam
type:
NV03
manufacturer:
NieRuf
design:
block execution
diameter:
3/8" inch
connection:
female thread
material:
stainless steel 1.4571
material head:
stainless steel 1.4571
spindle:
stainless steel 1.4571
handwheel:
steel plate
seal:
Graphite
Kv-value m3/h:
0,53
media:
steam
temperature:
up to max. +250°C
pressure range+DT:GA:
up to max. 400 bar
product feature:
For precise control of the media. Ideal for control a flow in the system. Suitable for steam.
