NV03000005
needle valve for steam 1" inch NV03 stainless steel 1.4571
- Lead time
- 3 - 5 working days
Equipment
hexagon nipple 1" inch male stainless steel 316
€5.36 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE

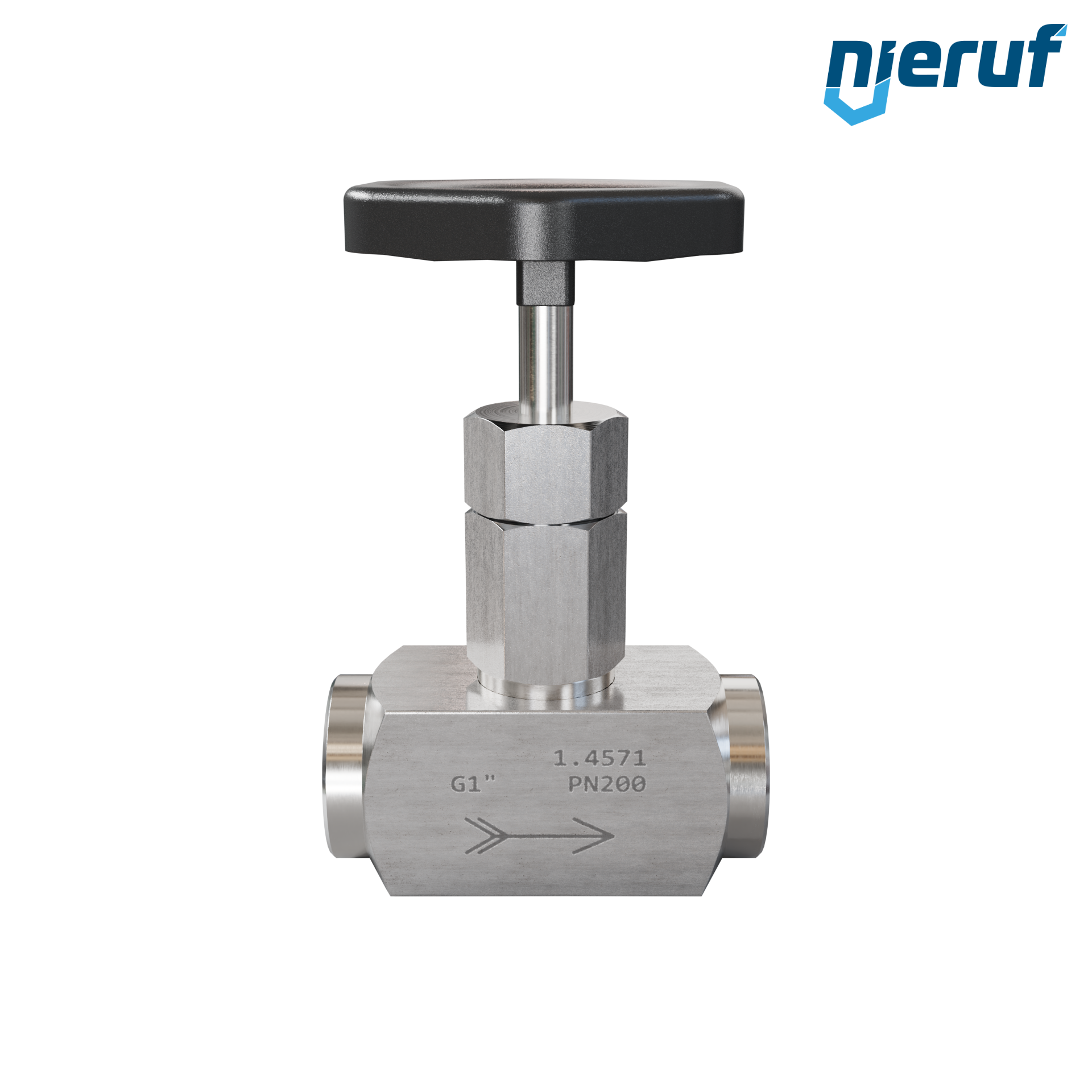

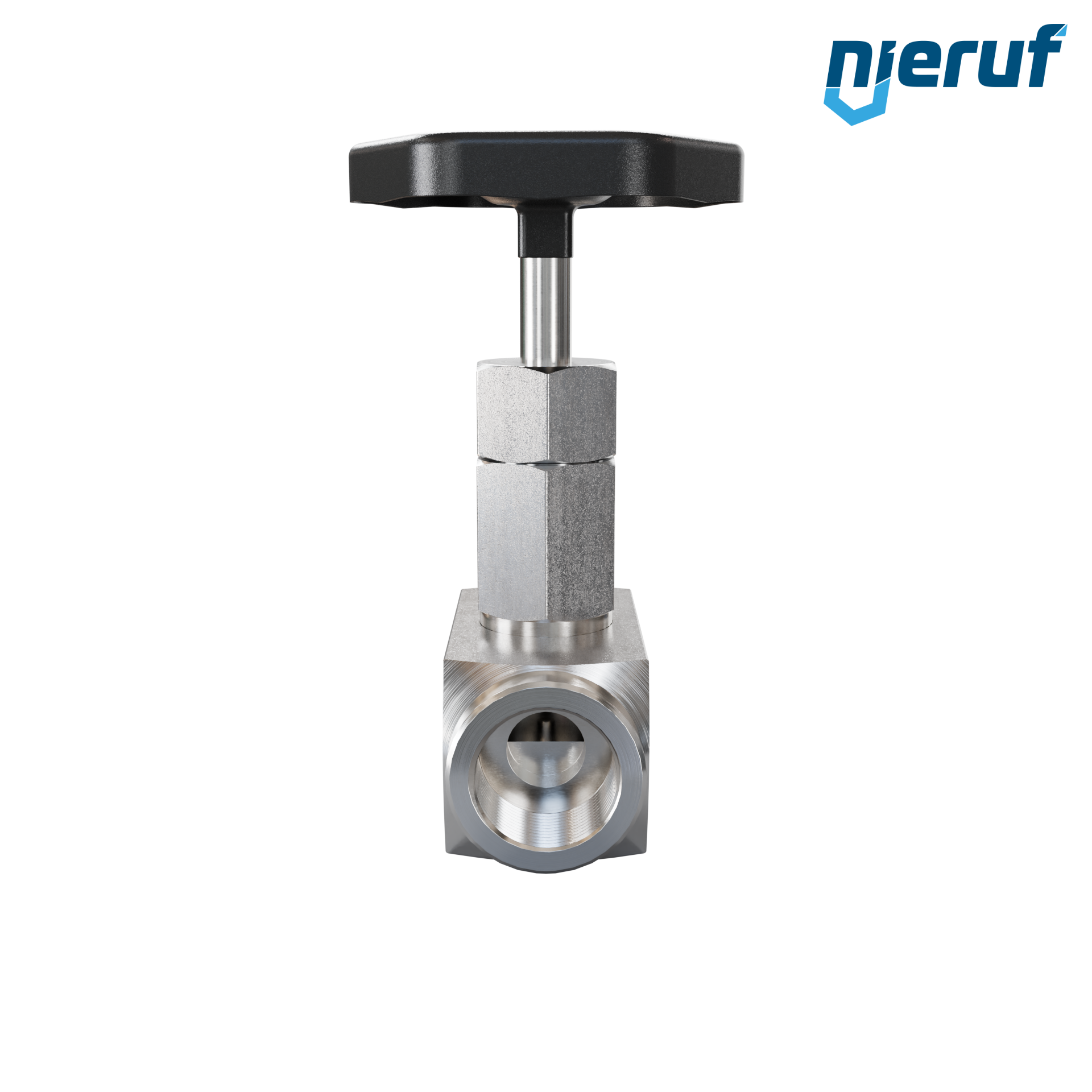

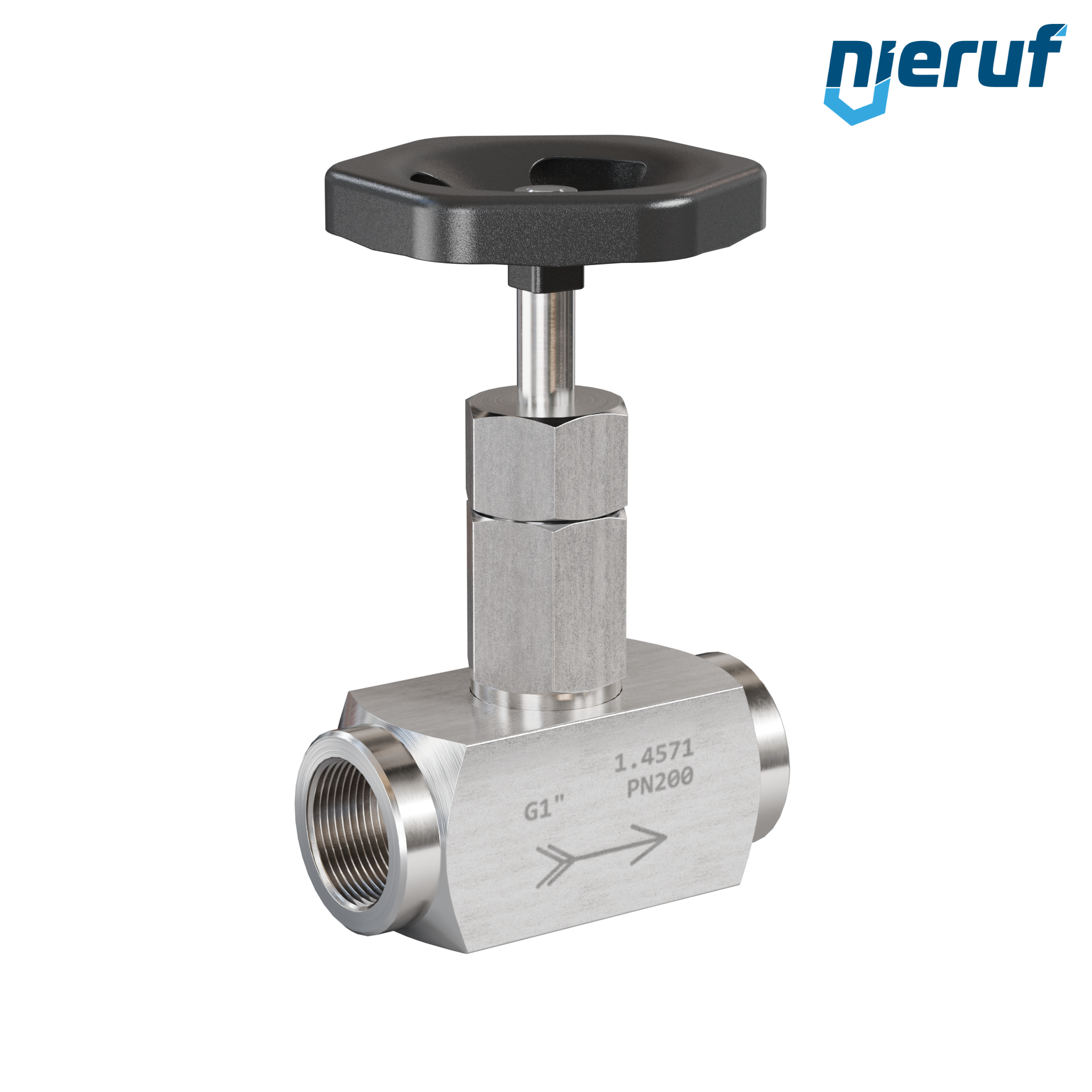

needle valve for steam 1" inch NV03 stainless steel 1.4571
needle valve for steam 1" inch block execution made of stainless steel 1.4571 for steam pressure up to max. 200 bar
| product | needle valve for steam |
|---|---|
| type | NV03 |
| manufacturer | NieRuf |
| design | block execution |
| diameter | 1" inch |
| connection | female thread |
| material | stainless steel 1.4571 / 316 Ti |
| material head | stainless steel 1.4571 / 316 Ti |
| spindle | stainless steel 1.4571 / 316 Ti |
| handwheel | steel plate |
| seal | Graphite |
| Kv-value m3/h | 2,20 |
| media | steam |
| temperature | -20°C up to +250°C |
| pressure range | 0 up to 200 bar |
| product feature | For precise control of the media. Ideal for control a flow in the system. Suitable for steam. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
needle valve for steam 1" inch NV03 stainless steel 1.4571
Article no.
: NV03000005
product:
needle valve for steam
type:
NV03
manufacturer:
NieRuf
design:
block execution
diameter:
1" inch
connection:
female thread
material:
stainless steel 1.4571 / 316 Ti
material head:
stainless steel 1.4571 / 316 Ti
spindle:
stainless steel 1.4571 / 316 Ti
handwheel:
steel plate
seal:
Graphite
Kv-value m3/h:
2,20
media:
steam
temperature:
-20°C up to +250°C
pressure range:
0 up to 200 bar
product feature:
For precise control of the media. Ideal for control a flow in the system. Suitable for steam.
