needle valve 2" inch NV02 brass

quantity (pcs.):
129.70€ * 154.34€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: at stock

Express shipping:

Shipping on: Tuesday, 21. September
Guaranteed delivery until Wednesday, 22. September, 12 Uhr:
order within 10 hours & 41 minutes via express shipping
datasheet 3D model manual
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
technical details

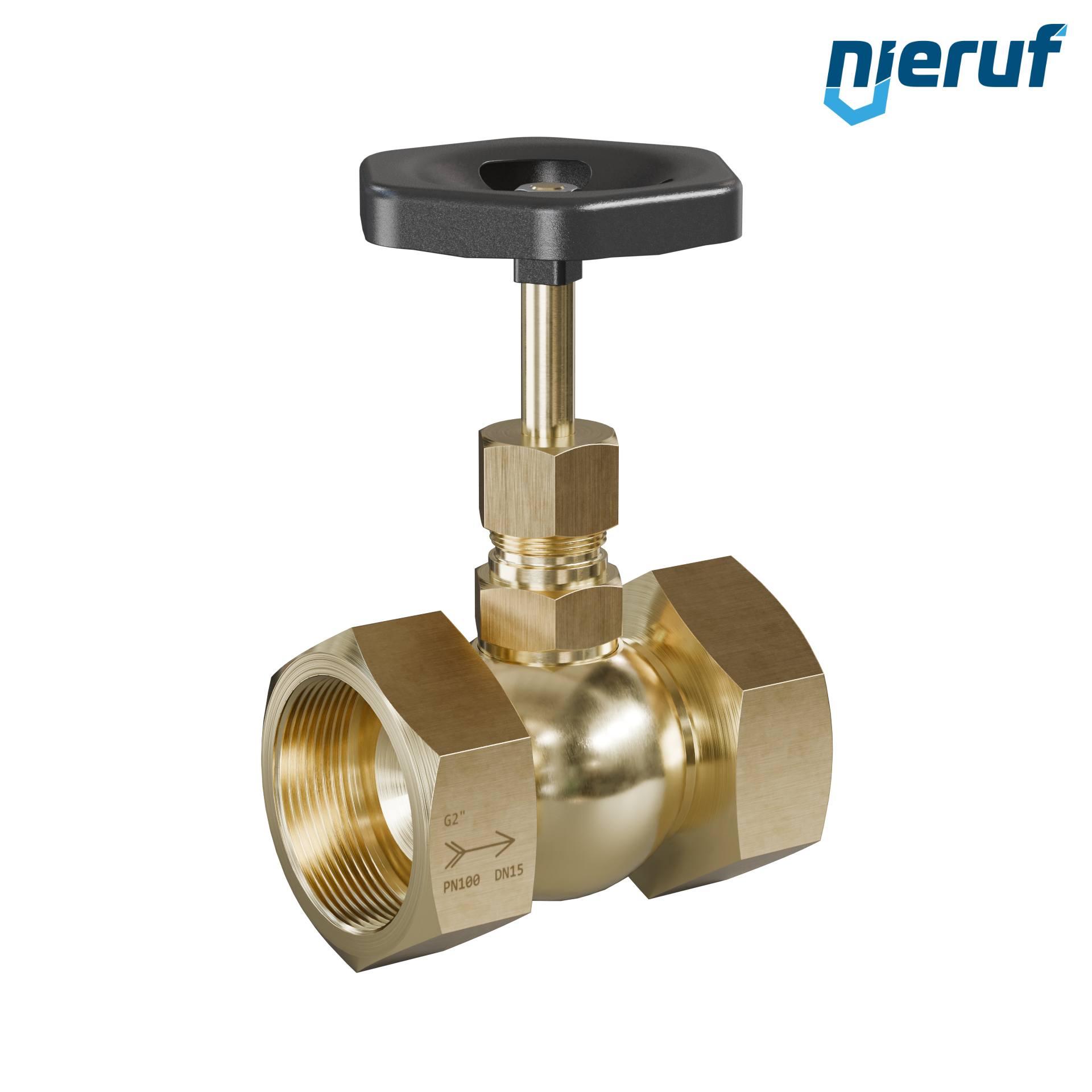

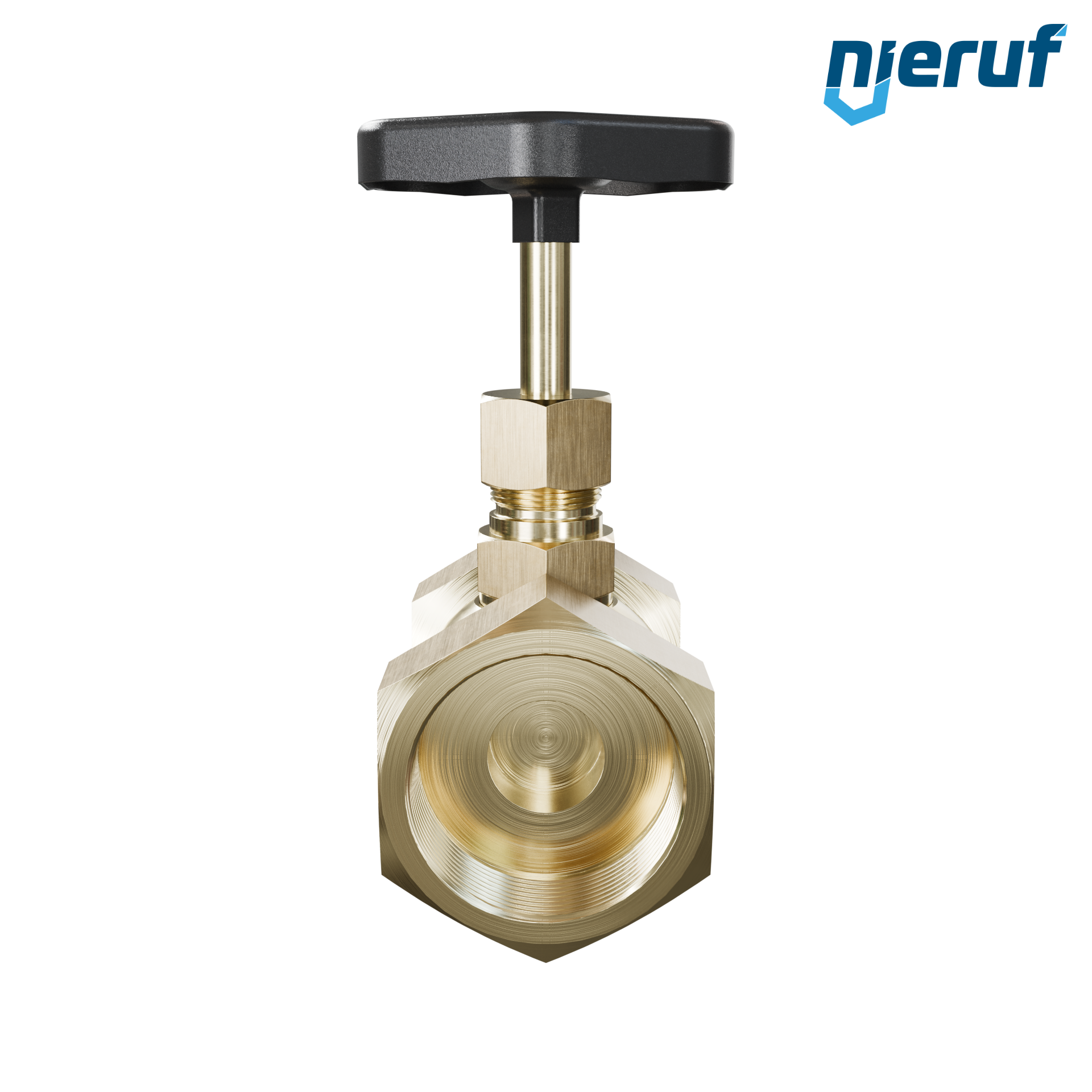

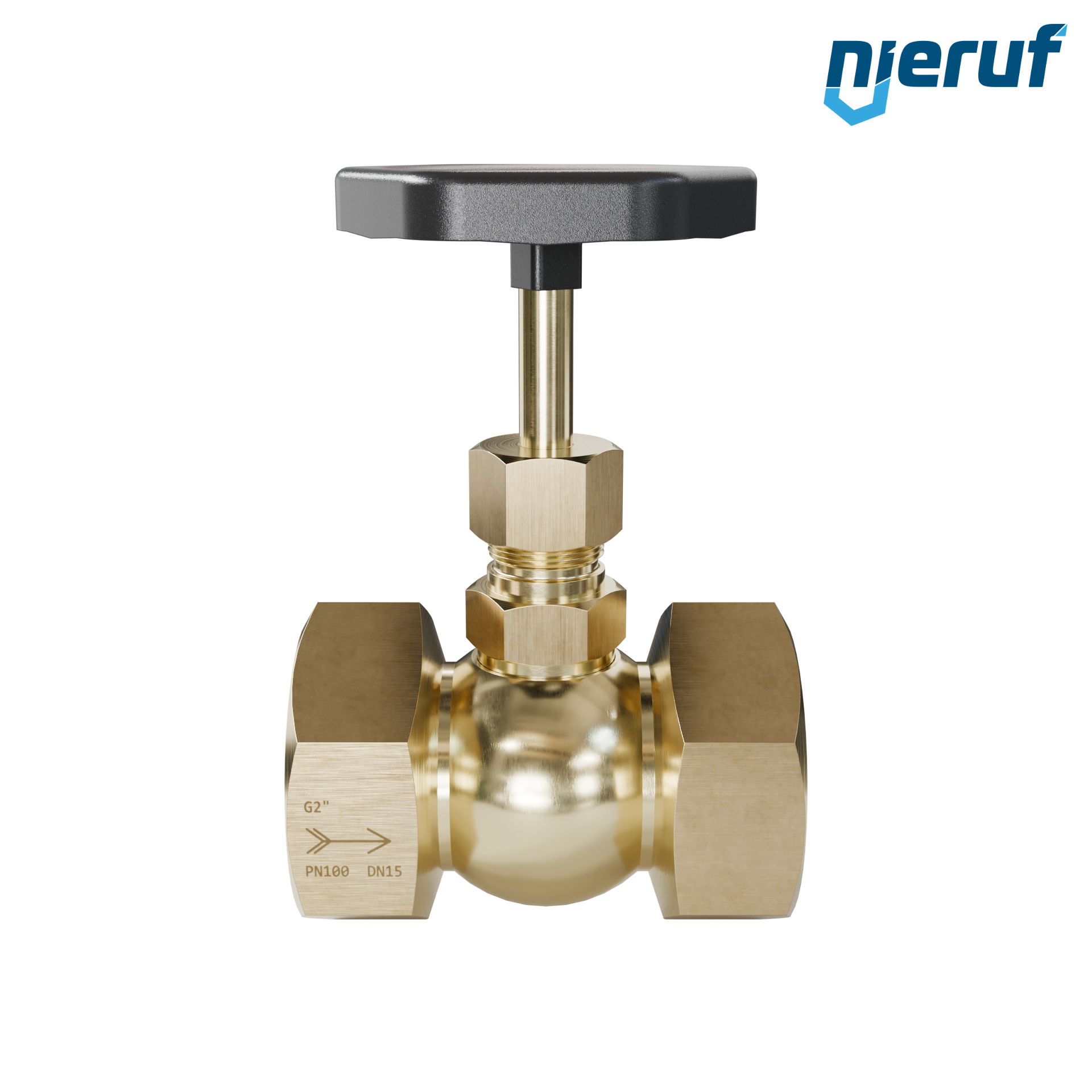

needle valve 2" inch NV02 brass
needle valve 2" inch block execution made of brass for liquid and gaseous media pressure up to max. 100 bar
design: block execution
diameter: 2" inch
connection: female thread
material: brass
material head: brass
spindle: brass
handwheel: steel
seal: PTFE
Kv-value m3/h: 3,30
media: liquid and gaseous media
temperature: up to max. +100°C
pressure range: up to max. 100 bar
product feature: For precise control of the media . Ideal for control a flow in the system.
needle valve 2" inch NV02 brass
