UV17000006

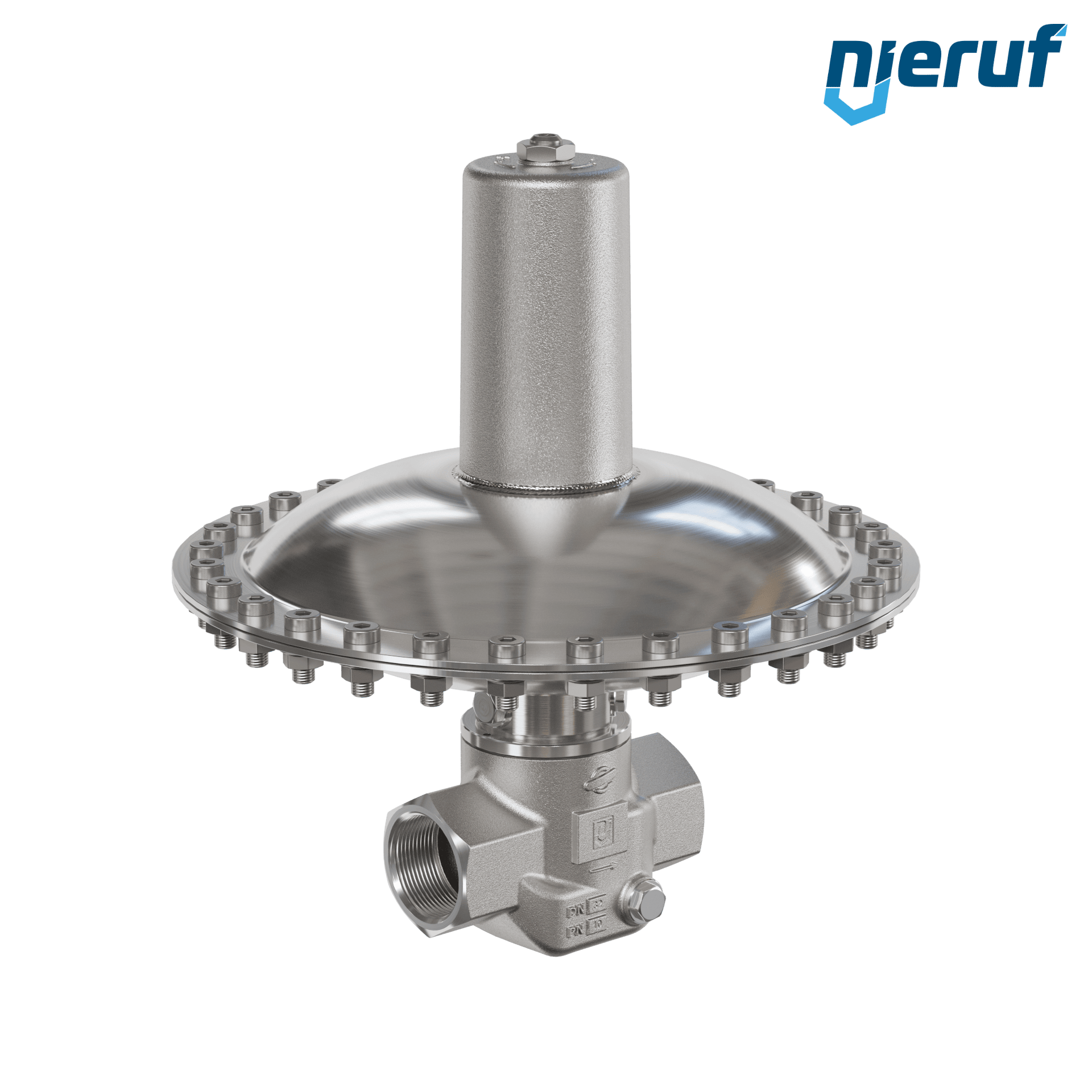

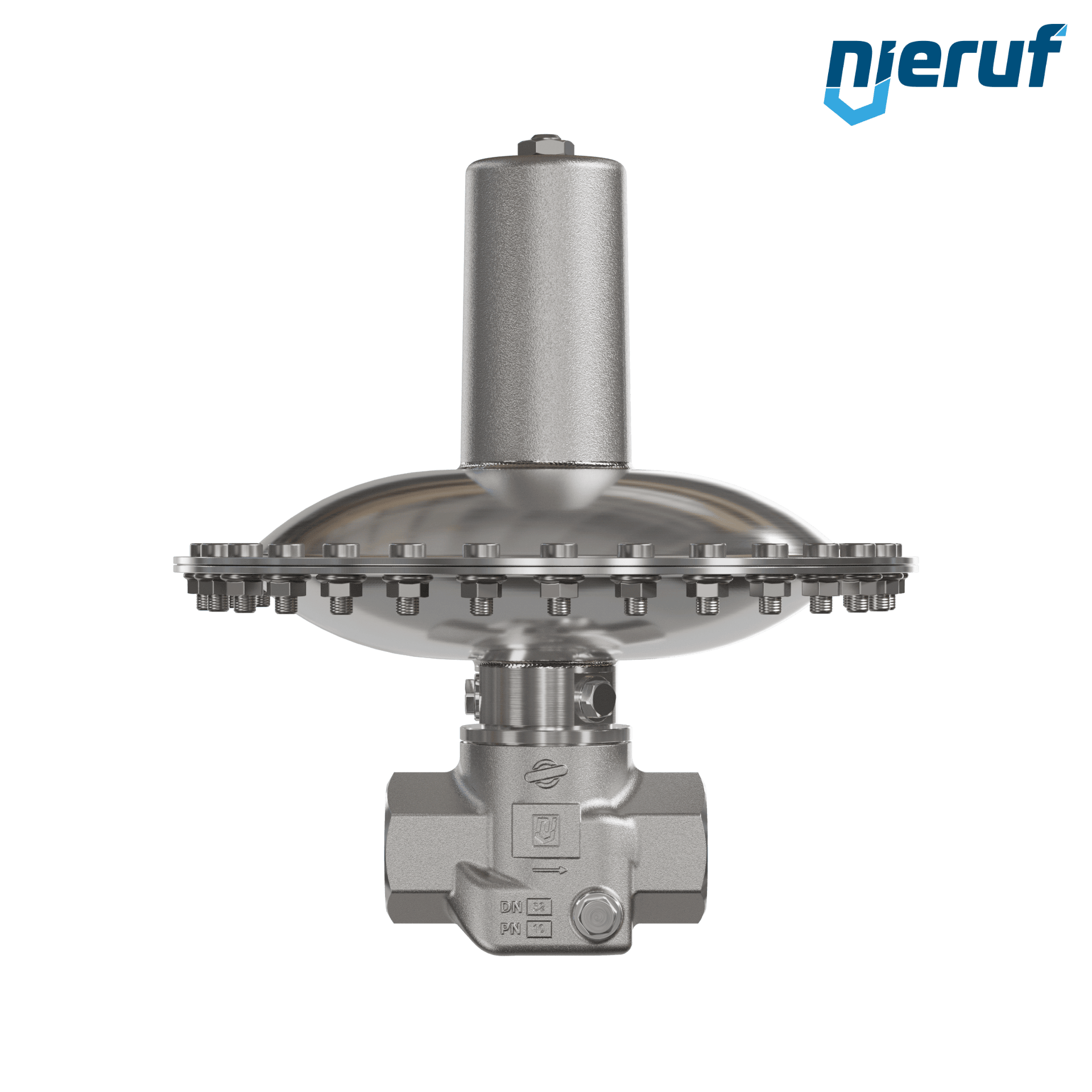

Millibar overflow valve 1 1/4" inch female UV17 stainless steel FKM / PTFE 7 - 100 mbar

€3,134.00*

€3,729.46 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 2 - 3 weeks

Equipment

GF01000106

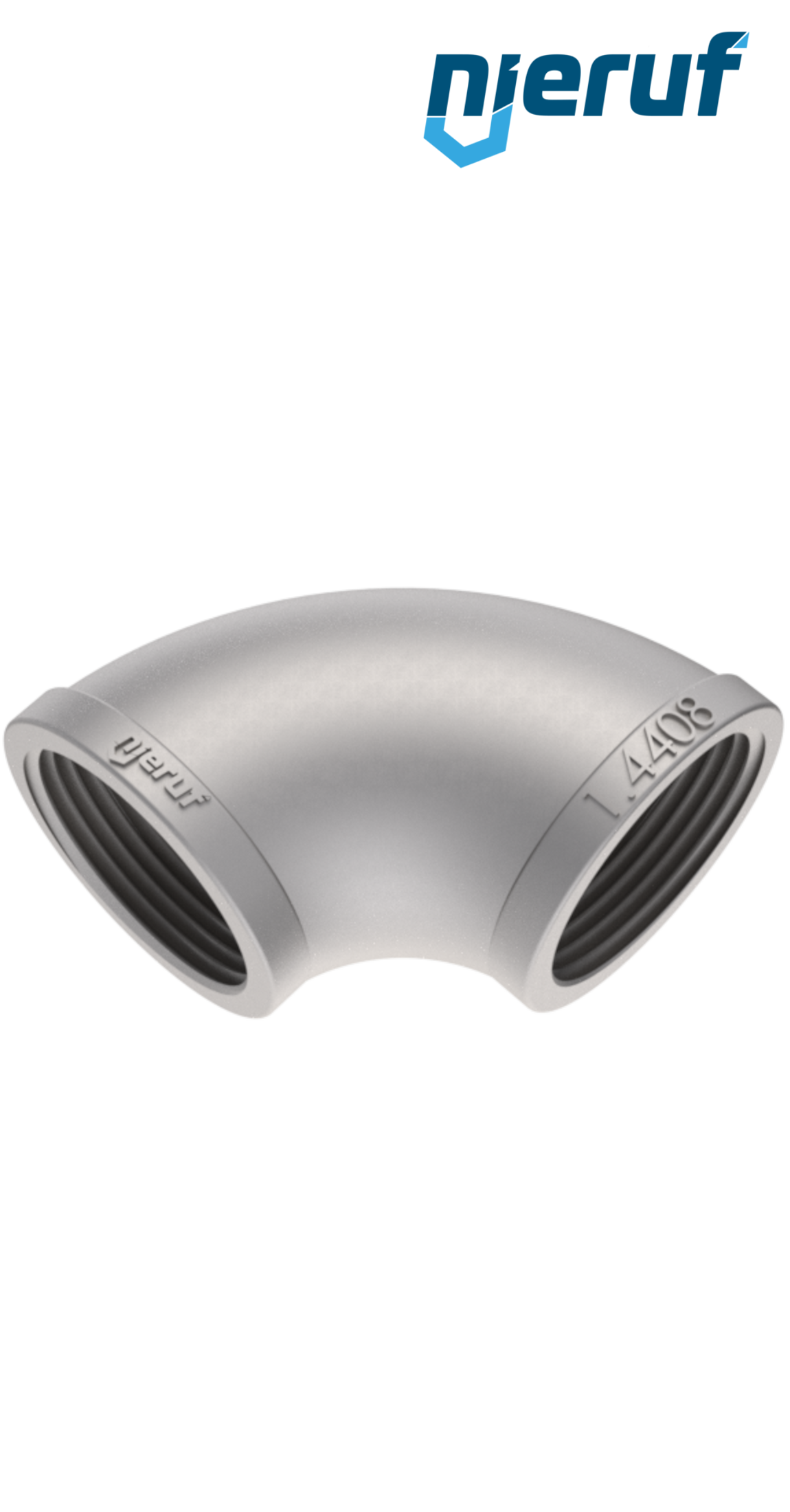

elbow 1 1/4" inch stainless steel 316 90° angle

€10.50*

€12.50 VAT included.

GF01300006

hexagon nipple 1 1/4" inch male stainless steel 316

€6.70*

€7.97 VAT included.

GF01100106

tee 1 1/4" inch stainless steel 316 90° angle FM

€12.10*

€14.40 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

24 months warranty

Certified

Downloads

3D model

Datasheet

Millibar overflow valve 1 1/4" inch female UV17 stainless steel FKM / PTFE 7 - 100 mbar

Millibar overflow valve 1 1/4" inch female type UV17 stainless steel 7 - 100 mbar seal FKM / PTFE for neutral gaseous media

product	Millibar overflow valve
type	UV17
manufacturer	NieRuf
diameter	1 1/4" inch female
connection	female thread ISO 228
seal	FKM / PTFE
media	neutral gaseous media
temperature	-10°C to +180°C
range of adjustment	7 - 100 mbar
max. inlet pressure	1,5 bar
design	straightway form
material	stainless steel 1.4408 / AISI 316L
installation position	horizontal
product feature	Diaphragm-controlled overflow valve with continously adjustable pressure setting and double-ended G 1/4" manometer fitting. Ideal for tank blanketing applications.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Millibar overflow valve 1 1/4" inch female UV17 stainless steel FKM / PTFE 7 - 100 mbar

Article no. : UV17000006
product: Millibar overflow valve
type: UV17
manufacturer: NieRuf
diameter: 1 1/4" inch female
connection: female thread ISO 228
seal: FKM / PTFE
media: neutral gaseous media
temperature: -10°C to +180°C
range of adjustment: 7 - 100 mbar
max. inlet pressure: 1,5 bar
design: straightway form
material: stainless steel 1.4408 / AISI 316L
installation position: horizontal
product feature: Diaphragm-controlled overflow valve with continously adjustable pressure setting and double-ended G 1/4" manometer fitting. Ideal for tank blanketing applications.
