TF01341002
Malleable cast iron fitting union no. 341, DN10 - 3/8" inch galvanized
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
Downloads

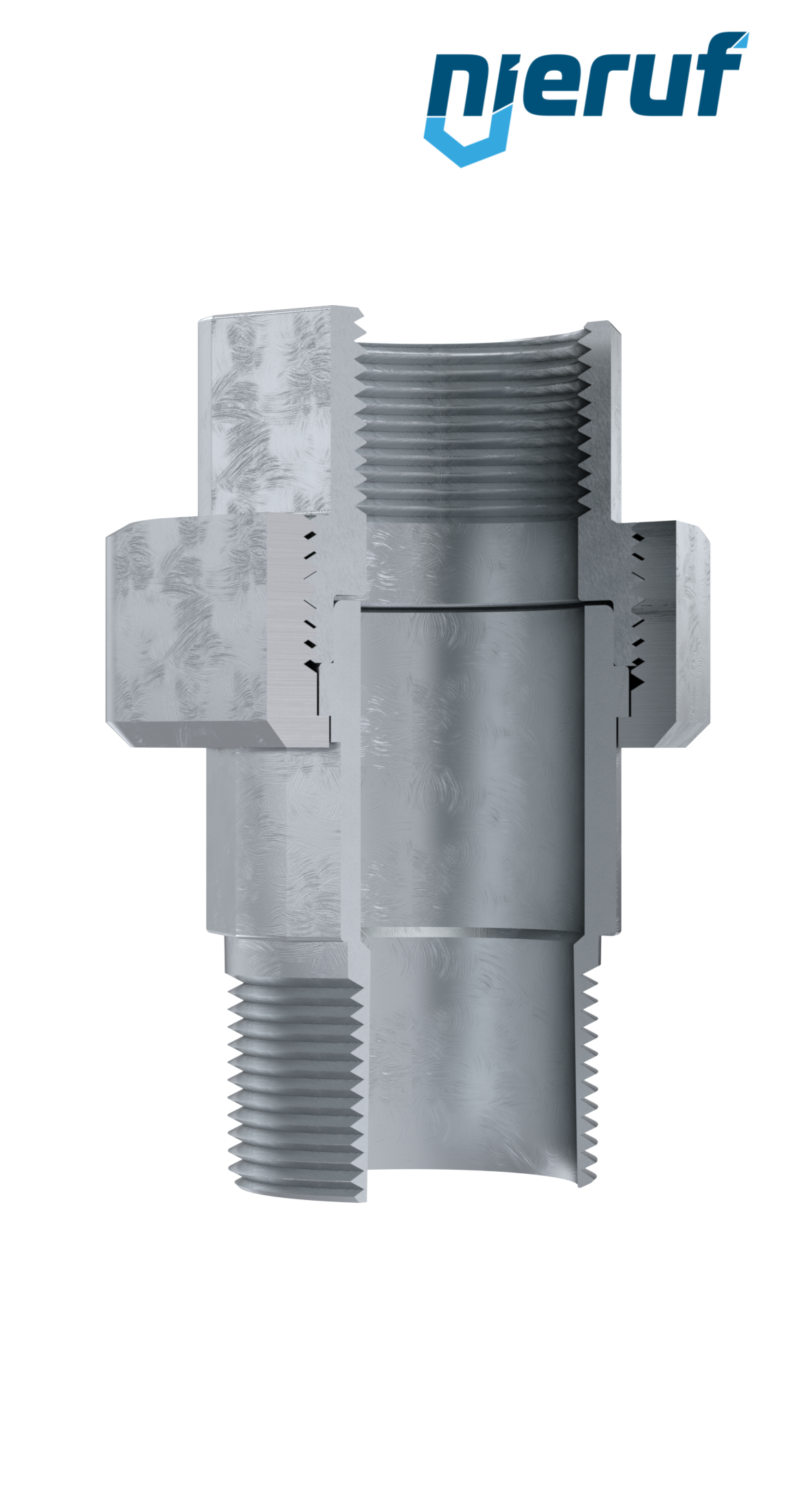

Malleable cast iron fitting union no. 341, DN10 - 3/8" inch galvanized
union no. 341 with female x male thread DN10 - 3/8" inch malleable cast iron galvanized for liquid & gaseous media
| product | union |
|---|---|
| type | TF01-341 |
| manufacturer | NieRuf |
| design | conical sealing |
| version | ISO/EN U12 |
| diameter | DN10 - 3/8" inch |
| connection | female x male thread |
| thread | acc. to DIN EN 10226-1 / ISO 7-1 |
| authorized for | DVGW |
| max. working pressure | 25 bar from -20°C up to +120°C |
| material | Malleable cast iron EN 1562 galvanized |
| design symbol | A |
| model number | 341 |
| product feature | Malleable cast iron fittings are ideal to connect pipelines or to integrate mountings or valves in pipeline systems. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Malleable cast iron fitting union no. 341, DN10 - 3/8" inch galvanized
Article no.
: TF01341002
product:
union
type:
TF01-341
manufacturer:
NieRuf
design:
conical sealing
version:
ISO/EN U12
diameter:
DN10 - 3/8" inch
connection:
female x male thread
thread:
acc. to DIN EN 10226-1 / ISO 7-1
authorized for:
DVGW
max. working pressure:
25 bar from -20°C up to +120°C
material:
Malleable cast iron EN 1562 galvanized
design symbol:
A
model number:
341
product feature:
Malleable cast iron fittings are ideal to connect pipelines or to integrate mountings or valves in pipeline systems.
