TF01331009

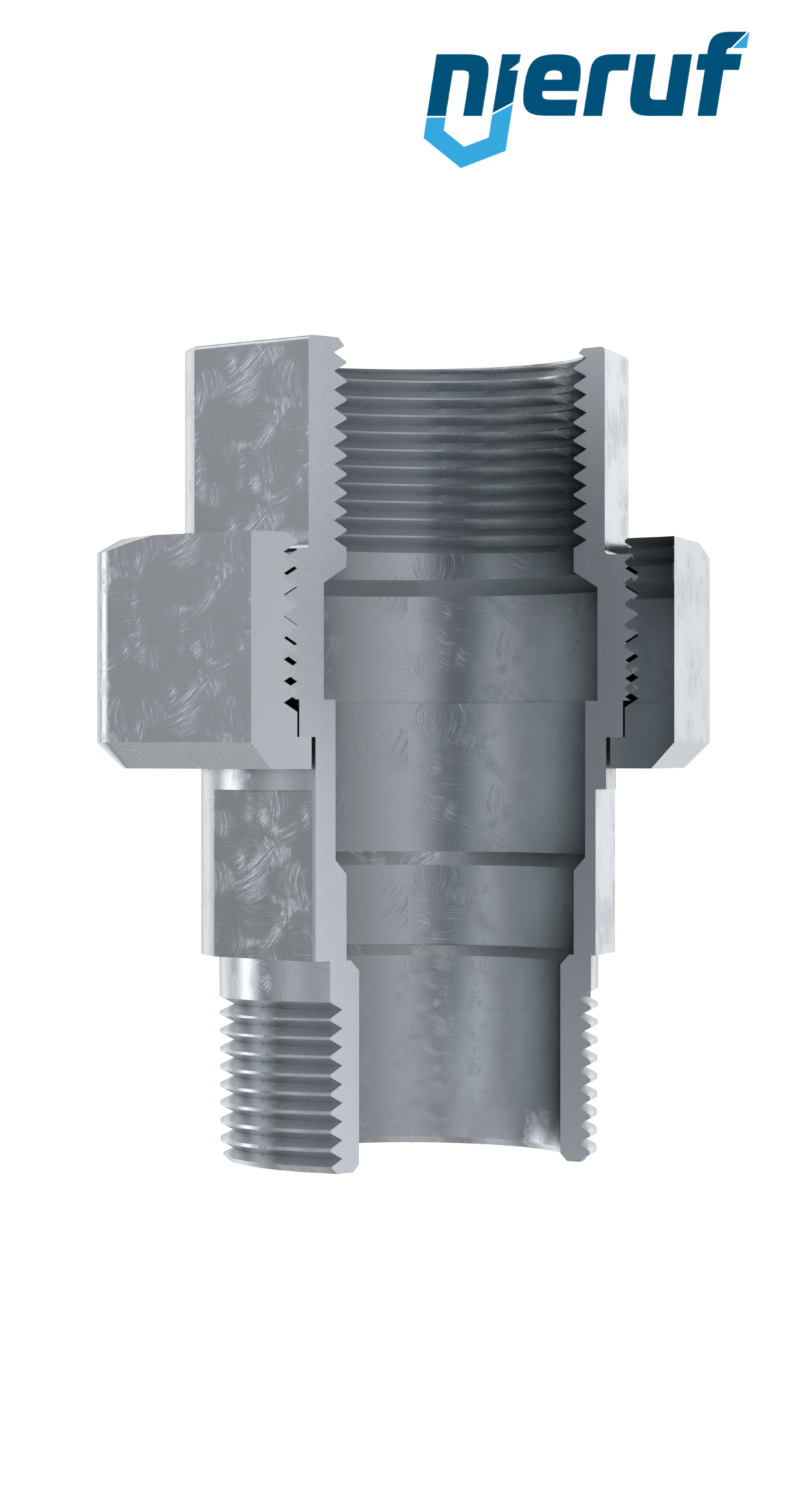

Malleable cast iron fitting union no. 331, DN65 - 2 1/2" inch galvanized
- Lead time
- 3 - 5 working days
Equipment
flat seal no. 529 DN65 - 2 1/2" inch for TF01 unions
€4.76 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
Downloads
Malleable cast iron fitting union no. 331, DN65 - 2 1/2" inch galvanized
union no. 331 with female x male thread DN65 - 2 1/2" inch malleable cast iron galvanized for liquid & gaseous media
| product | union |
|---|---|
| type | TF01-331 |
| manufacturer | NieRuf |
| design | flat sealing |
| version | ISO/EN U2 |
| diameter | DN65 - 2 1/2" inch |
| connection | female x male thread |
| thread | acc. to DIN EN 10226-1 / ISO 7-1 |
| authorized for | DVGW |
| max. working pressure | 25 bar from -20°C up to +120°C |
| material | Malleable cast iron EN 1562 galvanized |
| design symbol | A |
| model number | 331 |
| product feature | Malleable cast iron fittings are ideal to connect pipelines or to integrate mountings or valves in pipeline systems. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Malleable cast iron fitting union no. 331, DN65 - 2 1/2" inch galvanized
Article no.
: TF01331009
product:
union
type:
TF01-331
manufacturer:
NieRuf
design:
flat sealing
version:
ISO/EN U2
diameter:
DN65 - 2 1/2" inch
connection:
female x male thread
thread:
acc. to DIN EN 10226-1 / ISO 7-1
authorized for:
DVGW
max. working pressure:
25 bar from -20°C up to +120°C
material:
Malleable cast iron EN 1562 galvanized
design symbol:
A
model number:
331
product feature:
Malleable cast iron fittings are ideal to connect pipelines or to integrate mountings or valves in pipeline systems.
