TF01096005
Malleable cast iron fitting union ellbow no. 96, DN25 - 1" inch galvanized
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
Downloads

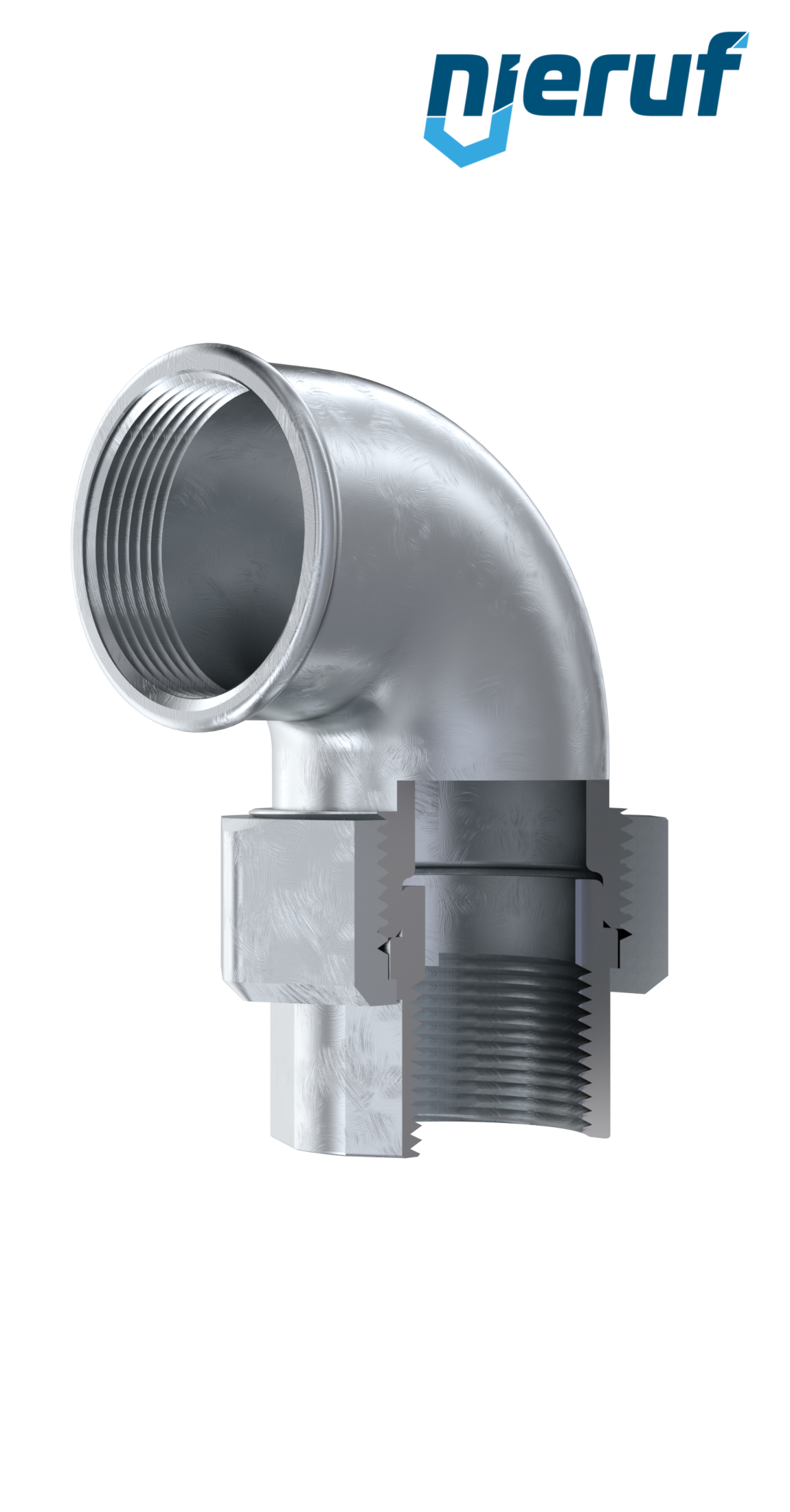

Malleable cast iron fitting union ellbow no. 96, DN25 - 1" inch galvanized
union ellbow no. 96 with female thread DN25 - 1" inch malleable cast iron galvanized for liquid & gaseous media
| product | union ellbow |
|---|---|
| type | TF01-096 |
| manufacturer | NieRuf |
| design | conical sealing |
| version | ISO/EN UA11 |
| diameter | DN25 - 1" inch |
| connection | female thread |
| thread | acc. to DIN EN 10226-1 / ISO 7-1 |
| authorized for | DVGW |
| max. working pressure | 25 bar from -20°C up to +120°C |
| material | Malleable cast iron EN 1562 galvanized |
| design symbol | A |
| model number | 96 |
| product feature | Malleable cast iron fittings are ideal to connect pipelines or to integrate mountings or valves in pipeline systems. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Malleable cast iron fitting union ellbow no. 96, DN25 - 1" inch galvanized
Article no.
: TF01096005
product:
union ellbow
type:
TF01-096
manufacturer:
NieRuf
design:
conical sealing
version:
ISO/EN UA11
diameter:
DN25 - 1" inch
connection:
female thread
thread:
acc. to DIN EN 10226-1 / ISO 7-1
authorized for:
DVGW
max. working pressure:
25 bar from -20°C up to +120°C
material:
Malleable cast iron EN 1562 galvanized
design symbol:
A
model number:
96
product feature:
Malleable cast iron fittings are ideal to connect pipelines or to integrate mountings or valves in pipeline systems.
