compact-automatic-flange ball valve DN40 EK07 24V

EK07000007
quantity (pcs.):
513.70€ * 595.89€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3-5 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
compact-automatic-flange ball valve DN40 EK07 24V

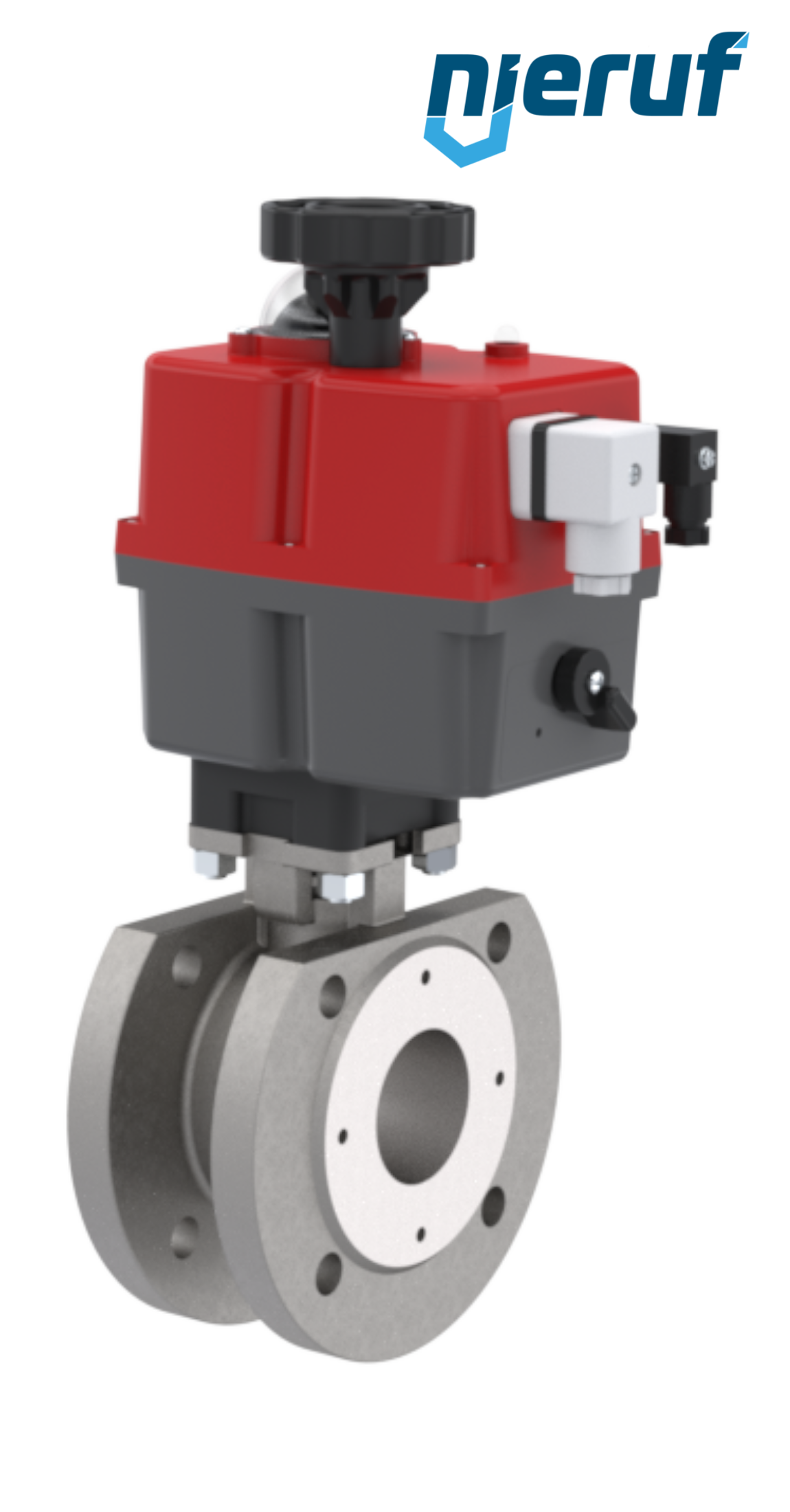

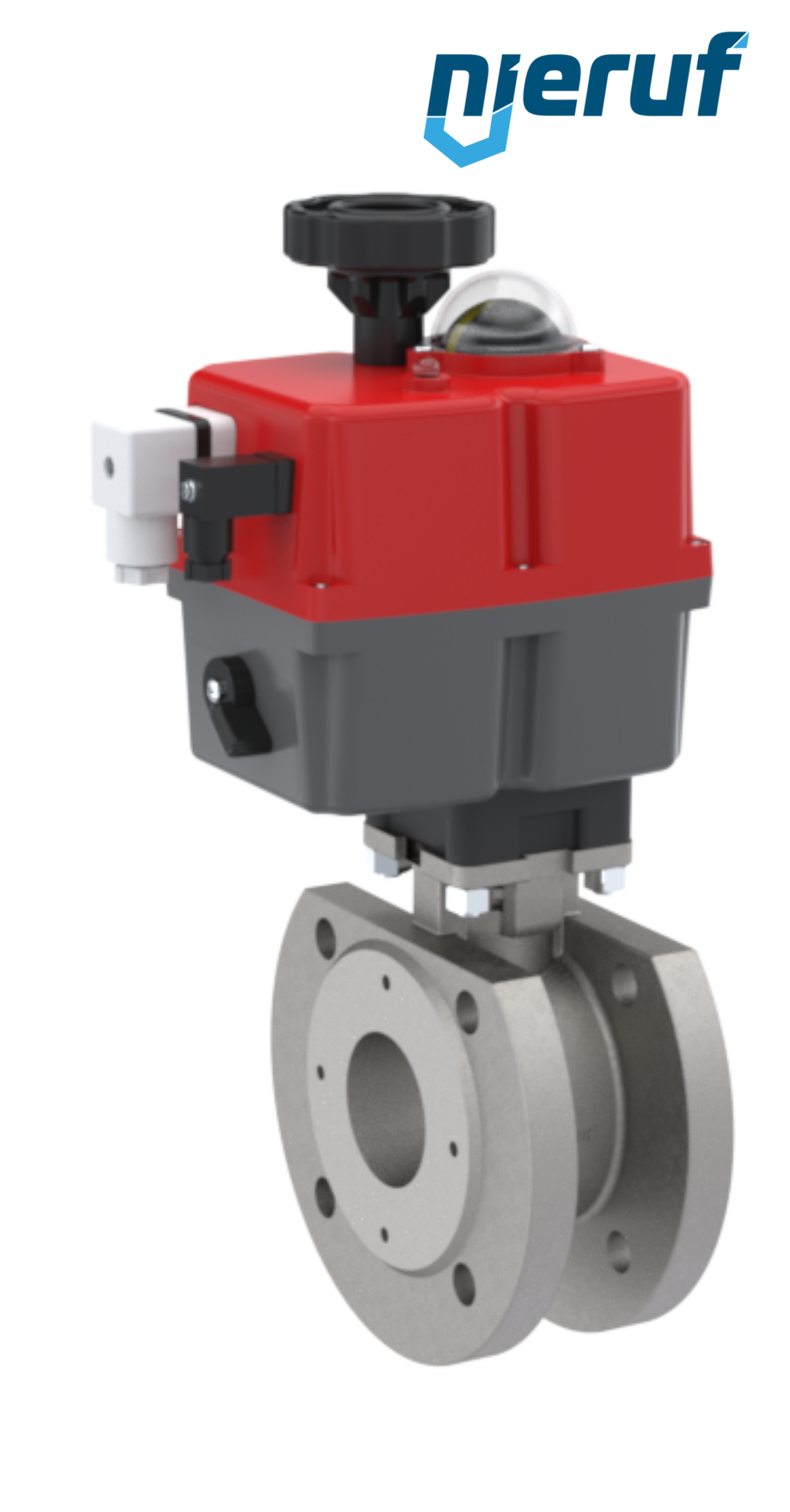

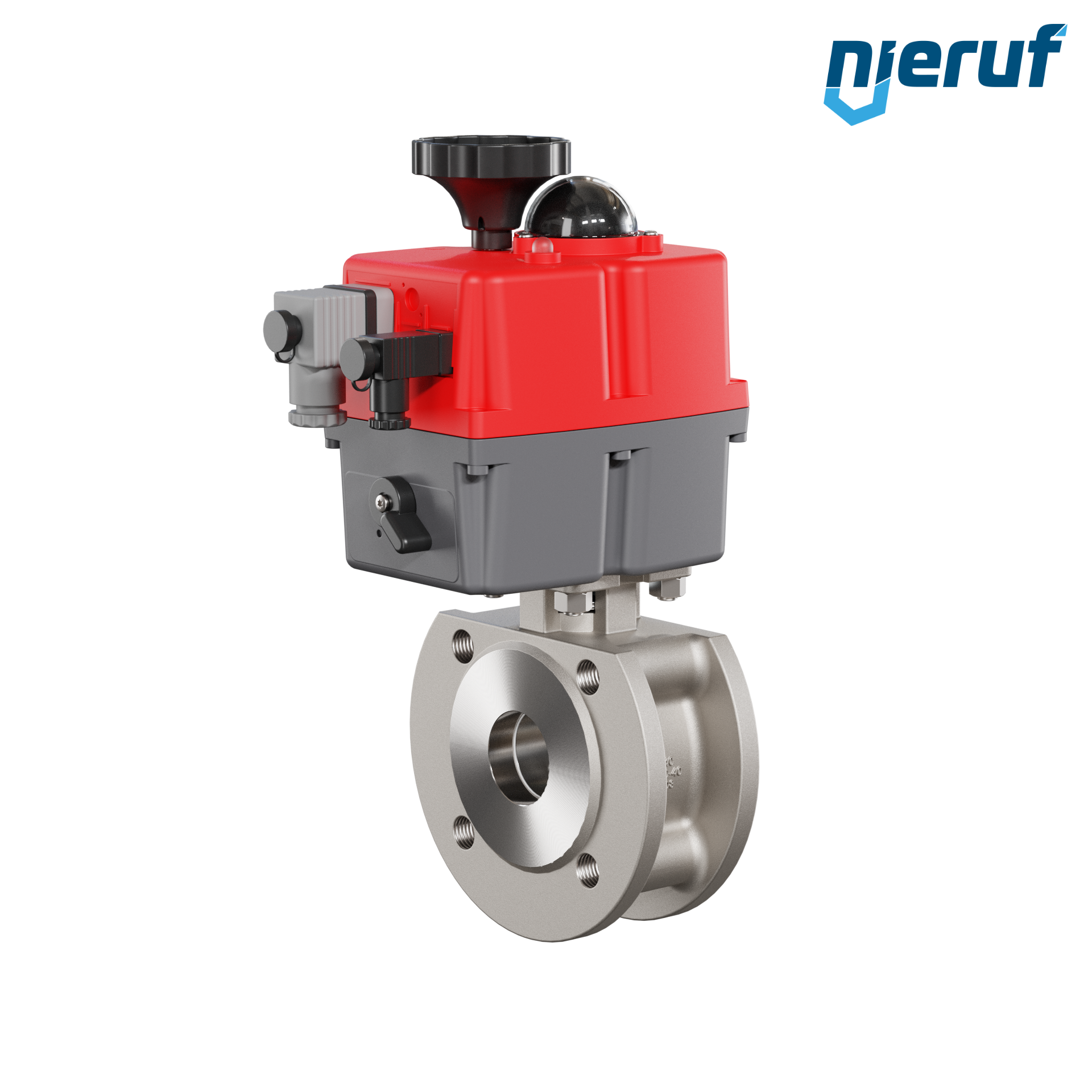

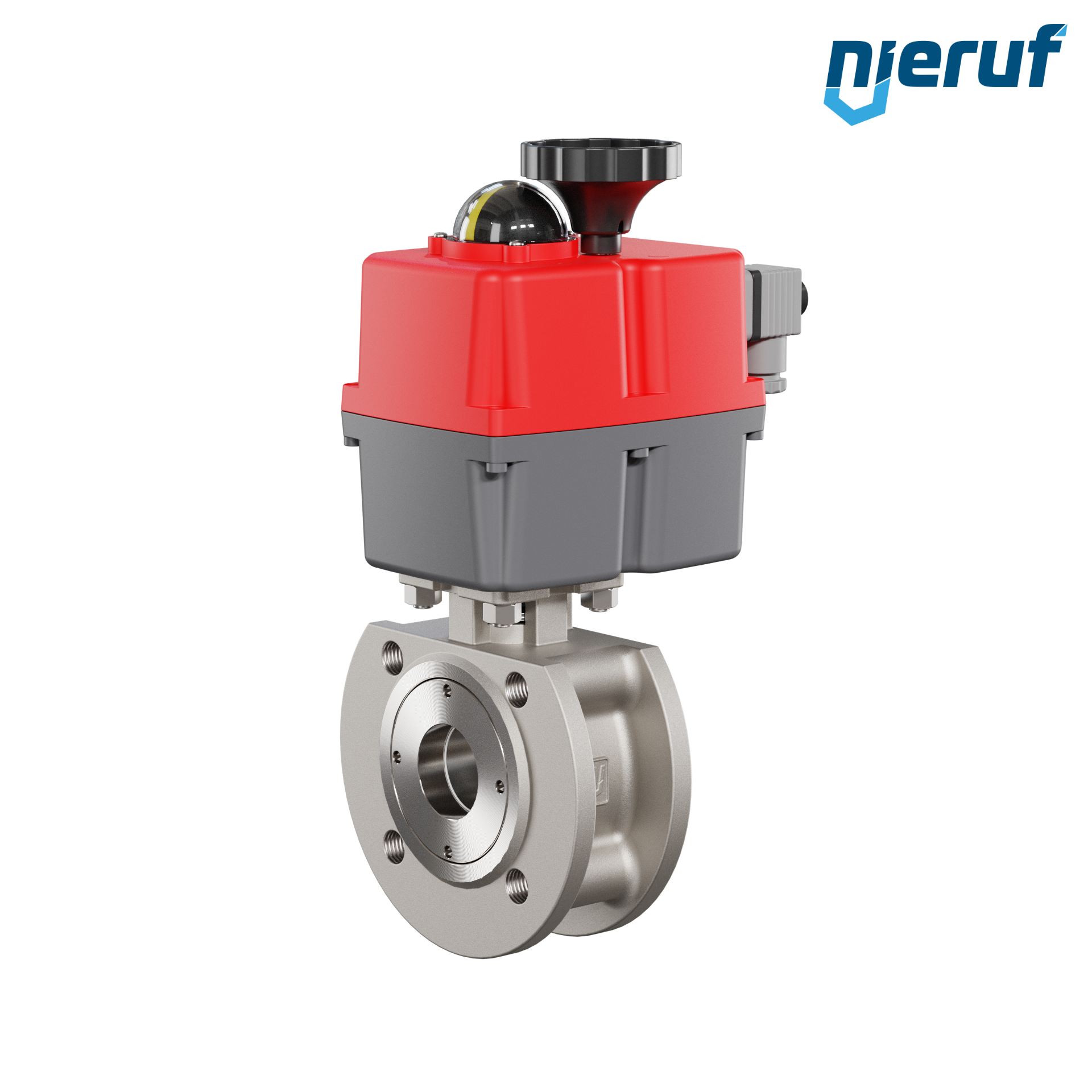

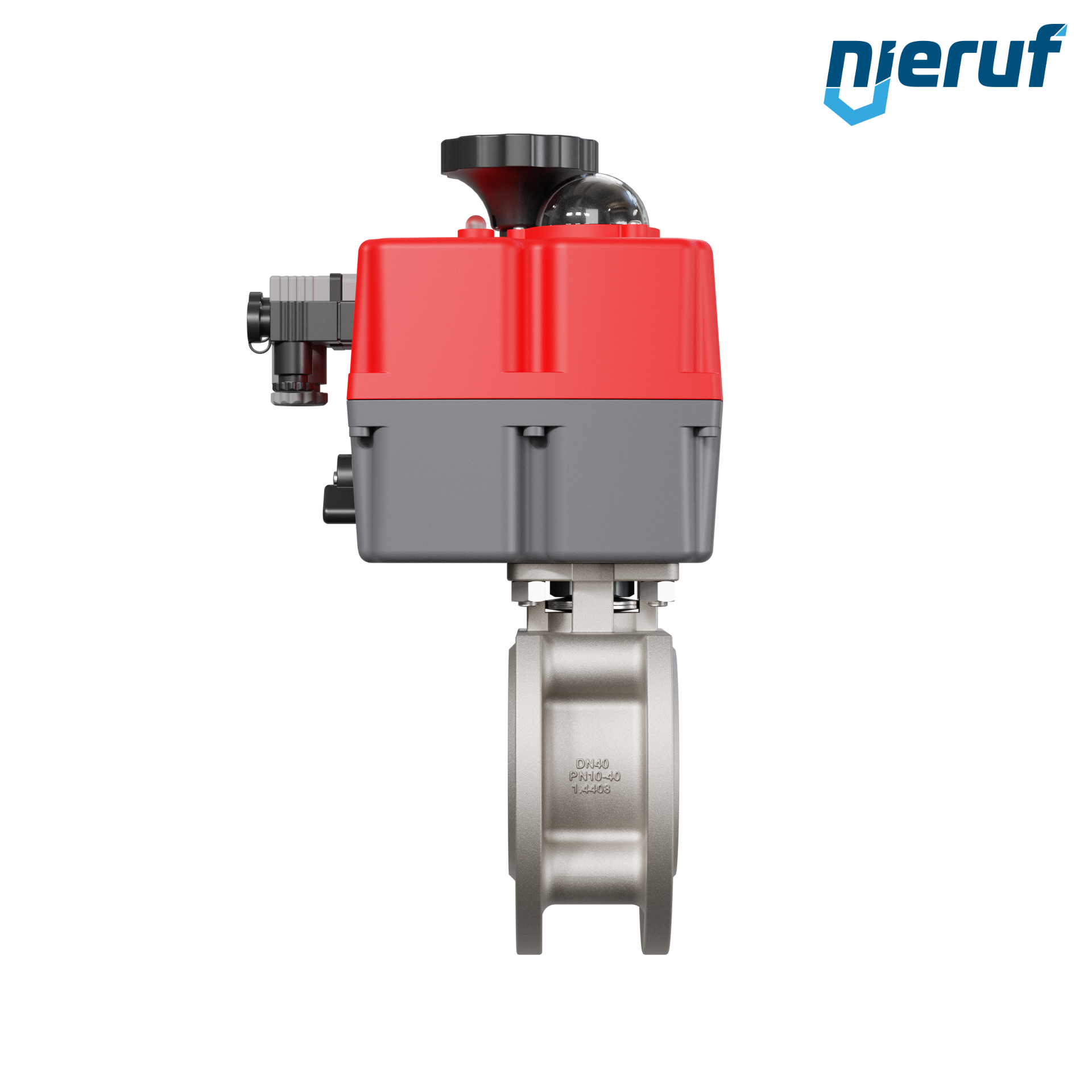

compact-automatic-flange ball valve DN40 stainless steel 1.4408 EK07 electronic actuator S35 - series S for 24V AC/DC
diameter: DN40
connection: flange
Seal steam: Viton
media: liquid and gaseous media
temperature: ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure: PN16
design: flange ball valve with Wafer-design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: PTFE / TFM
length: 65mm
actuator: electronic actuator S35 - series S for 24V AC/DC
actuator informations: corrosion resistant synthetic body
installation position: any position, not upside down
product description: This high quality automatic-flange stainless steel ball valve (Wafer-design) with electronic actuator (series L = low voltage) with visual position indicator and emergency operating.
compact-automatic-flange ball valve DN40 EK07 24V

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

compact-automatic-flange ball valve DN40 EK07 24V
