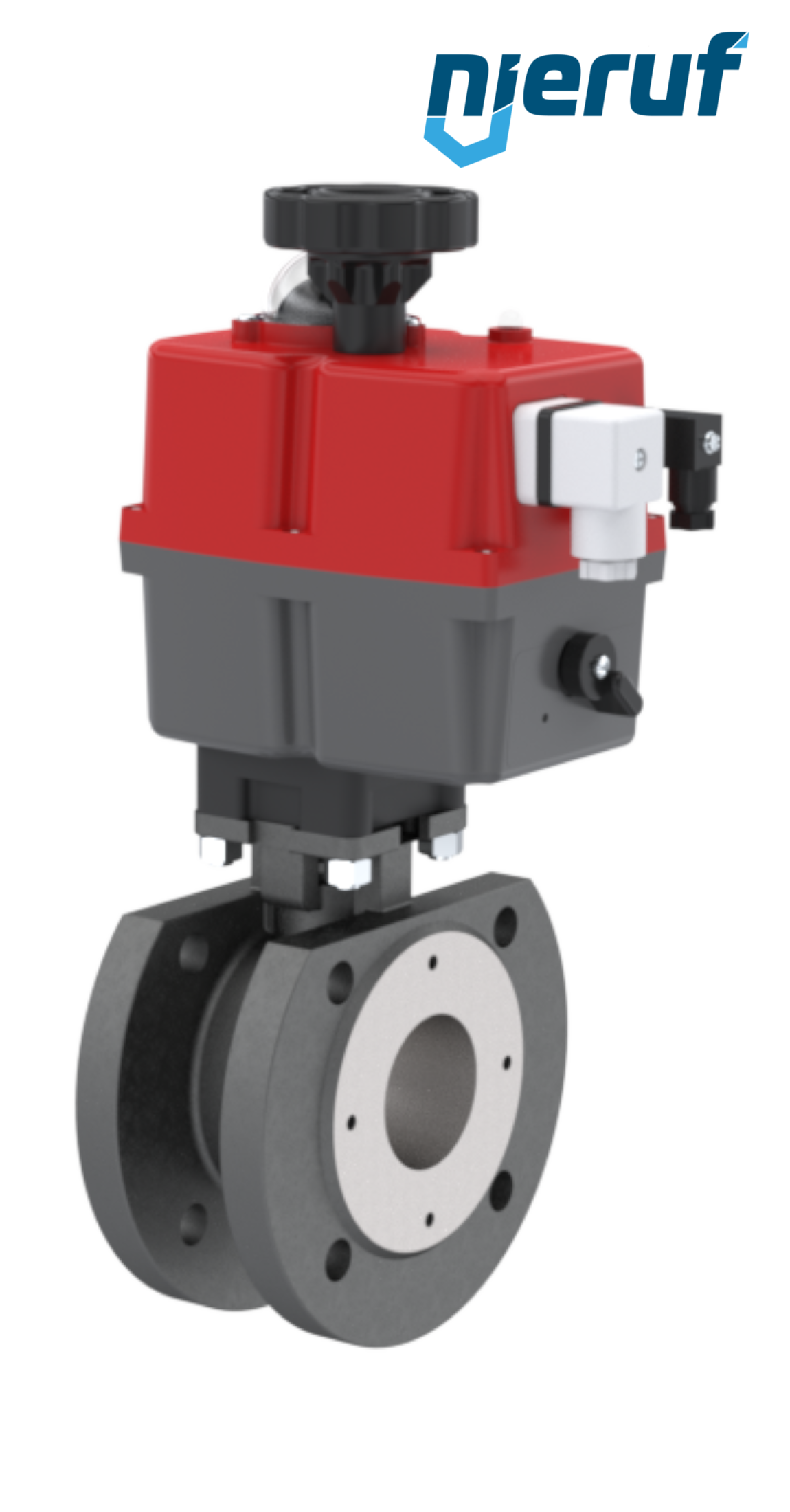

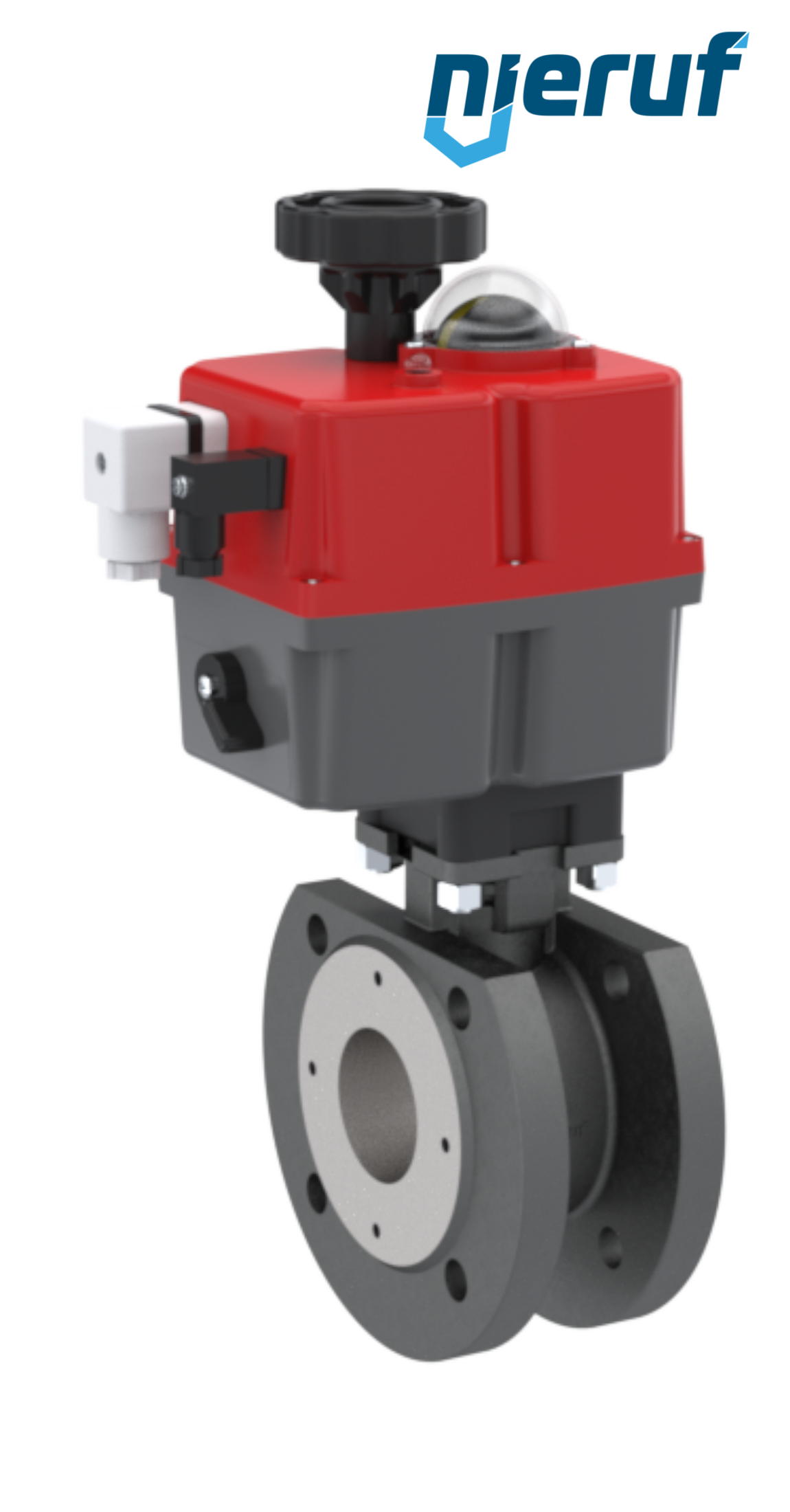

compact-automatic-flange ball valve DN32 EK06 24V

quantity (pcs.):
404.70€ * 469.45€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3-5 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
technical details
compact-automatic-flange ball valve DN32 EK06 24V
compact-automatic-flange ball valve DN32 carbon steel 1.0619 EK06 24V
diameter: DN32
connection: flange
Seal steam: Viton
media: liquid and gaseous media
temperature: ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure: PN16
design: flange ball valve with Wafer-design
body material: carbon steel 1.0619
ball material: stainless steel 1.4408
ball seal: PTFE
length: 60mm
actuator: electronic actuator S20 - series S for 24-240V AC/DC
actuator informations: corrosion resistant synthetic body
installation position: any position, not upside down
product description: This high quality automatic-flange carbon steel ball valve (Wafer-design) with electronic actuator (series L = low voltage) with visual position indicator and emergency operating.
