EK06010005

compact-automatic-flange ball valve DN25 EK06 24-240V

€448.40*

€533.60 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: 3 - 5 working days

Delivery information

Equipment

AKKUPACK01

AkkuPack BSR for S20-S85

€282.70*

€336.41 VAT included.


FD01000105

flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400

€1.90*

€2.26 VAT included.


VS01010105

joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 steel

€3.60*

€4.28 VAT included.


DPSKIT01

Digital Positioning System for S20-S85

€254.10*

€302.38 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NieRuf-Exchange

NieRuf-Exchange

24 months warranty

24 months warranty

Certified

Certified

Product number: EK06010005

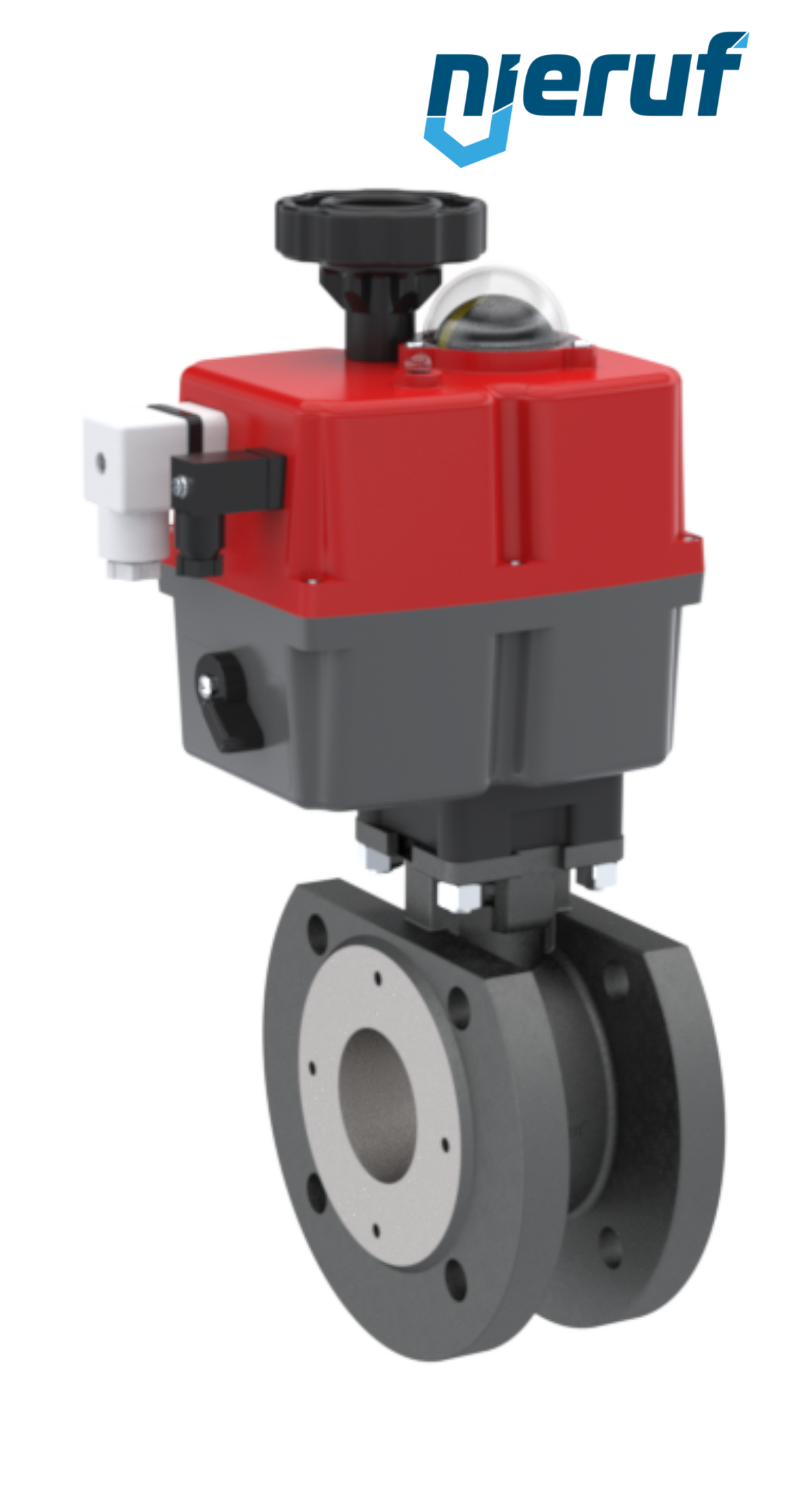

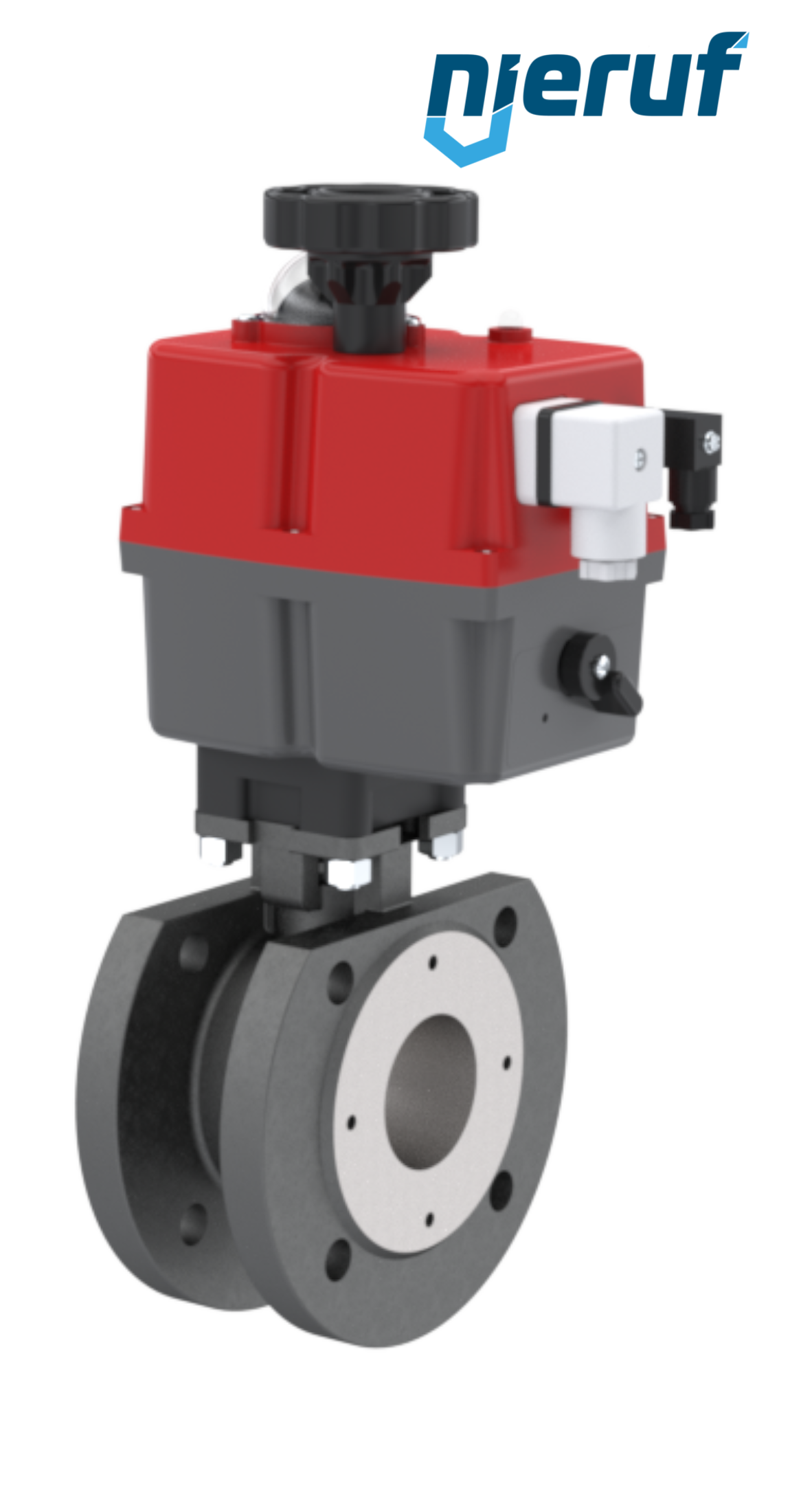

compact-automatic-flange ball valve DN25 EK06 24-240V

compact-automatic-flange ball valve DN25 carbon steel 1.0619 EK06 electronic actuator S20 - series S for 24-240V AC/DC

product: compact-automatic-flange ball valve
type: EK06
manufacturer: NieRuf
diameter: DN25
connection: flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam: Viton
media: liquid and gaseous media
temperature: ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure: PN16
design: flange ball valve with Wafer-design
body material: carbon steel 1.0619
ball material: stainless steel 1.4308
ball seal: PTFE / TFM
length: 50mm
actuator: electronic actuator S20 - series S for 24-240V AC/DC
actuator informations: corrosion resistant synthetic body
installation position: any position, not upside down
authorized for: TA Luft
product description: This high quality automatic-flange carbon steel ball valve (Wafer-design) with electronic actuator (series S = multi voltage) with visual position indicator and emergency operating.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

compact-automatic-flange ball valve DN25 EK06 24-240V

Article no. : EK06010005
product: compact-automatic-flange ball valve
type: EK06
manufacturer: NieRuf
diameter: DN25
connection: flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam: Viton
media: liquid and gaseous media
temperature: ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure: PN16
design: flange ball valve with Wafer-design
body material: carbon steel 1.0619
ball material: stainless steel 1.4308
ball seal: PTFE / TFM
length: 50mm
actuator: electronic actuator S20 - series S for 24-240V AC/DC
actuator informations: corrosion resistant synthetic body
installation position: any position, not upside down
authorized for: TA Luft
product description: This high quality automatic-flange carbon steel ball valve (Wafer-design) with electronic actuator (series S = multi voltage) with visual position indicator and emergency operating.
