SR03000010

Knife gate valve DN 80 SR03 EPDM handwheel

€520.70*

€619.63 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 3 - 5 working days

Equipment

FL01010110

Flange DN80 PN10/16 EN1092-1 11 B1 1.4571

€67.90*

€80.80 VAT included.

FD01000110

flange seal DN80 PN10/16/25/40 89x142x2 Klingersil C 4400

€4.40*

€5.24 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

24 months warranty

Downloads

3D model

Datasheet

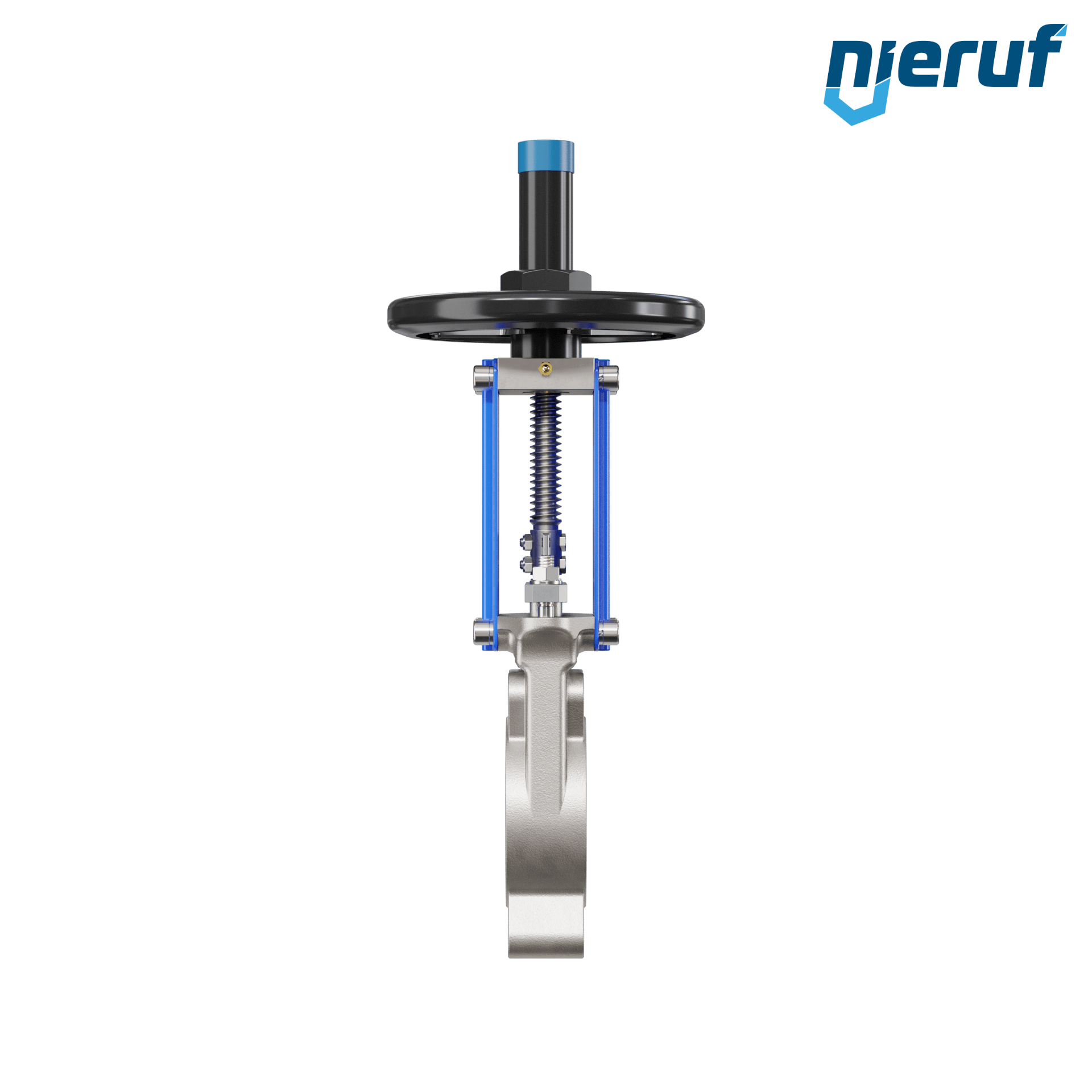

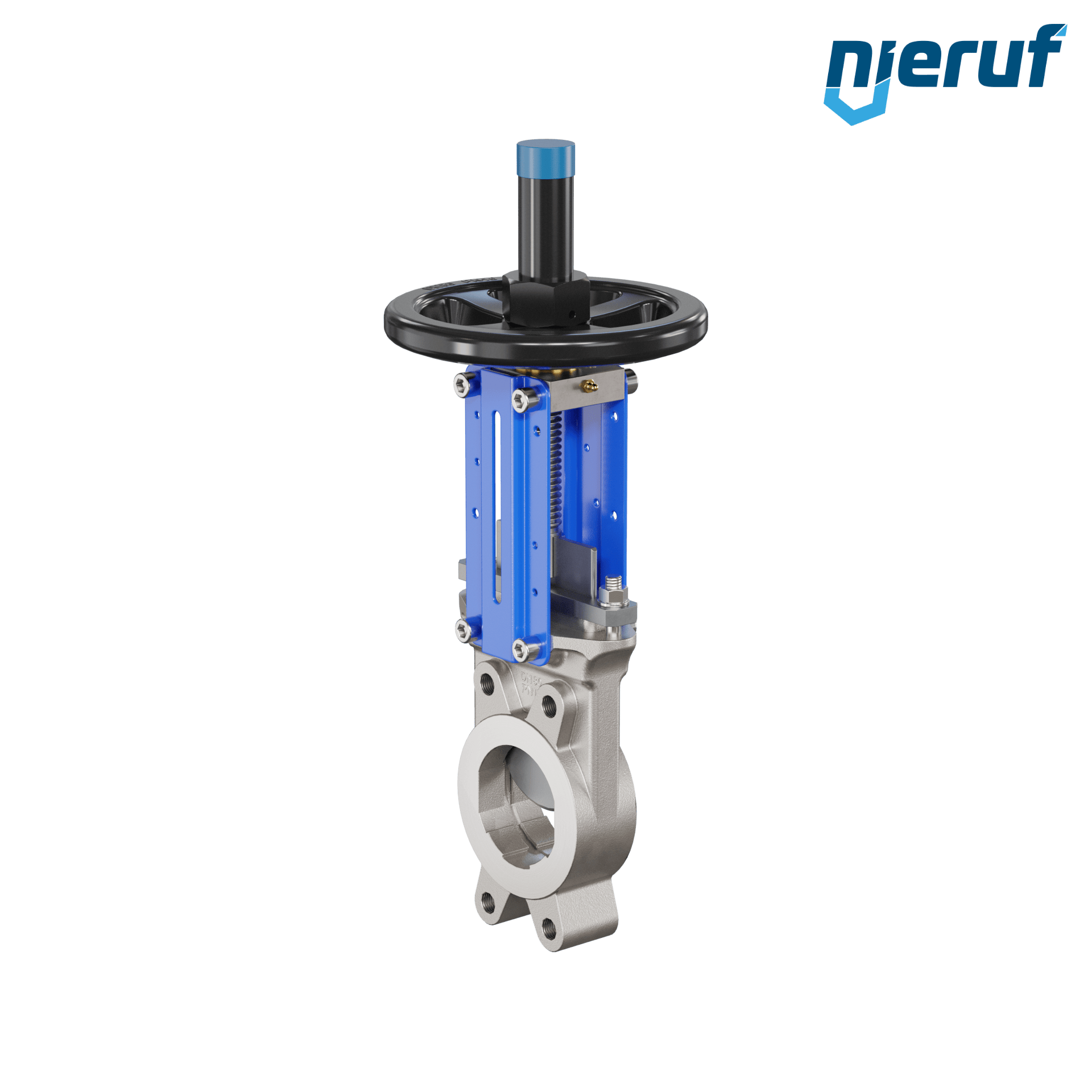

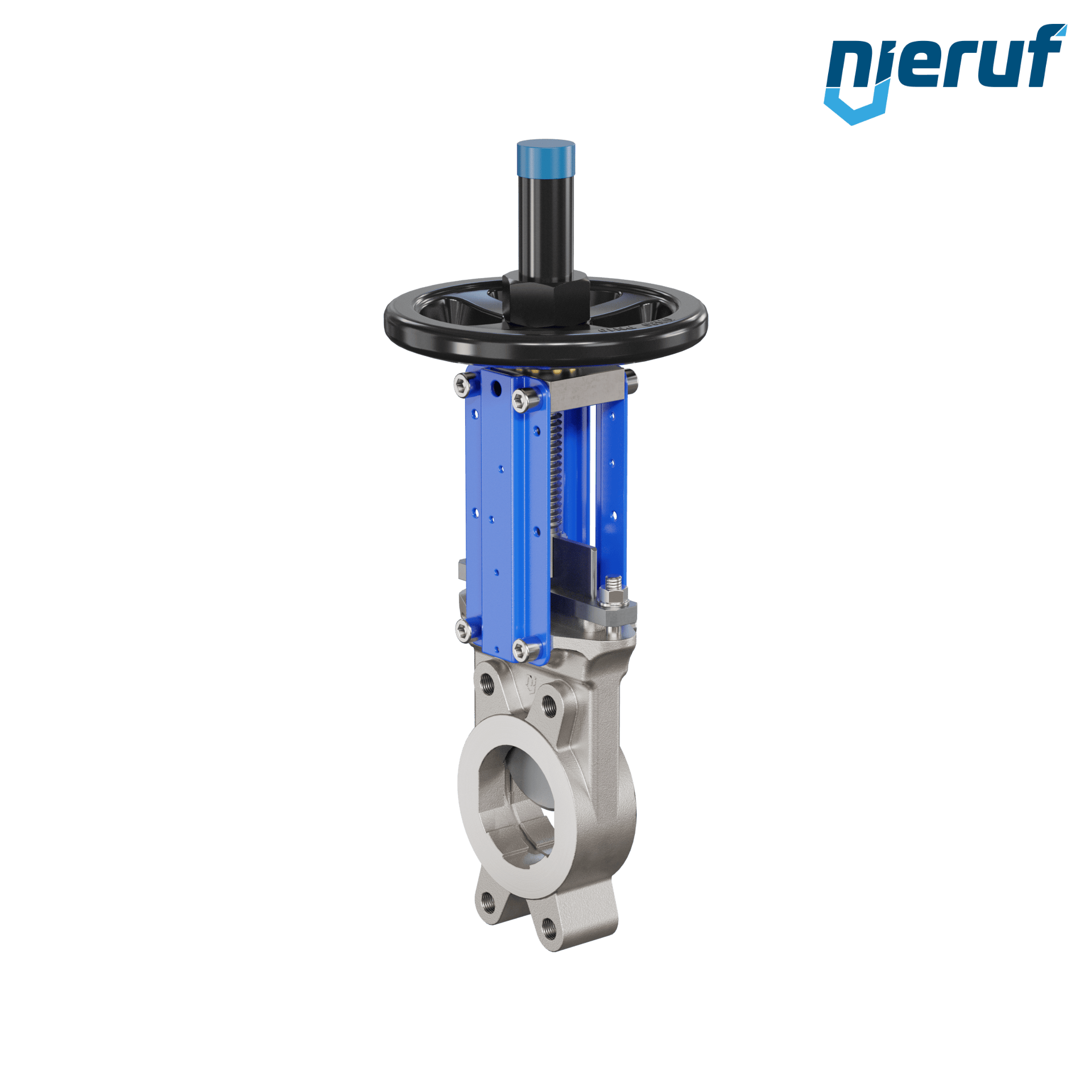

Knife gate valve DN 80 SR03 EPDM handwheel

Knife gate valve DN 80 DIN EN 1092-1 PN10 EPDM made of stainless steel A351 CF8M unidirectional tightness for liquid and gaseous media

product	Knife gate valve
type	SR03
manufacturer	NieRuf
diameter	DN 80
nominal pressure	PN10
max pressure	10 bar
flange	DIN EN 1092-1 PN10
seal	EPDM
media	liquid and gaseous media
temperature	-20°C up to +130°C
design	unidirectional tightness
body material	stainless steel A351 CF8M
disc	stainless steel AISI 316
packing	PTFE
actuation	handwheel
application	rising stem & non rising handwheel
installation position	preferably standing
product feature	Stainless steel slurry gate valve with a unidirectional sealing design. Suitable for handling media such as water, slurries, and dry bulk solids (dusts).

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Knife gate valve DN 80 SR03 EPDM handwheel

Article no. : SR03000010
product: Knife gate valve
type: SR03
manufacturer: NieRuf
diameter: DN 80
nominal pressure: PN10
max pressure: 10 bar
flange: DIN EN 1092-1 PN10
seal: EPDM
media: liquid and gaseous media
temperature: -20°C up to +130°C
design: unidirectional tightness
body material: stainless steel A351 CF8M
disc: stainless steel AISI 316
packing: PTFE
actuation: handwheel
application: rising stem & non rising handwheel
installation position: preferably standing
product feature: Stainless steel slurry gate valve with a unidirectional sealing design. Suitable for handling media such as water, slurries, and dry bulk solids (dusts).
