SR01010408
Knife gate valve DN 50 SR01 NBR pneumatic actuation double acting
- Lead time
- 3 - 5 working days
Equipment
Inductive sensor IFS204 for pneumatic Knife gate valve Type SR size DN50 to DN150
€212.42 VAT included.
flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400
€3.69 VAT included.
Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€22.37 VAT included.
Accessory kit 230V AC compressed air supply for double acting pneumatic knife gate valve TYPE SR DN50-DN300
€157.91 VAT included.
Accessory kit 24V DC compressed air supply for double acting pneumatic knife gate valve TYPE SR DN50-DN300
€157.91 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE

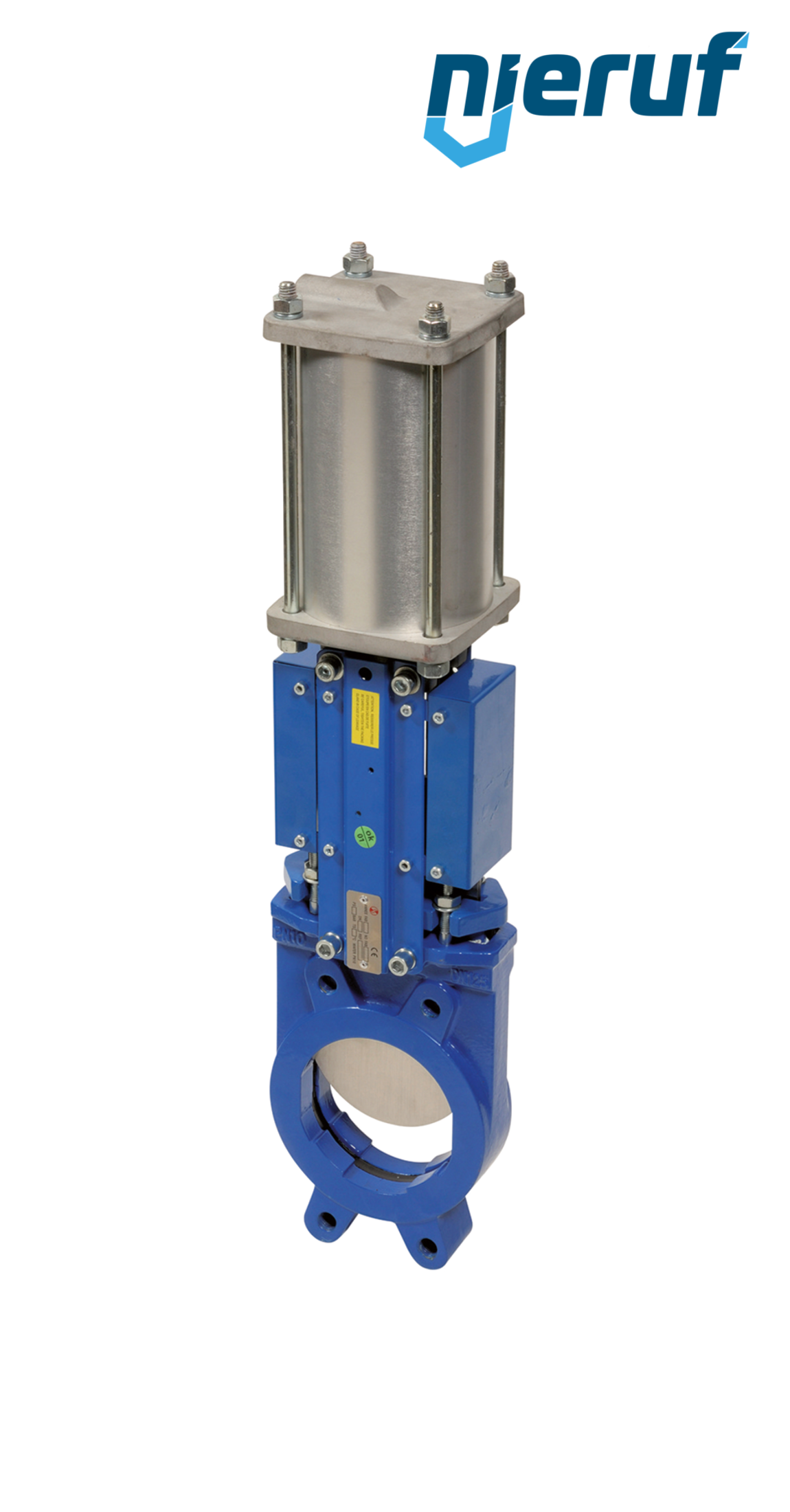

Knife gate valve DN 50 SR01 NBR pneumatic actuation double acting
Knife gate valve pneumatic actuation double acting DN 50 DIN EN 1092-2 PN10 NBR made of cast iron EN GJL-250 bidirectional tightness for liquid and gaseous media
| product | Knife gate valve |
|---|---|
| type | SR01 |
| manufacturer | NieRuf |
| diameter | DN 50 |
| nominal pressure | PN10 |
| max pressure | 10 bar |
| flange | DIN EN 1092-2 PN10 |
| seal | NBR |
| media | liquid and gaseous media |
| temperature | -10°C to +90°C |
| design | bidirectional tightness |
| body material | cast iron EN GJL-250 |
| disc | stainless steel AISI 304 |
| packing | PTFE |
| actuation | pneumatic actuation double acting |
| installation position | standing |
| product feature | Pneumatically operated cast iron slurry gate valve with a bidirectional sealing design. Especially suited for applications in which the flow and/or pressure direction can change within the system. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Knife gate valve DN 50 SR01 NBR pneumatic actuation double acting
Article no.
: SR01010408
product:
Knife gate valve
type:
SR01
manufacturer:
NieRuf
diameter:
DN 50
nominal pressure:
PN10
max pressure:
10 bar
flange:
DIN EN 1092-2 PN10
seal:
NBR
media:
liquid and gaseous media
temperature:
-10°C to +90°C
design:
bidirectional tightness
body material:
cast iron EN GJL-250
disc:
stainless steel AISI 304
packing:
PTFE
actuation:
pneumatic actuation double acting
installation position:
standing
product feature:
Pneumatically operated cast iron slurry gate valve with a bidirectional sealing design. Especially suited for applications in which the flow and/or pressure direction can change within the system.
Equipment
flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400
Lead time: in stock
Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
Inductive sensor IFS204 for pneumatic Knife gate valve Type SR size DN50 to DN150
Lead time: 3 - 5 working days
Inductive sensor NBB4 for pneumatic Knife gate valve Type SR size DN50 to DN150
Lead time: 3 - 5 working days
