SR01000016

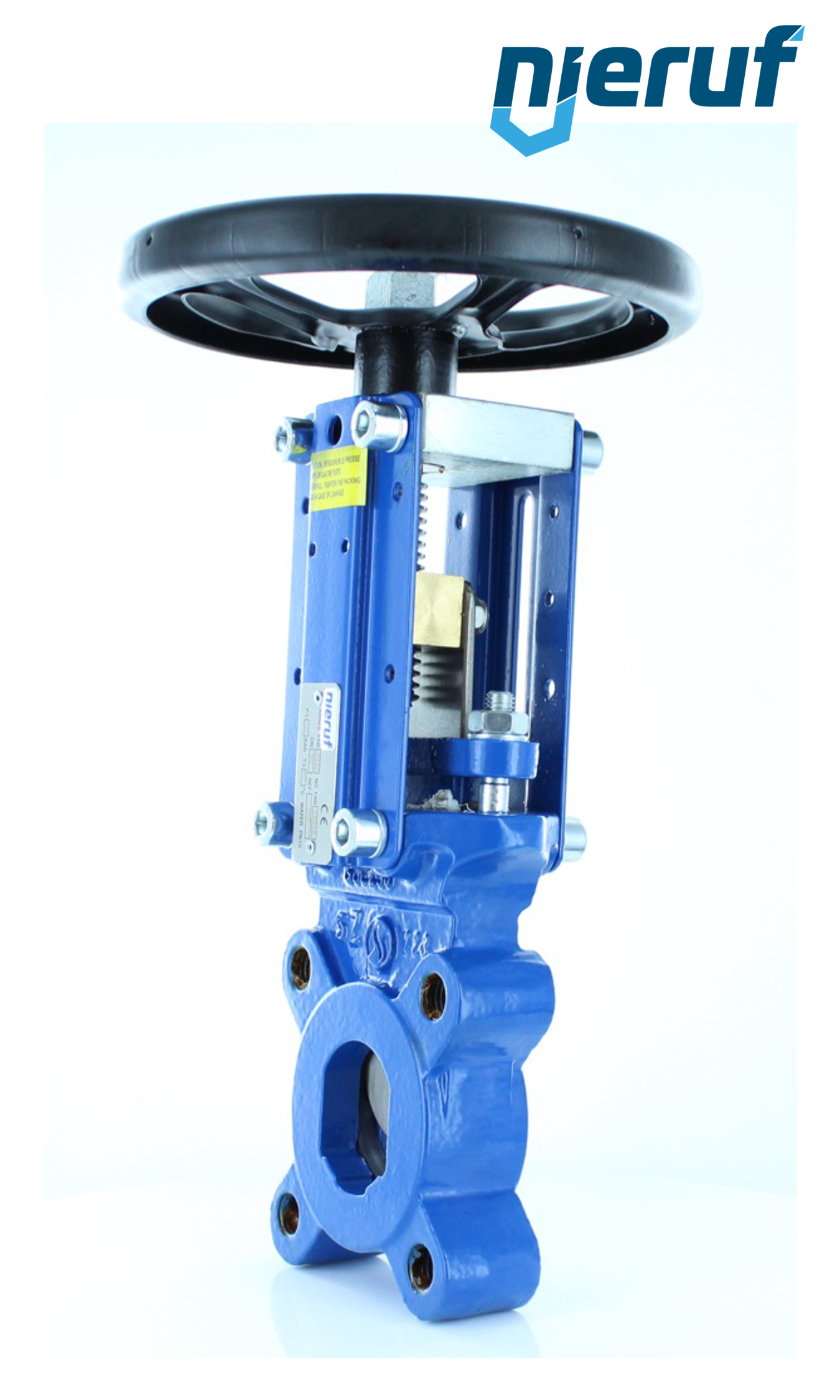

Knife gate valve DN 300 SR01 EPDM handwheel
- Lead time
- 3 - 5 working days
Equipment
Flange DN300 PN10 EN1092-1 11 B1 C22.8 / P250GH bare
€162.32 VAT included.
flange seal DN300 PN10 324x378x2 Klingersil C 4400
€37.72 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Knife gate valve DN 300 SR01 EPDM handwheel
Knife gate valve DN 300 DIN EN 1092-2 PN10 EPDM made of cast iron EN GJL-250 bidirectional tightness for liquid and gaseous media
| product | Knife gate valve |
|---|---|
| type | SR01 |
| manufacturer | NieRuf |
| diameter | DN 300 |
| nominal pressure | PN10 |
| max pressure | 6 bar |
| flange | DIN EN 1092-2 PN10 |
| seal | EPDM |
| media | liquid and gaseous media |
| temperature | -15°C up to +130°C |
| design | bidirectional tightness |
| body material | cast iron EN GJL-250 |
| disc | stainless steel AISI 304 |
| packing | PTFE |
| actuation | handwheel |
| application | not rising stem & handwheel |
| installation position | preferably standing |
| product feature | Cast iron slurry gate valve with tight shut-off in both directions, especially suited for applications in which the flow and/or pressure direction can change within the system. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Knife gate valve DN 300 SR01 EPDM handwheel
Article no.
: SR01000016
product:
Knife gate valve
type:
SR01
manufacturer:
NieRuf
diameter:
DN 300
nominal pressure:
PN10
max pressure:
6 bar
flange:
DIN EN 1092-2 PN10
seal:
EPDM
media:
liquid and gaseous media
temperature:
-15°C up to +130°C
design:
bidirectional tightness
body material:
cast iron EN GJL-250
disc:
stainless steel AISI 304
packing:
PTFE
actuation:
handwheel
application:
not rising stem & handwheel
installation position:
preferably standing
product feature:
Cast iron slurry gate valve with tight shut-off in both directions, especially suited for applications in which the flow and/or pressure direction can change within the system.
