BE02004007

High pressure vessel vertical BE02 750 liter, 0-41 bar, steel galvanized

€8,254.80*

€9,823.21 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: max. 11 weeks

Equipment

GK06000003

High pressure ball valve DN15 - 1/2" inch GK06

€61.20*

€72.83 VAT included.

MA01060003

manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar

€48.20*

€57.36 VAT included.

Resistance check

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

Certified

Downloads

3D model

Datasheet

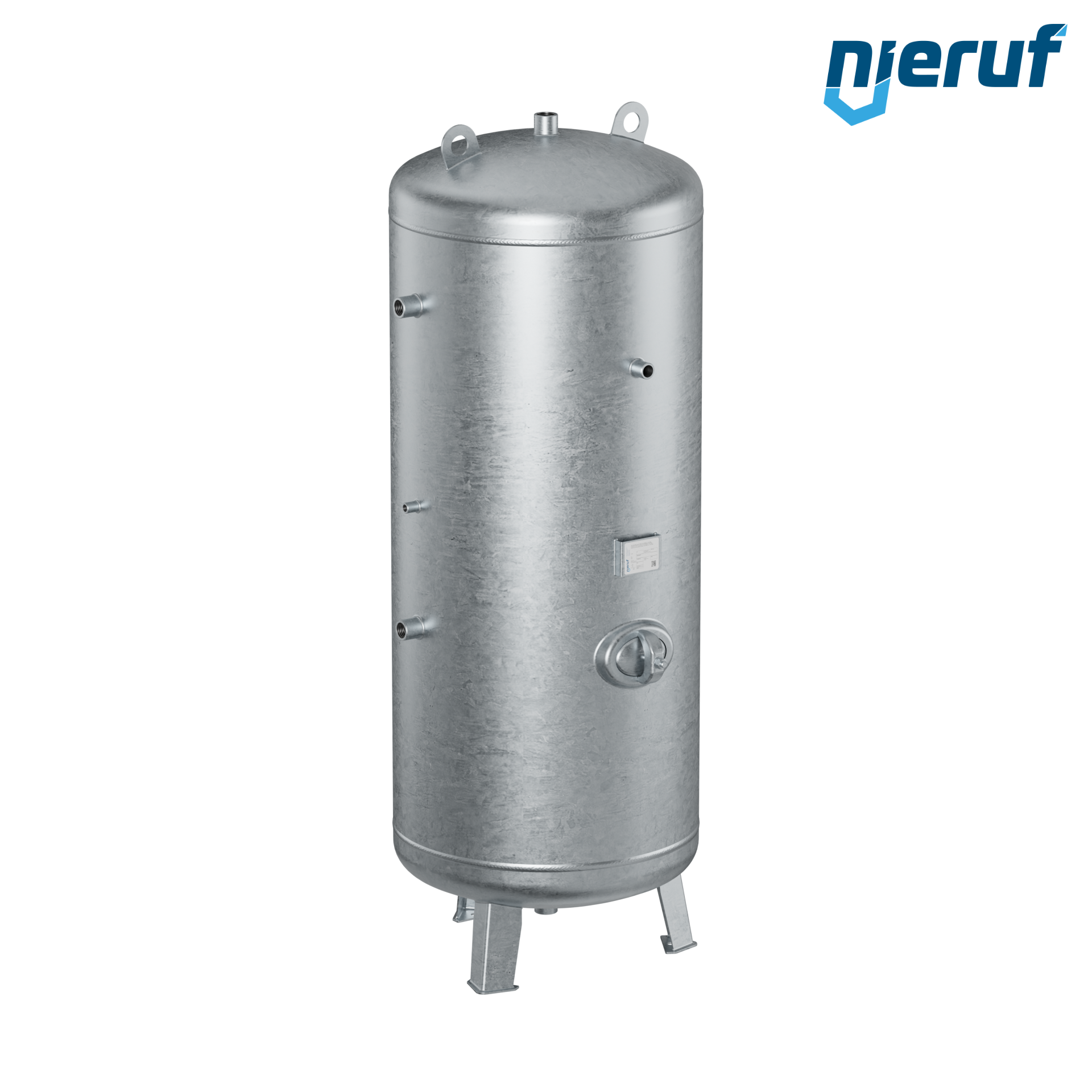

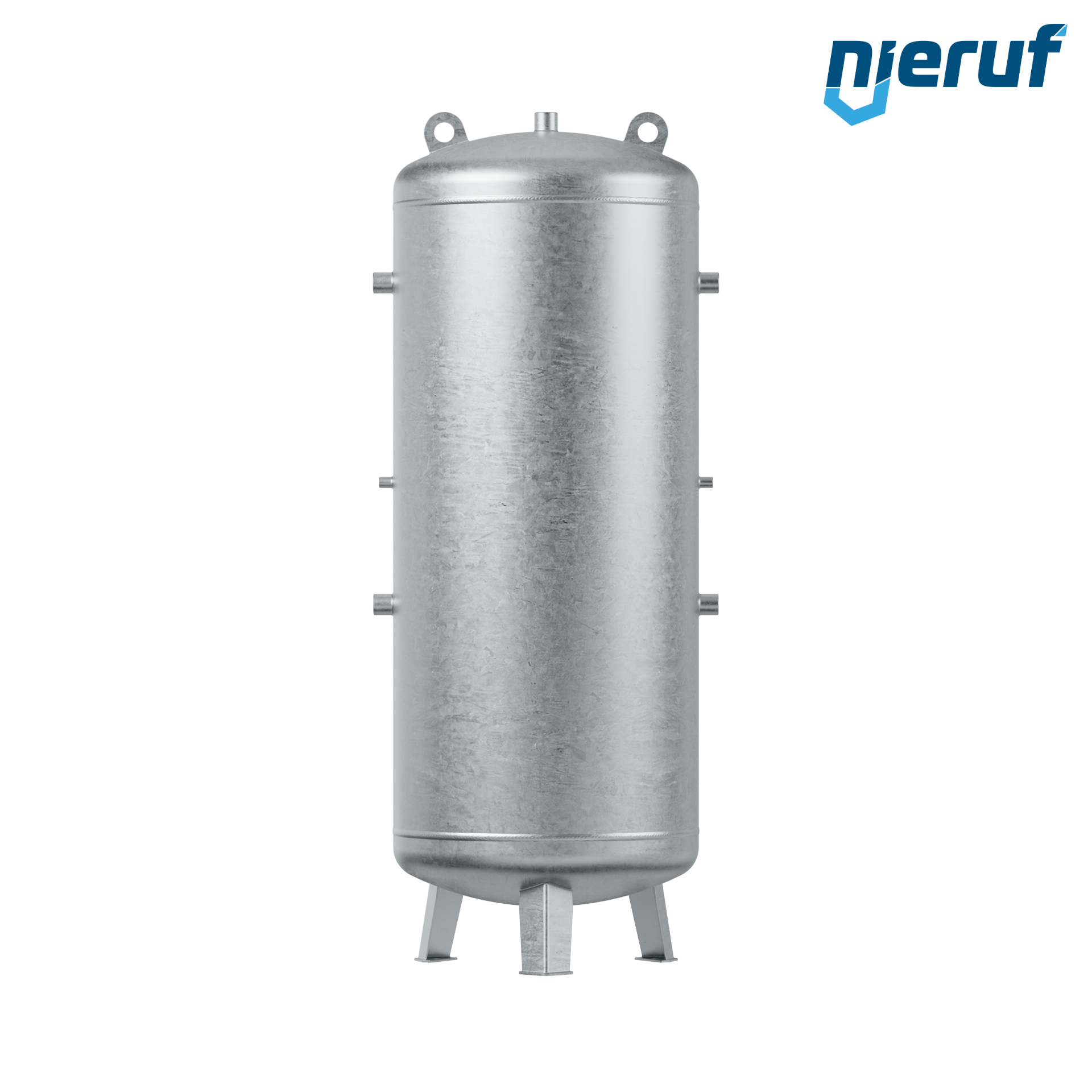

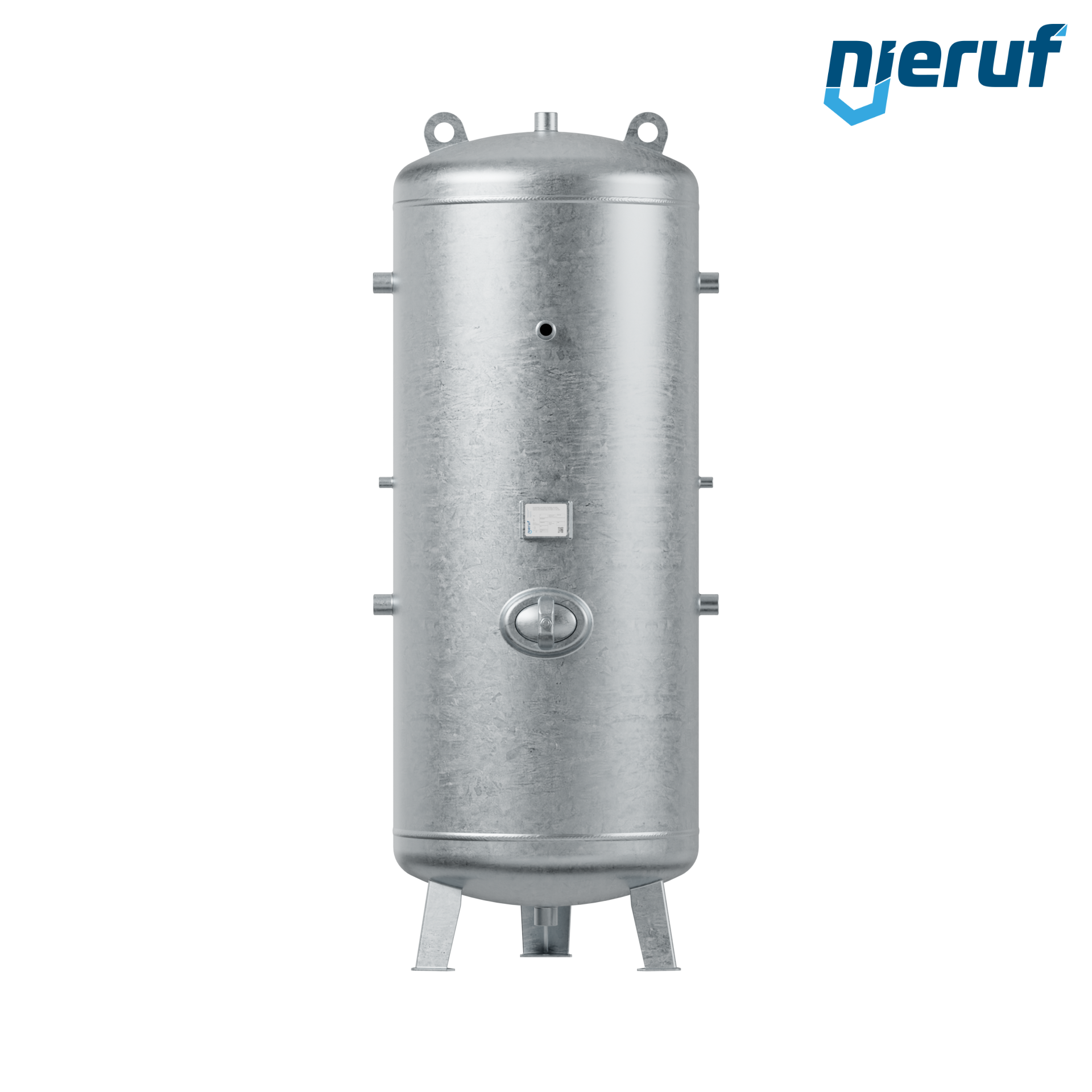

High pressure vessel vertical BE02 750 liter, 0-41 bar, steel galvanized

High pressure vessel BE02 with 750 liter volume vertical with operating pressure 0-41 bar made of steel galvanized and nominal size 750 mm

product	High pressure vessel
type	BE02
manufacturer	NieRuf
volume	750 liter
nominal size	750 mm
height	2045 mm
operating pressure	0-41 bar
version	vertical
temperature	-10°C up to +50°C
material	steel galvanized
media	compressed air, nitrogen & water
product feature	Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

High pressure vessel vertical BE02 750 liter, 0-41 bar, steel galvanized

Article no. : BE02004007
product: High pressure vessel
type: BE02
manufacturer: NieRuf
volume: 750 liter
nominal size: 750 mm
height: 2045 mm
operating pressure: 0-41 bar
version: vertical
temperature: -10°C up to +50°C
material: steel galvanized
media: compressed air, nitrogen & water
product feature: Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
