BE02004104
High pressure vessel horizontal BE02 250 liter, 0-41 bar, steel galvanized
- Lead time
- max. 11 weeks
Equipment
pressure gauge G 1/2" radial 100 mm steel MM04 0 - 60,0 bar without filling, dry
€46.53 VAT included.
High pressure ball valve DN15 - 1/2" inch GK06
€72.83 VAT included.
safety valve 1/2" m SV01 for compressed air, brass PTFE, set pressure 25.1 - 50.0 bar
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
€57.36 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

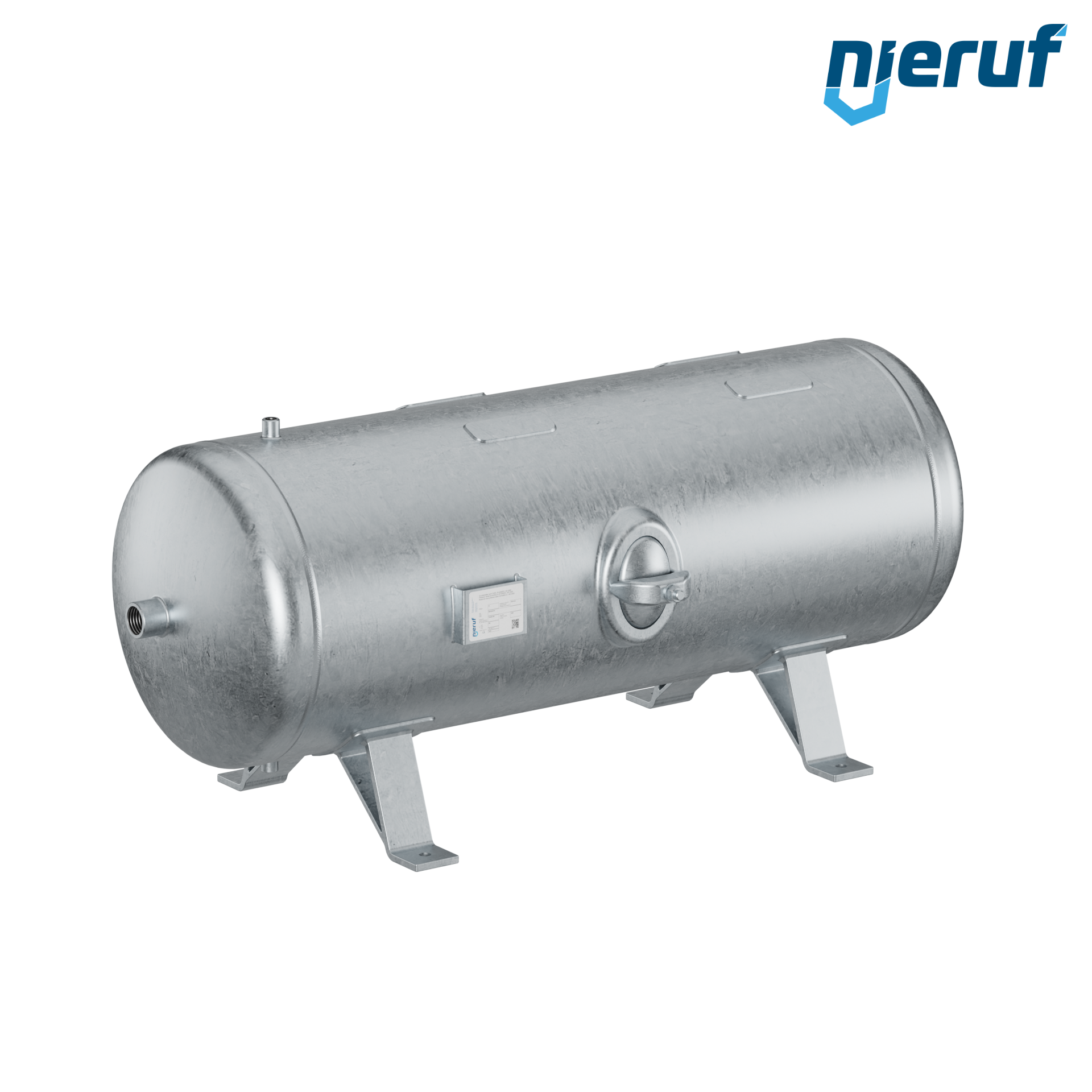

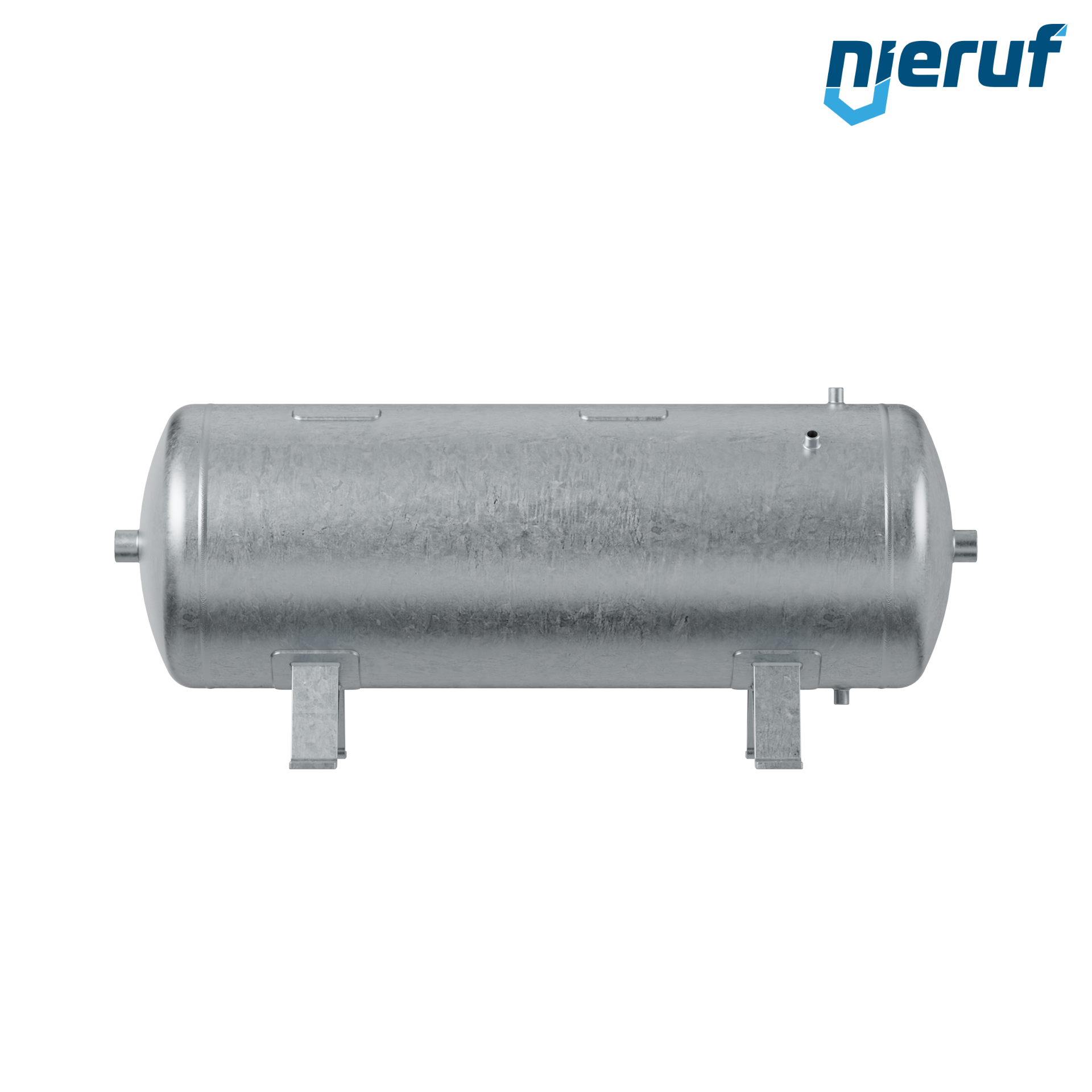

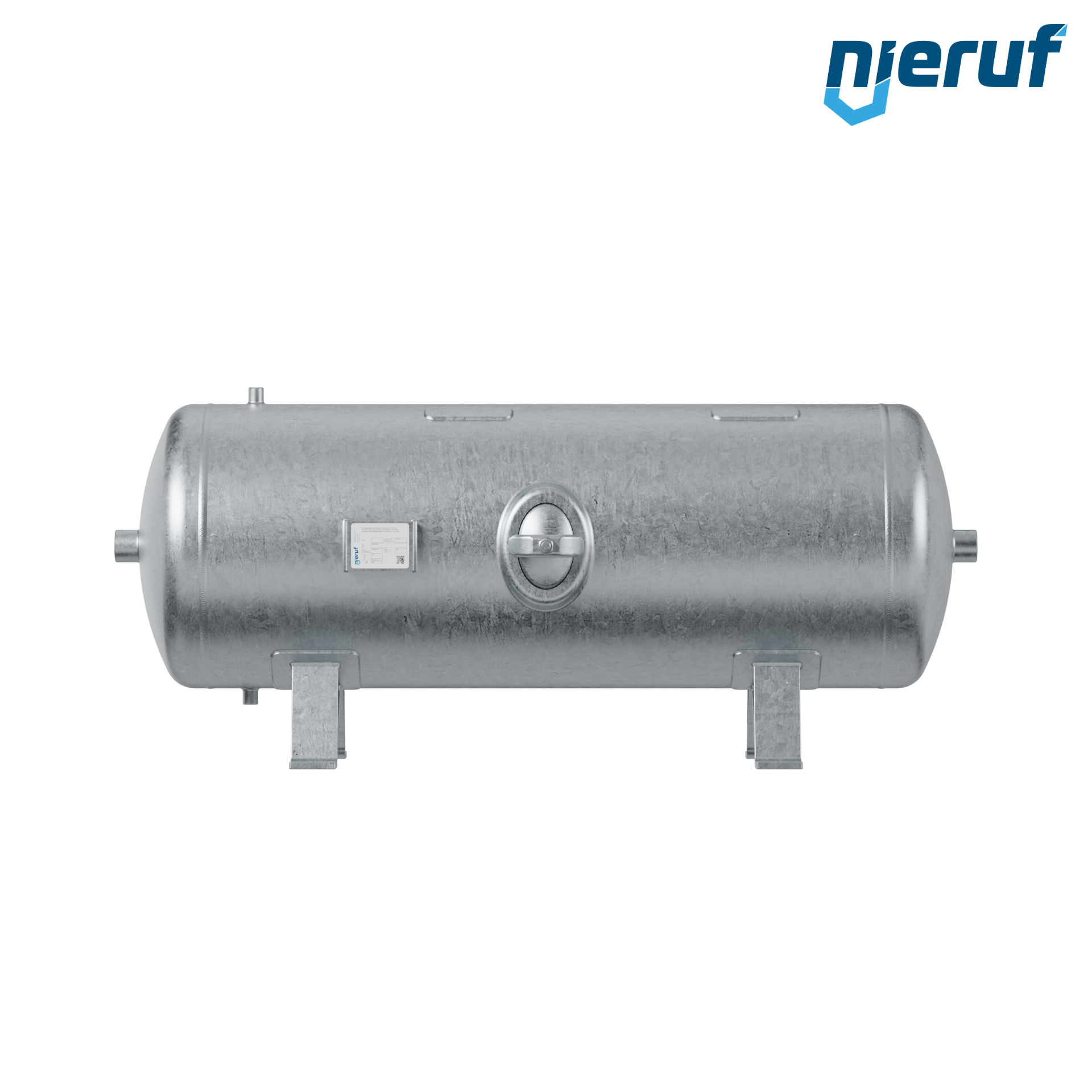

High pressure vessel horizontal BE02 250 liter, 0-41 bar, steel galvanized
High pressure vessel BE02 with 250 liter volume horizontal with operating pressure 0-41 bar made of steel galvanized and nominal size 500 mm
| product | High pressure vessel |
|---|---|
| type | BE02 |
| manufacturer | NieRuf |
| volume | 250 liter |
| nominal size | 500 mm |
| height | 632 mm |
| length | 1430 mm |
| operating pressure | 0-41 bar |
| version | horizontal |
| temperature | -10°C up to +50°C |
| material | steel galvanized |
| media | compressed air and nitrogen |
| product feature | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
High pressure vessel horizontal BE02 250 liter, 0-41 bar, steel galvanized
Article no.
: BE02004104
product:
High pressure vessel
type:
BE02
manufacturer:
NieRuf
volume:
250 liter
nominal size:
500 mm
height:
632 mm
length:
1430 mm
operating pressure:
0-41 bar
version:
horizontal
temperature:
-10°C up to +50°C
material:
steel galvanized
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
Equipment
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
Lead time: 3 - 5 working days
safety valve 1/2" m SV01 for compressed air, brass PTFE, set pressure 25.1 - 50.0 bar
Lead time: 3 - 5 working days
€44.63 VAT included.
Malleable cast iron fitting plug no. 290, DN15 - 1/2" inch galvanized
Lead time: in stock
pressure gauge G 1/2" radial 100 mm steel MM04 0 - 60,0 bar without filling, dry
Lead time: 3 - 5 working days
