BE02013109
High pressure vessel horizontal BE02 1500 liter, 0-36 bar, steel primed
- Lead time
- max. 11 weeks
Equipment
pressure gauge G 1/2" radial 100 mm steel MM04 0 - 40,0 bar without filling, dry
€41.17 VAT included.
2 way ball valve DN15 - 1/2" inch GK01 female x male thread
€10.47 VAT included.
safety valve 1/2" m SV01 for compressed air, brass PTFE, set pressure 25.1 - 50.0 bar
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
€57.36 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

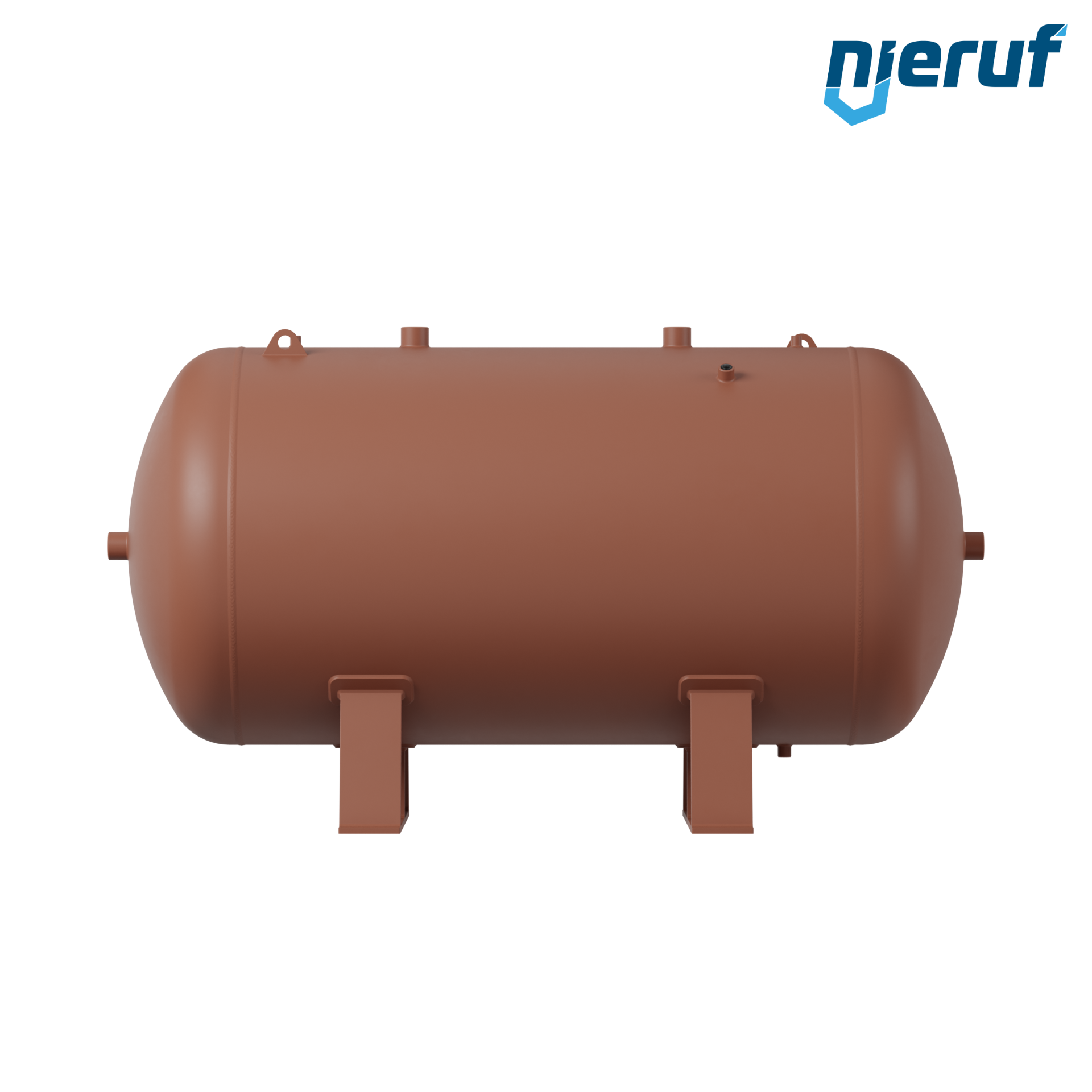

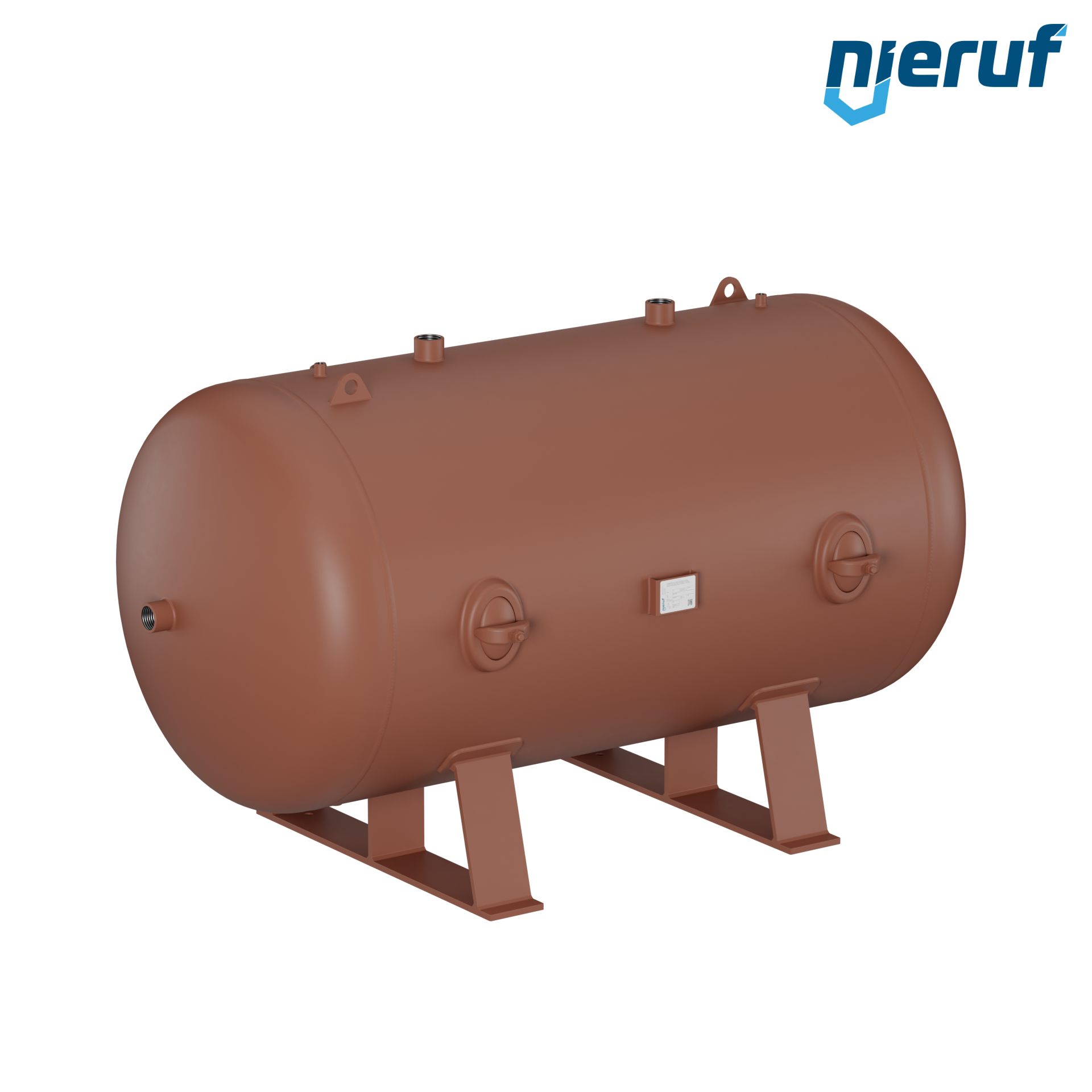

High pressure vessel horizontal BE02 1500 liter, 0-36 bar, steel primed
High pressure vessel BE02 with 1500 liter volume horizontal with operating pressure 0-36 bar made of steel primed (inside raw) and nominal size 1000 mm
| product | High pressure vessel |
|---|---|
| type | BE02 |
| manufacturer | NieRuf |
| volume | 1500 liter |
| nominal size | 1000 mm |
| height | 1200 mm |
| length | 2100 mm |
| operating pressure | 0-36 bar |
| version | horizontal |
| temperature | -10°C up to +50°C |
| material | steel primed (inside raw) |
| media | compressed air and nitrogen |
| product feature | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
High pressure vessel horizontal BE02 1500 liter, 0-36 bar, steel primed
Article no.
: BE02013109
product:
High pressure vessel
type:
BE02
manufacturer:
NieRuf
volume:
1500 liter
nominal size:
1000 mm
height:
1200 mm
length:
2100 mm
operating pressure:
0-36 bar
version:
horizontal
temperature:
-10°C up to +50°C
material:
steel primed (inside raw)
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
Equipment
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
Lead time: 3 - 5 working days
safety valve 1/2" m SV01 for compressed air, brass PTFE, set pressure 25.1 - 50.0 bar
Lead time: 3 - 5 working days
€44.63 VAT included.
Malleable cast iron fitting plug no. 290, DN15 - 1/2" inch galvanized
Lead time: in stock
2 way ball valve DN15 - 1/2" inch GK01 female x male thread
Lead time: in stock
pressure gauge G 1/2" radial 100 mm steel MM04 0 - 40,0 bar without filling, dry
Lead time: in stock
