BE02013103
High pressure vessel horizontal BE02 150 liter, 0-36 bar, steel primed
- Lead time
- max. 11 weeks
Equipment
pressure gauge G 1/2" radial 100 mm steel MM04 0 - 40,0 bar without filling, dry
€41.17 VAT included.
2 way ball valve DN15 - 1/2" inch GK01 female x male thread
€10.47 VAT included.
safety valve 1/2" m SV01 for compressed air, brass PTFE, set pressure 25.1 - 50.0 bar
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
€57.36 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

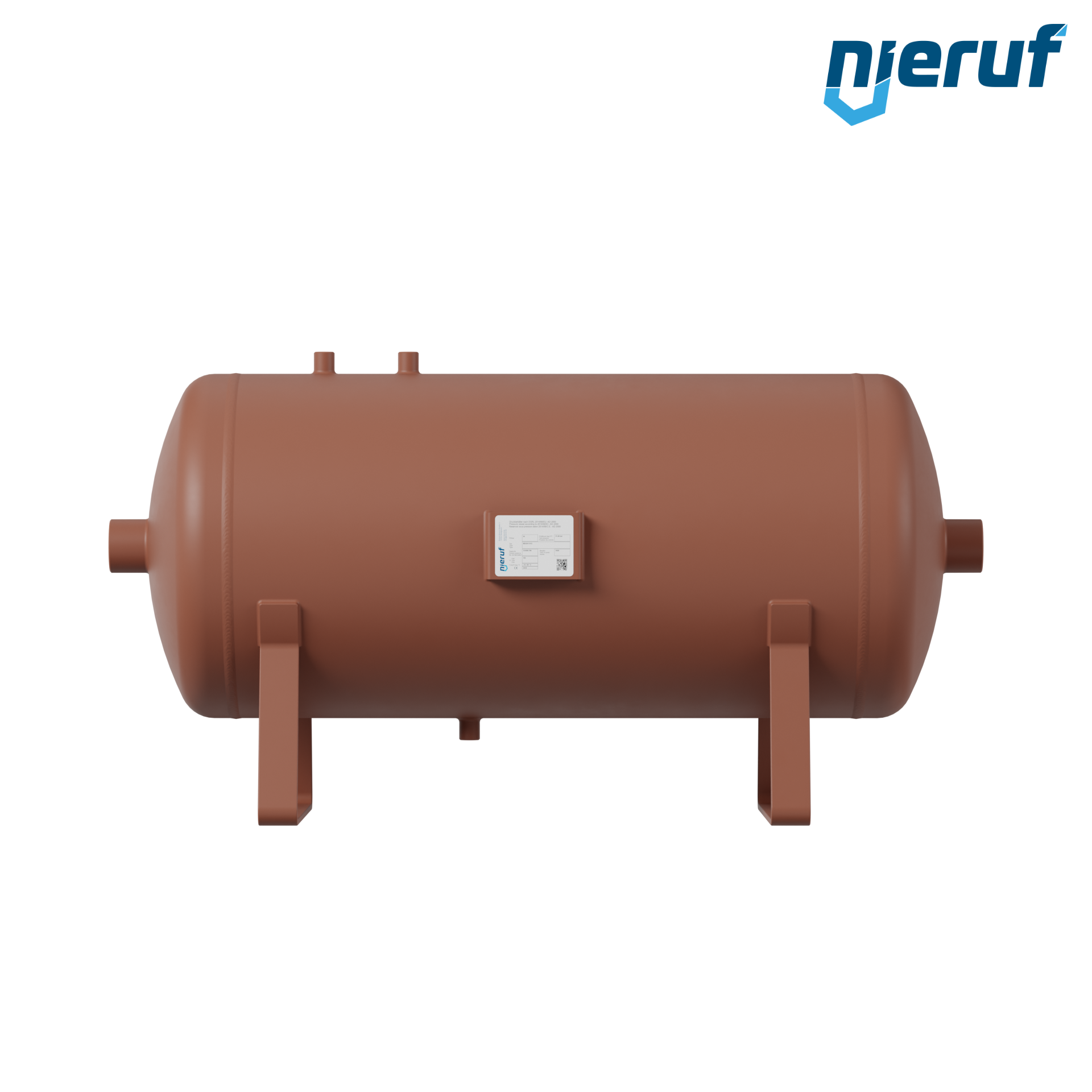

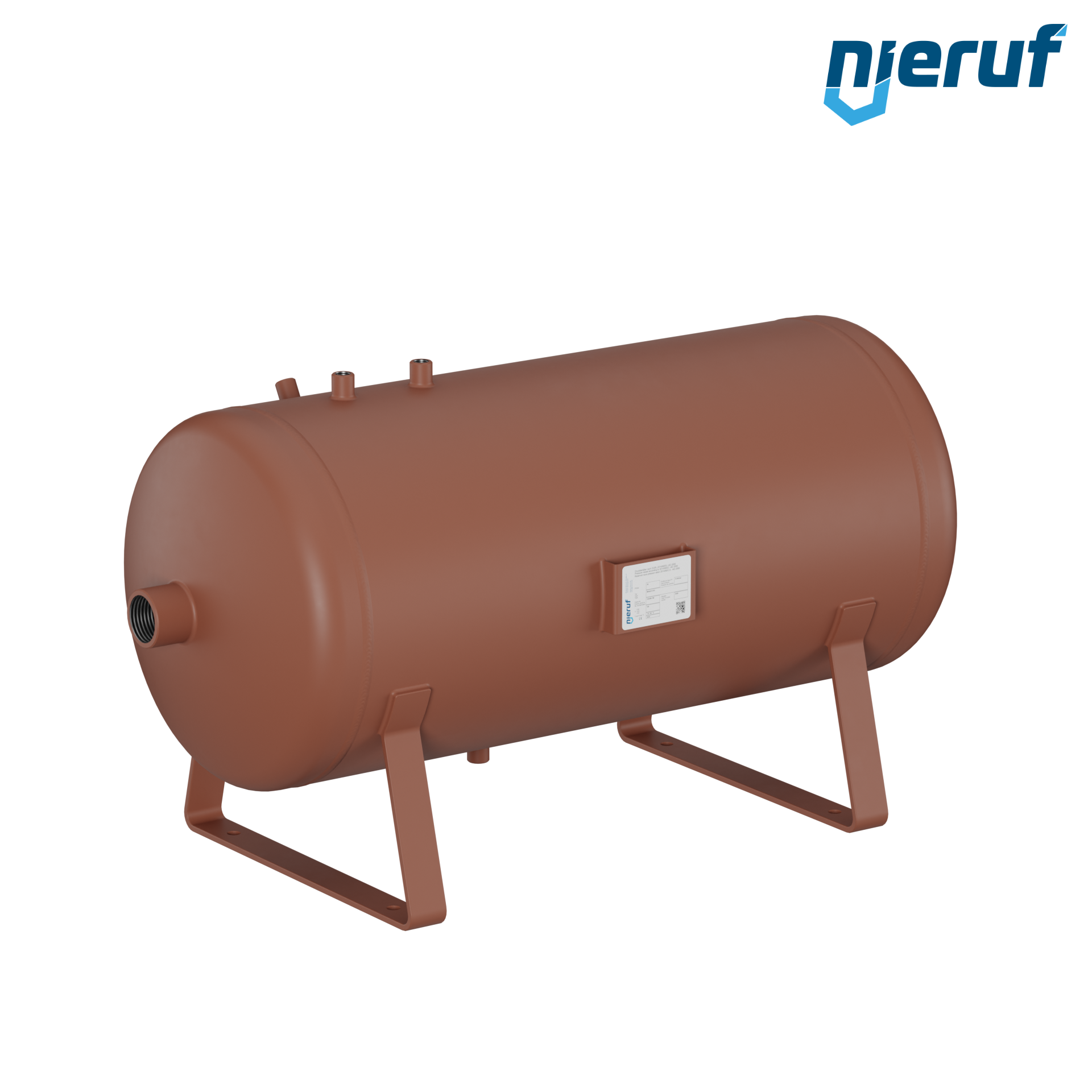

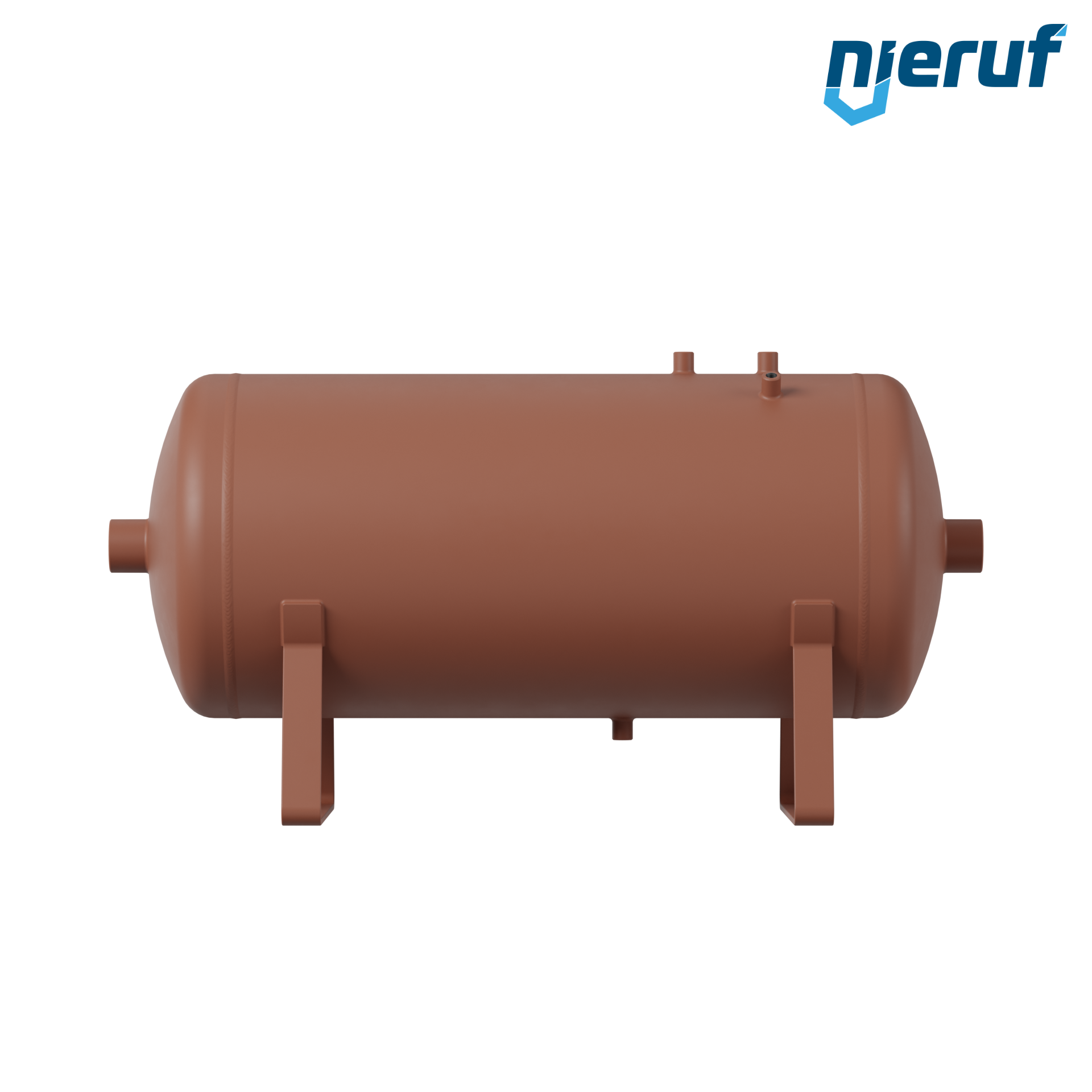

High pressure vessel horizontal BE02 150 liter, 0-36 bar, steel primed
High pressure vessel BE02 with 150 liter volume horizontal with operating pressure 0-36 bar made of steel primed (inside raw) and nominal size 450 mm
| product | High pressure vessel |
|---|---|
| type | BE02 |
| manufacturer | NieRuf |
| volume | 150 liter |
| nominal size | 450 mm |
| height | 580 mm |
| length | 1040 mm |
| operating pressure | 0-36 bar |
| version | horizontal |
| temperature | -10°C up to +50°C |
| material | steel primed (inside raw) |
| media | compressed air and nitrogen |
| product feature | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
High pressure vessel horizontal BE02 150 liter, 0-36 bar, steel primed
Article no.
: BE02013103
product:
High pressure vessel
type:
BE02
manufacturer:
NieRuf
volume:
150 liter
nominal size:
450 mm
height:
580 mm
length:
1040 mm
operating pressure:
0-36 bar
version:
horizontal
temperature:
-10°C up to +50°C
material:
steel primed (inside raw)
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
Equipment
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
Lead time: 3 - 5 working days
safety valve 1/2" m SV01 for compressed air, brass PTFE, set pressure 25.1 - 50.0 bar
Lead time: 3 - 5 working days
€44.63 VAT included.
Malleable cast iron fitting plug no. 290, DN15 - 1/2" inch galvanized
Lead time: in stock
2 way ball valve DN15 - 1/2" inch GK01 female x male thread
Lead time: in stock
pressure gauge G 1/2" radial 100 mm steel MM04 0 - 40,0 bar without filling, dry
Lead time: in stock
