BE02010004
High pressure vessel vertical BE02 250 liter, 0-23 bar, steel primed
- Lead time
- max. 11 weeks
Equipment
Safety valve 1 1/2" m SV01 for compressed air FKM brass set pressure 0.2 - 16.0 bar
2 way ball valve DN15 - 1/2" inch GK01 female x male thread
€10.47 VAT included.
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
€57.36 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

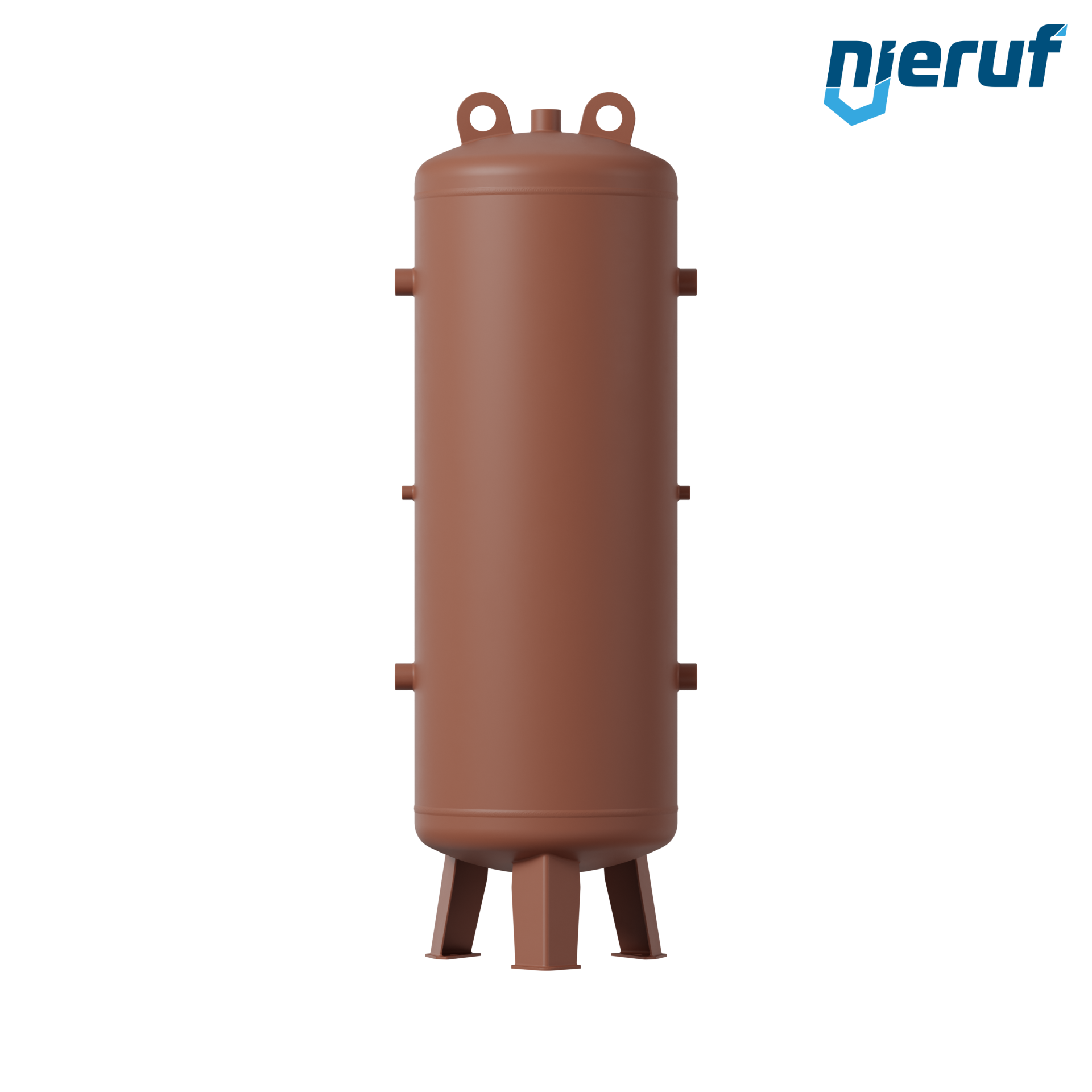

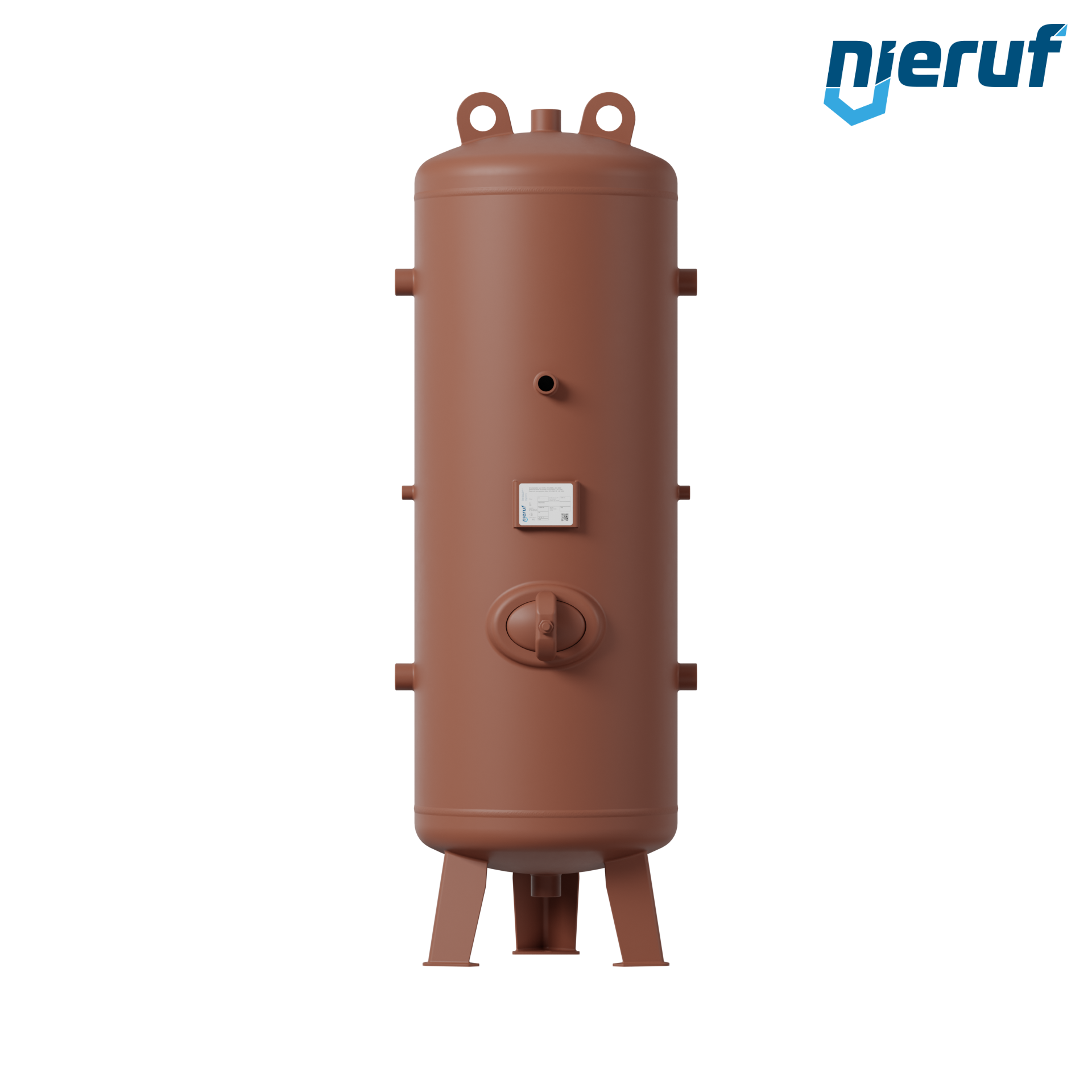

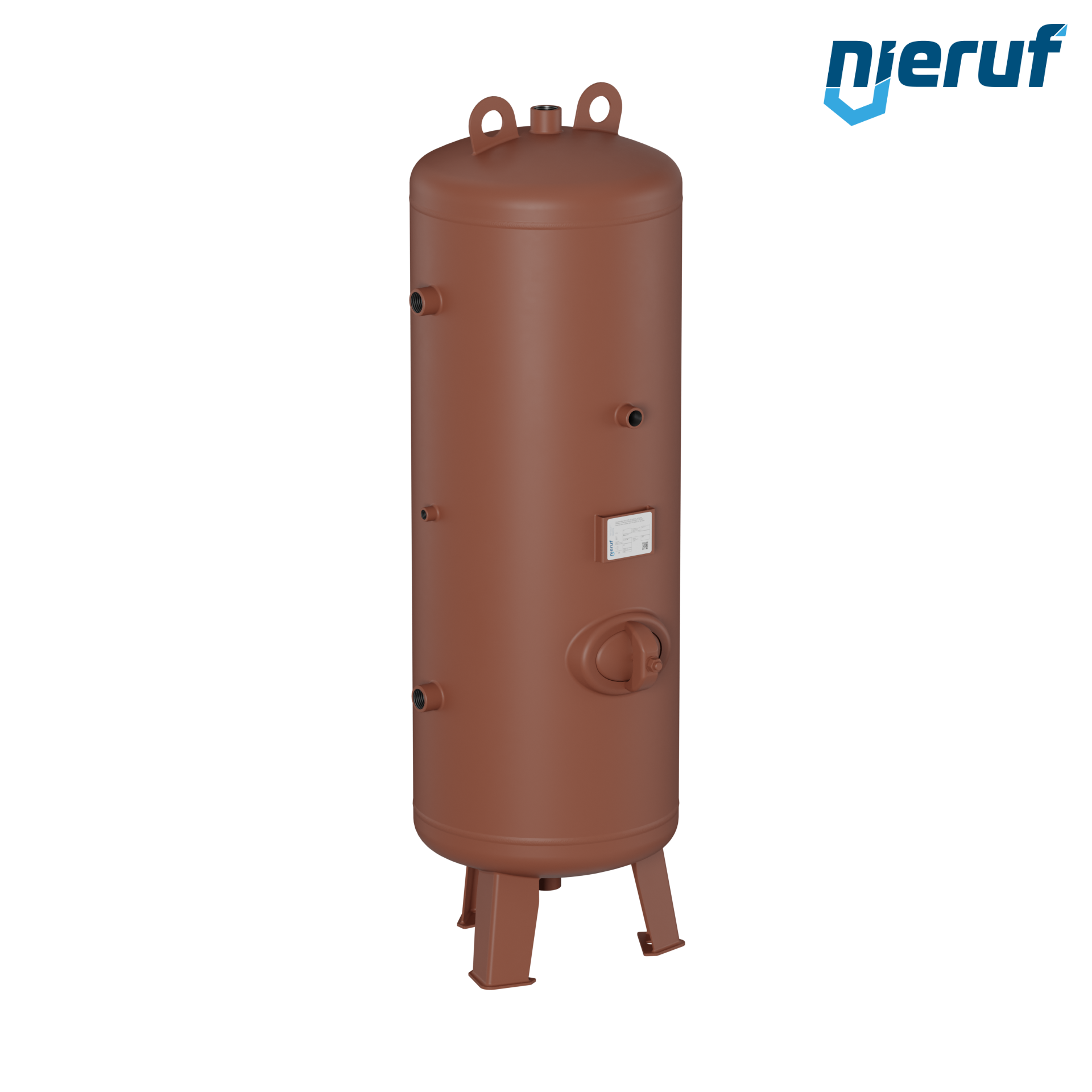

High pressure vessel vertical BE02 250 liter, 0-23 bar, steel primed
High pressure vessel BE02 with 250 liter volume vertical with operating pressure 0-23 bar made of steel primed (inside raw) and nominal size 500 mm
| product | High pressure vessel |
|---|---|
| type | BE02 |
| manufacturer | NieRuf |
| volume | 250 liter |
| nominal size | 500 mm |
| height | 1575 mm |
| operating pressure | 0-23 bar |
| version | vertical |
| temperature | -10°C up to +50°C |
| material | steel primed (inside raw) |
| media | compressed air and nitrogen |
| product feature | Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
High pressure vessel vertical BE02 250 liter, 0-23 bar, steel primed
Article no.
: BE02010004
product:
High pressure vessel
type:
BE02
manufacturer:
NieRuf
volume:
250 liter
nominal size:
500 mm
height:
1575 mm
operating pressure:
0-23 bar
version:
vertical
temperature:
-10°C up to +50°C
material:
steel primed (inside raw)
media:
compressed air and nitrogen
product feature:
Longitudinal seams welded on both sides for safety with high pressure fluctuations, 1000 start-up & shut-downs and 20% pressure fluctuation range
Equipment
Safety valve 1 1/2" m SV01 for compressed air FKM brass set pressure 0.2 - 16.0 bar
Lead time: 3 - 5 working days
€258.83 VAT included.
manometer gauge valves male thread x sleeve x test flange 60x25 mm DIN 16271 brass 250 bar
Lead time: 3 - 5 working days
Malleable cast iron fitting plug no. 290, DN15 - 1/2" inch galvanized
Lead time: in stock
2 way ball valve DN15 - 1/2" inch GK01 female x male thread
Lead time: in stock
