AV06110007

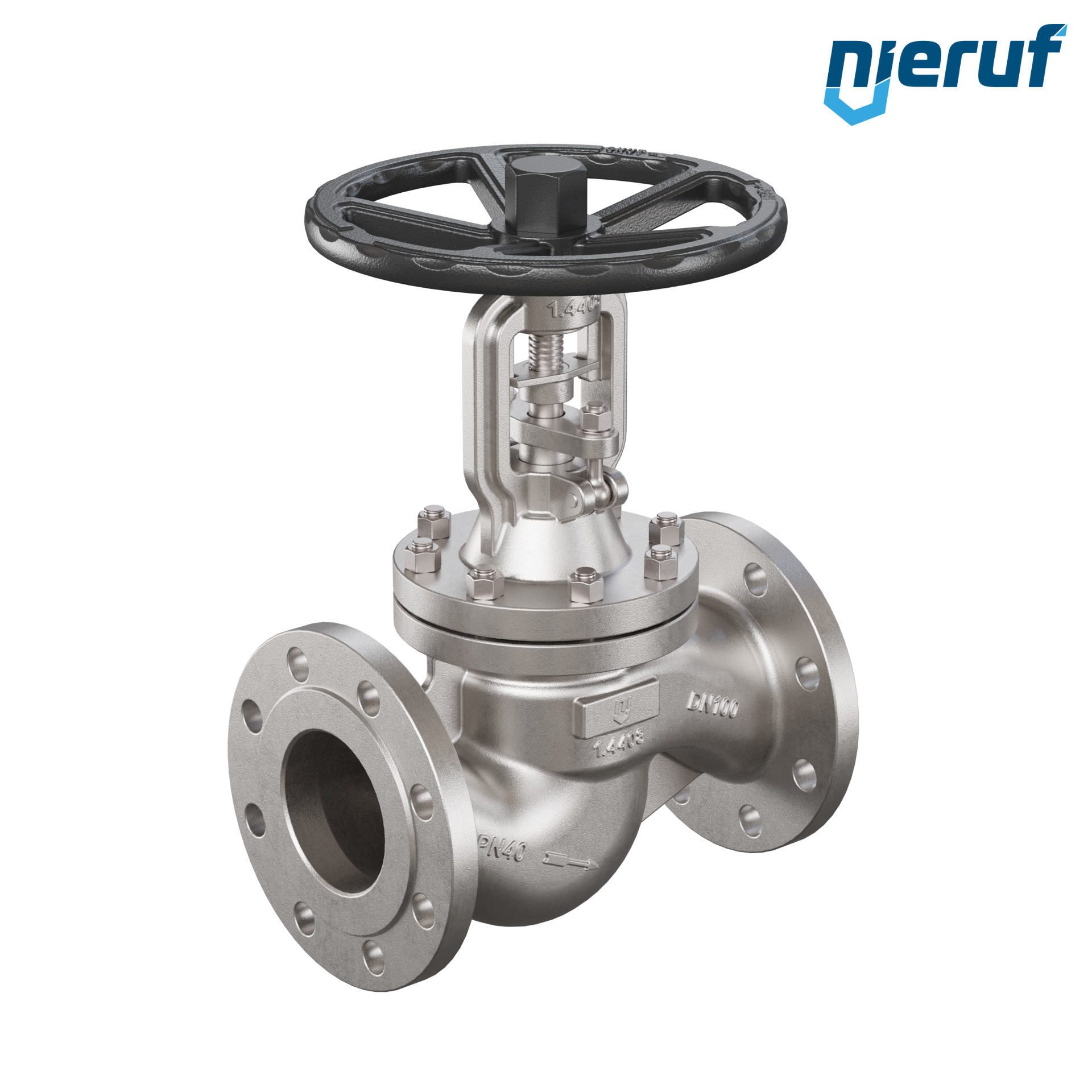

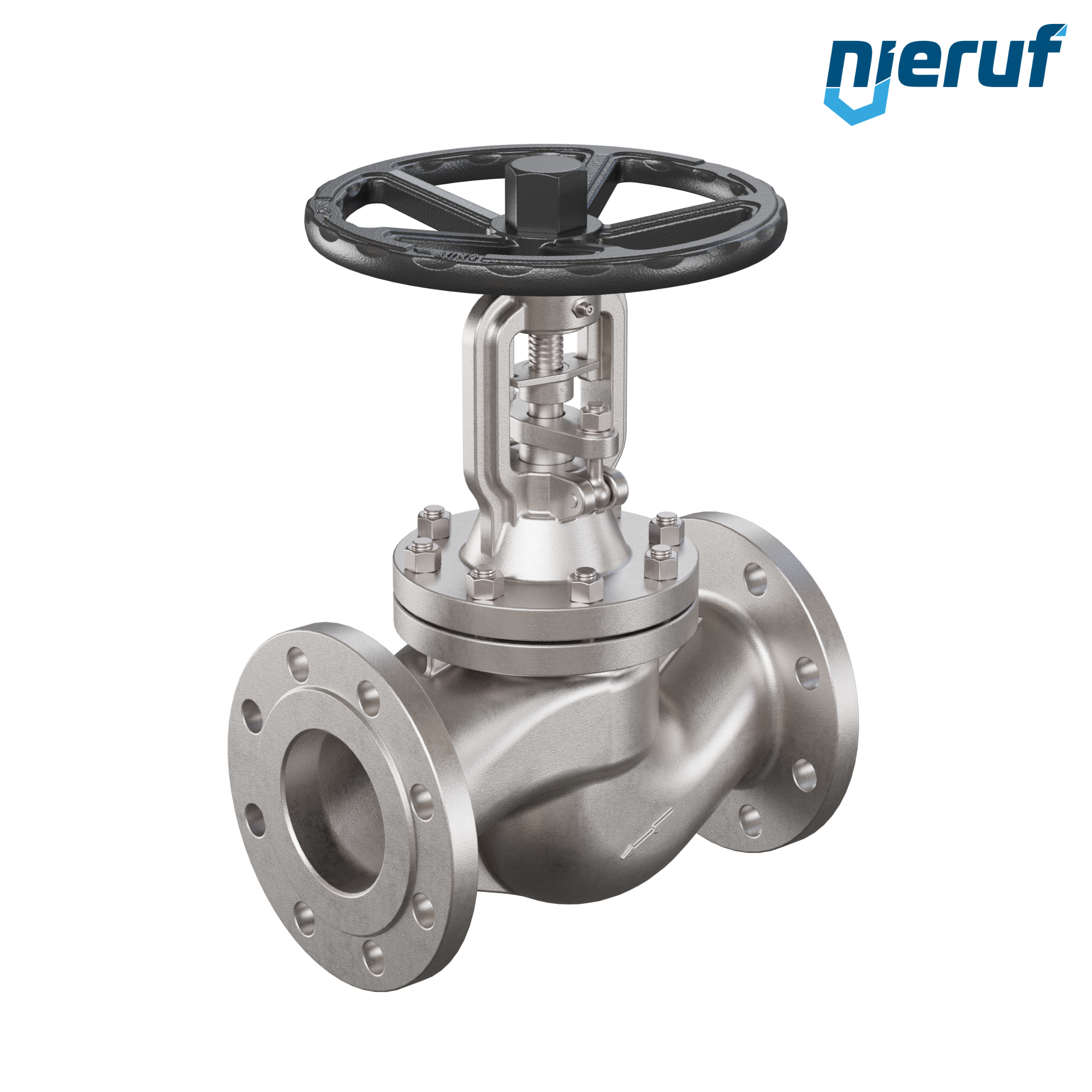

Globe valve with bellow DN40 PN40 AV06 stainless steel CF8M
- Lead time
- 3 - 5 working days
Equipment
Welding neck flange DN40 PN10/16/25/40 EN1092-1 11 B1 1.4541
€38.32 VAT included.
flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400
€3.21 VAT included.
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 stainless steel
€8.09 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Globe valve with bellow DN40 PN40 AV06 stainless steel CF8M
Globe valve AV06 DN40 PN40 in straightway form with bellow flange acc. DIN EN 1092 material stainless steel CF8M
| Product | globe valve |
|---|---|
| Type | AV06 |
| Manufacturer | NieRuf |
| Diameter | DN40 |
| Flange | flange acc. DIN EN 1092 |
| Pressure | PN40 |
| Seal | graphite |
| Media | liquid, gaseous media and steam |
| Temperature | -10°C up to +400°C - depending on operating pressure |
| Pressure range | 0 up to 40 bar - depending on temperature |
| Length | straightway form with bellow |
| Body material | stainless steel CF8M |
| Bonnet material | stainless steel CF8M |
| Handwheel | carbon steel 1.0036 (non-rising) |
| Bellow | stainless steel 1.4401 |
| Construction length | acc. DIN EN 558-1 series 1 |
| Testing | final testing according to DIN EN 12266 |
| Installation position | any position, spindle preferably vertical |
| Standard | DIN EN 13709:2010-10 |
| Product feature | globe valve with bellows in straightway form with flange connection and rising stem as well as non-rising handwheel. valve according to TA-Luft 2021. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Globe valve with bellow DN40 PN40 AV06 stainless steel CF8M
Article no.
: AV06110007
Product:
globe valve
Type:
AV06
Manufacturer:
NieRuf
Diameter:
DN40
Flange:
flange acc. DIN EN 1092
Pressure:
PN40
Seal:
graphite
Media:
liquid, gaseous media and steam
Temperature:
-10°C up to +400°C - depending on operating pressure
Pressure range:
0 up to 40 bar - depending on temperature
Length:
straightway form with bellow
Body material:
stainless steel CF8M
Bonnet material:
stainless steel CF8M
Handwheel:
carbon steel 1.0036 (non-rising)
Bellow:
stainless steel 1.4401
Construction length:
acc. DIN EN 558-1 series 1
Testing:
final testing according to DIN EN 12266
Installation position:
any position, spindle preferably vertical
Standard:
DIN EN 13709:2010-10
Product feature:
globe valve with bellows in straightway form with flange connection and rising stem as well as non-rising handwheel. valve according to TA-Luft 2021.
Equipment
flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400
Lead time: in stock
Welding neck flange DN40 PN10/16/25/40 EN1092-1 11 B1 1.4541
Lead time: in stock
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 stainless steel
Lead time: in stock
