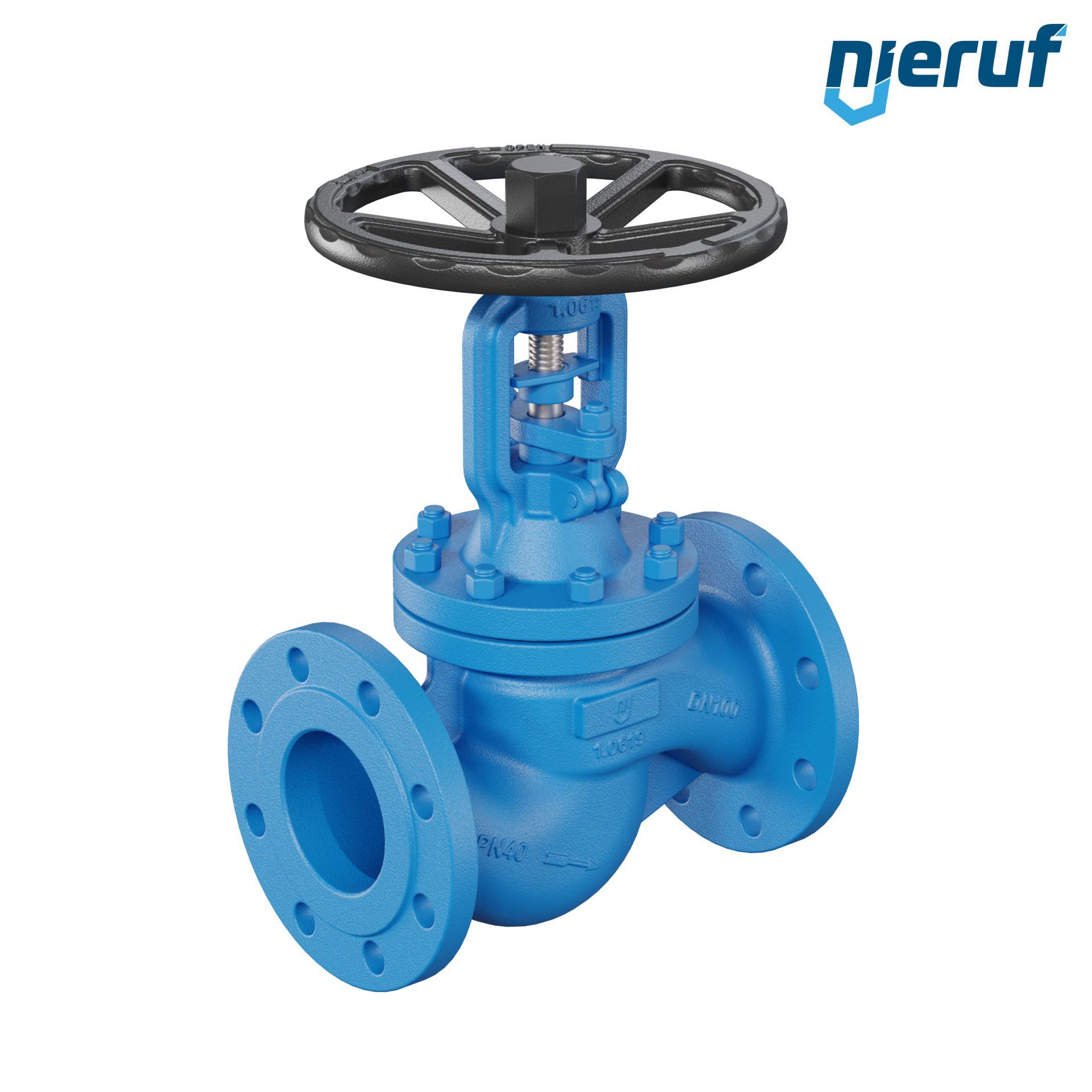

Globe valve DN20 PN40 regulation cone in straight through with bellow flange acc. DIN EN 1092 material cast steel 1.0619+N
| product | Globe valve |
|---|---|
| type | AV05 |
| manufacturer | NieRuf |
| diameter | DN20 |
| flange | flange acc. DIN EN 1092 |
| pressure | PN40 |
| seal | graphite |
| media | liquid and gaseous media |
| temperature | -10°C up to +400°C - depending on working pressure |
| pressure range | 0 up to 40 bar - depending on operating temperature |
| design | straight through with bellow |
| body material | cast steel 1.0619+N |
| material spindel unit | cast steel 1.0619+N |
| handwheel | carbon steel 1.0036 (non-rising) |
| plug | regulation cone |
| bellow | stainless steel 1.4401 / 316 |
| length | acc DIN EN 558-1 series 1 |
| approval | Final testing according to DIN EN 12266 |
| authorized for | TA-Luft 2021, ATEX 2014/34/EU |
| installation position | any position, spindle preferably vertical |
| product feature | Globe valve with bellows in straight-through design with flanged connection and rising stem as well as non-rising handwheel. With TA-Luft 2021 and ATEX 2014/34/EU approval. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Globe valve with bellow DN20 PN40 AV05 cast steel 1.0619+N regulation cone
Article no.
: AV05120004
product:
Globe valve
type:
AV05
manufacturer:
NieRuf
diameter:
DN20
flange:
flange acc. DIN EN 1092
pressure:
PN40
seal:
graphite
media:
liquid and gaseous media
temperature:
-10°C up to +400°C - depending on working pressure
pressure range:
0 up to 40 bar - depending on operating temperature
design:
straight through with bellow
body material:
cast steel 1.0619+N
material spindel unit:
cast steel 1.0619+N
handwheel:
carbon steel 1.0036 (non-rising)
plug:
regulation cone
bellow:
stainless steel 1.4401 / 316
length:
acc DIN EN 558-1 series 1
approval:
Final testing according to DIN EN 12266
authorized for:
TA-Luft 2021, ATEX 2014/34/EU
installation position:
any position, spindle preferably vertical
product feature:
Globe valve with bellows in straight-through design with flanged connection and rising stem as well as non-rising handwheel. With TA-Luft 2021 and ATEX 2014/34/EU approval.
