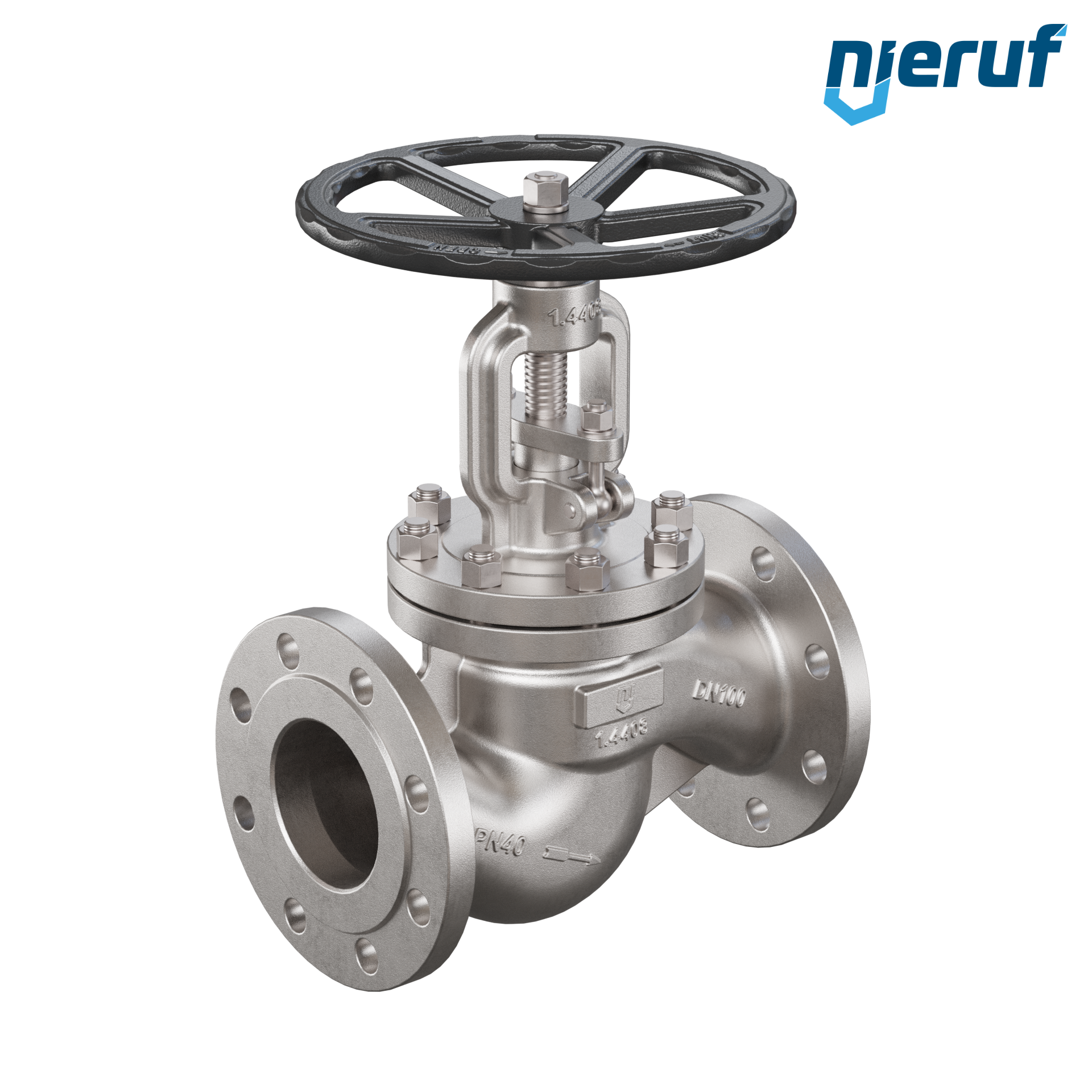

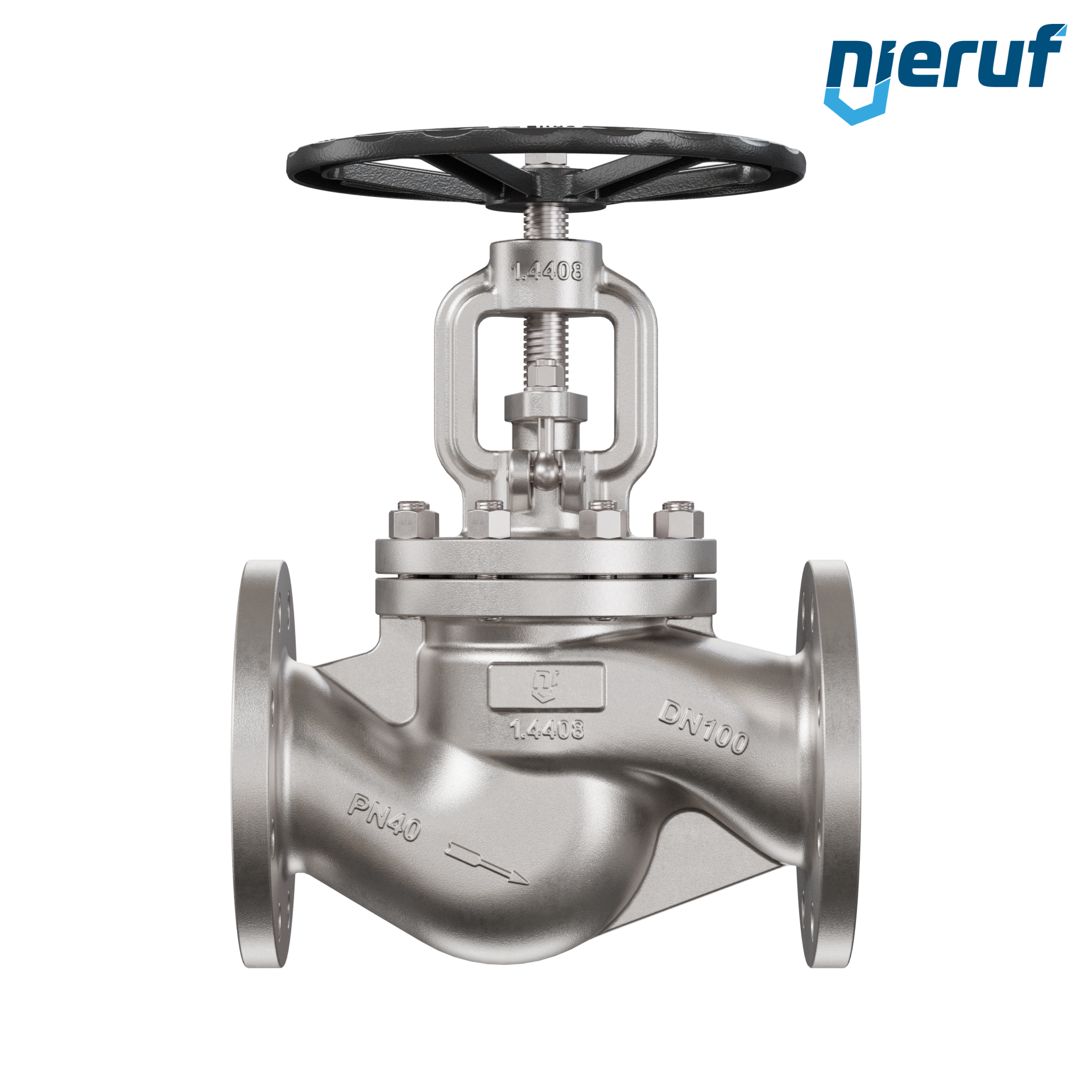

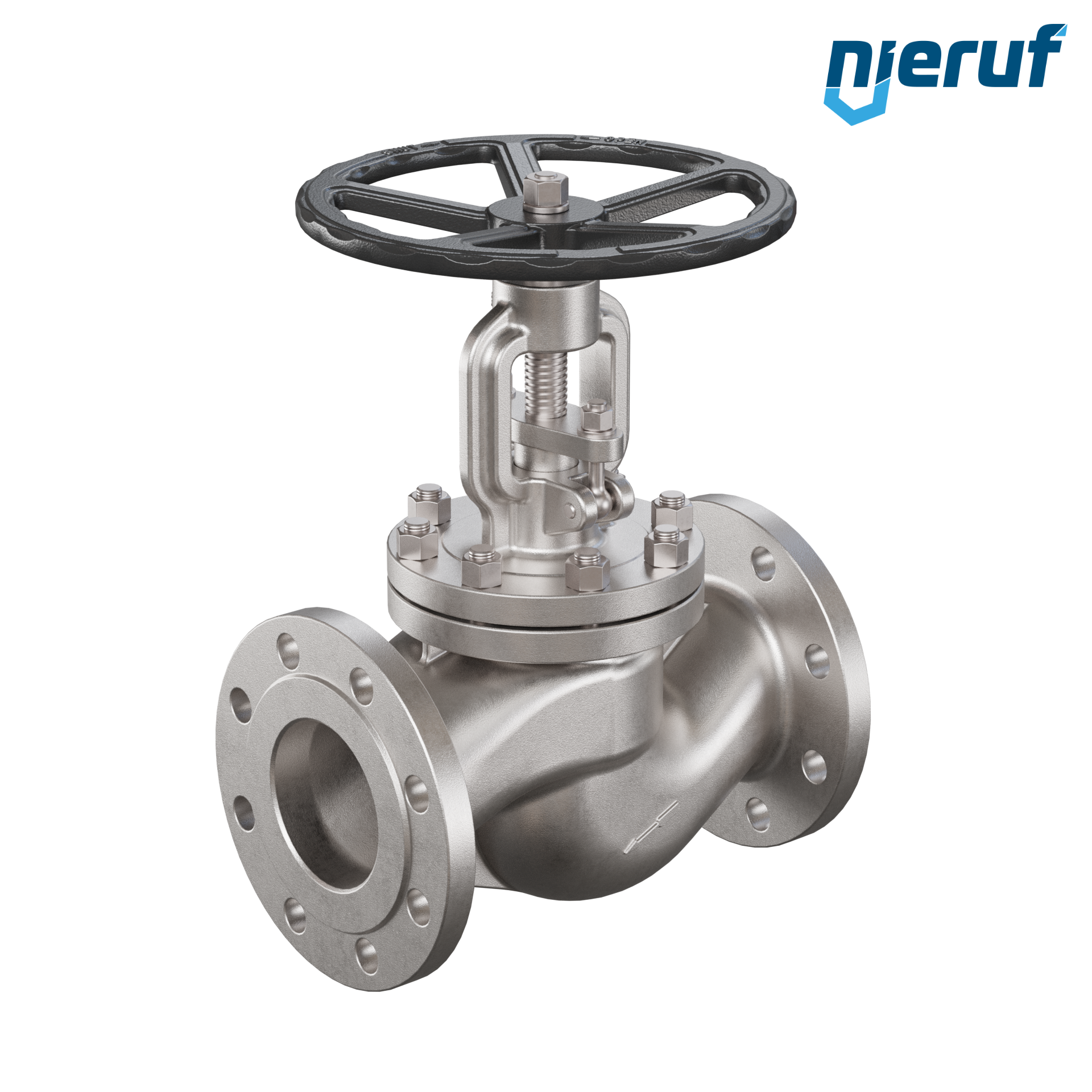

Globe valve DN15 PN40 isolation plug in straight through flange acc. DIN EN 1092 material stainless steel 1.4408 / CF-8M
| product | Globe valve |
|---|---|
| type | AV08 |
| manufacturer | NieRuf |
| diameter | DN15 |
| flange | flange acc. DIN EN 1092 |
| pressure | PN40 |
| seal | graphite |
| media | liquid and gaseous media |
| temperature | -10°C up to +400°C - depending on working pressure |
| pressure range | 0 up to 40 bar - depending on operating temperature |
| design | straight through |
| body material | stainless steel 1.4408 / CF-8M |
| material spindel unit | stainless steel 1.4408 / CF-8M |
| handwheel | carbon steel 1.0036 (rising) |
| plug | isolation plug |
| length | acc DIN EN 558-1 series 1 |
| approval | Final testing according to DIN EN 12266 |
| authorized for | TA-Luft 2021, ATEX 2014/34/EU |
| installation position | any position, spindle preferably vertical |
| product feature | Globe valve in straight through design with flanged connection and rising stem as well as rising handwheel. With TA-Luft 2021 and ATEX 2014/34/EU approval. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Globe valve DN15 PN40 AV08 stainless steel 1.4408 isolation plug
Article no.
: AV08110003
product:
Globe valve
type:
AV08
manufacturer:
NieRuf
diameter:
DN15
flange:
flange acc. DIN EN 1092
pressure:
PN40
seal:
graphite
media:
liquid and gaseous media
temperature:
-10°C up to +400°C - depending on working pressure
pressure range:
0 up to 40 bar - depending on operating temperature
design:
straight through
body material:
stainless steel 1.4408 / CF-8M
material spindel unit:
stainless steel 1.4408 / CF-8M
handwheel:
carbon steel 1.0036 (rising)
plug:
isolation plug
length:
acc DIN EN 558-1 series 1
approval:
Final testing according to DIN EN 12266
authorized for:
TA-Luft 2021, ATEX 2014/34/EU
installation position:
any position, spindle preferably vertical
product feature:
Globe valve in straight through design with flanged connection and rising stem as well as rising handwheel. With TA-Luft 2021 and ATEX 2014/34/EU approval.
